Panasonic 2SA1739 User manual

Transistors

Publication date: March 2003 SJC00027BED

2SA1739

Silicon PNP epitaxial planar type

For high speed switching

Complementary to 2SC3938

■Features

•High speed switching

•Low collector-emitter saturation voltage VCE(sat)

•S-Mini type package, allowing downsizing of the equipment and

automatic insertion through the tape packing

■Absolute Maximum Ratings Ta=25°C

Parameter Symbol Rating Unit

Collector-base voltage (Emitter open) VCBO −15 V

Collector-emitter voltage (Base open) VCEO −15 V

Emitter-base voltage (Collector open) VEBO −4V

Collector current IC−50 mA

Peak collector current ICP −100 mA

Collector power dissipation PC150 mW

Junction temperature Tj150 °C

Storage temperature Tstg −55 to +150 °C

Parameter Symbol Conditions Min Typ Max Unit

Collector-base cutoff current (Emitter open)

ICBO VCB =−8 V, IE=0 −0.1 µA

Emitter-base cutoff current (Collector open)

IEBO VCE =−3 V, IC=0 −0.1 µA

Forward current transfer ratio hFE1 *VCE =−1 V, IC=−10 mA 50 150 

hFE2 VCE =−1 V, IC=−1 mA 30

Collector-emitter saturation voltage VCE(sat) IC=−10 mA, IB=−1 mA −0.1 −0.2 V

Transition frequency fTVCB =−10 V, IE=10 mA, f =200 MHz 800 1

500 MHz

Collector output capacitance Cob VCB = −5 V, IE= 0, f = 1 MHz 1 pF

(Common base, input open circuited)

Turn-on time ton Refer to the switching time 12 ns

Turn-off time toff measurement circuit 20 ns

Storage time tstg 19 ns

■Electrical Characteristics Ta=25°C ±3°C

Unit: mm

Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.

2. *: Rank classification

2.1±0.1

1.3±0.1

0.3+0.1

–0.0

2.0±0.2

1.25±0.10 (0.425)

(0.65) (0.65)

0.2±0.1

0.9±0.10 to 0.1

0.9+0.2

–0.1

0.15+0.10

–0.05

5˚

10˚

Rank Q R No-rank

hFE1 50 to 120 90 to 150 50 to 150

Marking symbol AXQ AXR AX

Marking Symbol: AX

Product of no-rank is not classified and have no marking symbol for rank.

1: Base

2: Emitter

3: Collector

EIAJ: SC-70

SMini3-G1 Package

This product complies with the RoHS Directive (EU 2002/95/EC).

2SA1739

2SJC00027BED

ICVCE VCE(sat) ICVBE(sat) IC

PCTa

hFE ICfTIECob VCB

Switching time measurement circuit

ton , toff Test circuit tstg Test circuit

508 Ω30 Ω

51 Ω

VBB =−10 V

VIN

VCC =−3 V

VIN =9.0 VVIN =−5.8 V

VBB =Ground

VIN =9.8 V

VBB =−8.0 V

VOUT

0.1 µF34 Ω

VIN 0

VOUT

VIN

VOUT

90%

90% 10%

10%

tstg

ton toff

90%

2 kΩ62 Ω

51 Ω

VBB

VIN

VCC =−1.5 V

VOUT

0.1 µF52 Ω

0 16040 12080

200

160

120

Collector power dissipation P

(mW)

Ambient temperature T

(°C)

0−12−10−8−2−6−4

−60

−50

−40

−30

−20

−10

=25°C

−300 µA

−500 µA

−400 µA

−100 µA

−200 µA

=−600 µA

Collector current I

(mA)

Collector-emitter voltage V

(V)

−1−10 −100 −1 000

−0.01

−0.1

−1

−10

−100 I

/ I

=10

25°C

−25°C

=75°C

Collector-emitter saturation voltage VCE(sat) (V)

Collector current IC(mA)

−1−10 −100 −1 000

−0.01

−0.1

−1

−10

−100 IC/ IB=10

25°C

−25°C

Ta=75°C

Collector-emitter saturation voltage VCE(sat) (V)

Collector current IC(mA)

−0.1 −1−10 −100

240

200

160

120

=−10 V

=75°C

25°C

−25°C

Forward current transfer ratio h

Collector current I

(mA)

1 10 100

2 400

2 000

1 600

1 200

800

400

VCB =−10 V

f =200 MHz

Ta=25°C

Transition frequency fT(MHz)

Emitter current IE(mA)

−1−10 −100

2.4

2.0

1.6

1.2

0.8

0.4

IE=0

f =1 MHz

Ta=25°C

Collector-base voltage VCB (V)

Collector output capacitance

(Common base, input open circuited) Cob (pF)

This product complies with the RoHS Directive (EU 2002/95/EC).

Request for your special attention and precautions in using the technical information and

semiconductors described in this book

(1)If any of the products or technical information described in this book is to be exported or provided to non-residents, the laws and

regulations of the exporting country, especially, those with regard to security export control, must be observed.

(2)The technical information described in this book is intended only to show the main characteristics and application circuit examples

of the products, and no license is granted under any intellectual property right or other right owned by our company or any other

company. Therefore, no responsibility is assumed by our company as to the infringement upon any such right owned by any other

company which may arise as a result of the use of technical information described in this book.

(3)The products described in this book are intended to be used for standard applications or general electronic equipment (such as office

equipment, communications equipment, measuring instruments and household appliances).

Consult our sales staff in advance for information on the following applications:

–Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion equipment, life support

systems and safety devices) in which exceptional quality and reliability are required, or if the failure or malfunction of the prod-

ucts may directly jeopardize life or harm the human body.

–Any applications other than the standard applications intended.

(4)The products and product specifications described in this book are subject to change without notice for modification and/or im-

provement. At the final stage of your design, purchasing, or use of the products, therefore, ask for the most up-to-date Product

Standards in advance to make sure that the latest specifications satisfy your requirements.

(5)When designing your equipment, comply with the range of absolute maximum rating and the guaranteed operating conditions

(operating power supply voltage and operating environment etc.). Especially, please be careful not to exceed the range of absolute

maximum rating on the transient state, such as power-on, power-off and mode-switching. Otherwise, we will not be liable for any

defect which may arise later in your equipment.

 Even when the products are used within the guaranteed values, take into the consideration of incidence of break down and failure

mode, possible to occur to semiconductor products. Measures on the systems such as redundant design, arresting the spread of fire

or preventing glitch are recommended in order to prevent physical injury, fire, social damages, for example, by using the products.

(6)Comply with the instructions for use in order to prevent breakdown and characteristics change due to external factors (ESD, EOS,

thermal stress and mechanical stress) at the time of handling, mounting or at customer's process. When using products for which

damp-proof packing is required, satisfy the conditions, such as shelf life and the elapsed time since first opening the packages.

(7)This book may be not reprinted or reproduced whether wholly or partially, without the prior written permission of Matsushita

Electric Industrial Co., Ltd.

Other Panasonic Computer Hardware manuals

Panasonic

Panasonic MICROCOMPUTER MN103S Instruction manual

Panasonic

Panasonic KX-TDE0101 User manual

Panasonic

Panasonic WJ-MPU850 User manual

Panasonic

Panasonic WJ-NDB301 User manual

Panasonic

Panasonic KX-W1000 User manual

Panasonic

Panasonic TY-42TM6D - Monitor Terminal Expansion Board User manual

Panasonic

Panasonic WZ-TDDA User manual

Panasonic

Panasonic WJ-PB85D01 User manual

Panasonic

Panasonic SH-AC300 User manual

Panasonic

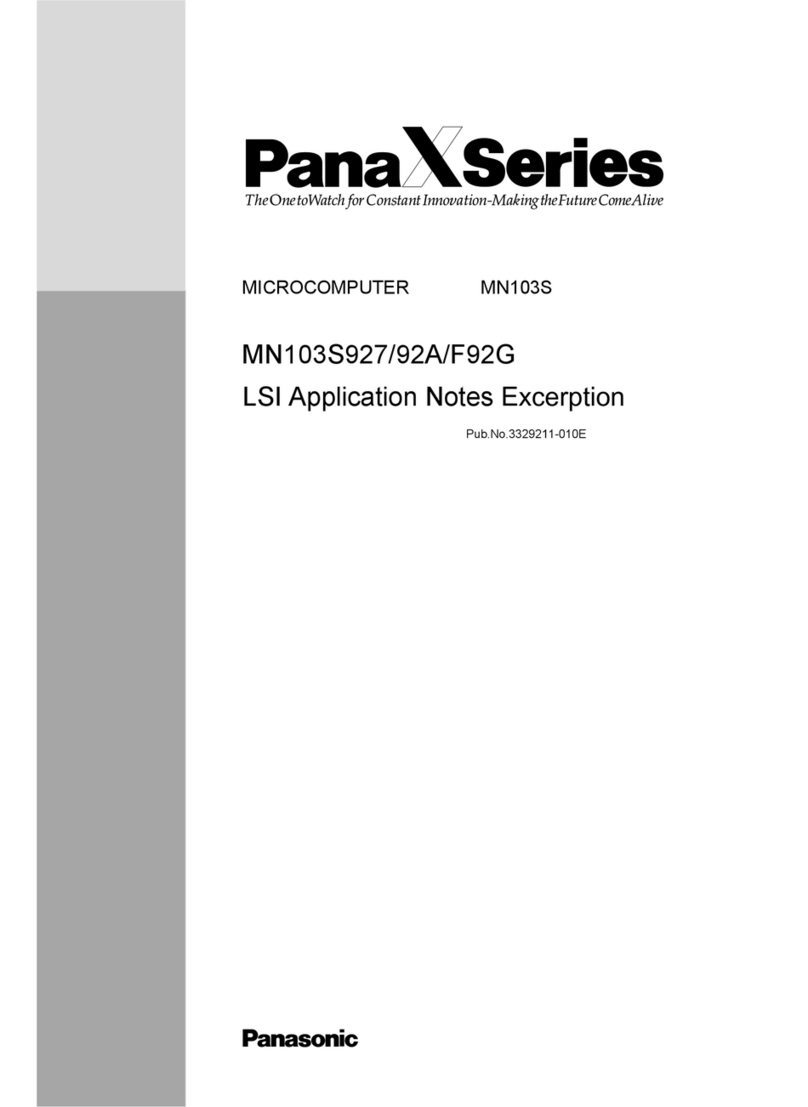

Panasonic MICROCOMPUTER MN103S Installation and operating instructions
