INSTALLATION AND OPERATING INSTRUCTIONS

Room Air Conditioner

Model:

CW-XC80HU

CW382820391J

ECONOMYFANCOOL

DRY

OPERATION

TEMP

TIMERMODE

OFF/ON

FAN

SPEED

FAN

SPEED

Safety Precautions

About the Controls on the Air Conditioner

Features and Installation

Before you call for service...

FOR YOUR RECORDS

Staple your receipt to this page in case you need it later.

Write down the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the chart

of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

READ THIS MANUAL

CAUTION

• Contact the authorized Service technician for repair or

maintenance of this unit.

• The air conditioner is not intended for use by young

children or infirm persons without supervision.

• Young children should be supervised to ensure that they

do not play with the air conditioner.

Safety Precautions

Safety Precautions .............3

About the Controls on

the Air Conditioner

Controls..............................5

Remote Controller ..............6

Ventilation ..........................7

Air Direction........................8

How to Secure Drain Pipe

....8

Care and Maintenance

Air Filter Cleaning...............9

Features

Features .............................9

Installation

How to Install the Unit ......10

Window Requirements .....10

Installation Kit Contents ...11

Suggested Tool

Requirements...................11

Cabinet Installation...........12

Electrical Data ..................14

Electrical Safety ...............15

Before you call for

service...

Normal Operation.............16

Abnormal Operation .........16

WARNING

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be

followed.

■Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified

by the following indications.

WARNING : This symbol indicates the possibility of death or serious injury.

CAUTION :This symbol indicates the possibility of injury or damage to

property only.

■Meanings of symbols used in this manual are as shown below.

Be sure not to do this.

Be sure to follow the instructions.

Plug in the power plug

properly.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

• It will cause electric shock or fire

due to heat generation.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or fire.

•

If the power cord is damaged, it must

be replaced by the manufacturer or

an authorized service center or a

similarly qualified person in order to

avoid a hazard.

Do not modify power cord

length or share the outlet

with other appliances.

• It will cause electric shock or fire

due to heat generation.

Do not operate with wet

hands or in a damp

environment.

• It will cause electric shock.

Do not direct air flow at room

occupants.

• This could lead to health

problems.

Safety Precautions

When the air filter is to be

removed, do not touch the

metal parts of the unit.

• It may cause an injury.

Do not clean the air

conditioner with water.

• Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

Ventilate well when used

together with a stove, etc.

• An oxygen shortage may occur.

When the unit is to be

cleaned, switch off, and turn

off the breaker.

• Since the fan rotates at high

speed during operation, it may

cause an injury.

Do not put a pet or house

plant where it will be exposed

to direct air flow.

• This could injure the pets or

plants.

Do not use for special

purposes.

• Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

Do not operate switches

with wet hands

• It may cause an electric shock.

Do not apply an insecticide

or flammable spray.

• It may cause a fire or deformation

of the cabinet.

Do not put a heater, etc.

where it is exposed to direct

air flow.

•

It may cause imperfect

combustion.

About the Controls on the Air Conditioner

ECONOMY FAN COOL

DRY

OPERATION

TEMPTEMP

TIMER MODE OFF/ON

FAN

SPEED

FAN

SPEED

3 2 5

Model : CW-XC80HU

About the Controls on the Air Conditioner

Controls

OPERATION

• To turn the air conditioner ON, push the

OFF/ON button.

To turn the air conditioner OFF, push the

button again.

• This button takes priority over any other

buttons.

• When you first turn it on, the air conditioner

is on the High cool mode and the temp. at

72°F (22°C)

MODE

•

Evey time you push this button,it will toggle

between COOL,FAN and DRY.

ON/OFF TIMER

• Every time you push the TIMER button,

timer is set as follows. (1Hour →2Hours →

3Hours →4Hours →5Hours →6Hours →

7Hours →8Hours →9Hours →10Hours →

11Hours →12Hours →O)

• The Setting Temperature will be raised by

2°F(1˚C) 30 min. later and by 2°F(1˚C) after

another 30 min.

FAN SPEED

• Every time you push this button it is set as

follows. {High(F3) →Low(F1) →Med(F2) →

High(F3)...}.

TEMPERATURE SETTING

• This button can automatically control the

temperature of the room. The temperature can

be set within a range of 60°F to 86°F by 1°F

(16˚C to 30˚C by 1˚C). Select the lower number

for lower temperature of the room.

REMOTE CONTROL SIGNAL RECEIVER

OPERATION

TEMP

TIMER

MODE FAN SPEED

2 4

Model: CW-XC80HU

About the Controls on the Air Conditioner

Remote controller

OPERATION

•To turn the air conditioner ON, push the button.

To turn the air conditioner OFF, push the button

again.

•This button takes priority over any other buttons.

•When you first turn it on, the air conditioner is on

the High cool mode and the temp. at 72°F (22˚C).

MODE

•Every time you push this button, it will toggle

between COOL, FAN and DRY.

ON/OFF TIMER

- STOPPING OPERATION

•Every time you push this button, when the air

conditioner is operating, timer is set as follows.

(1Hour →2Hours →3Hours →4Hours →5Hours

→6Hours →7Hours →8Hours →9Hours →

10Hours →11Hours →12Hours →O)

•The Setting Temperature will be raised by

2°F (1°C) 30 min. later and by 2°F (1°C) after

another 30 min.

- STARTING OPERATION

•Every time you push this button, when the air

conditioner is not operating, timer is set as follows.

(1Hour →2Hours →3Hours →4Hours →5Hours

→6Hours →7Hours →8Hours →9Hours →

10Hours →11Hours →12Hours →O)

FAN SPEED

•Every time you push this button it is set as follows.

{High(F3) →Low(F1) →Med(F2) →High(F3)...}.

TEMPERATURE SETTING

•This button can automatically control the

temperature of the room.

The temperature can be set within a range of 60°F

to 86°F by 2°F(16˚C to 30˚C by 1˚C). Select the

lower number for lower temperature of the room.

DRY

•When this unit is in dry mode, the fan rotates in

low speed. The fan stops when the compressor

stops cooling.

Approximately every 3 minutes the fan will turn on

and the unit checks the room air temperature to

set itself.

Precaution:

The Remote Controller will not function properly if strong light strikes the sensor window of the

air conditioner or if there are obstacles between the Remote Controller and the air conditioner.

VENTCLOSE OPEN

Part

Drain pipe

Drain cap

Fig. 3

Fig. 2

Fig. 1

Controlled

manually

Controlled

manually

OFF/ON

OPERATION

TEMP/TIMER

COOL

FAN

HIGH

MED

LOW

MODE

FANSPEED

SET

TIMER

SET/

CANCEL

AIRSWING

ECONOMY

Wireless

RemoteControl

Remove the

rubber plug

OFF/ON

OPERATION

TEP/TI

COOL

FAN

HIGH

MED

LOW

MOE

FANSPEED

SET

TIMER

SET/

CNE

AIR

ECONOMY

Wireless

RemoteControl

DRAIN

PAN

DRAIN HOSE

Inside diameter 17mm (5/8")

CABINET

SCREW

About the Controls on the Air Conditioner

Additional controls and important information.

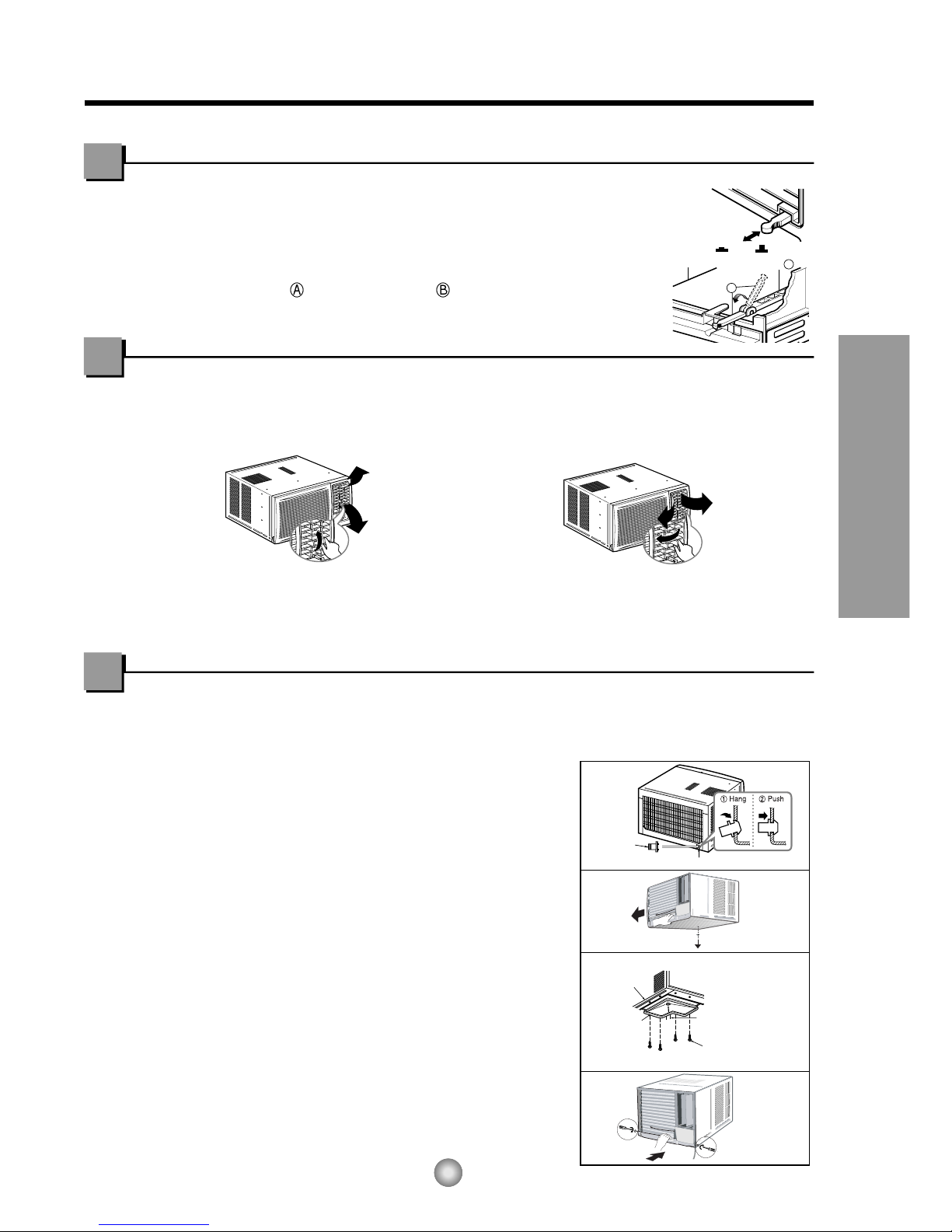

Ventilation

The ventilation lever must be in the CLOSE position in order to maintain the best

cooling conditions. When fresh air is necessary in the room, set the ventilation

lever to the OPEN position.

The damper is opened and room air is drawn out.

NOTE: Before using the ventilation feature, and prior to installing the front grille,

pull down part until level with part .

Air Direction

The vertical air direction is adjusted by

rotating the horizontal louver forward or

backward manually.

The horizontal air direction is adjusted by rotating

the vertical louver right or left manually or by

Remote Controller.

The direction of air can be controlled wherever you want to cool by adjusting the horizontal

louver and the vertical louver.

•VERTICAL AIR-DIRECTION CONTROL

•

HORIZONTAL AIR-DIRECTION CONTROL

How to Secure the Drain Pipe

In humid weather, excess water may cause the BASE PAN to overflow. To drain the water, remove the

DRAIN CAP and secure the DRAIN PIPE to the rear hole of the BASE PAN. Press the drain pipe into the

hole by pushing down and away from the fins to avoid injury.(See Fig.1)

Optional(CW3H02502C)

1. Remove the rubber plug and slide the chassis out

from the cabinet.(See Fig.2)

2. Install the drain pan over the corner of the cabinet

where you removed the plug with 4 (or 2)

screws.(See Fig.3)

3. Connect the drain hose to the outlet located at the

bottom of the drain pan. You can purchase the drain

hose or tubing locally to satisfy your particular

needs. (Drain hose is not supplied).(See Fig.3)

4. Select the most appropriate connection from among

the figures to the right (by considering the hole of the

unit) to fit drain pan to your own unit.(See Fig.3)

5. Slide the chassis back into the cabinet. Reinstall the

cabinet screws. Secure the cabinet to chassis by

using screws. (See Fig.4)

Air Filter Cleaning

The air filter behind the front grille should be checked and cleaned at least once every 2

weeks or more often if necessary.

TO REMOVE:

1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by

pulling out the top of the inlet grille.

2. Using the tab, pull up slightly on the filter to release it and pull it down or up.

3. Clean the filter with warm, soapy water under 40°C (104°F).

4. Rinse and gently shake the water from the filter and let it dry before replacing it.

CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will

clog it and reduce performance.

How to Insert Batteries

About the Controls on the Air Conditioner

Care and Maintenance

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

1. Remove the cover from the back of the

remote controller.

2. Insert two AAA dry cell batteries.

•Be sure that the (+) and (-) directions

are correct.

•Be sure that both batteries are new.

3. Re-attach the cover.

•Do not use rechargeable

batteries. Such batteries

differ from standard dry

cells in shape,

dimensions, and

performance.

•Remove the batteries

from the remote

controller if the air

conditioner is not going

to be used for an

extended length of time.

Features and Installation

CABINET

FRONT GRILLE

AIR FILTER AIR INTAKE

(INLET GRILLE)

AIR DISCHARGE

HORIZONTAL AIR DEFLECTOR

(VERTICAL LOUVER)

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

EVAPORATOR

POWER CORD

BASE PAN

CONDENSER

COMPRESSOR

BRACE

CONTROL BOARD

REMOTE CONTROLLER

ECONOMYFAN COOL

DRY

OPERATION

TEMP

TIMERMODE

OFF/ON

FAN

SPEED

FAN

SPEED

ECONOMYFANCOOL

DRY

OPERATION

TEMP

TIMERMODE

OFF/ON

FAN

SPEED

FAN

SPEED

Learning parts name prior to installation will help you understand the installation procedure.

Features

Features and Installation

INSTALLATION

1. To prevent vibration and noise, make sure

the unit is installed securely and firmly

2. Install the unit where the sunlight does not

shine directly on the unit.

3. The outside of the cabinet must extend

outward for at least 28cm (11") and there

should be no obstacles, such as a fence or

wall, within 50.8cm (20") from the back of

the cabinet because it will prevent heat

radiation of the condenser.

Restriction of outside air will greatly reduce

the cooling efficiency of the air conditioner.

CAUTION: All side louvers of the cabinet must remain exposed to the outside of the

structure.

4. Install the unit a little slanted so the back is slightly lower than the front

(about 12.7mm (1/2")).

This will force condensed water to flow to the outside.

5. Install the unit with the bottom about 76.2cm (30")~152.4cm (60") above the floor level.

Window Requirements

NOTE: All supporting parts should be secured to firm wood, masonry, or metal.

This unit is designed for installation in

standard double hung windows with actual

opening widths from 55.88cm (22") to

91.44cm (36").

The top and bottom window sash must open

sufficiently to allow a clear vertical opening of

38cm (15") from the bottom of the upper sash

to the window stool.

About 12.7mm (

76.2cm (30")~

152.4cm (60")

Awning

Cooled air

Fence

Over 50.8cm (20")

Heat

radiation

55.8cm (22") to

91.44cm (36")

Offset

12.7mm (

") to

31.8mm (1

Sill

Exterior

Interior wall

47cm (181/2") min.

(Without frame curtain)

Stool

38cm (15") min

(With frame curtain)

How to Install the Unit

Table of contents

Languages:

Other Panasonic Air Conditioner manuals

Panasonic

Panasonic CU-E18CKR User manual

Panasonic

Panasonic CS-VU12SKQ User manual

Panasonic

Panasonic CU-HZ9RKE-4 User manual

Panasonic

Panasonic CS-XE15SKUA Manual

Panasonic

Panasonic S-26PK2U6 User manual

Panasonic

Panasonic S-140MH1H5 User manual

Panasonic

Panasonic CS-C7BKP User manual

Panasonic

Panasonic CS-E9PKEA User manual

Panasonic

Panasonic CS-PS18VKV-7 User manual

Panasonic

Panasonic CS-A7HKD User manual

Panasonic

Panasonic S-12MY2U6 User manual

Panasonic

Panasonic CU-CZ25WKE User manual

Panasonic

Panasonic CS-E9EKK User manual

Panasonic

Panasonic S-15MF3E5AN User manual

Panasonic

Panasonic CS-RZ25TKR User manual

Panasonic

Panasonic CS-S9NKUW User manual

Panasonic

Panasonic S-45MK2E5A User manual

Panasonic

Panasonic CS-LZ25TKE User manual

Panasonic

Panasonic CS-C12HKF User manual

Panasonic

Panasonic CS-E15HKR User manual

Panasonic

Panasonic CS-YW9GKE User manual

Panasonic

Panasonic U-4LZ2E5 User manual

Panasonic

Panasonic CS-RE9NKA User manual

Panasonic

Panasonic CS-TZ71ZKEW User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
