Panasonic CS-RZ25TKR User manual

English

Operating Instructions

Air Conditioner

Operating Instructions

Air Conditioner

Before operating the unit, please read these operating

instructions thoroughly and keep them for future reference.

The included Installation Instructions should be kept and read

by the installer before installation.

Remote control is packaged in the indoor unit and removed

by the installer before installation.

Model No.

Indoor Unit Outdoor Unit

CS-RZ25TKR

CS-RZ35TKR

CU-RZ25TKR

CU-RZ35TKR

ECONOMY

iAUTO-X

ACXF55-11360

ACXF55-11360_SM0717-0_EN.indd 1ACXF55-11360_SM0717-0_EN.indd 1 13/6/2017 11:54:28 AM13/6/2017 11:54:28 AM

Provides maximum comfort and clean air

with optimal energy saving methods.

Use remote

control within 8 m

from the remote

control receiver of

the indoor unit.

Quick Guide

Inserting the batteries

1Pull out the back cover

of remote control.

Insert AAA or R03

batteries.

3Close the cover.

AClock setting

1Press and

set the

time .

• Press and hold

for approximately

5 seconds to show

time in 12-hour

(am/pm) or 24 hour

indication.

2Conﬁrm .

FAN SPEED

AIR SWING

ECONOMY

OFF

SET

CANCEL

TIMER

TEMP

OFF/ON

MODE

FAN SPEED

AIR SWING

ECONOMY

OFF

CANCEL

TIMER

ACXF55-11360_SM0717-0_EN.indd 2ACXF55-11360_SM0717-0_EN.indd 2 13/6/2017 11:54:29 AM13/6/2017 11:54:29 AM

Table of contents

Safety precautions

…………

4-7

How to use

………………………

8-9

To learn more

…………………

Cleaning instructions

………

Troubleshooting

…………

12-14

Information………………… 15

Accessories

• Remote control

• AAA or R03 batteries × 2

• Remote control holder

• Screws for remote control

holder × 2

The illustrations in this manual are for

explanation purposes only and may differ

from the actual unit. They are subject

to change without notice for future

improvement.

BBasic operation

2Press

OFF/ON

start/stop the

operation.

POWER

• Please note that

the indication

is on display to

start the unit.

3Select the desired

temperature.

TEMP

Down

Selection range:

16.0 °C ~ 30.0 °C /

60 °F ~ 86 °F.

• Press and hold for

approximately 10 seconds

to switch the temperature

indication in °C or °F.

Thank you for purchasing

Panasonic Air Conditioner.

WARNING

This symbol shows

that this equipment

uses a ﬂammable

refrigerant. If the

refrigerant is leaked,

together with an

external ignition

source, there is

a possibility of

ignition.

CAUTION

This symbol shows

type of ﬂammable

refrigerant

contained in the

system.

CAUTION

This symbol shows

that the Operation

Instructions should

be read carefully.

CAUTION

This symbol shows

that a service

personnel should be

handling this

equipment with

reference to the

Installation

Instructions.

CAUTION

This symbol

shows that there is

information included

in the Operation

Instructions and/

or Installation

Instructions.

1Press

MODE

to select

the desired mode.

AUTO HEAT COOL

FANi AUTO-X DRY

English

ACXF55-11360_SM0717-0_EN.indd 3ACXF55-11360_SM0717-0_EN.indd 3 13/6/2017 11:54:30 AM13/6/2017 11:54:30 AM

Safety precautions

To prevent personal injury, injury to

others or property damage, please

comply with the following:

Incorrect operation due to failure to

follow instructions below may cause

harm or damage, the seriousness of

which is classiﬁed as below:

This appliance is not intended for

accessibility by the general public.

For appliance ﬁlled with R32

(mild ﬂammable refrigerant).

If the refrigerant is leaked and

exposed to an external ignition

source, there is a risk of ﬁre.

WARNING

This sign

warns of

death or

serious

injury.

CAUTION

This sign

warns of

injury or

damage to

property.

The instructions to be followed are

classiﬁed by the following symbols:

This symbol denotes an

action that is PROHIBITED.

These symbols denote

actions COMPULSORY.

WARNING

Indoor unit and outdoor unit

This appliance is not intended

for use by persons (including

children) with reduced physical,

sensory or mental capabilities,

or lack of experience and

knowledge, unless they have

been given supervision or

instruction concerning use of the

appliance by a person

responsible for their safety.

Children should be supervised to

ensure that they do not play with

the appliance.

The appliance shall be installed

and operated in a room with

ﬂoor area larger than 2.06m² and

keep away from ignition sources

(such as heat/sparks/open-

ﬂame) or, hazardous areas (such

as gas appliances, gas cooking,

reticulated gas supply systems,

or electric cooling appliance, etc.

Be aware that refrigerant may

not contain an odour, highly

recommended to ensure suitable

ﬂammable refrigerant gas

detectors are present, operating

and able to warn of a leak.

Please consult authorised dealer

or specialist to clean the internal

parts, repair, install, remove

and reinstall the unit. Improper

installation and handling will

cause leakage, electric shock or

ﬁre.

Conﬁrm with authorised dealer

or specialist on usage of any

speciﬁed refrigerant type.

Using refrigerant type other than

the speciﬁed may cause product

damage, burst and injury etc.

Indoor unit

Outdoor unit

Power supply

Remote control

Air inlet

Air outlet

ACXF55-11360_SM0717-0_EN.indd 4ACXF55-11360_SM0717-0_EN.indd 4 13/6/2017 11:54:30 AM13/6/2017 11:54:30 AM

English Safety precautions

Do not use means to accelerate

the defrosting process or

to clean, other than those

recommended by manufacturer.

Any unﬁt method or using

incompatible material may cause

product damage, burst and

serious injury.

Do not pierce or burn as the

appliance is pressurized. Do not

expose the appliance to heat,

ﬂame, sparks, or other sources

of ignition. Else it may explode

and cause injury or death.

Do not install the unit in

a potentially explosive or

ﬂammable atmosphere.

Failure to do so could result in

ﬁre.

Do not insert your ﬁngers

or other objects into the

air conditioner indoor or

outdoor unit, rotating parts

may cause injury.

Do not touch the outdoor unit

during lightning, it may cause

electric shock.

Do not expose yourself directly

to cold air for a long period to

avoid excess cooling.

Do not sit or step on the

unit, you may fall down

accidentally.

Remote control

Do not allow infants and small

children to play with the remote

control to prevent them from

accidentally swallowing the

batteries.

Power supply

Do not use a

modiﬁed cord, joint

cord, extension cord

or unspeciﬁed cord to

prevent overheating

and ﬁre.

To prevent overheating, ﬁre or

electric shock:

•Do not share the same power

outlet with other equipment.

•Do not operate with wet hands.

•Do not over bend the power

supply cord.

•Do not operate or stop the unit

by inserting or pulling out the

power plug.

If the supply cord is damaged,

it must be replaced by the

manufacturer, service agent or

similarly qualiﬁed persons in

order to avoid a hazard.

It is strongly recommended to

be installed with Earth Leakage

Circuit Breaker (ELCB) or

Residual Current Device (RCD)

to prevent electric shock or ﬁre.

To prevent overheating, ﬁre or

electric shock:

•Insert the power plug properly.

•Dust on the power plug should

be periodically wiped with a dry

cloth.

Stop using the product if any

abnormality/failure occurs and

disconnect the power plug or

turn off the power switch and

breaker.

(Risk of smoke/ﬁre/electric

shock)

Examples of abnormality/failure

•The ELCB trips frequently.

•Burning smell is observed.

•Abnormal noise or vibration of

the unit is observed.

•

Water leaks from the indoor unit.

•Power cord or plug becomes

abnormally hot.

•Fan speed cannot be controlled.

•The unit stops running

immediately even if it is

switched on for operation.

•The fan does not stop even if

the operation is stopped.

Contact your local dealer

immediately for maintenance/

repair.

ACXF55-11360_SM0717-0_EN.indd 5ACXF55-11360_SM0717-0_EN.indd 5 13/6/2017 11:54:30 AM13/6/2017 11:54:30 AM

Safety precautions

WARNING

Precaution for appliance ﬁlled

with R32

Pay careful attention to the following

points when operating the appliances

and dealing with different refrigerants.

The appliance shall be installed,

and/or operated in a room with

ﬂoor area larger than Amin (m²)

and keep away from ignition

sources, such as heat/sparks/

open ﬂame or hazardous areas

such as gas appliances, gas

cooking, reticulated gas supply

systems or electric cooking

appliances, etc. (Refer to Table

A of Installation instructions table

for Amin (m²))

Be aware that refrigerant may

not contain an odour, highly

recommended to ensure suitable

ﬂammable refrigerant gas

detectors are present, operating

and able to warn of a leak.

Since the working pressure is

higher than that of refrigerant

R22 models, some of the piping

and installation and service tools

are special.

Especially, when replacing a

refrigerant R22 model with a new

refrigerant R32 model, always

replace the conventional piping

and ﬂare nuts with the R32 and

R410A piping and ﬂare nuts on

the outdoor unit side.

The R32 ﬂare nut and pipe on

the outdoor unit side can also be

used for a R410A model.

Models that use refrigerant R32

and R410A have a different

charging port thread diameter to

prevent erroneous charging with

refrigerant R22 and for safety.

Therefore, check beforehand.

[The charging port thread

diameter for R32 and R410A is

12.7 mm (1/2 inch).]

Be extra careful so that foreign

matter (oil, water, etc.) does not

enter the piping.

Also, when storing the piping,

securely seal the opening by

pinching, taping, etc. (Handling

of R32 is similar to R410A.)

This appliance shall be stored in

a well ventilated area.

This appliance shall be stored

in a room without continuously

operating open ﬂames and

ignition sources.

This appliance shall be stored

so as to prevent mechanical

damage from occurring.

Do not use means to accelerate

the defrosting process or

to clean, other than those

recommended by manufacturer.

Any unﬁt method or using

incompatible material may cause

product damage, burst and

serious injury.

This equipment must be earthed

to prevent electrical shock or ﬁre.

Prevent electric shock by

switching off the power supply

and unplug:

-Before cleaning or servicing,

-When extended non-use, or

-During abnormally strong

lightning activity.

ACXF55-11360_SM0717-0_EN.indd 6ACXF55-11360_SM0717-0_EN.indd 6 13/6/2017 11:54:30 AM13/6/2017 11:54:30 AM

English

CAUTION

Indoor unit and outdoor unit

Do not wash the indoor unit

with water, benzine, thinner

or scouring powder to avoid

damage or corrosion at the unit.

Do not use for preservation

of precise equipment, food,

animals, plants, artwork or other

objects. This may cause quality

deterioration, etc.

Do not use any combustible

equipment in front of the airﬂow

outlet to avoid ﬁre propagation.

Do not expose plants or pet

directly to airﬂow to avoid injury,

etc.

Do not touch the sharp

aluminium ﬁn, sharp parts

may cause injury.

Do not switch ON the indoor

unit when waxing the ﬂoor. After

waxing, aerate the room properly

before operating the unit.

Do not install the unit in oily and

smoky areas to prevent damage

to the unit.

Do not dismantle the unit for

cleaning purpose to avoid injury.

Do not step onto an unstable

bench when cleaning the unit to

avoid injury.

Safety precautions

Do not place a vase or water

container on the unit. Water may

enter the unit and degrade the

insulation. This may cause an

electric shock.

Do not open window or door

for long time during operation,

it may lead to inefﬁcient power

usage and uncomfortable

temperature changes.

Prevent water leakage by

ensuring drainage pipe is:

-Connected properly,

-Kept clear of gutters and

containers, or

-Not immersed in water

After a long period of use or use

with any combustible equipment,

aerate the room regularly.

After a long period of use, make

sure the installation rack does

not deteriorate to prevent the unit

from falling down.

Remote control

Do not use rechargeable (Ni-Cd)

batteries. It may damage the

remote control.

To prevent malfunction or

damage of the remote control:

•Remove the batteries if the unit

is not going to be used for a

long period of time.

•New batteries of the same type

must be inserted following the

polarity stated.

Power supply

Do not disconnect the plug

by pulling the cord to prevent

electric shock.

Do not pierce or burn as the

appliance is pressurized. Do not

expose the appliance to heat,

ﬂame, sparks, or other sources

of ignition. Else it may explode

and cause injury or death.

ACXF55-11360_SM0717-0_EN.indd 7ACXF55-11360_SM0717-0_EN.indd 7 13/6/2017 11:54:31 AM13/6/2017 11:54:31 AM

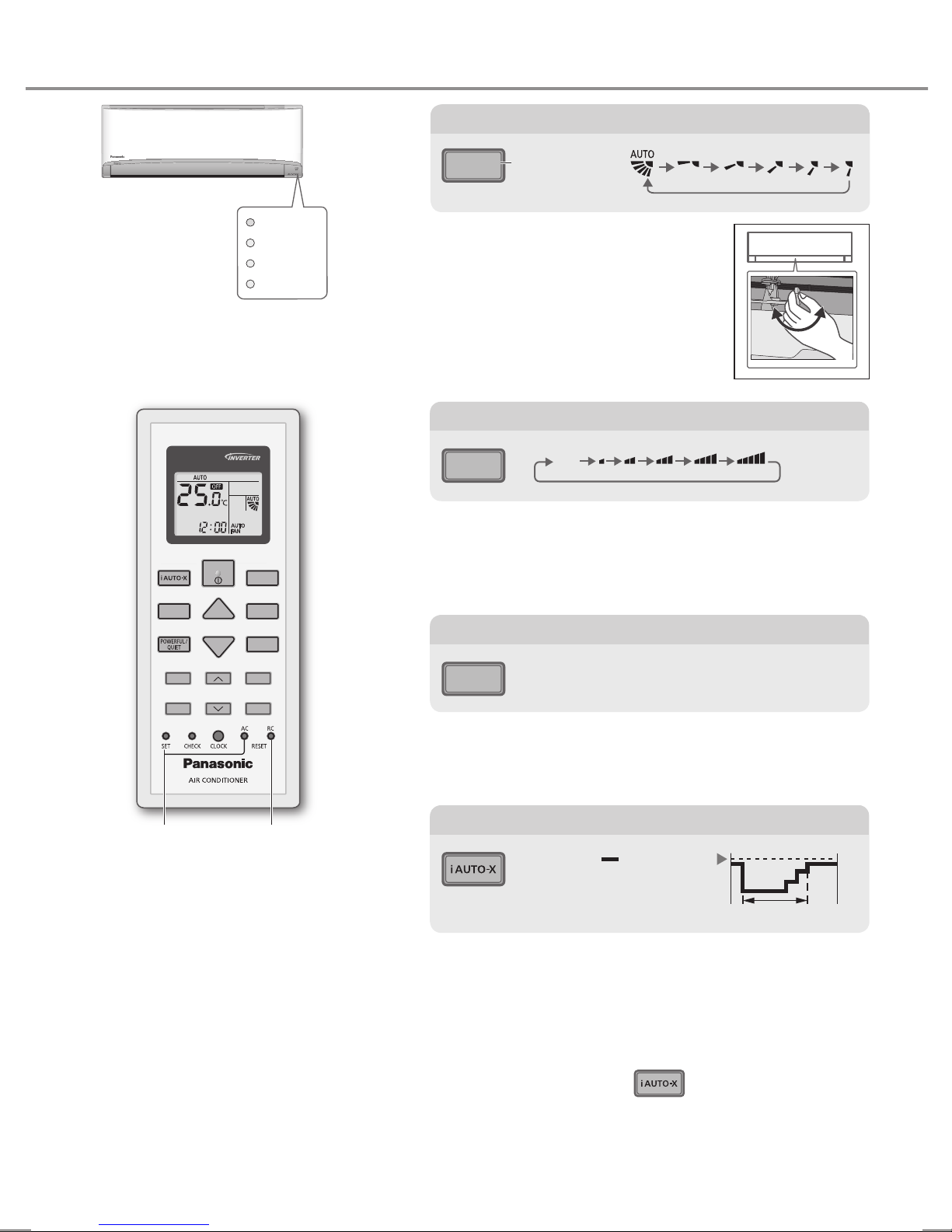

How to use

ECONOMY

iAUTO-X

To adjust fan speed

• For AUTO, the indoor fan speed is automatically

adjusted according to the operation mode.

• If i AUTO-X mode is set, fan speed is ﬁxed to AUTO.

To adjust fan speed, cancel i AUTO-X mode.

AUTO

FAN

FAN SPEED

To adjust airﬂow direction

• Do not adjust the ﬂap by hand.

To adjust airﬂow direction

• For lateral direction, it is manually

adjustable as shown.

AIR SWING

Upper direction

To save electrical power consumption

• Save power consumption at unoccupied room by

adjust set temperature up to 3°C automatically.

• Brightness of all indicators will be dimmed.

ECONOMY

• The unit controls set temperature according to room

temperature to accelerate room cooling.

• After max 4 hours, the set temperature follows the

last set temperature setting.

• Fan speed is ﬁxed at AUTO, fan speed selection is

prohibited.

• During unit is off, press will turn on the unit

with i AUTO-X mode.

• i AUTO-X mode can be cancelled by pressing the

respective button again.

To reach temperature quickly

Set

temperature

i AUTO-X

Max = 4 hours

-1°C /

-2°F

Indicator

POWER

TIMER

i AUTO-X

ECONOMY

FAN SPEED

AIR SWING

ECONOMY

OFF

SET

CANCEL

TIMER

TEMP

OFF/ON

MODE

Not used

in normal

operations.

Press to restore

the remote

control to default

setting.

ACXF55-11360_SM0717-0_EN.indd 8ACXF55-11360_SM0717-0_EN.indd 8 13/6/2017 11:54:31 AM13/6/2017 11:54:31 AM

English

See "To learn more..." for details.

How to use

Note

ECONOMY

, ,

ECONOMY

• Can be activated in all modes and can be

cancelled by pressing the respective button

again.

• Cannot be selected at the same time.

To set the timer

OFF

TIMER

CANCEL

SET

21 3

1Select ON or OFF

timer

Example:

OFF at 22:00

• Each time pressed:

Cancel

2Set the time

3Conﬁrm

• To cancel ON or OFF timer, press

or to select respective or then

press .

• If timer is cancelled manually or due to

power failure, you can restore the timer

again by pressing or to select

respective or then press .

• The nearest timer setting will be displayed

and will activate in sequence.

• Timer operation is based on the clock set

in the remote control and repeats daily

once set. For clock setting, please refer to

Quick Guide.

2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset

times.

To switch between powerful/quiet

POWERFUL:

To reach the preset temperature quickly

• This operation stops automatically after 20 minutes.

QUIET:

To enjoy quiet operation

• This operation reduces airﬂow noise.

ACXF55-11360_SM0717-0_EN.indd 9ACXF55-11360_SM0717-0_EN.indd 9 13/6/2017 11:54:31 AM13/6/2017 11:54:31 AM

To learn more...

Operation mode

AUTO : During operation mode selection the POWER indicator blinks.

• Unit selects operation mode every 10 minutes according to setting temperature

and room temperature.

HEAT : Unit takes a while to warm up. The POWER indicator blinks during this

operation.

COOL : Provides efﬁcient comfort cooling to suit your needs.

DRY : Unit operates at low fan speed to give a gentle cooling operation.

FAN : To circulate air in the room.

i AUTO-X : The fast cooling is ideal when you come home on a hot day.

Energy saving temperature setting

Operating the unit within the recommended temperature range may save energy.

HEAT :

20.0 °C ~ 24.0 °C /

68 °F ~ 75 °F.

COOL : 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F.

Air ﬂow direction

In COOL/DRY mode:

If AUTO is set, the ﬂaps swings up/down automatically.

In i AUTO-X mode:

If AUTO is set, the horizontal ﬂap is ﬁxed at the lower position and shift to the upper

position after reaches set temperature. If manual is set, the horizontal ﬂap are ﬁxed at the

predetermined position.

In HEAT mode:

If AUTO is set, the horizontal ﬂap is ﬁxed at the predetermined position.

Auto restart control

If power is resumed after a power failure, the operation will restart automatically after a

period of time with previous operation mode and airﬂow direction.

• This control is not applicable when TIMER is set.

Operating conditions

Use this air conditioner in the temperature range indicated in the table.

Temperature

°C (°F)

Indoor Outdoor

DBT WBT DBT WBT

COOL

Max. 32 (89.6) 23 (73.4) 46 (114.8) 26 (78.8)

Min. 16 (60.8) 11 (51.8) 5 (41.0) -

HEAT

Max. 30 (86.0) - 24 (75.2) 18 (64.4)

Min. 16 (60.8) - -15 (5.0) -

DBT: Dry bulb temperature, WBT: Wet bulb temperature

ACXF55-11360_SM0717-0_EN.indd 10ACXF55-11360_SM0717-0_EN.indd 10 13/6/2017 11:54:32 AM13/6/2017 11:54:32 AM

Other manuals for CS-RZ25TKR

This manual suits for next models

Table of contents

Other Panasonic Air Conditioner manuals

Panasonic

Panasonic CW-N721JA User manual

Panasonic

Panasonic CW-N921JA User manual

Panasonic

Panasonic CW-XC65HU; CW-XC85HU User manual

Panasonic

Panasonic CS-E15EKEA User manual

Panasonic

Panasonic CS-PS9QKA User manual

Panasonic

Panasonic U-5MX3XPQ User manual

Panasonic

Panasonic CS-E15GKEW User manual

Panasonic

Panasonic S-36PU1E5A Manual

Panasonic

Panasonic CU-Z20TKE User manual

Panasonic

Panasonic CS-C18GKD User manual

Panasonic

Panasonic CS-PA18NKS User manual

Panasonic

Panasonic U-71PZH3R5 User manual

Panasonic

Panasonic CU-S18NKUA User manual

Panasonic

Panasonic CS-CE9PKE User manual

Panasonic

Panasonic CS-DZ50VKE User manual

Panasonic

Panasonic CS-XS12UKY Series User manual

Panasonic

Panasonic CS-E9VKA User manual

Panasonic

Panasonic CS-KC5PKJ User manual

Panasonic

Panasonic CS-ME7NKE User manual

Panasonic

Panasonic CS-E10JD3EA User manual

Panasonic

Panasonic CW-1406BU User manual

Panasonic

Panasonic U-50PE2E5A User manual

Panasonic

Panasonic S-18PU3HB User manual

Panasonic

Panasonic CS-20KM1HPK User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
