Panasonic CW-XC183HU User manual

INSTALLATION AND

OPERATING INSTRUCTIONS

Room Air Conditioner

Models: CW-XC183HU

CW-XC243HU

Please read these operating instructions thoroughly

before using your air conditioner and keep for future

reference.

For assistance, please call: 1-800-211-PANA(7262) or

Safety Precautions

About the Controls on the Air Conditioner

Features and Installation

Before you call for service...

FOR YOUR RECORDS

Staple your receipt to this page in case you need it later.

Write down the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the chart

of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

READ THIS MANUAL

CAUTION

• Contact the authorized Service technician for repair or

maintenance of this unit.

• The air conditioner is not intended for use by young

children or infirm persons without supervision.

• Young children should be supervised to ensure that they

do not play with the air conditioner.

Safety Precautions

Safety Precautions.............3

About the Controls on

the Air Conditioner

Controls..............................5

Ventilation ..........................6

Air Direction........................6

How to Secure Drain Pipe

....6

Care and Maintenance

Air Filter Cleaning...............7

How to Insert Batteries.......7

Features

Features.............................8

Installation

How to Install the Unit........9

Window Requirements.......9

Installation Kit Contents ...10

Suggested Tool

Requirements...................11

Cabinet Installation...........12

Electrical Data..................14

Electrical Safety ...............14

Before you call for

service...

Normal Operation.............15

Abnormal Operation.........15

WARNING

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be

followed.

■Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified

by the following indications.

■Meanings of symbols used in this manual are as shown below.

Plug in the power plug

properly.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

• It will cause electric shock or fire

due to heat generation.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or fire.

•

If the power cord is damaged, it must

be replaced by the manufacturer or

an authorized service center or a

similarly qualified person in order to

avoid a hazard.

Do not modify power cord

length or share the outlet

with other appliances.

• It will cause electric shock or fire

due to heat generation.

Do not operate with wet

hands or in a damp

environment.

• It will cause electric shock.

Do not direct air flow at room

occupants.

• This could damage your health.

WARNING : This symbol indicates the possibility of death or serious injury.

CAUTION :This symbol indicates the possibility of injury or damage to

property only.

Be sure not to do this.

Be sure to follow the instructions.

Safety Precautions

When the air filter is to be

removed, do not touch the

metal parts of the unit.

• It may cause an injury.

Do not clean the air

conditioner with water.

•Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

Ventilate well when used

together with a stove, etc.

• An oxygen shortage may occur.

When the unit is to be

cleaned, switch off, and turn

off the breaker.

•Since the fan rotates at high

speed during operation, it may

cause an injury.

Do not put a pet or house

plant where it will be exposed

to direct air flow.

• This could injure the pets or

plants.

Do not use for special

purposes.

• Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

Do not operate switches

with wet hands

• It may cause an electric shock.

Do not apply an insecticide

or flammable spray.

• It may cause a fire or deformation

of the cabinet.

Do not put a heater, etc.

where it is exposed to direct

air flow.

•

It may cause imperfect

combustion.

About the Controls on the Air Conditioner

34 7

OPERATION

TEMP

TIMER AIR

SWING

MODE

ECONOMY

FAN SPEED

2 4

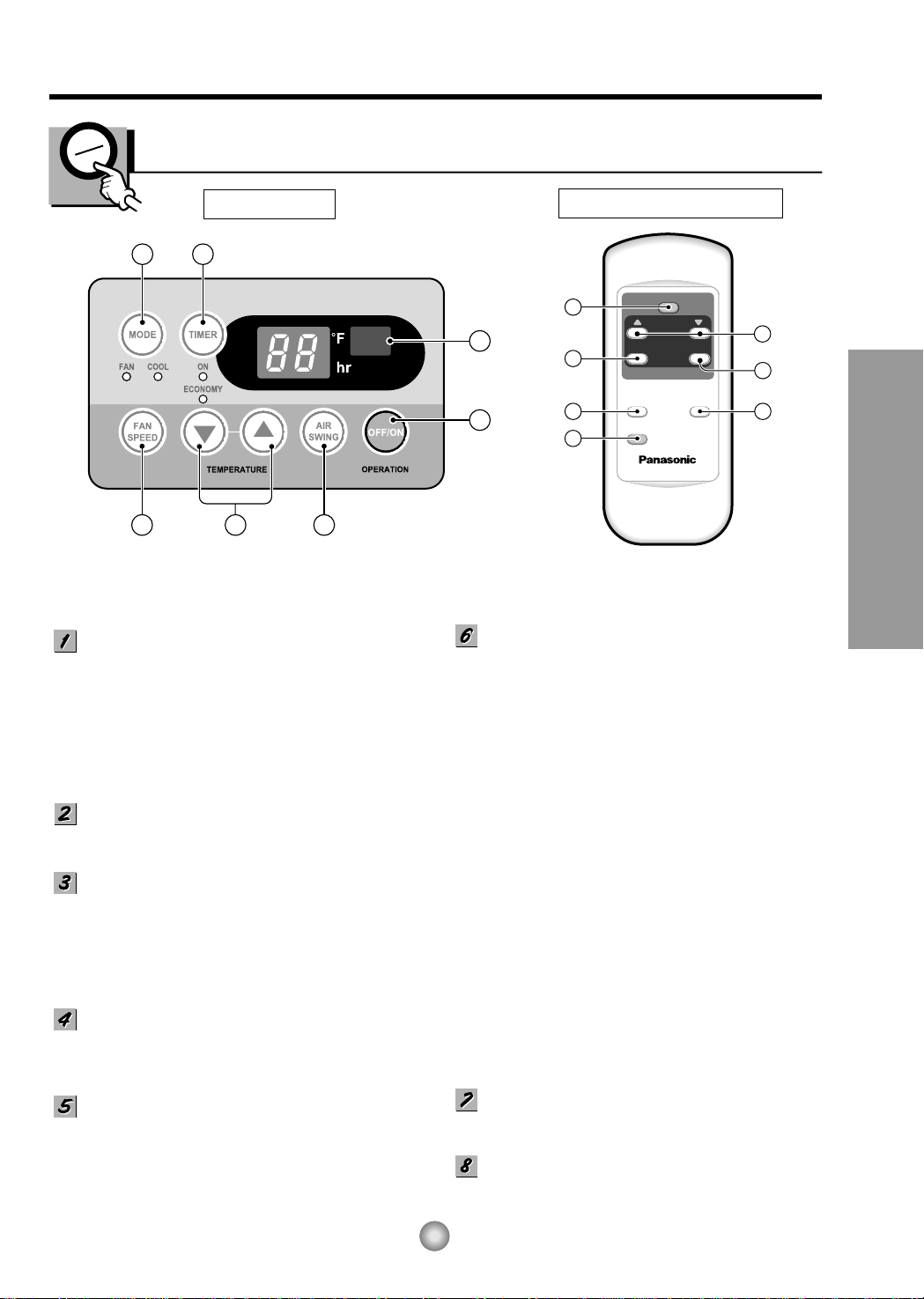

About the Controls on the Air Conditioner

Controls

REMOTE CONTROL

DISPLAY

OPERATION BUTTON

• To turn the air conditioner ON, push the

button. To turn the air conditioner OFF, push

the button again.

• This button takes priority over any other

buttons.

• When you first turn it on, the air conditioner is

on the High cool mode and the temp. at

72°F(22°C)

OPERATION MODE SELECTION BUTTON

Every time you push this button, it will toggle

between COOL, FAN.

ROOM TEMPERATURE SETTING BUTTON

This button can automatically control the

temperature of the room. The temperature can

be set within a range of 60°F to 86°F by 1°F.

(16°C to 30°C by 1°C)

Select the lower number for lower temperature

of the room.

FAN SPEED SELECTION BUTTONS

Every time you push this button, it is set as

follows.

{High(F3) →Low(F1) →Med(F2) →High(F3)...}.

ECONOMY

• If the switch is set to "On", the fan stops when

the compressor stops cooling. Approximately

every 3 minutes the fan will turn on and check

the room air to determine if cooling is needed.

ON/OFF TIMER BUTTON

You can set the time when the unit will turn on or turn

off automatically by pressing the timer button. If the

unit is operating, this button controls the time it will be

turned off. If the unit is off state, this button controls

the time it will start. Every time you push this button,

the remaining time will be set as follows.

- STOPPING OPERATION

•

Every time you push this button, when the air

conditioner is operating, timer is set as follows.

(1Hour →2Hours →3Hours →4Hours →5Hours →

6Hours →7Hours →8Hours →9Hours →10Hours →

11Hours →12Hours →0Hours →1Hours →2Hours →...)

• The Setting Temperature will be raised by

2°F(1°C) 30min. later and by 2°F(1°C) after

another 30 min.

- STARTING OPERATION

•

Every time you push this button, when the air conditioner

is not operating, timer is set as follows. (1Hour →2Hours

→3Hours →4Hours →5Hours →6Hours →7Hours →

8Hours →9Hours →10Hours →11Hours →12Hours →

0Hours →1Hours →2Hours →...)

AIR SWING BUTTON

This button can automatically control the air

flow direction.

REMOCON SIGNAL RECEIVER

Precaution: The Remote Control unit will not function properly if strong light strikes the sensor

window of the air conditioner or if there are obstacles between the Remote Control

unit and the air conditioner.

VENTCLOSE OPEN

Part

Drain pipe

Drain cap

About the Controls on the Air Conditioner

Additional controls and important information.

Ventilation

The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions.

When fresh air is necessary in the room, set the ventilation lever to the OPEN position.

The damper is opened and room air is drawn out.

NOTE: Before using the ventilation feature, and prior to installing the front grille, pull down part until

level with part .

Air Direction

The vertical air direction is adjusted by rotating the

horizontal louver forward or backward manually.

The horizontal air direction is adjusted by rotating the

vertical louver right or left by Remote Controller.

The direction of air can be controlled wherever you want to cool by adjusting the horizontal louver

and the vertical louver.

•VERTICAL AIR-DIRECTION CONTROL

•

HORIZONTAL AIR-DIRECTION CONTROL

How to Secure the Drain Pipe

In humid weather, excess water may cause the BASE

PAN to overflow. To drain the water, remove the DRAIN

CAP and secure the DRAIN PIPE to the rear hole of the

BASE PAN. Press the drain pipe into the hole by pushing

down and away from the fins to avoid injury.

About the Controls on the Air Conditioner

Air Filter Cleaning

The air filter behind the front grille should be checked and cleaned at least once every 2

weeks or more often if necessary.

TO REMOVE:

1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by

pulling out the top of the inlet grille.

2. Using the tab, pull up slightly on the filter to release it and pull it down or up.

3. Clean the filter with warm, soapy water below 40°C (104°F).

4. Rinse and gently shake the water from the filter and let it dry before replacing it.

CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will

clog it and reduce performance.

Care and Maintenance

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

•Do not use

rechargeable batteries.

Such batteries

differ from standard dry

cells in shape,

dimensions, and

performance.

•Remove the batteries

from the remote

controller if the air

conditioner is not going

to be used for an

extended length of time.

How to insert batteries

1. Remove the cover from the back of the

remote

controller.

2. Insert two AAA dry cell batteries.

•Be sure that the (+) and (-) directions

are correct.

•Be sure that both batteries are new.

3. Re-attach the cover.

Features and Installation

Learning parts name prior to installation will help you understand the installation procedure.

Features

CABINET

FRONT GRILLE

AIR FILTER AIR INTAKE

(INLET GRILLE)

AIR DISCHARGE

HORIZONTAL AIR DEFLECTOR

(VERTICAL LOUVER)

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

EVAPORATOR

POWER CORD

BASE PAN

CONDENSER

COMPRESSOR

BRACE

CONTROL BOARD

About 1/2"

Over 20"

HEAT

RADIATION

FENCE

AWNING

INSIDE OUTSIDE

FOAM

COOLED

AIR

30-60"

Level

1/4 Bubble

26" to 41"

18" min

DESPLAZAMIENTO

ALFEZAR

EXTERIOR

PARED INTERIOR

REPISA

Installation

Features and Installation

How to Install the Unit

1. To avoid vibration and noise, make sure the unit is installed securely and firmly.

2. Install the unit where the sunlight does not shine directly on the unit.

If the unit receives direct sunlight, build an awning to shade the cabinet.

3. There should be no obstacle, like a fence, within 20”which might restrict heat radiation from the

condenser.

4. To prevent reducing performance, install the unit so that louvers of the cabinet are not blocked.

5. Install the unit a little obliquely outward not to avoid leaking the condensed water into the room

(about 1/2”or 1/4 bubble with level).

6. Install the unit with its bottom portion 30~60”above the floor level.

7. Stuff the foam between the top of the unit and the wall to prevent air and insects from getting into

the room.

8. The power cord must be connected to an independent circuit. The green wire must be grounded.

9. Connect the drain tube to the base pan hole in the rear side if you need to drain (consult a dealer.)

Plastic hose or equivalent may be connected to the drain tube.

NOTE: All supporting parts should be secured to firm wood, masonry, or metal.

WINDOW REQUIREMENTS

1. This unit is designed for installation in

standard double hung windows with actual

opening widths from 26" to 41".

The top and bottom window sashes must

open sufficiently to allow a clear vertical

opening of 18" from the bottom of the upper

sash to the window stool.

2. The stool offset (height between the stool

and sill) must be less than 1 1/4".

Window Requirements

Foam-PE

(Adhesive-Backed)

Foam-PE

(Adhesive-Backed)

Type C (5) Type D (2)

Type A (14)

Carriage Bolt (2) Lock Nut (4)

Top retainer bar

Type B (7)

Foam strip

(Plain-Back)

Right frame

curtain

Drain pipe

Window locking

bracket

Left frame

curtain

Frame guide(2)

Sill

bracket

(2)

Support bracket(2)

Features and Installation

Installation Kits Contents

This manual suits for next models

Table of contents

Languages:

Other Panasonic Air Conditioner manuals

Panasonic

Panasonic CS-W18CKE User manual

Panasonic

Panasonic CS-HZ25WKE User manual

Panasonic

Panasonic CU-3KE19NBU Operating manual

Panasonic

Panasonic CS-YS9MKV-7 User manual

Panasonic

Panasonic CS-C18JKV User manual

Panasonic

Panasonic CW-807TU User manual

Panasonic

Panasonic CS-E9NKUAW User manual

Panasonic

Panasonic S-26PF2U6 User manual

Panasonic

Panasonic U-250PE1E8 User manual

Panasonic

Panasonic CS-E15DTEW User manual

Panasonic

Panasonic CS-W7MKD User manual

Panasonic

Panasonic CS-A24BB4P User manual

Panasonic

Panasonic CS-E24LKES User manual

Panasonic

Panasonic CS-RU9YKA User manual

Panasonic

Panasonic CS-PS18VKV-7 User manual

Panasonic

Panasonic CS-E18DKEW User manual

Panasonic

Panasonic CU-NE9JKE User manual

Panasonic

Panasonic CW-C51GU User manual

Panasonic

Panasonic CS-PS9NKP User manual

Panasonic

Panasonic CS-A73KR User manual

Panasonic

Panasonic CU-PW9DKE User manual

Panasonic

Panasonic CS-C18JKV User manual

Panasonic

Panasonic CS-MC12DKV User manual

Panasonic

Panasonic U-71PZH3R5 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
