Panasonic CSA9CKPG - SPLIT A/C IN DOOR User manual

1 Features 2

2 Functions 3

3 Product Specifications 6

4 Dimensions 10

5 Refrigeration Cycle Diagram 12

6 Block Diagram 13

7 Wiring Diagram 14

8 Operation Details 15

9 Operating Instructions 35

10 Installation Instructions 40

and distribution is a violation of law.

CS-A9CKPG CU-A9CKP6G

CS-A12CKPG CU-A12CKP6G

11 2-way, 3-way Valve 50

12 Servicing Information 57

13 Troubleshooting Guide 61

14 Technical Data 63

15 Exploded View 66

16 Replacement Parts List 67

17 Exploded View 68

18 Replacement Parts List 69

19 Electronic Circuit Diagram 70

Room Air Conditioner

CONTENTS

Page Page

Order No. MAC0210070C1

E25

• High Efficiency

• Compact Design

• Comfort Environment

− Air filter with function to reduce dust and smoke

− Wider range of horizontal discharge air

• Auto Restart

− Random auto restart after power failure for safety restart

operation

• Removable and Washable Front Panel

• Remote Control Self-illuminating Button

• Air Purifying Filter

− Trap dust, tobacco smoke and tiny particles

− Prevent the growth of bacteria and viruses trapped

• Solar Refreshing Deodorizing Filter

− Remove unpleasant odour from the air

• Quality Improvement

− Gas leakage protection

− Prevent compressor reverse cycle

− OLP to protect compressor

− Noise prevention during soft dry operation

− Compressor Protection Control (Cooling & Soft Dry)

− Overload Protection Control (Heating)

− Outdoor Fan Control

− Compressor High Pressure Control

− Blue Coated Condenser

− High resistance to corrosion

− Low Outdoor Ambient Temperature Control

• Operation Improvement

− Quiet mode to provide extra quiet operation

− Powerful mode to reach the desired room temperature

quickly

− Economy mode to reduce electrical power consumption

• Long Installation Piping

− CS/CU-A9CK, long piping up to 10 meter

− CS/CU-A12CK, long piping up to 15 meter

• 24-hour Timer Setting

1 Features

CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G

2 Functions

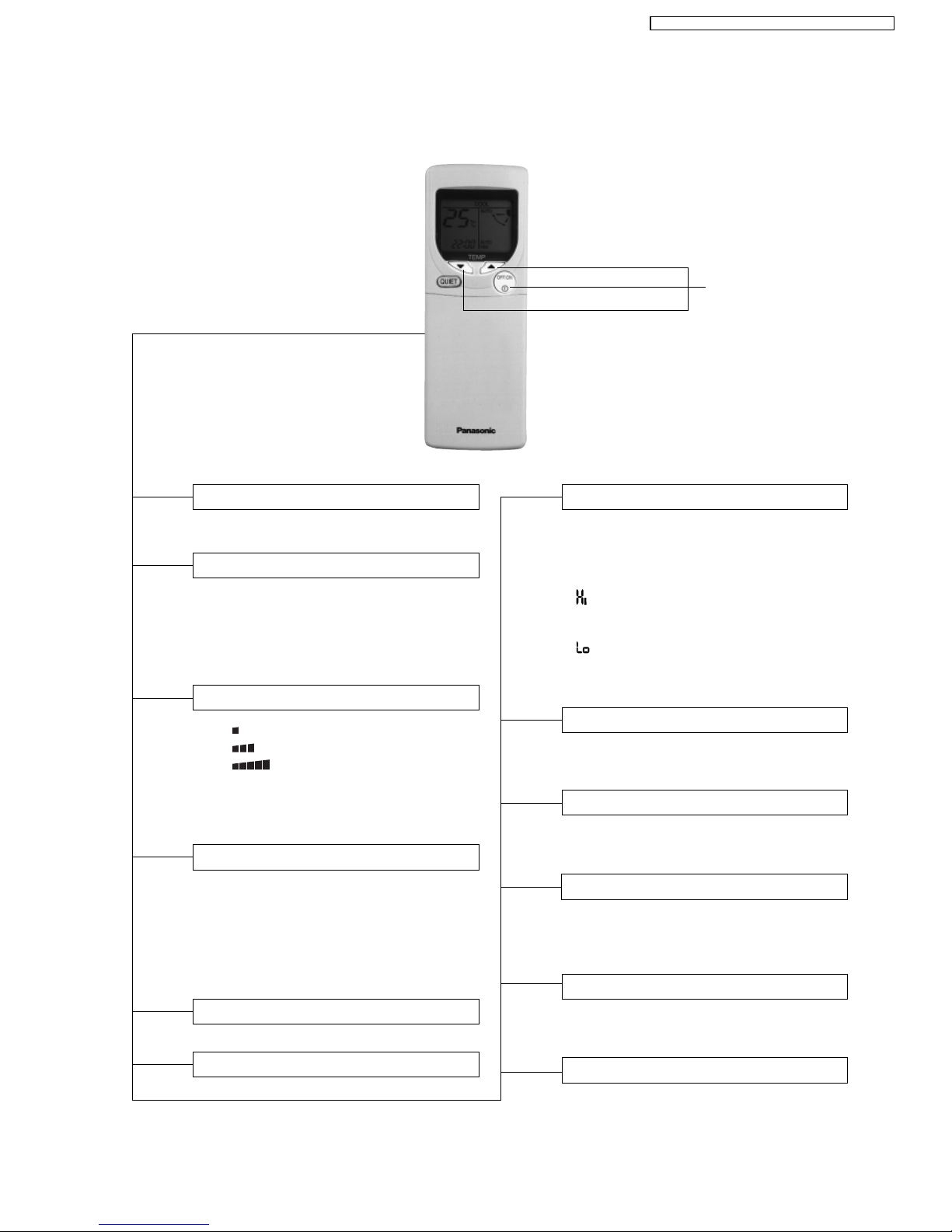

Remote Control

Operation OFF / ON

OFF / ON IRoom Temperature Setting

TEMP.

Operation Mode Selection

•AUTO Automatic Operation Mode

•HEAT Heating Operation Mode

•COOL Cooling Operation Mode

•DRY Soft Dry Operation Mode

MODE

TIME Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Indoor Fan Speed Selection

FAN SPEED

•FAN Low Fan Speed

•FAN Medium Fan Speed

•FAN High Fan Speed

•AUTO Automatic Fan Speed

FAN

Vertical Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

ON-TIMER

OFF-TIMER Timer Operation Selection

SET

CANCEL Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

AIR SWING

•AUTO Automatic Vertical Airflow

Direction Control

•MANUAL Vertical Airflow Direction

Manual Control (5 stages of

adjustment)

Powerful Mode Operation OFF/ON

POWERFUL

Quiet Mode Operation OFF/ON

QUIET

Heating, Cooling, Soft Dry Operation.

• Temperature Setting (16°C to 30°C)

Automatic Operation

•Operation with 2°C higher than

standard temperature.

• Operation with standard temperature.

•Operation with 2°C lower than

standard temperature.

Self illuminating

button

Economy Operation OFF / ON

ECONOMY

CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G

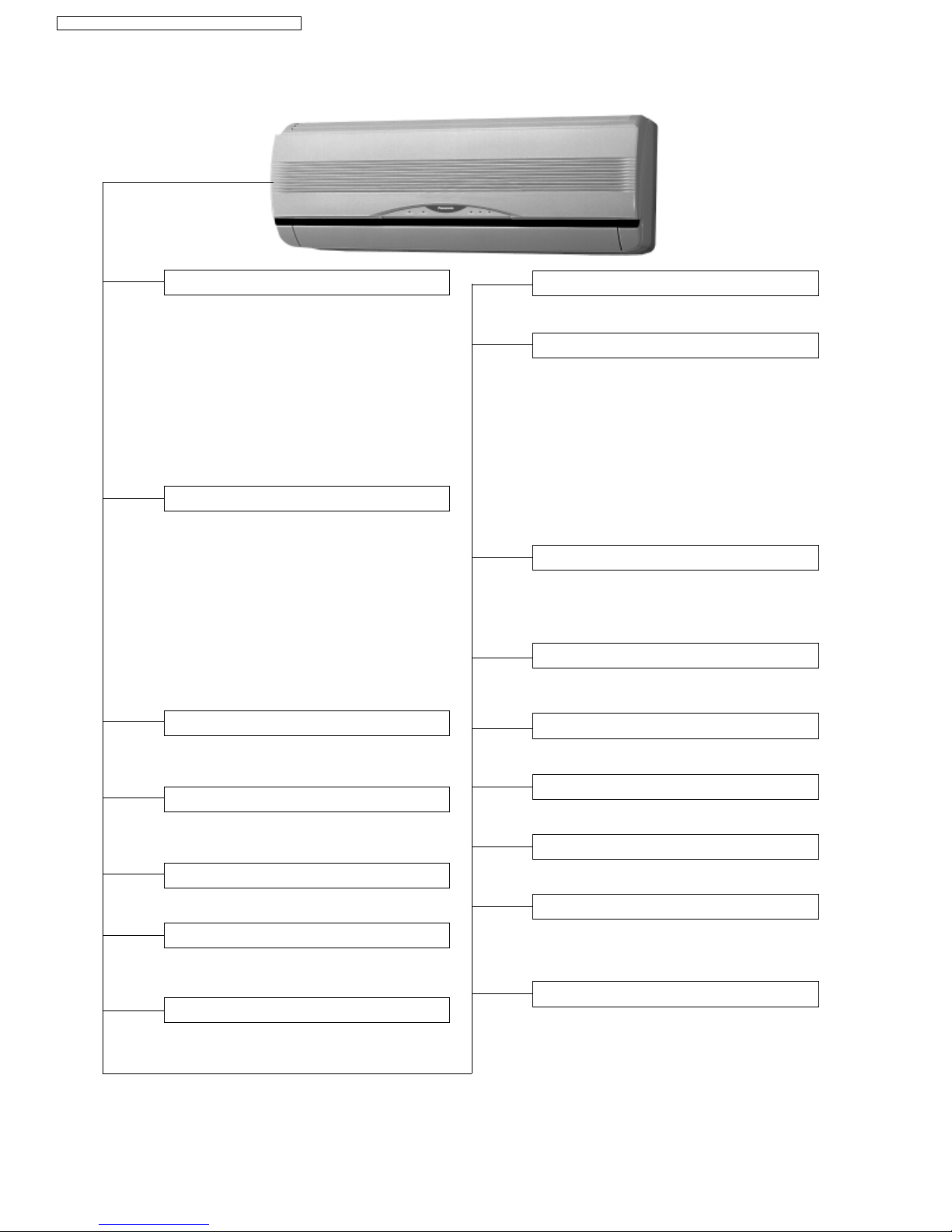

Indoor Unit

Random Auto Restart Control

•Operation is restarted randomly after power

failure at previous setting mode.

Anti-Freezing Control

•Anti-Freezing control for indoor heat

exchanger. (Cooling and Soft Dry)

Economy Operation

•To reduce electrical power consumption.

Indoor Fan Speed Control

•High, Medium and Low.

•Automatic Fan Speed Mode

–Heating : Fan speed varies from Me →

SSLo in accordance with

indoor heat exchanger.

–Cooling : Fan rotates at Hi, Me and SLo

speed. Deodorizing control is

available.

–Soft Dry : Fan rotates at Lo- speed.

Deodorizing control is

available.

•Automatic air swing and manual adjusted

by remote control for vertical airflow.

•Manually adjusted by hand for horizontal

airflow.

Airflow Direction Control

Automatic Operation Button

•Press for < 5s to operate Automatic

operation mode.

(Used when the remote control cannot be used.)

•Press continuously for 5s or < 10s to

operate Test Run/Pump down. “Beep”

sound will be heard at the 5th second.

(Used when test running or servicing.)

•Press continuously for 10s and above to

omit or resume the remote control signal

receiving sound. “Beep, beep”sound will

be heard at the 10th second.

AUTO

OFF / ON

Operation Indication Lamps (LED)

•

POWER

(Green) ......... Lights up in operation,

blinks in Automatic

Operation Mode judging.

•

QUIET

(Orange) ......... Lights up in Quiet Mode

Operation.

•

TIMER

(Orange) ......... Lights up in Timer

Setting.

•

POWERFUL

(Orange) ... Lights up in Powerful

Mode Operation.

•

ECONOMY

(Green) ...... Lights up in Economy

Mode Operation.

Operation Mode

•Heating, Cooling, Soft Dry and Automatic

Mode.

Powerful Operation

•Reaches the desired room temperature

quickly.

Time Delay Safety Control

•

Restarting is inhibited for appro. 3 minutes.

Starting Current Control

Quiet Operation

•To provide extra quiet operation.

7 Minutes Time Save Control

•Cooling Operation only.

•Fan motor is delayed for 1.6 seconds when

compressor starts simultaneously.

30 Minutes Time Save Control

•Heating Operation only.

Hot-Start Control

•At Heating Operation the indoor fan will

operate at SLo speed when indoor heat

exchanger temperature reaches 30°C.

Anti Cold Draft Control

•The indoor fan operates at SSLo when the

indoor heat exchanger temperature is low.

(During Heating mode thermal off)

CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G

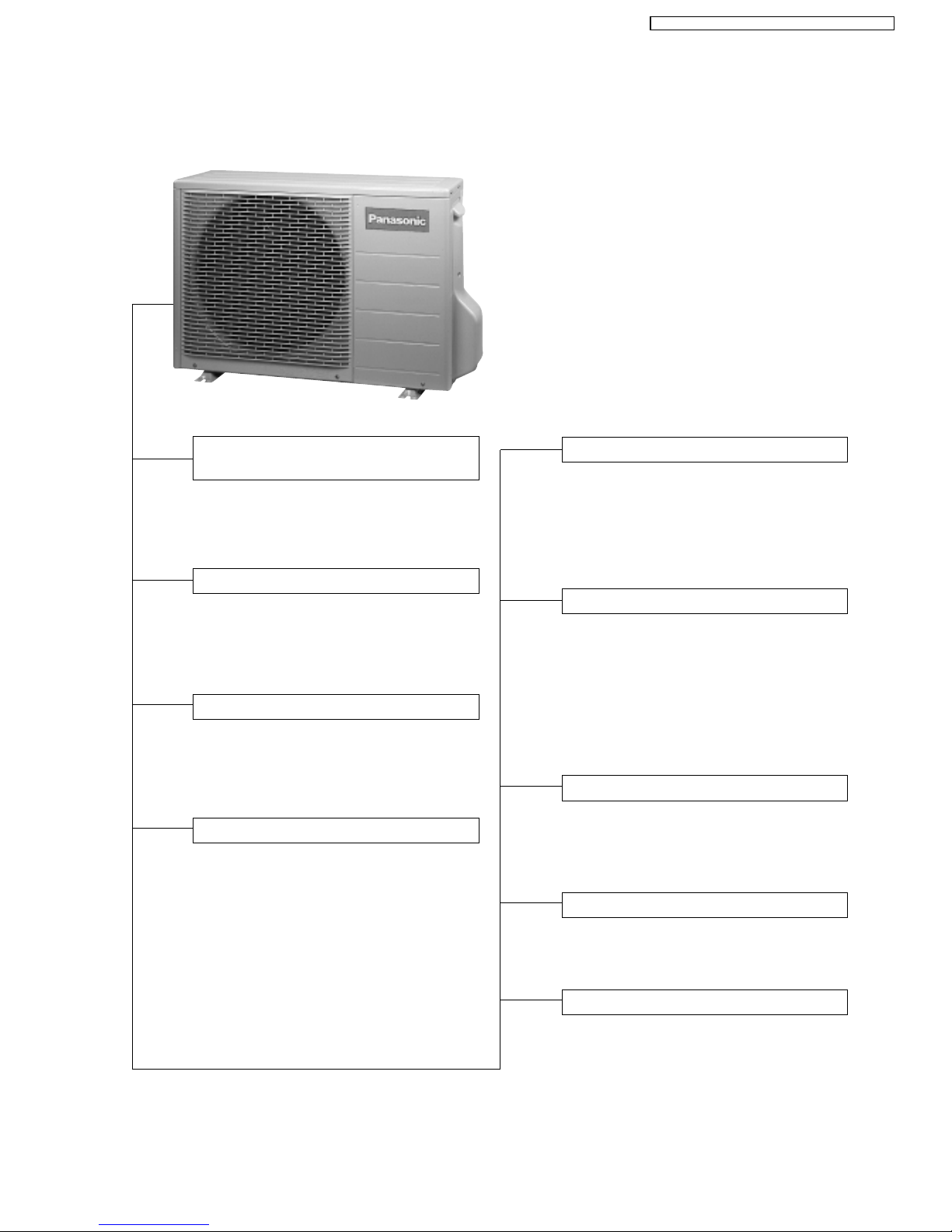

Outdoor Unit

•To protect compressor from reverse

rotation when there is a instantaneous

power failure.

60 Secs. Forced Operation Control

•Once the compressor is activated, it

does not stop within the first 60 secs.

However, it stops immediately with

remote control stop signal.

Overload Protector

•OLP to protect the compressor. Overload

Protector will trip when

–High temperature or high current flows

to compressor.

Compressor Reverse Rotation

Protection Control

Outdoor Fan Operation Control

•Temperature Fuse.

4-Way Valve Control

•When the unit is switched to “OFF”

during Heating Operation, 4-way valve

stays at Heating position for 5 minutes.

Overload Protection Control

•Outdoor fan stops when indoor heat

exchanger temperature rises to 51°C

and above, and restarts when the indoor

heat exchanger temperature drops to

49°C and below.

•Compressor stop when indoor heat

exchanger temperature reaches 65°C or

above. (Heating Operation Only)

Deice Control

•To prevent frosting at outdoor heat

exchanger. (Only for Heating Operation)

•

Temperature of outdoor heat exchanger

is sensed by TRS (Thermal Reed Switch).

TRS OFF temperature 4°C.

TRS ON temperature -3°C.

Compressor Protection Control

•If the outdoor fan motor is not running

after compressor starts for 50 secs.,

compressor will stop. (Cooling and Soft

Dry Operation only).

Low Ambient Temperature Control

•To protect air conditioner from damage

under the low outdoor ambient

temperature < -10°C.

CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G

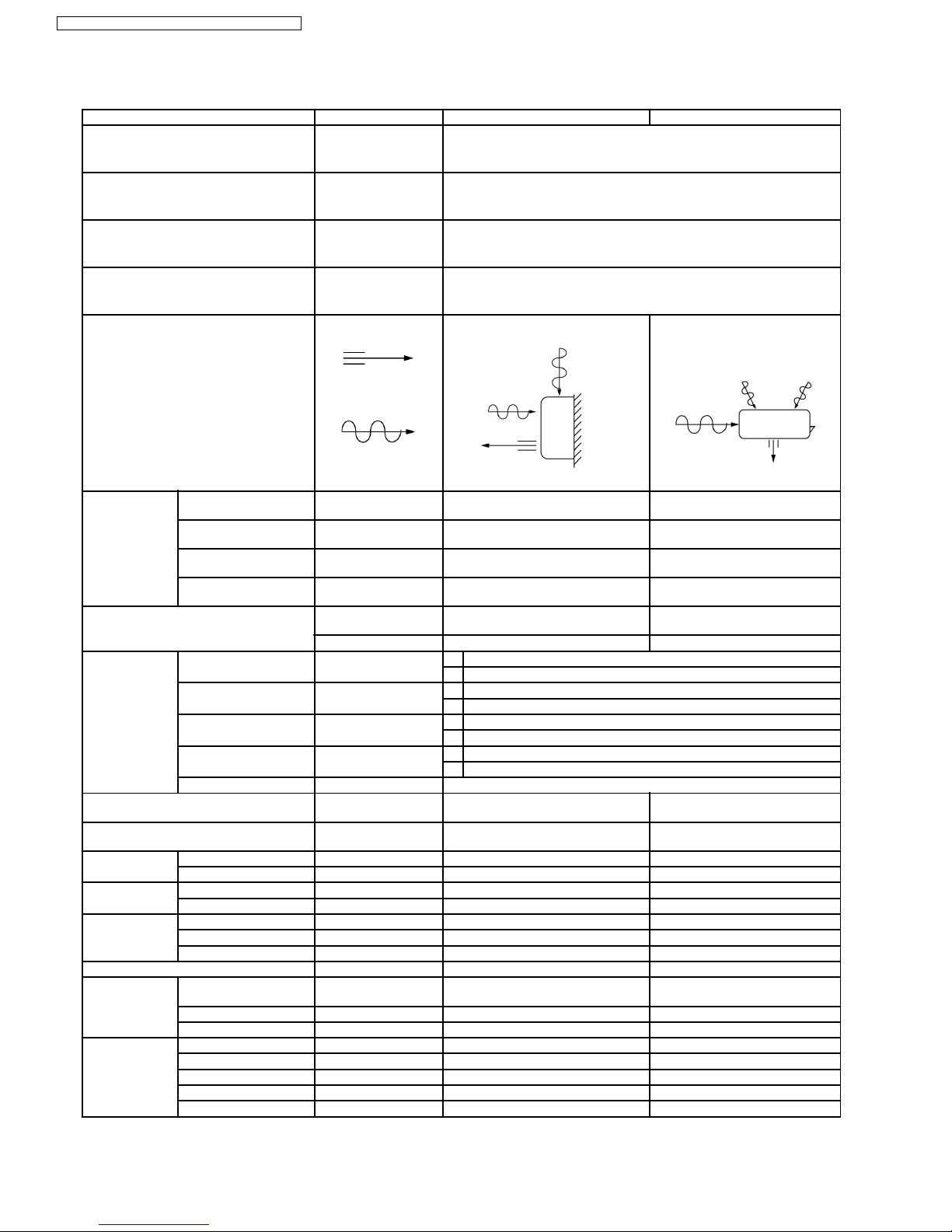

3 Product Specifications

Unit CS-A9CK CU-A9CK

Power Source Phase, Voltage, Cycle Single, 115, 60 Hz

Cooling Capacity kW (BTU/h) 2.40 (8,200)

Heating Capacity kW (BTU/h) 2.70 (9,200)

Moisture Removal l/h (Pint/h) 0.7 (1.5)

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.1 (220)

Heating; 6.7 (240)

—

Indoor Air (Me) m3/min (cfm) Cooling; 7.5 (260)

Heating; 7.6 (270)

—

Indoor Air (Hi) m3/min (cfm) Cooling; 8.9 (310)

Heating; 9.8 (350)

Cooling; 35.6 (1,260)

Indoor Air (SHi) m3/min (cfm) Cooling; 9.6 (340)

Heating; 9.8 (350)

—

Noise Level dB (A) Cooling; High 36, Low 26

Heating; High 38, Low 28

Cooling; High 49

Heating; High 49

Power level dB — —

Electrical Data Input Power W(1) Cooling; 810, Heating; 730

(2) Cooling; 800, Heating; 700

Running Current A(1) Cooling; 7.4, Heating; 6.7

(2) Cooling; 7.3, Heating; 6.5

EER W/W (BTU/hW) (1) Cooling; 2.960 (10.12)

(2) Cooling; 3.00 (10.25)

COP W/W (BTU/hW) (1) Heating; 3.70 (12.60)

(2) Heating; 3.85 (13.10)

Starting Current A42.0

Piping Connection Port

(Flare piping)

inch

G ; Half Union 3/8”

L ; Half Union 1/4”

G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G ; (gas side) 3/8”

L ; (liquid side) 1/4”

G ; (gas side) 3/8”

L ; (liquid side) 1/4”

Drain

Hose

Inner diameter mm 12 —

Length mm 650 —

Power Cord Length m— —

Number of core-wire — —

Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)

Net Weight lb (kg) 20 (9.0) 68 (31.0)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W—600

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% PP Resin

Motor Type Induction (4-poles) Induction (6-poles)

Input W55.1 78.0

Rated Output W15 30

CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G

Unit CS-A9CK CU-A9CK

Fan Speed Low rpm Cooling; 780

Heating; 840

—

Medium rpm Cooling; 960

Heating; 960

—

High rpm Cooling; 1,140

Heating; 1,230

845

SuperHigh rpm Cooling; 1,230

Heating; 1,230

—

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)

Fin Type Slit Fin Corrugate Fin

Row / Stage (Plate fin configuration, forced draft)

2×15 1×20

FPI 19 16

Size (W × H × L) mm 610 × 315 × 25.4 841 × 508 × 22

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (cm3) — SUNISO 4GSI (290)

Refrigerant (R-22) g (oz) —870 (30.7)

Thermostat Electronic Control —

Protection Device —Overload Protector

Capillary Tube Length mm —Cooling; 982, Heating; 305

Flow Rate l/min —Cooling; 5.4, Heating; 15.5

Inner Diameter mm —Cooling; 1.2, Heating; 1.5

Air Filter Material

Style

P.P.

Honeycomb

—

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —35 µF, 370VAC

Fan Motor Capacitor µF, VAC 5.0 µF, 230VAC 8.0 µF, 230VAC

Note:

• Specifications are subject to change without notice for further improvement.

• (1) — CS-A9CKPG-4 / CU-A9CKP6G-4 (USA).

• (2) — CS-A9CKPG-5 / CU-A9CKP6G-5 (Canada).

CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G

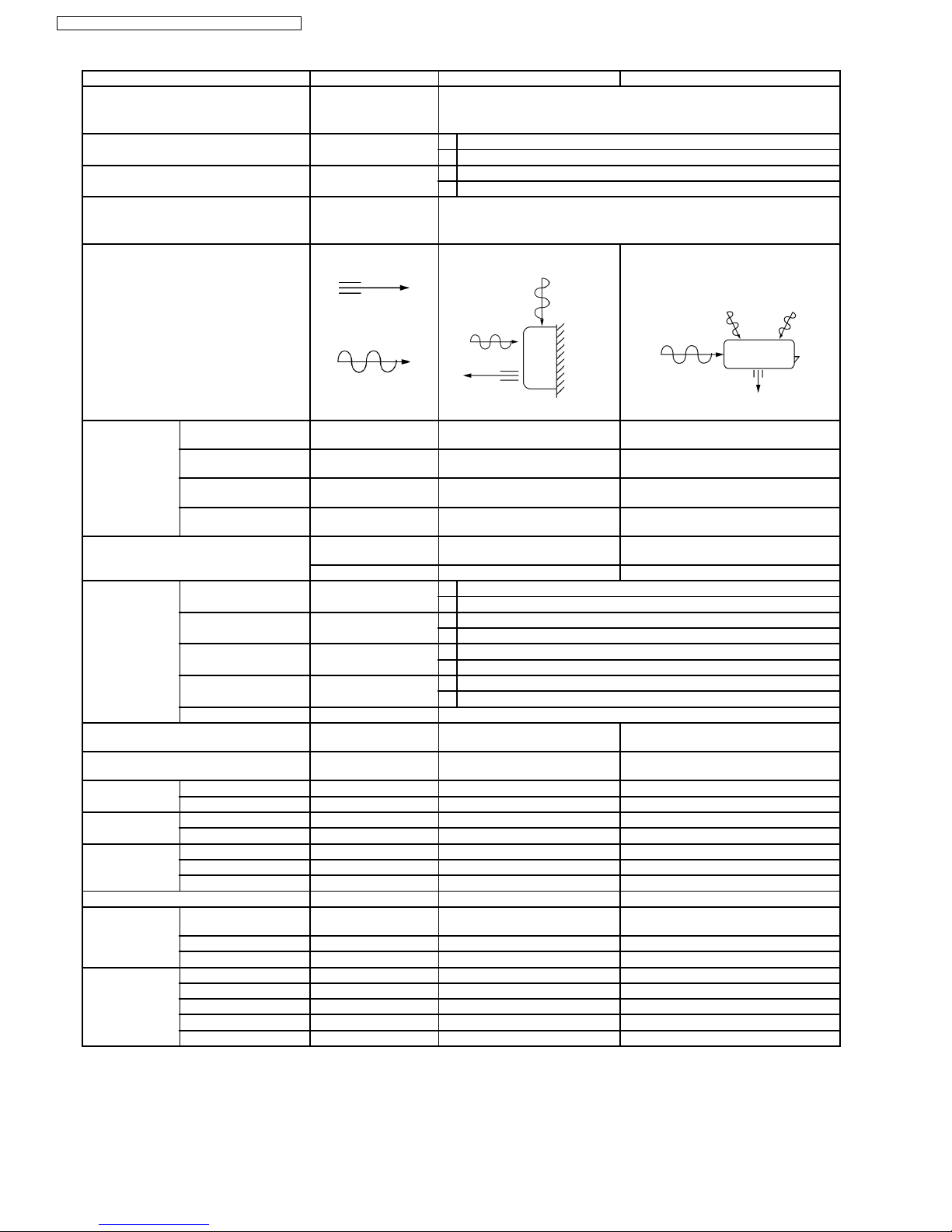

Unit CS-A12CK CU-A12CK

Power Source Phase, Voltage, Cycle Single, 115, 60 Hz

Cooling Capacity kW (BTU/h) (1) 3.51 (12,000)

(2) 3.50 (12,000)

Heating Capacity kW (BTU/h) (1) 3.96 (13,500)

(2) 4.00 (13,500)

Moisture Removal l/h (Pint/h) 1.3 (2.7)

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.9 (250)

Heating; 7.4 (260)

—

Indoor Air (Me) m3/min (cfm) Cooling; 8.6 (300)

Heating; 8.6 (300)

—

Indoor Air (Hi) m3/min (cfm) Cooling; 9.7 (340)

Heating; 10.2 (360)

Cooling; 33.1 (1,170)

Indoor Air (SHi) m3/min (cfm) Cooling; 10.0 (350)

Heating; 10.0 (350)

—

Noise Level dB (A) Cooling; High 39, Low 29

Heating; High 40, Low 29

Cooling; High 49

Heating; High 49

Power level dB — —

Electrical Data Input Power W(1) Cooling; 1,200, Heating; 1,190

(2) Cooling; 1,200, Heating; 1,200

Running Current A(1) Cooling; 10.6, Heating; 10.5

(2) Cooling; 10.6, Heating; 10.6

EER W/W (BTU/hW) (1) Cooling; 2.925 (10.00)

(2) Cooling; 2.90 (10.00)

COP W/W (BTU/hW) (1) Heating; 3.330 (11.34)

(2) Heating; 3.35 (11.25)

Starting Current A57.0

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G ; (gas side) 1/2”

L ; (liquid side) 1/4”

G ; (gas side) 1/2”

L ; (liquid side) 1/4”

Drain

Hose

Inner diameter mm 12 —

Length mm 650 —

Power Cord Length m— —

Number of core-wire — —

Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)

Net Weight lb (kg) 20 (9.0) 77 (35.0)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W—850

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% PP Resin

Motor Type Induction (4-poles) Induction (6-poles)

Input W55.1 78.0

Rated Output W15 30

CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G

Unit CS-A12CK CU-A12CK

Fan Speed Low rpm Cooling; 900

Heating; 960

—

Medium rpm Cooling; 1,120

Heating; 1,120

—

High rpm Cooling; 1,260

Heating; 1,300

850

SuperHigh rpm Cooling; 1,300

Heating; 1,300

—

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)

Fin Type Slit Fin Corrugate Fin

Row / Stage (Plate fin configuration, forced draft)

2×15 2×24

FPI 21 16

Size (W ×H×L) mm 610 ×315 ×25.4 735.1

705.8

×508 ×36.38

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (cm3)—SUNISO 4GSI (350)

Refrigerant (R-22) kg (oz) —1.04 (36.7)

Thermostat Electronic Control —

Protection Device —Overload Protector

Capillary Tube Length mm —Cooling; 530, Heating; 325

Flow Rate l/min —Cooling; 7.0, Heating; 13.4

Inner Diameter mm —Cooling; 1.2, Heating; 1.4

Air Filter Material

Style

P.P.

Honeycomb

—

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —50 µF, 370VAC

Fan Motor Capacitor µF, VAC 5.0 µF, 230VAC 8.0 µF, 230VAC

Note:

• Specifications are subject to change without notice for further improvement.

• (1) —CS-A12CKPG-4 / CU-A12CKP6G-4 (USA).

• (2) —CS-A12CKPG-5 / CU-A12CKP6G-5 (Canada).

CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G

4 Dimensions

CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G

This manual suits for next models

Table of contents

Other Panasonic Air Conditioner manuals

Panasonic

Panasonic CW-XN181AM Series User manual

Panasonic

Panasonic CU-V7CKP5 User manual

Panasonic

Panasonic CS-V18BKP User manual

Panasonic

Panasonic CS-MC120KE User manual

Panasonic

Panasonic CS-V7DKE User manual

Panasonic

Panasonic CS-LU9ZKA User manual

Panasonic

Panasonic CU-4E27PBE User manual

Panasonic

Panasonic U-5MX3XPQ User manual

Panasonic

Panasonic CS-PS18UKA User manual

Panasonic

Panasonic CU-A24BBP5 User manual

Panasonic

Panasonic CS-RZ25VKRW User manual

Panasonic

Panasonic CS-RE9HKE User manual

Panasonic

Panasonic CS-PC12MKF User manual

Panasonic

Panasonic CS-S12NKUA Owner's manual

Panasonic

Panasonic S-36PT2E5B User manual

Panasonic

Panasonic CS-E24LKES User manual

Panasonic

Panasonic CS-20UMHPP User manual

Panasonic

Panasonic S-18PU3HB User manual

Panasonic

Panasonic CS-MKE7NKU Installation and user guide

Panasonic

Panasonic CS-NS12UKY Series User manual

Panasonic

Panasonic CS-W34BB4P User manual

Panasonic

Panasonic CS-A24BB4P User manual

Panasonic

Panasonic CS-E18JKEW User manual

Panasonic

Panasonic CS-RE18NKA User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
