Oregon Scientific EM-913 R User manual
1
GB
- User selectable°C or °F temperature units of measure.
- Wall mounting and table standing feature.
DESCRIPTION OF PARTS
FRONT VIEW
BACK VIEW
Electronic Thermo-Hygrometer
MODEL: EM913R
USER'S MANUAL
INTRODUCTION
Thank you for purchasing the Oregon Scientific thermo-
hygrometer.Thisthermo-hygrometerhasbeendesigned specificially
with performance and ease of use in mind. As with all Oregon
Scientific products, this thermo-hygrometer is made to the highest
quality standards using precision electronic components and should
give you many years of trouble free use.
Please read the User’s Guide carefully before use to ensure you get
the best out of your new thermo-hygrometer.
FEATURES
- Electronic Thermo-Hygrometer with large size display.
- Display showsindoororoutdoor temperature and indoor relative
humidity simultaneously.
- Comfort indicators to show indoor condition on both
temperature and humidity factors.
- Memory function to recall and display the previous maximums
and minimums reading of temperatures and relative humidity.
- Temperature compensation feature assures accurate relative
humidity measurement without affecting by temperature
change.
- Detachable external sensor probe.
LCD DISPLAY
MAX
MIN
IN/OUT
MEMORY CLEAR HANGER °C/°F SWITCH
OUTDOOR
TEMPERATURE
SENSOR PROBE
WIRE
ATTACHMENT
DETACHABLE EXTERNAL
SENSOR PLUG
DOOR
BATTERY
STAND
TEMPERATURE
HUMIDITY
IN/OUT MIN MAX
COMFORT
IN
MEM RESERT °C
°F
2
GB
INSTALLING AND REPLACING OF
BATTERY
The Thermo-Hygrometer uses one piece UM-4 or ‘AAA’ size
battery(1.5V DC)
Follow these steps to install or replace the battery
1. Slide the battery door in the direction of the arrow
2. Insert the battery as indicated by the polarity symbols (+ and -
) marked inside the battery compartment.
3. Replace the battery door.
Notes: After you install or replace the battery, it takes time for
sampling once again both he temperature and humidity data. The
display will show full segment for 1 to 2 seconds, then shows the
updated tempera-ture and humidity reading.
Display and Functions
GENERAL OPERATION
ThisThermo-Hygrometerwill measure / displayindoor temperature
(the air temperature measured by the sensor built inside the unit )
or outdoor temperature (the air temperature measured by the
detachable external sensor probe )and indoor relative humidity (the
relative humidity measured by the sensor built inside the unit )
It can be set to display the indoor/outdoor maximum or minimum
temperature and indoor relative humidity recorded.
Note:
When the outdoor temperature is over the measuring range ,flashing
digit ‘-50’(°C) / ‘-58’(°F) appears on the display (below –50 °C /
-58 °F) or ‘70’(°C ) / ‘158’(°F) appears on the display (above +70
°C / +158 °F)
When the indoor temperature is over the operating range ,fades out
on the display (below 0 °C /+32 °F) or blacks out on the display
(above +50 °C / +122°F).
This Thermo-Hygrometer will continue to record the indoor /
outdoor maximum, indoor / outdoor minimum temperature and
humidity changes, whether displaying current, maximum or
minimum temperature readings.
HOW TO SELECT THE INDOOR OR
OUTDOOR TEMPERATURE DISPLAY
The unit can display the indoor temperature or outdoor temperature
reading. For changing display between indoor and outdoor by
pressing the [IN/OUT] button to update the temperature display.
INDOOR OR
OUTDOOR
TEMPERATURE
INDICATOR
INDOOR
RELATIVE
HUMIDITY
READING
COMFORT
INDICATOR
INDOOR OR
OUTDOOR
TEMPERATURE
READING
COMFORT
IN
3
GB
Note :
The ‘IN’ indicator will be displayed whenever the temperature
display relates to indoor temperature and the ‘OUT’ indicator will
be displayed whenever the temperature display relates to outdoor
temperature.
1. Remove the protecting cap from the sensing port.
2. Plug the external probe into the sensor jack and push the [IN /
OUT] button to toggle to the outdoor display. The ‘OUT’
indicator appears from outdoor to indoor.
Push the [IN/ OUT]button once to toggle the reading to the indoor
display. The ‘IN’indicator is displayed.
(It’s up to end user’s desire to remove or keep the external sensor
probe to the main unit.)

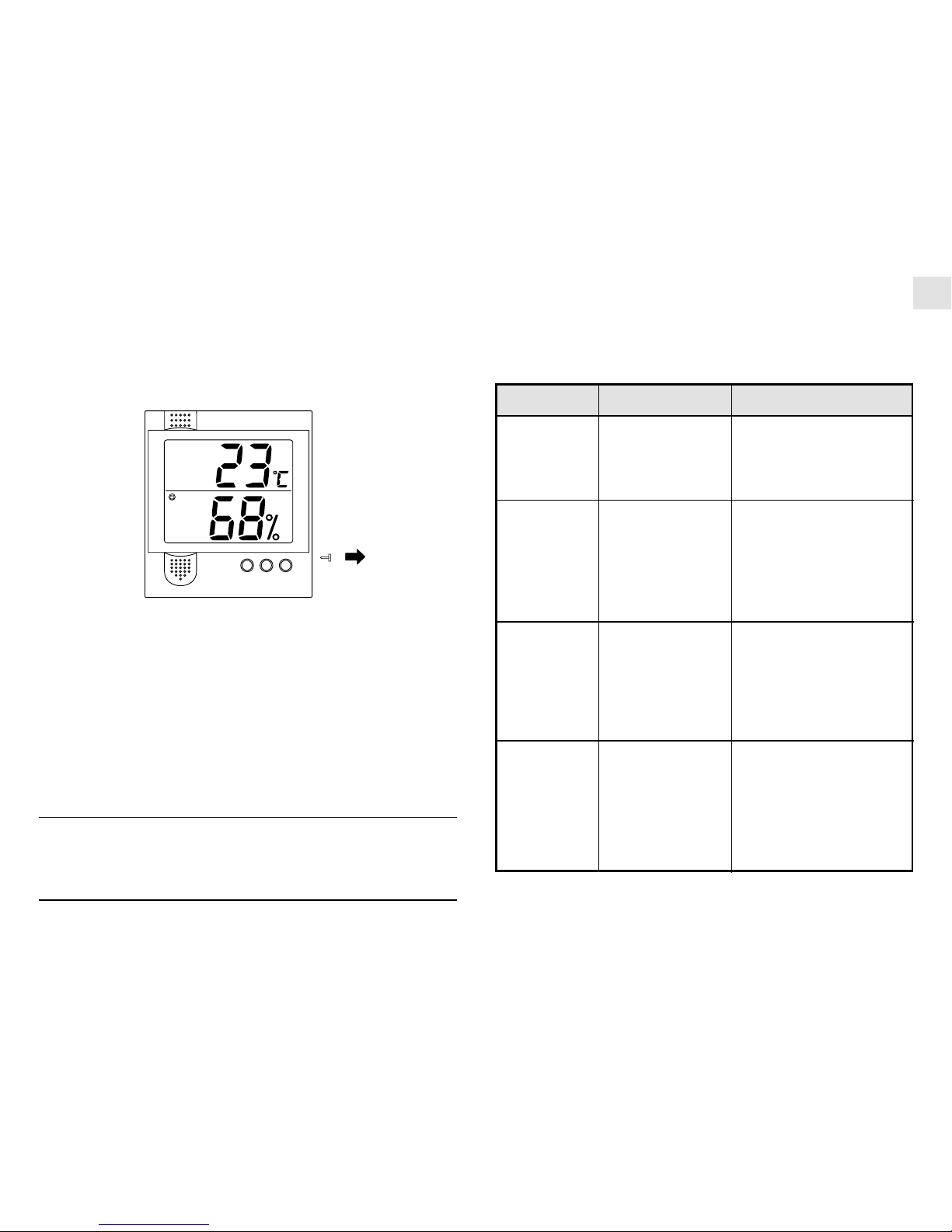

HOW TO RECALL / CLEARTHE STORED
TEMPERATURE AND HUMIDITY
MEMORIES
The Thermo-Hygrometer will automatically record the maximum /
minimum temperature and relative humidity reading.You can recall
/ clear those reading as follows:
Maximum Button to press Displays
Current
temperature/
humidity
23°C
68%
Recall the
maximum
temperature/
humidity
Press [MAX]
button once
MAX 28°C
MAX 78 %
(“MAX”indicator
maximumtemperature
and humidity displayed)
In case clear
the maximum
temperature /
humidity
Press [MEMORY
CLEAR] button
once
MAX 23 °C
MAX 68 %
(display update as the
current temperature and
humidity reading)
Return to
current
temperature /
humidity
Press [MAX]
button once again
while at maximum
temperature and
humidity display
(“MAX” indicator
disappear)
23 °C
68 %
TEMPERATURE
HUMIDITY
IN/OUT MIN MAX
COMFORT
IN
4
GB
HOW TO READ THE RELATIVE
HUMIDITYAND COMFORT INDICATORS
The unit shows the indoor relative humidity and such reading is
temperature compensated.At the same time , the comfort indicators
– COMFORT, WET or DAY will tell you if the current indoor
environment is comfortable, too wet or too dry. The comfort
indicators will appear on the display when the following conditions
are satisfied :
You may like to clear the memory occasionally, so to record the
maximum / minimum at a specified period.
Minimum Button to press Displays
Current
temperature /
humidity
23°C
68 %
Recall the
minimum
temperature/
humidity
Press [MIN]
button once.
MIN 18 °C
MIN 58 %
(“MIN” indicator
minimum temperature
and humidity displayed)
In case clear
the minimum
temperature /
humidity
Press [MEMORY
CLEAR] button
once
MIN 23 °C
MIN 68 %
(display update as the
current temperature
and humidity)
Return to
current
temperature /
humidity
Press [MIN]
button once again
while at minimum
temperature and
humidity display
23 °C
68 %
(“MIN” indicator
disappear)
Indicator
Displays
on t e unit
Temperature
Range
(indoor)
Humidity
Range
S ows t at t e
Current indoor
Environment
COMFORT 20°C to 25°C
(68 °F to 77°F)
40% RH to
70%RH
Idea range for
both relative
humidity and
temperature
WET
DRY
Full Range
Over
70% RH
Below
40% RH
Contain excess
moisture
Contain
inadequate
moisture
No Indicator Below 20°C
(68 °F) or
Higher than
25°C (77 °F)
40%RH to
70%RH
No comment
5
GB
TEMPERATURE
HUMIDITY
IN/OUT MIN MAX
COMFORT
IN
HOW TO SELECT THE TEMPERATURE
UNITS OF MEASURE
The switch on the back of the Thermo-Hygrometer allows you to
select between degrees Celsius and Fahrenheit. Set the switch to
‘°C’for selecting Celsius and to ‘°F’for selecting Fahrenheit.
LOW BATTERY SIGNAL INDICATION
If the voltage of the battery becomes low, the ‘BATT’indicator will
be display at the top right corner of the display . Replace the
battery when the ‘BATT’ indicator is displayed.
HOW TO REST THE UNIT
If you Thermo-Hygrometer doesn’t operate properly, take out the
battery from the unit for 4 to 5 seconds, then reinstall the battery.

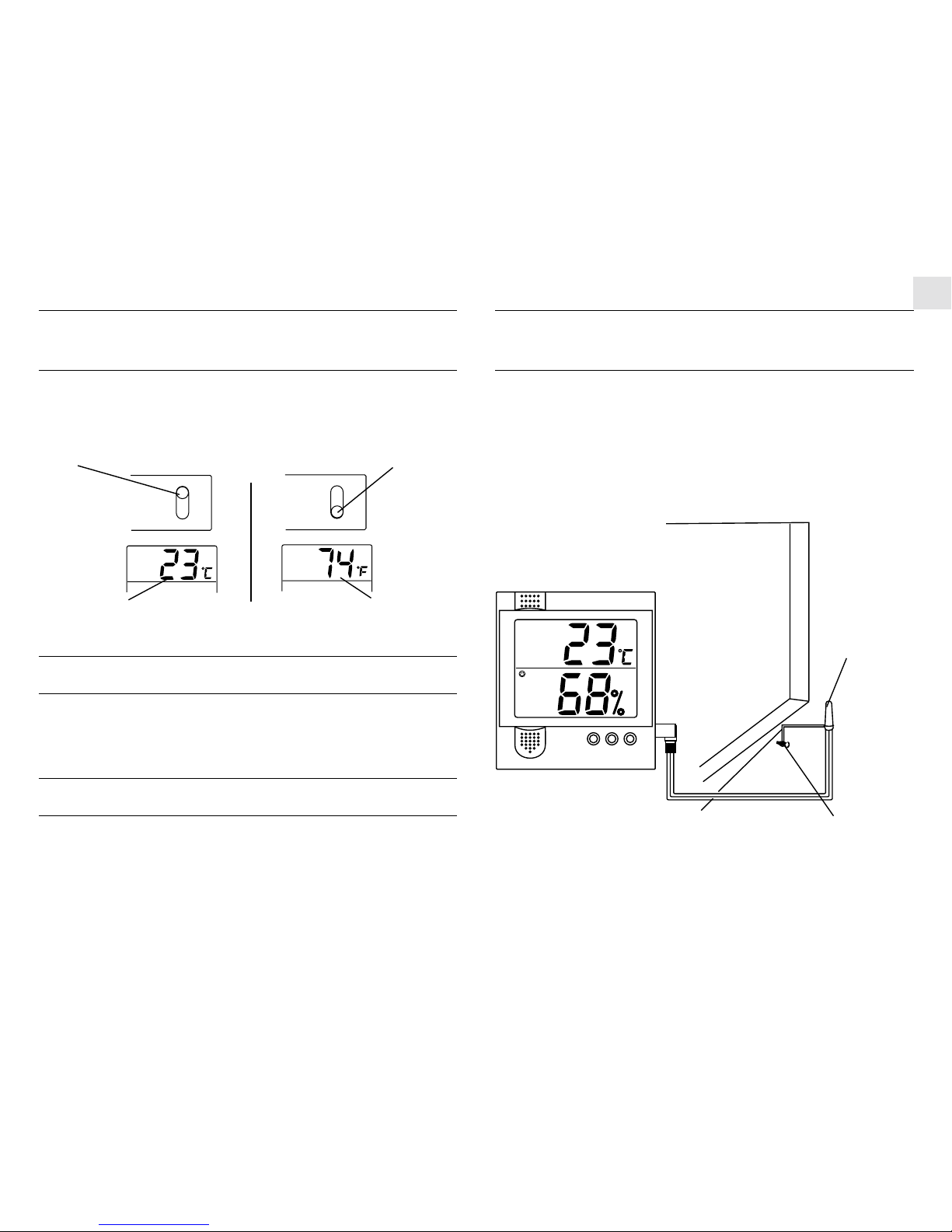

MOUNTING THE OUTDOOR
TEMPERATURE SENSOR PROBE
You can mount the outdoor temperature sensor probe by following
steps :
1. Drive a screw into the wall at the location you choose for the
sensor probe ,to fix the wire attachment to the wall.
2. Route the sensor probe cable through a window .
3. Locate sensor probe into wire attachment.
Note :
Locate the sensor probe away from direct sunlight and heavy
precipitation.
‘°F’ POSITION
‘°C’ POSITION
READING IN °CREADING IN °F
INDOOR OUTDOOR
OUTDOOR
SENSOR
PROBE
SCREW
WIRE ATTACHMENT
°C
°F
°C
°F
IN IN
6
GB
FREE STAND AND WALL MOUNTING
Table Stanting :
Flip out the plastic stand on the rear of the Thermo-Hygrometer
for table standing. Stand the Thermo-Hygrometer on a flat surface.
Wall Mount:
Follow these steps to mount the Thermo-Hygrometer on a wall.
1. Drive a screw into the wall at the location you choose until the
head extends 3.5 mm from the wall.
2. Locate into the hanger slot on the back of the Thermo-
Hygrometer until it locks into place.
Notes:
For accurate measurement, you should mount the Thermo-
Hygrometer in an area where air can flow freely around it.
MAINTENANCE
When handled properly, this unit is engineered to give you years of
satisfactory service. Here are a few product care instructions:
1. Do not immerse the unit in water. If the unit comes in contact
with water, dry it immediately with a soft lint-free cloth.
2. Do not clean the unit with abrasive or corrosive materials.
Abrasive cleaning agents may scratch the plastic parts and
corrode the electronic circuit.
3. Do not subject the unit to excessive: force, shock, dust,
temperature, or humidity. Such treatment may result in
malfunction, a shorter electronic life span, damaged batteries,
or distorted parts.
4. Do not tamper with the unit’s internal components. Doing so
will terminate the unit’s warranty and may cause damage. The
unit contains no user-serviceable parts.
5. Only use new batteries as specified in this instruction manual.
Do not mix new and old batteries as the old batteries may leak.
6. Read this instruction manual thoroughly before operating the
unit.
SPECIFICATIONS
Operating temperature : 0°C to 50°C (32°F to +122°F)
Temperature measuring range
(unit) :0°C to 50°C (32°F to +122°F)
(probe) :-50°C to 70°C (-58°F to +158°F)
Temperature resolution
(unit/probe) :1°C(2°F)
Humidity measuring range :25 to 95%RH at 25°C (77°C)
Resolution of humidity :1%RH
Sensor wire length :3 meter
Dimension :117 x 107 x 20.5 mm
(H x W x D )
Weight :174 g (Without battery)
CUSTOMERASSISTANCE
Should you require assistance regarding this product and its
operation, please contact our customer care department at 541-868-
8205 or via email at helpme@oscientific.com.
7
GB
WARRANTY
This product is warranted to be free of manufacturing defects for a
period of 1 year from date of retail purchase. Defective product
should be directed to the place of retail purchase for exchange.
Should this not be possible, contact our customer care department
for assistance and a return material authorization. No returns may
be made without a return authorization. Please retain your retail
receipt as you may be asked to provide a copy of it for proof of date
purchased.
This warranty does not cover product subjected to abuse, misuse,
accidental damage or tampering.
CAUTION
- The content of this manual is subject to change without
further notice.
- Dueto printinglimitation, the displaysshowninthismanual
may differ from the actual display.
- The contents of this manual may not be reproduced without
the permission of the manufacturer.
086-001577-11
Other manuals for EM-913 R
1
Table of contents
Other Oregon Scientific Thermometer manuals
Oregon Scientific
Oregon Scientific RMR182 User manual
Oregon Scientific
Oregon Scientific EMR801 User manual
Oregon Scientific
Oregon Scientific BAR122HGLA User manual
Oregon Scientific
Oregon Scientific RAR188A User manual
Oregon Scientific
Oregon Scientific EW92 User manual
Oregon Scientific
Oregon Scientific RGR126NX User manual
Oregon Scientific
Oregon Scientific AW129 User manual
Oregon Scientific
Oregon Scientific RMR382 User manual
Oregon Scientific
Oregon Scientific EW91 User manual
Oregon Scientific
Oregon Scientific AW129 User manual
Oregon Scientific
Oregon Scientific EMR812A User manual
Oregon Scientific
Oregon Scientific RMR683HGA User manual
Oregon Scientific
Oregon Scientific SA880SSX User manual
Oregon Scientific
Oregon Scientific THN122N User manual
Oregon Scientific
Oregon Scientific THWR800 User manual
Oregon Scientific
Oregon Scientific MTR101 User manual
Oregon Scientific
Oregon Scientific THT328 User manual
Oregon Scientific
Oregon Scientific MTR101 User manual
Oregon Scientific
Oregon Scientific MTR101 User manual
Oregon Scientific
Oregon Scientific MTR102 User manual
