Oregon Scientific AW129 User manual

Model: AW129

WIRELESS BBQ THERMOMETER

USER MANUAL

****

MANUEL D’UTILISATION

****

MANUEL DE USO

AW129_STD_EN 2006.9.11, 2:46 PM

P/N: 086L002935-059 REV1

1/23

CONTENTS

Key features ...................................................................... 1

Setup .................................................................................. 3

Installing the batteries .................................................... 3

°C / °F .................................................................................4

Volume ............................................................................... 4

LED indicator ....................................................................4

Sensor location................................................................. 4

Connecting the probe ...................................................... 4

Operation ........................................................................... 4

Check signals and alarm ................................................. 5

Signal ............................................................................. 5

Alarm .............................................................................. 5

Battery ...............................................................................5

Precautions ....................................................................... 6

Speciﬁcations ...................................................................6

EU-Declaration Of Conformity ......................................... 7

select

cook

power

WIRELESS BBQ THERMOMETER

MODEL: AW129

USER MANUAL

KEY FEATURES

Figure 1. Monitor

1. Indicates monitor / thermometer sensor communication

2. Low battery indicator

3. Target temperature

4. Select / Cook button

5. Type of meat

6. Level of doneness

7. Current temperature

8. Power button

AW129_M_STD_EN_OP.indd 1 10/11/06 8:52:58 AM

P/N: 086L002935-059 REV1

2/23

KEY FEATURES

Figure 2. Thermometer Sensor

1. Power button

2. Thermometer sensor LED

3. Probe socket

4. Probe socket cover

5. Probe

Figure 3. Insert Batteries (Monitor)

Figure 4. Insert Batteries (Thermometer Sensor)

Figure 5. reset (Thermometer Sensor)

"AA" UM3 1.5V

reset

"AAA" UM4 1.5V

AW129_M_STD_EN_OP.indd 2 10/11/06 8:53:00 AM

P/N: 086L002935-059 REV1

3/23

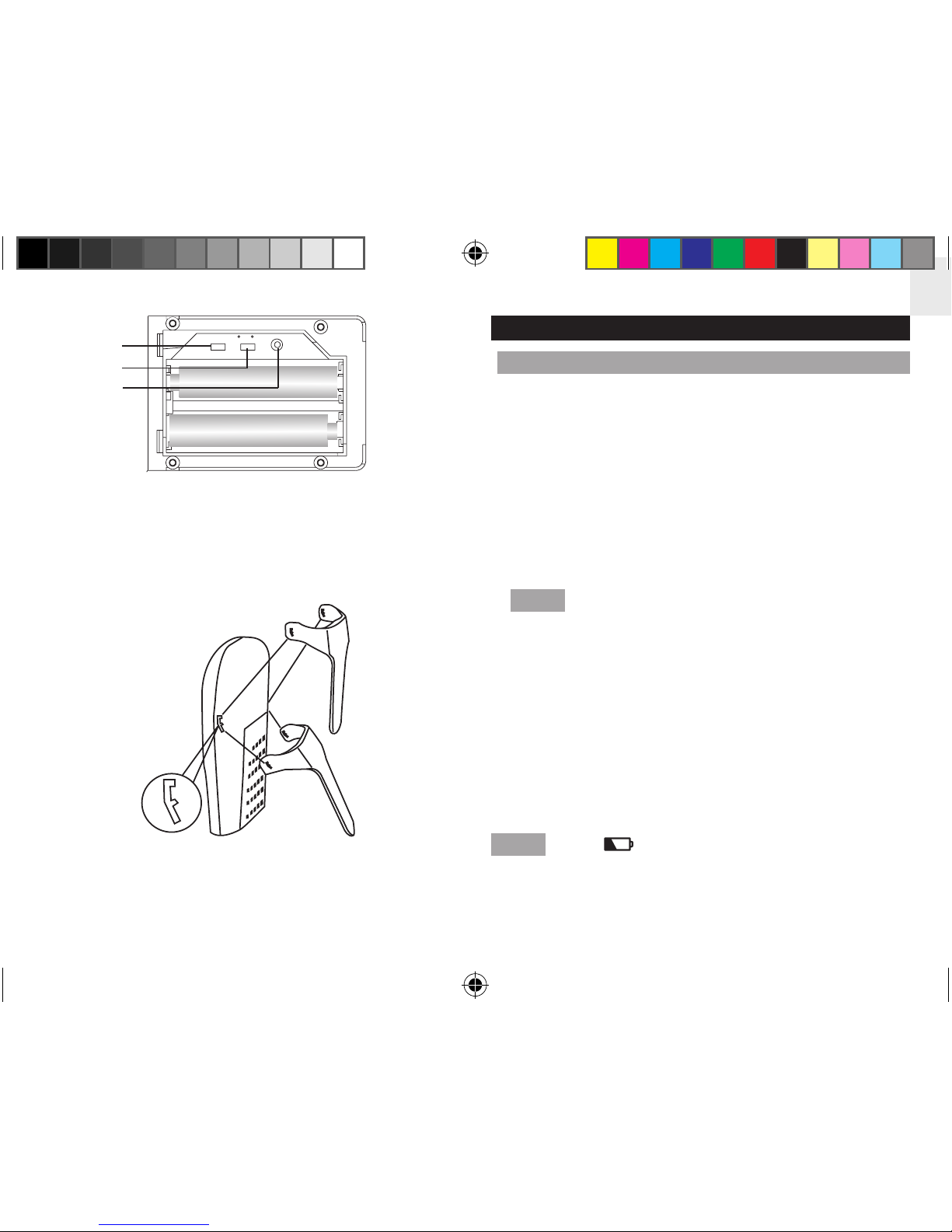

Figure 6. Battery Compartment (Monitor)

1. Hi / Lo button

2. °C / °F button

3. reset button

Figure 7. Belt Clip and Stand Position

SETUP

INSTALLING THE BATTERIES

Follow these steps to install the batteries.

In the Monitor (Figures 3,5 and 7)

1. Slide down and lift the belt clip off the back of the monitor.

Slide then lift up to remove the battery compartment

cover.

2. Place two AA batteries in the compartment as indicated by

the polarity symbols (+ and -).

3. Press reset in the battery compartment using a pointed

object such as a paper clip (Figure 5).

NOTE Reset both the monitor and the thermometer sensor

within 60 seconds to synchronize signal transmission.

4. Replace the cover and the belt clip.

In the Thermometer Sensor (Figure 4)

1. Slide the battery compartment cover open.

2. Insert two AAA size batteries into the compartment

matching the polarities (as shown). Press reset using a

pointed object such as a paper clip.

3. Replace the battery compartment cover.

NOTE When appears on the monitor, replace the

batteries.

reset

Hi /Lo C / F

"AA" UM3 1.5V

AW129_M_STD_EN_OP.indd 3 10/11/06 8:53:02 AM

P/N: 086L002935-059 REV1

4/23

°C / °F

(Figure 6)

To select Fahrenheit of Celsius, slide the °C / °F switch.

VOLUME

(Figure 6)

To adjust the monitor’s volume, slide the Hi/Lo switch, located

in the thermometer battery compartment.

LED INDICATOR

(Figure 2)

The red LED in the middle of the thermometer sensor ﬂashes

to indicate that it is on and transmitting.

SENSOR LOCATION

(Figure 7)

You can wear the monitor on your belt or stand it up on a ﬂat

surface. To stand it up, remove the belt clip from the back

of the monitor. Insert the left or right side of the clip into the

lower part of the slot, then snap the other side into the other

lower slot.

CONNECTING THE PROBE

(Figure 2)

Locate the probe socket cover on the top right side of the

thermometer sensor and carefully pull it out. Plug the wire

end of the meat probe into the socket.

OPERATION

The doneness level selections, Rare, Med Rare, Medium, and

Well Done only apply to beef, lamb and veal. For chicken,

turkey, pork, ﬁsh, and hamburger the monitor defaults to

Well Done.

1. Press and hold power until the thermometer sensor’s red

LED ﬂashes. Then press and hold power until the monitor’s

green LCD lights and all display segments appear.

2. Press select (twice) until the desired meat appears. You

can choose between , , , (hamburger),

, (turkey), (chicken) or .

3. Press cook repeatedly to select the level of doneness.

TIP: This product gauges internal temperature only and is

not meant to substitute recipe instructions. The ranges for

meat types and doneness levels are guidelines only. Some

recipes may call for the meat (such as turkey or chicken) to

be removed from the heat source 15-30 minutes earlier, so

that the internal temperature can continue to rise before the

meat is carved. Always follow the recipe instructions to ensure

that the meat is fully and properly cooked.

AW129_M_STD_EN_OP.indd 4 10/11/06 8:53:04 AM

P/N: 086L002935-059 REV1

5/23

4. Place the thermometer near the cooking area and insert

the tip of the probe into the center of the meat. Use the

monitor’s stand for easy viewing or use the belt clip.

NOTE

• For a clear signal, place the monitor within 100 feet

(30.5m) of the thermometer sensor

• Place the thermometer sensor away from direct heat or

ﬂame. Do not rest the probe on the cooking surface as

doing so can damage the thermistor inside the probe.

5. When the meat is done, remove the probe from the meat

and let it cool before touching it. Press power on the

monitor and thermometer sensor to turn them off.

6. Disconnect the probe from the thermometer sensor and

replace the socket cover. After you ﬁnish cooking, wipe the

monitor and the thermometer sensor with a damp cloth.

Gently wash the steel probe only with mild dish detergent

and warm water.

NOTE Do not use a dishwasher to clean the probe and do

not immerse the monitor or thermometer sensor in water or

liquid.

CHECK SIGNALS AND ALARM

SIGNAL

Indicates no signal.

Indicates the thermometer is receiving a signal from the

sensor.

ALARM

• Three beeps - indicates that the monitor is not receiving

a signal from sensor.

• Four beeps - indicates that the current temperature is

within ﬁve degrees of the target temperature.

• A continuous beep - indicates that the sensor has

reached the target temperature.

• A fast and continuous beep - indicates that the meat

is overcooked.

BATTERY

Appears on the monitor to indicate the condition of the

batteries. Please observe the following information for an

indication of when the batteries need to be replaced.

• main - indicates that the monitor’s battery is low.

• remote - indicates that the thermometer sensor

battery is low.

AW129_M_STD_EN_OP.indd 5 10/11/06 8:53:05 AM

P/N: 086L002935-059 REV1

6/23

• main remote - indicates that the batteries are low in

both the monitor and thermometer sensor.

• Use only fresh batteries of the speciﬁed size.

• Do not mix old and new batteries, different types of batteries

(standard, alkaline, or rechargeable), or rechargeable

batteries of different capacities.

• If you do not plan to use the thermometer for a month or

longer, please remove the batteries to prevent leakage and

damage.

PRECAUTIONS

This product is engineered to give you years of satisfactory

service if you handle it carefully. Here are a few precau-

tions:

• Do not subject the unit to excessive force, shock, dust,

temperature or humidity

• Do not cover the ventilation holes with any items such s

newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid over it,

dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive

materials.

• Do not tamper with the unit ’s internal components. This

invalidates the warranty.

• Only use fresh batteries. Do not mix new and old

batteries.

• Images shown in this manual may differ from the actual

display.

• When disposing of this product, ensure it is collected

separately for special treatment.

• Placement of this product on certain types of wood may

result in damage to its ﬁnish for which Oregon Scientiﬁc

will not be responsible. Consult the furniture manufacturer’s

care instructions for information.

• The contents of this manual may not be reproduced without

the permission of the manufacturer.

NOTE The technical speciﬁcations for this product and the

contents of the user manual are subject to change without

notice.

SPECIFICATIONS

Specifications are typical and individual units may vary.

Speciﬁcations are subject to change without notice.

MONITOR

Batteries 2 x AA 1.5V

Operating temperature range 0°C to 50°C

(32°F to 122°F)

Storage temperature range -30°C to 70°C

(-22°F to 158°F)

LCD display range 0°C/°F to 199°C/°F

AW129_M_STD_EN_OP.indd 6 10/11/06 8:53:05 AM

P/N: 086L002935-059 REV1

7/23

THERMOMETER SENSOR PROBE

Batteries 2 x AAA 1.5V

Operating temperature range -20°C to 250 °C

(-4°F to 482°F)

GENERAL

Stainless steel probe (length) 3.28feet (1 meter)

Temperature resolution ±1°C (± 2°F)

Heat resistance 70°C (158°F)

Stainless steel probe

operating temperature 250°C (482°F) Maximum

NOTE The operation temperature range of the sensor probe

is -20°C to 250°C (4°F to 482°F). The LCD display range is

0°C/°F to 199°C/°F. When the display temperature is out of

range, the display digits ﬂash.

EU-DECLARATION OF CONFORMITY

Hereby, IDT Technology Limited, declares that the Wireless

BBQ Thermometer (Model AW129) is in compliance with

the essential requirements and other relevant provisions of

Directive 1999/5/EC.

A copy of the signed and dated Declaration of Conformity is

available on request via our Customer Service.

COUNTRIES RTTE APPROVAL COMPLIED

All EU Countries, Switzerland CH

and Norway N

AW129_M_STD_EN_OP.indd 7 10/11/06 8:53:05 AM

P/N: 086L002935-059 REV1

8/23

select

cook

power

Thermomètre Sans ﬁl pour

BARBECUE

MODÈLE : AW129

MANUEL D’UTILISATION

TABLE DES MATIÈRES

Fonctions des touches .................................................... 1

Mise en marche ................................................................ 3

Installation des piles ...................................................... 3

°C / °F ................................................................................. 4

Volume ............................................................................... 4

Témoin lumineux .............................................................. 4

Installation de la sonde .................................................... 4

Branchement du capteur ................................................. 4

Fonctionnement ................................................................ 4

Signal et Alarme ...............................................................5

Signal ............................................................................ 5

Alarme ........................................................................... 5

Pile ..................................................................................... 6

Précaution ......................................................................... 6

Spéciﬁcations ................................................................... 6

EU-Déclaration de Conformité ........................................ 7

FONCTIONS DES TOUCHES

Schéma 1. Appareil de Contrôle

1. Indique la communication entre l’appareil de contrôle / la

sonde thermomètre

2. Indicateur de piles faibles

3. Température cible

4. Bouton Select / Cook [Sélection / Cuisson]

5. Type de viande

6. Niveau de cuisson

7. Température actuelle

8. Bouton Power Alimentation

AW129_M_STD_FR_R3.indd 1 10/10/06 5:13:45 PM

P/N: 086L002935-059 REV1

9/23

"AA" UM3 1.5V

reset

"AAA" UM4 1.5V

Schéma 3. Insertion des Piles (Appareil de Contrôle)

Schéma 4. Insertion des Piles (Sonde Thermomètre)

Schéma 5. Réinitialisation (Sonde Thermomètre)

Schéma 2. Sonde Thermomètre

1. Bouton Power [Alimentation]

2. Témoin de la sonde thermomètre

3. Prise du capteur

4. Protection de la prise du capteur

5. Capteur

AW129_M_STD_FR_R3.indd 2 10/10/06 5:13:48 PM

P/N: 086L002935-059 REV1

10/23

Other manuals for AW129

Table of contents

Languages:

Other Oregon Scientific Thermometer manuals

Oregon Scientific

Oregon Scientific RGR126NX User manual

Oregon Scientific

Oregon Scientific EMR899HGN User manual

Oregon Scientific

Oregon Scientific RMR382 User manual

Oregon Scientific

Oregon Scientific RGR126 User manual

Oregon Scientific

Oregon Scientific THT328 User manual

Oregon Scientific

Oregon Scientific THT312 User manual

Oregon Scientific

Oregon Scientific SL102 User manual

Oregon Scientific

Oregon Scientific MTR101 User manual

Oregon Scientific

Oregon Scientific AW129 User manual

Oregon Scientific

Oregon Scientific MTR101 User manual

Oregon Scientific

Oregon Scientific EM-913 R User manual

Oregon Scientific

Oregon Scientific RAR621 User manual

Oregon Scientific

Oregon Scientific EMR963HG User manual

Oregon Scientific

Oregon Scientific RGR126 User manual

Oregon Scientific

Oregon Scientific AW133 User manual

Oregon Scientific

Oregon Scientific NTS-912 User manual

Oregon Scientific

Oregon Scientific MTR102 User manual

Oregon Scientific

Oregon Scientific RMR802 User manual

Oregon Scientific

Oregon Scientific RAR186 User manual

Oregon Scientific

Oregon Scientific RAR601 User manual

Oregon Scientific

Oregon Scientific RMR683HGA User manual

Oregon Scientific

Oregon Scientific EW91 User manual

Oregon Scientific

Oregon Scientific RMR202 User manual

Oregon Scientific

Oregon Scientific RAR621 User manual

Popular Thermometer manuals by other brands

Delton

Delton 981A instruction manual

Baker

Baker MM2P instruction manual

Tarmo

Tarmo 320281 manual

Citizen

Citizen CTD 504 instruction manual

TFA

TFA 14.1500 instruction manual

Vive

Vive DMD1010 user manual

Gotemp

Gotemp THB4002 user guide

GREISINGER

GREISINGER G 1202 Quick reference guide

Amprobe

Amprobe TMD-53W user manual

Trotec

Trotec BP10 operating manual

Radiance instruments

Radiance instruments RT616 Series product manual

Eurolec

Eurolec IR151 operating instructions

Scaneo

Scaneo TS42B instruction manual

Sper scientific

Sper scientific 800043 instruction manual

Microlife

Microlife NC 200 Operating instructions manual

Motorola

Motorola MBP69SN General questions

The MeatStick

The MeatStick The MeatStick quick start guide

Hama

Hama TH35-A operating instructions
