MAIN FEATURES: MAIN UNIT

Long-Range Multi-Channel

In-Out Thermometer

with Cable Free Sensor and RF Clock

MODEL: RMR183/RMR183U

USER'S MANUAL

INTRODUCTION

Congratulations on your purchase of the RMR183/RMR183U

Long-Range (60 meters) Multi-Channel In-Out Thermometer with

433MHz cable free sensor and radio-controlled calendar clock.

Thebasicpackagecomeswithamainunit,whichisthetemperature

and calendar clock station, and a remote unit, the thermo sensor.

The main unit has a large display for indoor temperature,

calendar clock and temperatures collected and transmitted by the

remote unit. The main unit can support up to three remote units.

The main unit is capable of keeping track of the maximum and

minimum temperature of different sites. No wire installation is

required as the RMR183/RMR183U operates at 433MHz.

As for the calendar clock, it is radio-controlled. It automatically

synchronizes its current time and date when it is brought within an

approximate 1500km radius of the radio signal generated from

Frankfurt, Germany (DCF77) (or Radio signal MSF-60 from

Rugby, England for UK version).

You can also set the calendar clock manually when it is off range.

Otherfeaturesincludefive-languagedisplay,crescendodaily alarm

and interchangeable display modes.

RMR183-e R2 OP 8/21/04, 6:22 PM1

Black

A FOUR - LINE LCD DISPLAY

Facilitates easy reading of remote and indoor temperatures and

calendar clock

B[ ] RADIO - RECEPTION SIGNAL

Indicates the condition of radio reception

C TEMPERATURE TREND INDICATOR

Indicates the trend of temperature changes

D [ ] BATTERY - LOW INDICATOR

(REMOTE SENSOR)

Activates when the remote-sensor battery is low

E [ ] BATTERY - LOW INDICATOR

Activates when the battery of main unit is low

F[ ] ALARM - ON ICON

Appears when the alarm is activated

G[(

(

)) ] ALARM ICON

Appears when the alarm time is displayed

H [ MODE ] BUTTON

Toggles the calendar clock display modes or activates the

calendar clock setting mode

I [ALARM] BUTTON

Displays the alarm time or sets the alarm status

J [MEMORY] BUTTON

Displays maximum / minimum temperature

K [CHANNEL] BUTTON

Selects remote-sensor channels

L[ ] BUTTON

Advances the value of a setting

M[ ] BUTTON

Decreases the value of a setting

N [RESET] BUTTON

Returns all settings to default values

O°C/°F SLIDE SWITCH

Selects between degree Centigrade (°C) and Fahrenheit (°F)

P BATTERY COMPARTMENT

Accommodates two (2) UM-3 or “AA” size 1.5V batteries

Q REMOVABLE TABLE STAND

For standing the main unit on a flat surface

R WALL-MOUNT HOLE

For mounting the main unit on a wall

RMR183-e R2 OP 8/21/04, 6:22 PM2

Black

MAIN FEATURES: REMOTE UNIT THN128 A LED INDICATOR

Flashes when the remote sensor transmits a reading

B CHANNEL SLIDE SWITCH

Designates the remote sensor Channel

C RESET BUTTON

Returns all settings to default values

D BATTERY COMPARTMENT

Accommodates two (2) UM-4 “AAA” size 1.5V batteries

E BATTERY DOOR

F WALL-MOUNT HOLDER

Supports the remote unit in wall-mounting

G REMOVABLE TABLE STAND

For standing the remote unit on a flat surface

BEFORE YOU BEGIN

For best operation,

1. Assign different channels to different remote units.

2. Insert batteries for remote units before doing so for the main

unit.

3. Place the main unit as close as possible next to the remote unit

and reset the main unit after installing batteries. This will

ensure easier synchronization between the transmission and

reception of signals.

4. Position the remote unit and main unit within effective trans-

mission range, which is 60 meters in open area.

RMR183-e R2 OP 8/21/04, 6:22 PM3

Black

Note:

1. Replace batteries when the low-battery indicator of a

particular channel activates on the main unit.

2. Once a channel is assigned to a remote unit, it can only be

changed by removing the batteries or resetting the unit.

BATTERY INSTALLATION: MAIN UNIT

1. Open the battery compartment door.

2. Install 2 batteries (UM-3 or “AA” size 1.5V) strictly according

to the polarities shown.

3. Replace the battery compartment door.

LOW BATTERY WARNING

When it is time to replace batteries, the low-battery indicator will

show up when the corresponding channel is selected. The battery

level of the main unit will be shown on the indoor temperature

when it is running low.

Note that the effective range is vastly affected by the building

materials and where the main and remote units are positioned. Try

various set-ups for best result.

Though the remote units are weather proof, they should be placed

away from direct sunlight, rain or snow.

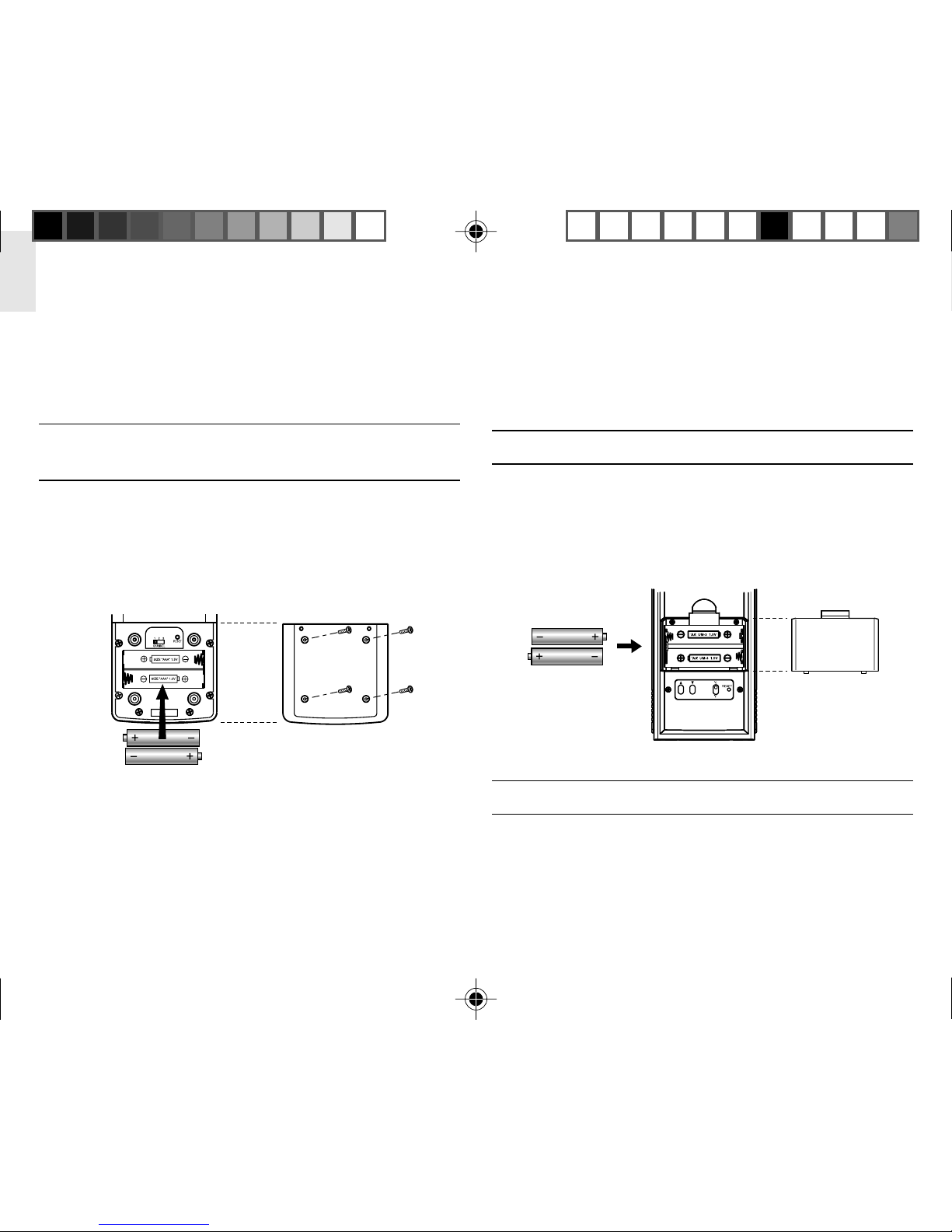

BATTERY INSTALLATION AND

CHANNEL SETTING: REMOTE UNIT

The remote unit uses two (2) UM-4 or “AAA” size 1.5V batteries.

Installation:

1. Remove the screws on the battery compartment.

2. Select the channel on the CHANNEL slide switch.

3. Insert the batteries strictly according to the polarities shown.

4. Replace the battery compartment door and screws.

RMR183-e R2 OP 8/21/04, 6:22 PM4

Black

THE RESET BUTTON

This button is only used when the unit is operating in an unfavor-

able way or malfunctioning. Use a blunt stylus to hold down the

button. All settings will return to their default values.

GETTING STARTED

Once batteries are in place for the remote units, they will start

transmitting temperature readings at 30 second intervals.

The main unit will also start searching for signals for about a

minute once batteries are installed. Upon successful reception,

the individual channel temperatures will be displayed on the top

line and the indoor temperature on the second line. The main unit

will automatically update its readings at about 30-second inter-

vals.

If no signals are received, blanks "----" will be displayed and the

kinetic wave icon will show " ". Press [CHANNEL] and

[MEMORY] simultaneously to enforce another search for about

30 seconds. This is useful in synchronizing the transmission and

reception of the remote and main units.

Repeat this step whenever you find discrepancies between the

reading shown on the main unit and that on the corresponding

remote unit.

HOW TO USE THE TABLE STAND

OR WALL MOUNTING

The main unit has a removable table stand, which when installed,

can support the unit on a flat surface. Or you can remove the stand

and mount the unit on a wall using the recessed screw hole.

As for the remote unit, it comes with a wall-mount holder and a

removable stand. Use either to hold the unit in place.

Main unit

Wall-mount Table Stand

Remote unit

Wall-mount Table Stand

RMR183-e R2 OP 8/21/04, 6:22 PM5

Black

HOW TO CHECK REMOTE AND

INDOOR TEMPERATURES

The indoor temperature is shown on the second line of the display.

As for the remote sites or channels, press [CHANNEL] to go from

one channel to another. The kinetic wave display on the channel

number indicates if the reception of that particular channel is in

good order.

If no readings are received from one particular channel for more

than two minutes, blanks “---” will be displayed until further

readings are successfully searched. Check if the remote unit

is sound and secure. You can wait for a little while or press

[CHANNEL] and [MEMORY] simultaneously to enforce an

immediate search. Of course no reading will be shown if no remote

unit is assigned to that channel.

If the temperature goes above or below the temperature measuring

range of the main unit or the remote unit (stated in specification),

the display will show “HHH” or “LLL”.

TEMPERATURE TREND

The temperature trend indicator on the screen shows the trend of

samplings collected at that particular remote site. Three trends,

rising, steady and falling, will be shown.

MAXIMUM AND MINIMUM

TEMPERATURES

The maximum and minimum recorded indoor temperatures and

those of outdoor channels will be automatically stored in memory.

To display them:

1. Select the channel to be checked.

2. Press [MEMORY] once to display the maximum temperature

and again the minimum temperature. The respective indicators,

MAX or MIN will be displayed.

Toclearthememory,holddown[MEMORY]for two seconds.The

maximum and minimum temperatures will be erased. If you press

[MEMORY] now, the maximum and minimum temperatures will

have the same values as the current ones until different readings

are recorded.

NOTE ON °C AND °F

The unit of temperature display is selected with the °C/°F slide

switch. Select °C for Centigrade or °F for Fahrenheit.

HOW TO READ

THE KINETIC WAVE DISPLAY

The kinetic wave display shows the signal receiving status of the

main unit. There are three possible forms:

Arrow

indicator

Temperature

Trend Rising Steady Falling

RMR183-e R2 OP 8/21/04, 6:22 PM6

Black

DISCONNECTED SIGNALS

If without obvious reasons the display for a particular channel

goes blank, press [CHANNEL] and [MEMORY] to enforce an

immediate search. If that fails, check:

1. The remote unit of that channel is still in place.

2. The batteries of both the remote unit and main unit. Replace as

necessary.

Note: When the temperature falls below freezing point, the

batteries of outdoor units will freeze, lowering their voltage

supply and the effective range.

3. The transmission is within range and path is clear of obstacles

and interference. Shorten the distance when necessary.

TRANSMISSION COLLISION

Signals from other household devices, such as door bells, home

security systems and entry controls, may interfere with those of

this product and cause temporary reception failure. This is normal

and does not affect the general performance of the product. The

transmission and reception of temperature readings will resume

once the interference recedes.

CALENDAR AND ALARM TIME DISPLAY

The calendar and alarm time share the same section of display. The

calendar is displayed in day-month format. When the calendar is

displayed, pressing [ALARM] once will change the display to the

alarm time. Another press on the button will activate the alarm. A

third press will deactivate it.

To display the calendar, press [MODE] once.

Calendar mode Alarm mode

ABOUT RADIO RECEPTION

The RMR183/RMR183U is designed to automatically synchronize

its calendar clock once it is brought within range of the Frankfurt

DCF77radio signal. (Rugby MSF-60 Radio signal forUKversion).

When the RMR183/RMR183U is within range, the radio-con-

trolled mechanism will override all manual settings.

When the unit is receiving radio signal, the radio-reception Signal

will start to blink. Generally, complete reception take 2 to 10

minutes depending on the strength of the radio signal.

The unit is in searching mode.

Temperature readings are

securely registered.

No signals.

RMR183-e R2 OP 8/21/04, 6:22 PM7

Black

Day-of-the-week

Language Monday Tuesday Wed. Thursday Friday Saturday Sunday

English

German

French

Italian

Spanish

When the reception is complete, the radio-reception Signal will

stop blinking.

For better reception, place the unit away from metal objects and

electrical appliances to minimize interference.

If you wish to disable the auto-reception feature, press the [ ] and

[ ] buttons simultaneously for two seconds. The radio-reception

Signal[ ]willdisappear.The unit will not respond to radio signals.

To enable the feature again, hold down the [ ] and [ ] buttons

again. The radio-reception signal will start blinking to initiate

reception automatically.

HOW TO SET THE CALENDAR CLOCK

MANUALLY

When the calendar is displayed, press [MODE] for two seconds.

The month digits will start to blink.

Enter the month using the [ ] and [ ] buttons. Hold down either

button to rapidly increase or decrease the value.

Press [MODE] to confirm and proceed to set the day, display

language, day-of-the-week, hour and minute.

For the display language, you can choose between English (E),

German (D), French (F), Italy (I), Spanish (S).

The day-of-the-week display for the languages is as follows:

After setting the minutes, press [MODE] to return to normal

display. If changes are made on the minutes, the seconds will reset

and start from zero.

- Strong

- Weak

- No Reception

- Receiving

RMR183-e R2 OP 8/21/04, 6:22 PM8

Black

TIME DISPLAY MODE

When the display is in calendar mode, press [MODE] once to

change between the hour, minute, seconds display to hour, minute,

Day-of-Week display.

Hour-Minute-Second Hour-Minute-Day

HOW TO SET AND ACTIVATE

THE ALARM

While in alarm mode, press and hold [ALARM] for two seconds

the hour digits will flash.

Enter the value for the hour digits. Press [ALARM] to confirm and

go to the minute digits. Enter the value and press [ALARM] to

confirm.

The alarm is automatically activated. To deactivate it, press

[ALARM]once.

ALARM FUNCTION

When the alarm is active, it will go off at the set time with the

ALARM ON icon flashing.

The crescendo function allows the alarm to start off gently and

step up its intensity in three steps. Without interruption, the

alarm will go off for a minute and will go off once again after

approx. 8 minutes.

To stop the alarm, press any key (except [MEMORY] and

[CHANNEL] ) .

PRECAUTIONS

This product is engineered to give you years of satisfactory service

if you handle it carefully. Here are a few precautions:

1. Do not immerse the unit in water.

2. Do not clean the unit with abrasive or corrosive materials. They

may scratch the plastic parts and corrode the electronic circuit.

3. Do not subject the unit to excessive force, shock, dust,

temperature or humidity, which may result in malfunction,

shorter electronic life span, damaged battery and distorted

parts.

4. Do not tamper with the unit's internal components. Doing so will

invalidate the warranty on the unit and may cause unnecessary

damage. The unit contains no user-serviceable parts.

5. Only use fresh batteries as specified in the user's manual. Do not

mix new and old batteries as the old ones may leak.

6. Always read the user's manual thoroughly before operating the

unit.

SPECIFICATIONS

Temperature Measurement

Main unit

Indoor Temperature measurement

Operating range : -5.0°C to +50.0°C

(23.0°F to 122.0°F)

RMR183-e R2 OP 8/21/04, 6:22 PM9

Black

Other manuals for RMR183

This manual suits for next models

Table of contents

Languages:

Other Oregon Scientific Thermometer manuals

Oregon Scientific

Oregon Scientific RAR213HG User manual

Oregon Scientific

Oregon Scientific RAR213HG User manual

Oregon Scientific

Oregon Scientific RGR126N User manual

Oregon Scientific

Oregon Scientific RAR621 User manual

Oregon Scientific

Oregon Scientific EM-913 R User manual

Oregon Scientific

Oregon Scientific RMR683HGA User manual

Oregon Scientific

Oregon Scientific RAR188A User manual

Oregon Scientific

Oregon Scientific RAR621 User manual

Oregon Scientific

Oregon Scientific MTR102 User manual

Oregon Scientific

Oregon Scientific AW129 User manual

Oregon Scientific

Oregon Scientific MTR101 User manual

Oregon Scientific

Oregon Scientific RMR382 User manual

Oregon Scientific

Oregon Scientific RMR802 User manual

Oregon Scientific

Oregon Scientific RGR126 User manual

Oregon Scientific

Oregon Scientific RAR601 User manual

Oregon Scientific

Oregon Scientific RMR682A User manual

Oregon Scientific

Oregon Scientific EW91 User manual

Oregon Scientific

Oregon Scientific RMR112A User manual

Oregon Scientific

Oregon Scientific RMR803A User manual

Oregon Scientific

Oregon Scientific RMR683HGA User manual

Oregon Scientific

Oregon Scientific SA880SSX User manual

Oregon Scientific

Oregon Scientific BAR888 User manual

Oregon Scientific

Oregon Scientific RMR132 User manual

Oregon Scientific

Oregon Scientific THT328 User manual

Popular Thermometer manuals by other brands

Delton

Delton 981A instruction manual

Baker

Baker MM2P instruction manual

Tarmo

Tarmo 320281 manual

Citizen

Citizen CTD 504 instruction manual

TFA

TFA 14.1500 instruction manual

Vive

Vive DMD1010 user manual

Gotemp

Gotemp THB4002 user guide

GREISINGER

GREISINGER G 1202 Quick reference guide

Amprobe

Amprobe TMD-53W user manual

Trotec

Trotec BP10 operating manual

Radiance instruments

Radiance instruments RT616 Series product manual

Eurolec

Eurolec IR151 operating instructions

Scaneo

Scaneo TS42B instruction manual

Sper scientific

Sper scientific 800043 instruction manual

Microlife

Microlife NC 200 Operating instructions manual

Motorola

Motorola MBP69SN General questions

The MeatStick

The MeatStick The MeatStick quick start guide

Hama

Hama TH35-A operating instructions
