OPTO-EDU A33.1511 User manual

www.optoedu.com Page 1 of 5 sale@cnoec.com

To ensure the safety and obtain satisfactory performance, please study this

instruction manual thoroughly before start to use your instrument.

A33.1511

A33.1512

A33.1513

LCD Digital Biological Microscope

Instruction Manual

www.optoedu.com Page 2 of 5 sale@cnoec.com

Specification

A33.1511, A33.1512, A33.1513 LCD Digital Microscope, 2.0M

A33.1511

A33.1512

A33.1513

Magnification

Total Magnification 70x~280x on 4.3" LCD Screen

●

Total Magnification 130x~520x on 7" LCD Screen

●

LCD

4.3" LCD Screen, 3 Buttons, LCD Menu Support

Brightness/Contrast/Color Adjust, Switch Between

16:9/4:3 Modes, Viewing Area 95*55mm, Support 10

Languages.

●

7.0" LCD Screen, 7 Buttons LCD, Menu Support

Brightness/Contrast/Color Adjust, Switch Between

16:9/4:3 Modes, Viewing Area 155*85mm, Support 10

Languages.

Simple Measure Function, By Cross Scale Line With

Scale For 4x,10x,40x.

●

Camera

HD Digital Camera 2.0M All-in-One Design

●

Objective

Achromatic 10x/0.25, 20x/0.4x, 40x/0.65(Spring)

●

Nosepiece

Outward Triple With Clip Stop

●

Working

Stage

Single Layer Working Stage 105x105mm, With Vernial

Scale Ruler Moving Range 50x30mm

●

Double Layers Mechanical Stage 105x105mm,

Moving Range 50x30mm

●

Single Layer Heating Stage 105x105mm, With Vernial

Scale Ruler Moving Range 50x30mm,

1. The Heating Stage Will Auto Heated to 38°When

Power Switch On.

2. Push +/- To Set The Temperature From 15°to

50°, It will Reach Set Temperature Slowly.

3. Real Time Temperature Is Shown On the Window

●

Condenser

Single Lens Condenser

●

Abbe Condenser With Iris Diaphragm

●

Focusing

Coaxial Coarse & Fine Focusing Knob, Focusing

Range 16mm

●

Illumination

Dual Light Up/Bottom LED, Brightness Adjustable

●

Power

50/60HZ, or By USB Port of Computer, USB Bank For

Outdoor Work

●

Accessory

Full Set Accessory Kit,

●

Packing

With Carry Box, Packed In Master Carton,

25*31*43cm/3Kgs

●

www.optoedu.com Page 3 of 5 sale@cnoec.com

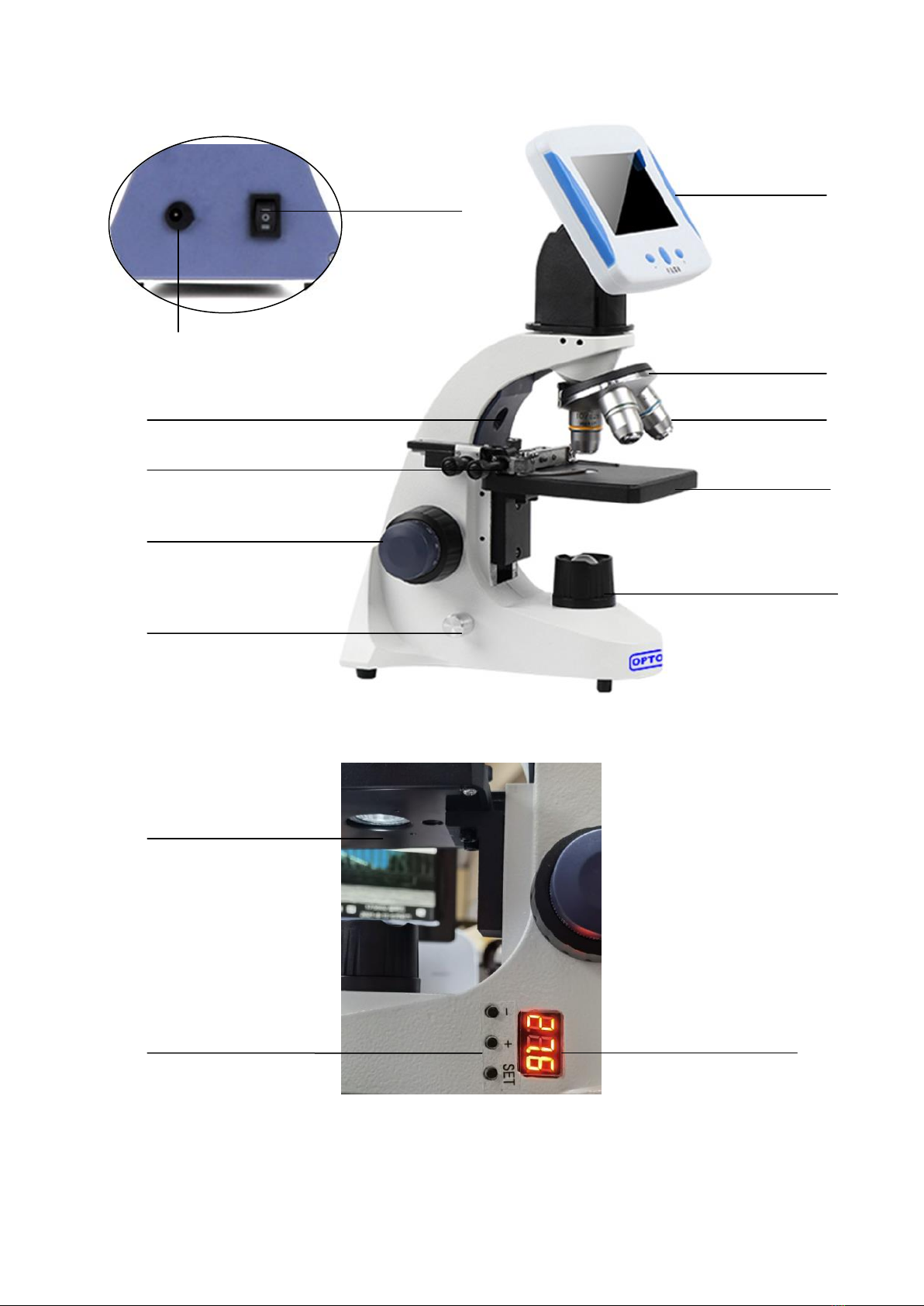

System Diaphragm

Heating Stage (A33.1513)

1. The Heating Stage Will Auto Heated to 38°When Power Switch On.

2. Push +/- To Set The Temperature From 15°to 50°, It will Reach Set Temperature Slowly.

3. Real Time Temperature Is Shown On the Window

Focusing Knob

LCD Screen

Objective

Power Socket

Bottom LED

Nosepiece

Working Stage

Vernial Scale

Power Switch

Up LED

Brightness Adjust Knob

Heating Stage

Temperature Control

Temperature Window

www.optoedu.com Page 4 of 5 sale@cnoec.com

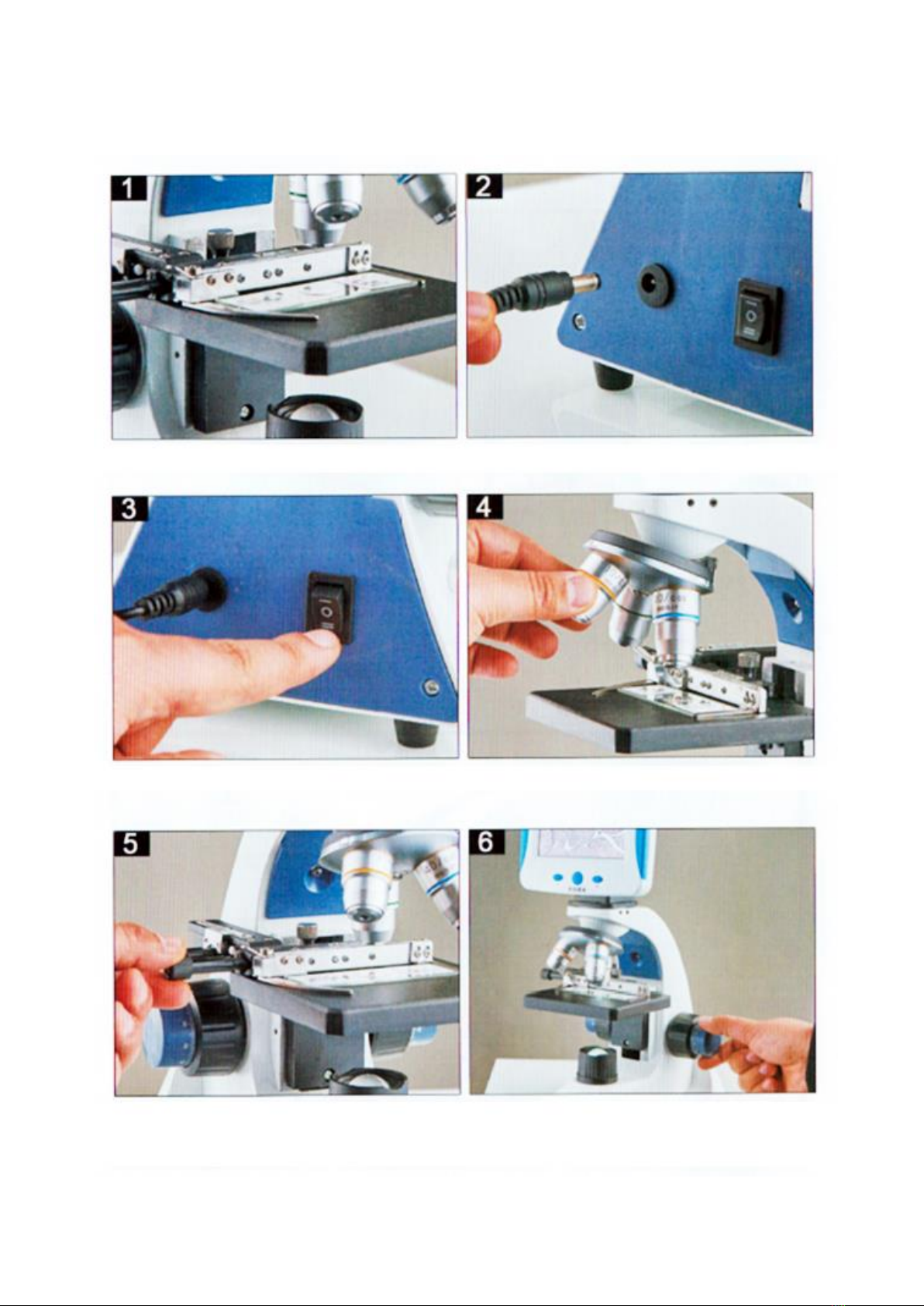

How to Use

Put the slide on stage; hold it by vernial scale

scale

Connect the power cord

Switch the up or bottom light on as you need

Turn to 10x objective first to view more field,

use 20x and 40x later for bigger magnification

Move the slide by vernial scale, find the object

in watching area on the screen.

Lower the stage to bottom position, slowly

raise it to find focusing position, the clear

image will show on LCD screen.

www.optoedu.com Page 5 of 5 sale@cnoec.com

When not in Use

1．Handle the microscope with two hands stably, and put the instrument on a stable plane.

Cover it up with dust cover. Store the instrument in a dry place.

2．It is highly recommended that objectives & eyepiece should be kept in a separate

container.

Cleaning & Maintenance

1．Keep all the optics clean. It is very important to maintain optical performance of the

instrument.

2．If dust or dirt covered on the surface of the lens, have a try to use air blower before

cleaning the lens.

3．It is recommended that gauze, or lens tissue moistened with methyl alcohol should be

used to clean the lens. Ethyl alcohol is forbidden.

4．When cleaning the low magnification objective, lens tissue or cotton moistened with

methyl alcohol can be used. Pay much more attention when cleaning the high magnification

objective. Dry the methyl alcohol first. Do not clean so hard. Do not use ethyl alcohol.

5．When microscope body has to be taken apart, make sure that do not touch the lens of the

objective, or else it will reduce the image quality.

6．Periodical inspection: To maintain the performance of the microscope, periodical

inspection is recommended.

This manual suits for next models
