Nokia 103 User manual

Nokia 103 User Guide

Issue 1.0 EN

Keys and parts

Select

Back

1Earpiece

2Display

3End/Powerkey

4Keypad

5 Navi™ key (navigation key)

6 Call key

7 Selection keys

8 Flashlight

9Chargerconnector

10 Microphone

11 Loudspeaker

12 Headset connector

You may need to buy the headset as

a separate accessory.

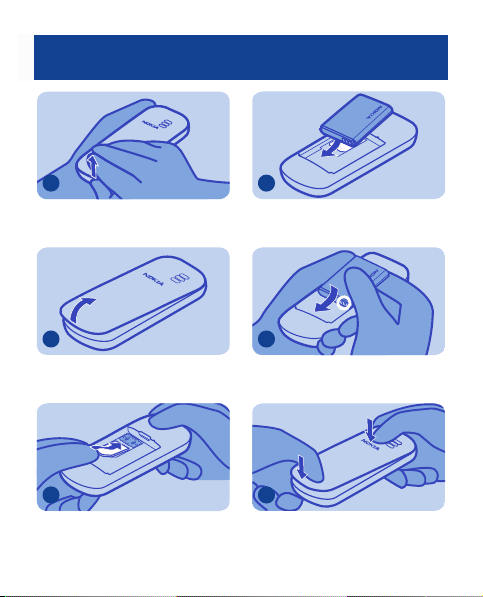

Insert the SIM card and battery

Put your finger in the gap at the

bottom of the phone.

Lift the back cover.

Slide in the SIM card.

Line up the contacts.

Push the battery in.

Press down to click.

Charge the battery

Connect the charger to a wall outlet.

Connect the charger to the phone.

Phone indicates full charge. You can

use the phone while it is charging.

Switch on

2 se conds

Press and hold the power key .

OK Back

:0009

To set the hour, press up or down.

OK Back

15:00

To set the minutes, press right, and

then press up or down. Press OK.

Time

is set

Time is changed.

Date:

19. .201205

OK Exit

To set the date, press up or down.

Press OK.

Menu Go to

15:00

Phone is ready to use.

Lock or unlock keypad

Menu Go to

15:00

To avoid accidental pressing of keys,

use the keypad lock.

Menu Go to

Press Menu, and then quickly press *.

Keypad

locked

The keypad locks. To unlock the

keypad, repeat step 1.

Make or answer a call

Make a call to a number that you have.

012345

ClearOptions

Enter the phone number.

Calling

End call

0123456789

Press .

A friend's phone rings.

9876543210

Silence

calling

To answer, press .

You can enjoy chatting with your

friend. To end the call, press .

Change the volume

Is the volume too loud during a call or

when listening to the radio?

Volume

Press left for quieter, right for louder.

Better.

Use the loudspeaker

Others in the room can join in with a

call.

0123456789

Options Loudsp.

00:00:05

During a call, press Loudsp..

Place the phone on a table.

Use the headset

You can make a hands-free call with a

headset.

0123456789

calling

Silence

Connect a headset.

Calling

End call

0123456789

Make a call.

Save a name and number

Add a friend's number to your phone.

Menu Go to

12:30

Press Menu.

Select Exit

Messages

Press right.

Select Exit

Contacts

Select Contacts.

Select Back

Press right.

Select Back

Add contact

Select Add contact.

Contact name:

OK Clear

abc

Write the name.

Contact name:

OK Clear

Mike

abc

Press OK.

Phone number:

OK Clear

0123

Enter the phone number.
