Njoy Horus Plus Series User manual
User Manual
Bedienungsanleitung
Használati útmutató
Ръководство на потребителя
Korisničko uputstvo
Manual de utilizare
621.0
Before using this product, carefully read all product documentation and retain it for future reference.
Horus Plus Series
PWUP-LI060H1-AZ01B
PWUP-LI080H1-AZ01B
PWUP-LI100H1-AZ01B
PWUP-LI150H1-AZ01B
PWUP-LI200H1-AZ01B
2
The following models belong to the Horus Plus Series:
This UPS will protect your electronic equipment from
physical damage and will provide emergency battery backup
power to prevent data loss in the event of power problems.
Thank you for purchasing our products!
Please read this manual before using the product.
Focusing on quality at competitive prices, nJoy
designs consumer products for a better and
enjoyable way into the digital world.
600VA Horus Plus 600
Horus Plus 800
Horus Plus 1000
Horus Plus 1500
Horus Plus 2000
800VA
1000VA
1500VA
2000VA
3
Package Contents
Product Overview
1
2

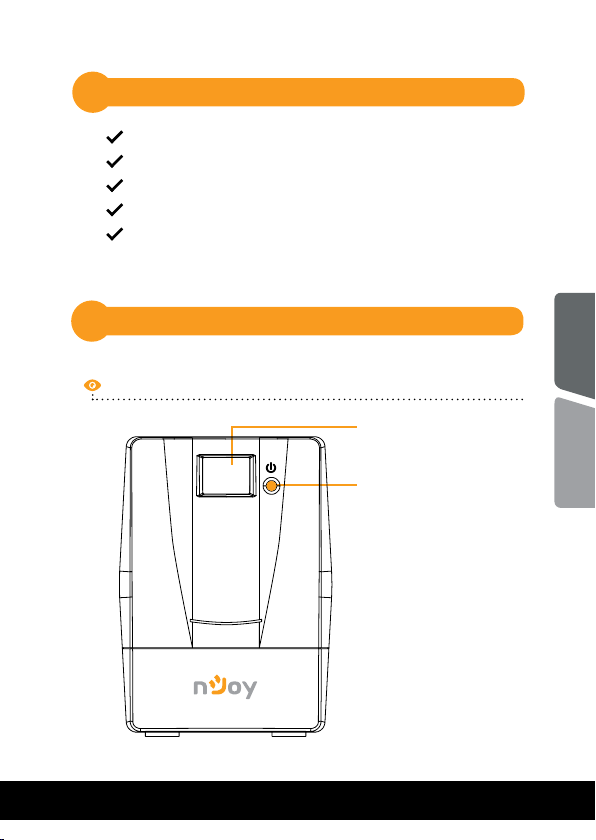

Front View
Power switch
English
Română
Touch screen LCD panel
UPS Unit
User Manual
USB Cable
Power Cord
Warranty Card
4
1. Battery backup outlets
2.AC input
3.Circuit breaker
4.RJ-11 surges protection
(+RJ45 - Horus Plus 1000,
1500, 2000)
5. USB port
Back View
600 / 800
1000 1500 / 2000
3
3
3
4
44
5
5
1
1
2
2
2
5

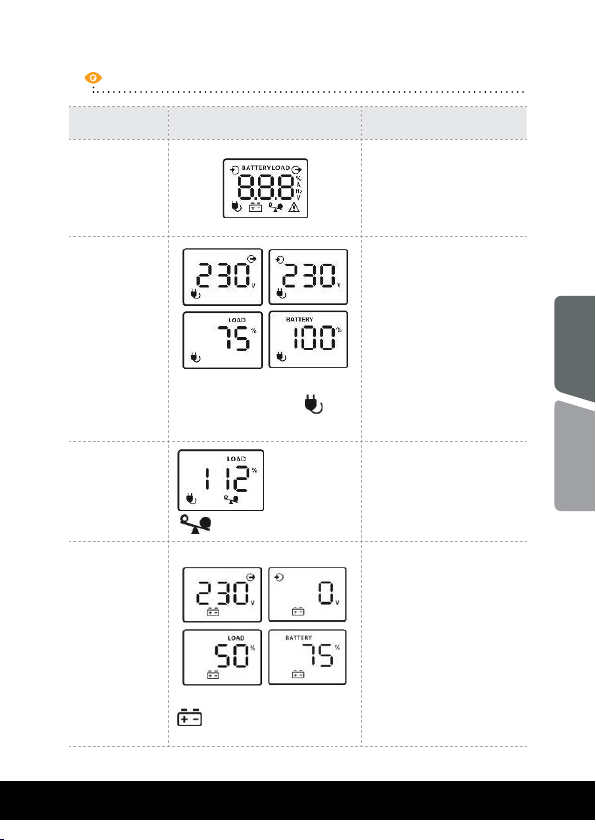

UPS Mode LCD Display Description
UPS Power
ON
When UPS is ON,
it will enter this
mode for 4
seconds
AC Mode
When AVR is functioning, a
plug icon will flash
every second
LCD information will
be displayedin the
following order when
LCD is touched:
1. Output voltage
2. Input voltage
3. Load level
4. Battery capacity
Overload in
AC Mode
icon will flash
When overload
occures, alarm
will beep every 0.5
seconds.
Battery
Mode
When battery level is low,
battery icon will flash
Alarm will beep
every 10 seconds and
LCD information will
be displayed in the
following order when
LCD is touched:
1. Output voltage
2. Input voltage
3. Load level
4. Battery capacity
Touch screen LCD Display
English
Română
6
Installation3
The UPS can protect your equipment from all power problems
such as surge, blackouts, brownouts and line noise. When AC
power is present and the ON/OFF switch is turned ON, the
UPS is always charging the battery and provides power to the
equipment from AC line directly. A reliable built-in battery
can provide stable power in order for you to complete your
work, save your data and safely shut down your system when
there is a utility power blackout.
The UPS is simple to operate and install. Please read the
following steps before connecting any equipments to this UPS:
NOTE: If backlight shuts o, you may activate it by touching the
screen.
UPS Mode LCD Display Description
Overload
in Battery
Mode
icon will flash
When overload
occurs, alarm will
beep every 0.5
seconds.
7
Connecting your equipment and rst usage3.1
Step 1. Connect the UPS to a grounded AC power outlet.
Step 2. Please turn ON the ON/OFF switch and charge the
battery at least 6 hours for a full load before you
start to use the UPS.
Step 3. Plug your PC or peripheral equipment (printer, tv,
scanner, fax, speakers etc.) into the power outlets
of the UPS (these will provide emergency battery
backup power during blackouts as well as surge
protection from surges and spikes). Do not attach
powerfull sound sistems and woofers or non
computer-related items, such as medical
equipment, life-support equipment, microwave
ovens, or vacuum cleaners to the UPS !
Positioning
For optimal ventilation of the UPS, please place it 15cm
distance from any wall or object.
English
Română
8
Do NOT plug LASER
PRINTERS into any
of the outlets.
Do NOT plug any
SURGE STRIPS into
any of the outlets.
CAUTION
Step 4. Connect the phone/network/internet cables to the
RJ11/RJ45 outlet.
Step 5. For optimal computer system protection, install
the UPS monitoring software from https://www.
power-software-download.com/viewpower.html
to fully manage the UPS.
9
General Specications3.2
ǘAutomatic voltage regulation
Regulates the input voltage and eliminates the
problems created by under-voltage or over-voltage
uctuations. It also protects against spikes and surges
that comprise over 80% of power problems.
ǘAuto restart
The UPS will restart automatically and will start charging
the batteries once the electricity is back on.
ǘCold Start Function
When the UPS is OFF and there is no connection to the
power utility, it’s still possible to start the UPS unit
using the remaining battery power.
ǘUSB Port
The built-in USB port connects to your computer,
automatically saves your data and shuts down your
computer (with the help of the included software) in
case of a power failure.
ǘSoftware
Your personal computer can receive the status of the
UPS regarding the utility power line, utility power
failure, on battery and low battery by signals that are
sent through the USB port with the help of the software
on your CD.
English
Română
10
Important Safety Warnings4
Place the UPS indoors in an area that has adequate
airow and no excessive dust. Do NOT allow the UPS
to be exposed to moisture, rain, excessive heat or
direct sunlight.
The use of the UPS is NOT recommended in life
support applications where failure of this equipment
can reasonably be expected or when its safety or
eectiveness could be aected signically.
Please always disconnect the input power cord from
the wall outlet before replacing the battery.
Do NOT dispose of the battery in a re. The battery
may explode.
Do NOT open or damage the battery. It contains an
electrolyte that is toxic and harmful to the skin and
eyes.
Proper disposal of the battery is required. Please
follow your local laws/regulations regarding battery
disposals.
Use tools with insulated handles to replace the
battery to avoid personal injury. Due to energy
hazard, please remove wrist watches and hand
jewerly when replacing the battery.
