NetComm NB8 User manual
2 NB8/NB8W ADSL2+ Modem Router
YML804 Rev1
Contents
Overview ............................................................................................................ 3
NB8/NB8W Package Contents ........................................................................... 4
Selected terminology used in this manual .......................................................... 5
Minimum System Requirements: ...................................................................... 5
Do I need a micro filter? .................................................................................. 6
Getting to Know the NB8/NB8W ............................................................................ 7
LED Indicators ............................................................................................... 7
Default Settings ............................................................................................. 9
Restore Factory Default Setting ...................................................................... 10
Connecting the NB8/NB8W ................................................................................ 11
1. Connecting the Cables ............................................................................... 12
2. Establishing an ADSL connection via PPPoE ................................................... 16
3. Establishing your Wireless Connection (for NB8W only) .................................. 17
Computer Hardware Configuration ....................................................................... 18
Windows® XP PCs ........................................................................................ 18
Windows 2000 PCs ....................................................................................... 18
Windows Me PCs .......................................................................................... 18
Appendix A: Cable Information ............................................................................ 20
Appendix B: Registration and Warranty Information ............................................... 22
NB8/NB8W ADSL2+ Modem Router 3
YML804 Rev1
Overview
Thank you for purchasing the NetComm NB8/NB8W ADSL2+ Modem Router. NetComm is proud
to introduce this entirely new class of all-in-one device incorporating ADSL2+ and Wireless in a
single compact unit. The NB8/NB8W is truly a ‘broadband communications gateway’ that, when
attached to the appropriate ISP services, will enable multiple broadband communications streams
to run concurrently into your home or office. Wireless and ethernet data services can be delivered
and distributed to multiple PCs at the same time, while the gateway can be managed via ‘Quality of
Service’ (QoS) controls to ensure that priority is given to the traffic of your choice.
Let’s look at some of the capabilities offered by the NB8/NB8W in brief:
ADSL Broadband The NB8/NB8W offers the next generation of
broadband ADSL technology with ADSL2/2+, which
boosts ADSL’s performance significantly, improves
interoperability, and supports new applications,
services and deployment conditions.
Wireless (NB8W only) In addition to fast, standard 802.11g-based wireless,
the NB8W incorporates Broadcom’s state-of-the-
art XPress and Afterburner technology to radically
improve the performance of wirelessly-connected
devices.
QoS With the addition of bandwidth-hungry applications
to the SOHO/Home network the NB8/NB8W has
not overlooked one of the most important features
for a home Internet gateway – Quality of Service
(QoS) The QoS implementation in the NB8/NB8W
is extremely sophisticated allowing you to prioritise
data on your network according to rules you make.
4 NB8/NB8W ADSL2+ Modem Router
YML804 Rev1
NB8/NB8W Package Contents
Your NB8/NB8W contains the following items:
• Power Supply
• RJ11 ADSL Line Connection Cable
• USB Cable
• Installation CD
• Package Contents List and Quick Start Guide
• NB8 OR NB8W Broadband Communications
Gateway (NB8W shown)
• RJ45 Cat 5 Ethernet cable
NB8/NB8W ADSL2+ Modem Router 5
YML804 Rev1
Selected terminology used in this manual
POTS A telephone line used for a standard phone-line and service will be
referred to as POTS (=Plain Old Telephone Service)
Pass-through Line The line that connects the NB8/NB8W to a POTS line may be
referred to as a pass-through line
RJ11 Telephone cables may be referred to as RJ11 which is the format of
the connection plug used for telephones
Ethernet Local area network traffic will be carried by standard Category 5
cable referred to as Ethernet
RJ45 Ethernet cables may also be referred to as ‘RJ45’ which is the format
of the connection plug used for network devices
LAN Local Area Network
WLAN Wireless Local Area Network
For further terminology, see the Glossary Appendix in the User Guide included on the NB8/NB8W
CD-ROM.
Minimum System Requirements:
Different aspects of the NB8/NB8W have different requirements, so let’s look at them in turn. We’ll
start with your computer, which ought to match the following requirements if you are to enjoy the
benefits of a high-speed ADSL connection and use of Wireless Networking (for the NB8W only).
PC Requirements:
• Any computer running Windows 98/2000/Me/XP or Macintosh OSX
• Ethernet or Wireless Network card
• CD-ROM drive
• Web browser e.g.
• Internet Explorer 5.1 (or better)
• Netscape Navigator
• Mozilla FireFox 1.0.4
ADSL Requirement:
• ADSL broadband connection to an ISP (Internet Service Provider)
• ADSL Splitter/Filter (see below for details)
Note: Connection at ADSL2 or 2+ rate depends on the service offered by your
ISP; the device will operate at standard ADSL rates in the absence of the
2 or 2+ service. Consult your ISP for details.
USB Requirements:
• USB Port
Wireless Requirements (for NB8W only):
• Wireless Network Interface Card (NIC) for each intended computer
6 NB8/NB8W ADSL2+ Modem Router
YML804 Rev1
Do I need a micro filter?
Micro filters are used to prevent interference between phones and fax machines, and your ADSL
service. If your ADSL-enabled phone line is being used with any equipment other than your ADSL
Modem then you will need to use one Micro filter for each phone device in use. Telephones and/or
facsimiles in other rooms that are using the same line will also require Microfilters. The following

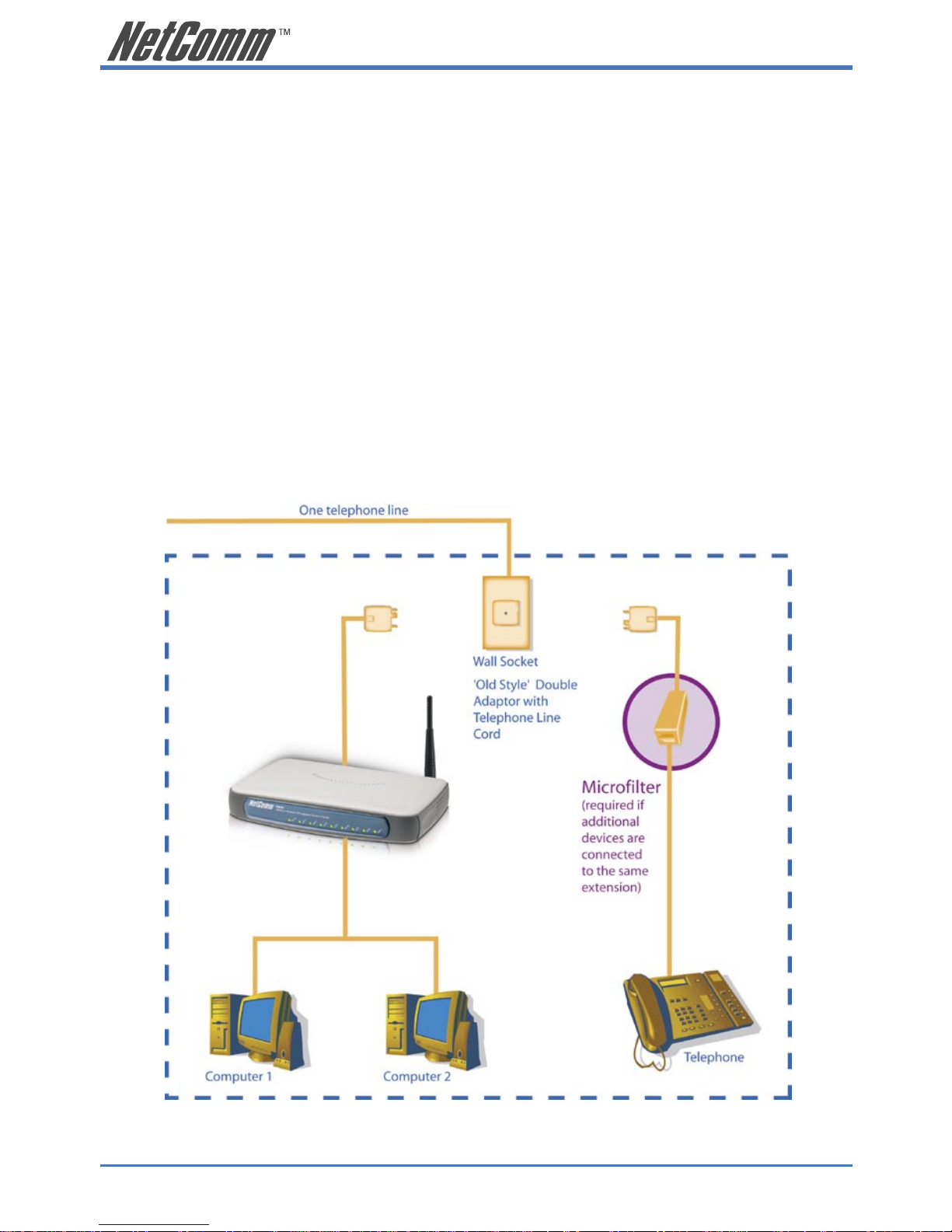

diagram gives an example of connecting your ADSL Modem/ Router using a Microfilter. A suitable
Microfilter can be purchased from NetComm or your Service Provider, if required.
A central splitter may be installed with your ADSL service or when your current phone line is
upgraded to ADSL. If your telephone line is already split you will not need to use a Microfilter on
each device.- Check with your ADSL or phone service provider if you are unsure as to whether a
splitter is installed at your premises.
Each micro filter is connected in-line with your telephone or fax machine so that all signals pass
through it. Telephones and/or facsimiles in other rooms that are using the same extension will also
require Microfilters. The following diagram gives an example of connecting your ADSL Modem/
Router using a Microfilter.
A suitable Microfilter can be purchased from NetComm or your Service Provider, if required.
NB8/NB8W ADSL2+ Modem Router 7
YML804 Rev1
Getting to Know the NB8/NB8W
It is recommended that you take a moment to acquaint yourself with
the indicator lights, ports and default settings of the
NB8/NB8W prior to commencing
with installation.
LED Indicators
LED Colour Mode Function
POWER Green On The router is powered up
Off The router is powered down
ADSL Green On The ADSL Link is established
Off The ADSL Link is not
established
Green Blink The ADSL line is training or
traffic is passing through
LAN 1x ~4x Green On Ethernet link is established
Off Ethernet link is not established
Green Blink Data transmitting/receiving over
Ethernet
USB Green Blink Data transmitting/receiving over
USB
NB8W only
WLAN Green On Wireless module is ready
Off Wireless module is not installed
Green Blink Data transmitting/receiving over
Wireless
8 NB8/NB8W ADSL2+ Modem Router
YML804 Rev1
Back Panel Ports

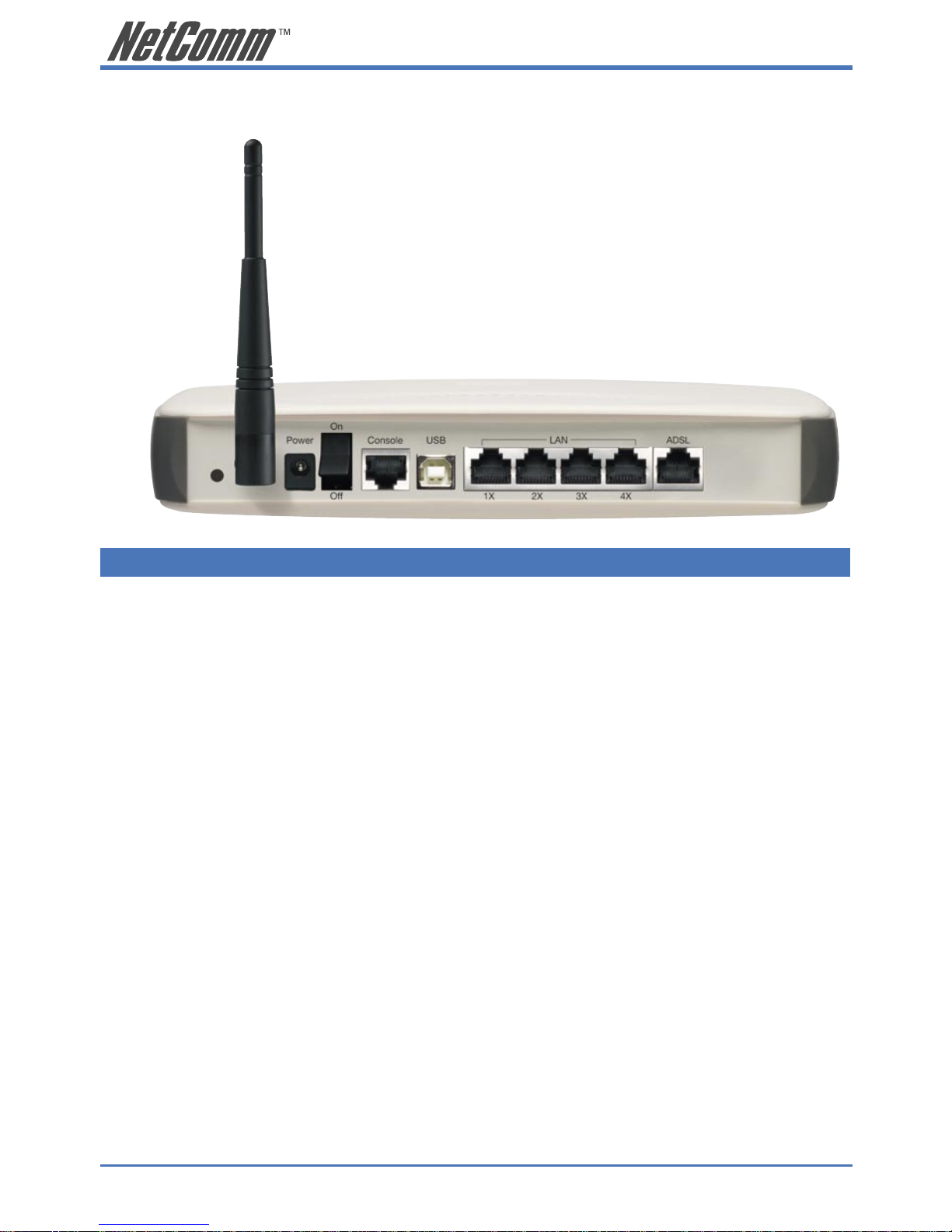

Port Name Function
Reset Reset button. Depress for 10 seconds to return your
NB8/NB8W to its default settings.
Antenna (for NB8W only) Wireless LAN antenna.
Power Connect the power adaptor that comes with your
NB8/NB8W.
On / Off Switch to power on / off your NB8/NB8W.
Console 10/100 Base-T Ethernet jack (RJ-45) to connect
directly to your computer. (Refer to Appendix A in
the User Guide included on the NB8/NB8W CD-
ROM for connection information)
USB USB1.0 port to connect to your USB port.
4 x LAN 4 x 10/100 Base-T Ethernet jack (RJ-45) to connect
to your Ethernet Network card or Ethernet Hub /
Switch.
ADSL Telephone jack (RJ-11) to connect to your Telephone
Wall Socket (ADSL line).
NB8/NB8W ADSL2+ Modem Router 9
YML804 Rev1
Default Settings
The following are the default LAN (Local Area Network), WAN (Wide Area Network) and WLAN
(Wireless LAN) settings.
LAN (Management)
• Static IP Address: 192.168.1.1;
• Subnet Mask: 255.255.255.0;
• Default Gateway: blank;
WAN (Internet)
• Empty: Once you have run through ‘ADSL Quick Setup’ you will have a saved WAN
connection;
• Default connection type: PPPoE (most common for Australian ISPs);
• VPI / VCI: 8 / 35;
Modem Access
• Username: admin
• Password: admin
10 NB8/NB8W ADSL2+ Modem Router
YML804 Rev1
Restore Factory Default Setting
Restore Factory Defaults will reset the NB8/NB8W to its factory default configuration. Occasions
may present themselves where you need to restore the factory defaults on your NB8/NB8W such as:
• You have lost your username and password and are unable to login to your NB8/
NB8W’s web configuration page;
• You have purchased your NB8/NB8W from someone else and need to reconfigure the
device to work with your ISP;
• You are asked to perform a factory reset by NetComm Support staff
In order to restore your NB8/NB8W to its factory default settings, please follow these steps:
• Ensure that your NB8/NB8W is powered on (for at least 10 seconds);
• Use a paper clip or a pencil tip to depress the reset button for ten seconds and release. At
this point, the reset is in progress. Do not power off the unit at this point;
• When indicator lights return to steady green, reset is complete. The default settings are
now restored. The entire process takes about 45 seconds to complete;
• Once you have reset your NB8/NB8W to its default settings you will be able to access
the device’s configuration web interface using http://192.168.1.1 with username ‘admin’
and password ‘admin’;
