NetComm NTC-6000 SERIES User manual

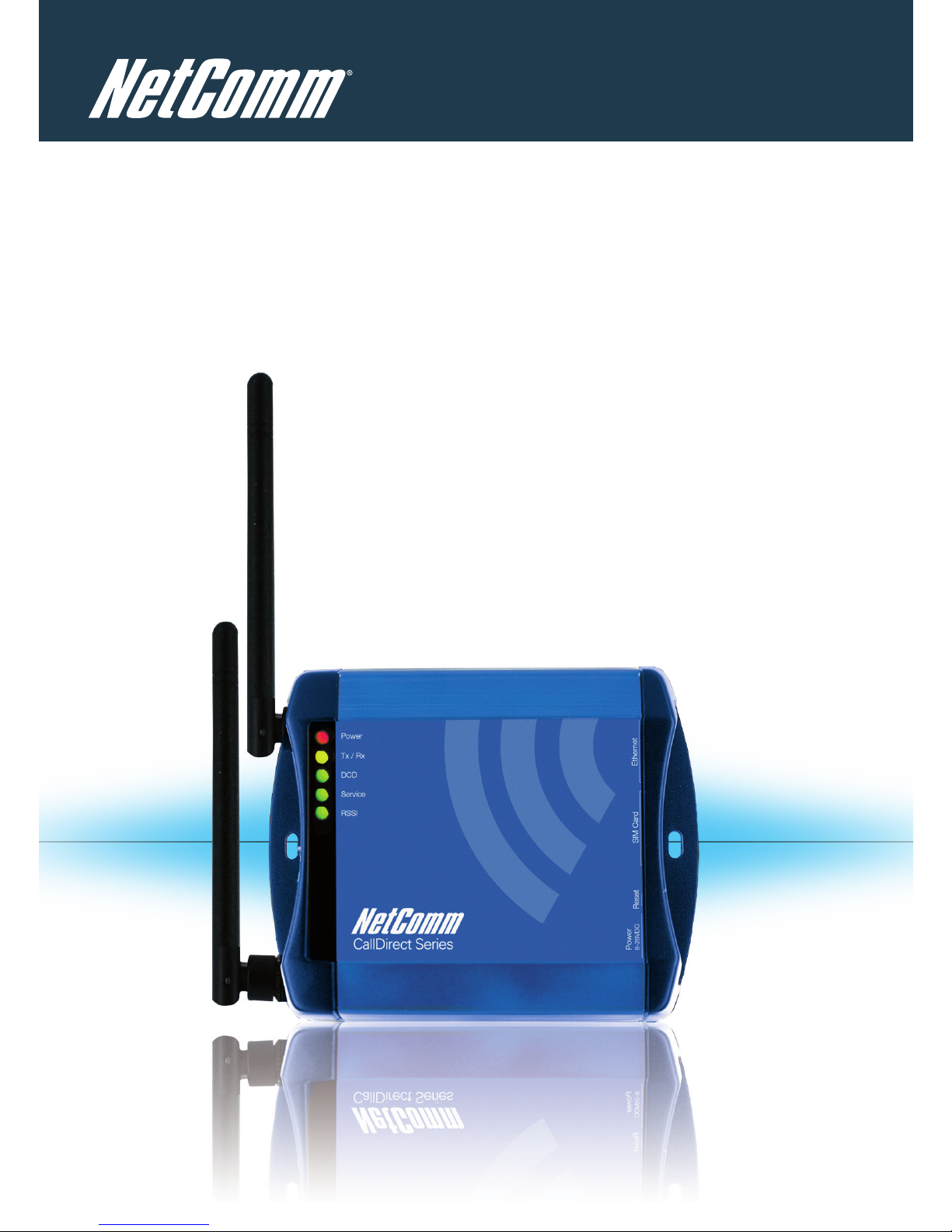

NetComm NTC-6000 CallDirect Series

HSPA Cellular Routers

Quick Start Guide

NetComm Commercial

2 NTC-6000 Series Quick Start Guide

NetComm Commercial

Quick Start Guide

Thank you for choosing an industrial HSPA Cellular Router of NetComm’s

NTC-6000 CallDirect Series.

This guide covers the models NTC-6908, NTC-6909 and NTC-6900

(collectively referred to in this document as the NTC-6000 series). This guide

will provide a series of step by step

instructions to ensure the conguration of your Cellular Router goes as

smoothly as possible.

Firstly please check that you have received all the items in your package.

No. Description

1NTC-6000 Series HSPA Cellular Router

1Crossover Ethernet Cable

1Power Supply Unit

2Antennas

1Quick Start Guide

Overview of LEDs

NTC-6000 Series Quick Start Guide 3

NetComm CallDirect Series - NTC-6000 Series

Overview of Indicator Lights

LED Display Description

POWER (red) Solid ON The red Power LED indicates correct power is

applied to the DC power input jack.

Tx Rx (amber) Solid ON The amber LED will light upon data being sent to or

received from the cellular network.

DCD (green) Solid ON The amber Carrier Detect LED illuminates to indicate

a Data connection.

Service Type (green) The green LED will illuminate when cellular network coverage is

detected.

Solid ON 3G: indicates UMTS/HSPA available coverage

Blinking EDGE: indicates EDGE available coverage

Off 2G: indicates GSM/GPRS available coverage only.

RSSI (green) This green LED indicates the Received Signal Strength. There are

three possible states that the RSSI LED can operate in, based upon

signal level.

Solid ON STRONG - Indicates the RSSI level is -86dBm, or

greater

Flashing

once per

second

MEDIUM - Indicates the RSSI level is -101dBm and

–86dBm, (medium)

Off POOR - Indicates the RSSI level is less than

-101dBm (poor)

4 NTC-6000 Series Quick Start Guide

NetComm Commercial

Overview of the Cellular Router Interfaces

5 Indicator LEDs

Indicate visually the activities

and connection state for

power, service type, data

traffic, data carrier

Receive Diversity

Antenna Socket

SMA Female

Serial RS-232 Port

Connecting to a terminal using a

DE-9 cable

Ethernet Port

Connect to a terminal

using RJ45 cable or a

number of terminals

through a hub or

network router

Reset Button

Resetting the router to

factory default values

SIM Card Reader

For insertion and

removal of SIM Card

2-Way Captive Power Terminal Block

Power terminal block and the wide voltage

range of 8-28V DC simplify the installation

in different industrial environments

Main Antenna Socket

SMA Female

NTC-6000 Series Quick Start Guide 5

NetComm CallDirect Series - NTC-6000 Series

Overview of the Cellular Router Interfaces

5 Indicator LEDs

Indicate visually the activities

and connection state for

power, service type, data

traffic, data carrier

Receive Diversity

Antenna Socket

SMA Female

Serial RS-232 Port

Connecting to a terminal using a

DE-9 cable

Ethernet Port

Connect to a terminal

using RJ45 cable or a

number of terminals

through a hub or

network router

Reset Button

Resetting the router to

factory default values

SIM Card Reader

For insertion and

removal of SIM Card

2-Way Captive Power Terminal Block

Power terminal block and the wide voltage

range of 8-28V DC simplify the installation

in different industrial environments

Main Antenna Socket

SMA Female

6 NTC-6000 Series Quick Start Guide

NetComm Commercial

Overview of Cellular Router Interfaces

Field Description

Main Antenna Socket SMA Female

Receive Diversity Antenna

Socket

SMA Female

Serial RS-232 Port For connecting to a terminal using a DE-9 cable.

5 Indicator LEDs Indicate visually the activities and connection state for power,

service type, data trafc, data carrier connection and network

signal strength.

2-Way Captive Power

Terminal Block

Power terminal block and the wide voltage range of 8-28V DC

simplify the installation in different industrial environments

Reset Button Resetting the router to factory default values

Ethernet Port For direct connection to your device or number of devices

through a hub or network router.

SIM Card Reader For insertion and removal of SIM Card

Conguring your Router

You will need the following hardware components to set up the Cellular

Router:

Power Supply (8-28VDC)

Ethernet cable

Laptop or PC

Active SIM card

The router is primarily managed via web interface. It may also be congured

via the units serial (V.24) port using “AT” (V.250) commands, this method of

operation is further detailed in the user guide.

Before you power up the Cellular Router, please insert an active SIM card.

NTC-6000 Series Quick Start Guide 7

NetComm CallDirect Series - NTC-6000 Series

Step One: Inserting the SIM card

Press the SIM Eject button to eject SIM card bay. Make sure the SIM card is

inserted correctly by inserting the SIM the gold side facing down on the SIM

card bay and in the direction as shown below:

Insert

SIM card

Press the SIM

Eject button

Step Two: Setting up the Cellular Router

Install the supplied antennas to the Cellular Router by screwing them onto

the antenna connectors. Connect the power adapter to the mains and plug

the output into the power jack of the router.

The green Power LED on the panel should illuminate.

8 NTC-6000 Series Quick Start Guide

NetComm Commercial

Step Three: Preparing your computer

Connect one end of the supplied Ethernet cable into a LAN Ethernet port

of your router. Connect the other end of the cable into the LAN port of your

computer. Congure your PC’s Ethernet interface to be dynamically assigned

an IP address by doing the following:

Conguring your Network Adapter in Windows

Follow the path Start -> Control Panel -> Network Connections. Right

click Local Area Connection and select Properties to open the

conguration dialogue box of Local Area Connection as below:

NTC-6000 Series Quick Start Guide 9

NetComm CallDirect Series - NTC-6000 Series

Find and click Internet Protocol (TCP/IP) from the protocol list box and

then click the Properties button The TCP/IP. Conguration window will pop

up as illustrated below.

Under General tab, select radio button Obtain an IP address automatically

and Obtain DNS server address automatically.

Then press OK button to close TCP/IP conguration window.

Press the Close button to complete the computer preparation for the

Cellular Router.

10 NTC-6000 Series Quick Start Guide

NetComm Commercial

Step Four: Accessing your Router’s conguration pages

Furthermore, there are two system management accounts for maintaining

the system, root and admin, and each of which will have slightly different

levels of management capabilities.

The root manager account is empowered with full privilege while the admin

manager (administrator) can manage all settings of the Cellular Router

excepts functions like Firmware Upgrade, Device Conguration Backup and

Restore and Reset Cellular Router to factory default.

To login to the Cellular Router in root manager mode, please use the

following login details:

http://192.168.20.1

Username: root

Password: admin
