NetComm CloudMesh User manual

CloudMesh Satellite

NS-02 SEAMLESS WI-FI COVERAGE

2

WHAT

YOU WILL NEED

3

A power point near to where

you want to place

the CloudMesh Satellite

NetComm CloudMesh

Gateway connected

to the Internet

SOURCE CODE - GNU General Public License

This product includes software code that is subject to the GNU General Public License

(“GPL”) or GNU Lesser General Public License (“LGPL”). This code is subject to the

copyrights of one or more authors and is distributed without any warranty.

A copy of this software can be obtained by contacting NetComm.

4

Your CloudMesh Satellite works best when it is

placed in a central location to the area you want

to cover. Ideally, it should be located no more than

two rooms away from the CloudMesh Gateway.

5

6

1

Connect the Power Adapter

to the CloudMesh Satellite.

Ensure that the power switch

is in the ON position.

1

Before you begin, ensure your CloudMesh

Gateway is connected to the Internet.

7

GREEN

Light

8

A solid red light means that the Satellite

needs to be moved closer to the Gateway.

If after ten minutes, the light is still ashing blue,

follow the instructions on the page 14.

Wait ten minutes for the CloudMesh Satellite

to initialise and then check the light status.

A solid white or blue light means the satellite has

been paired with the Gateway and is ready to use.

2

9

Blinking green Powering up

Blinking blue Ready for pairing

Your CloudMesh Satellite light follows this sequence

when rst turned on:

See next page & page 14 for more instructions

10

Solid white Good signal

Solid blue Medium signal

Solid red Poor signal

Blinking blue No signal / too far from

gateway / not connected

to mesh network

When connected to the CloudMesh Gateway,

the light shows the signal strength as follows:

Other manuals for CloudMesh

1

This manual suits for next models

1

Table of contents

Other NetComm Network Router manuals

NetComm

NetComm Whitepaper TR-069 User manual

NetComm

NetComm Freshtel NB9 User manual

NetComm

NetComm NB16WV User manual

NetComm

NetComm NB1 User manual

NetComm

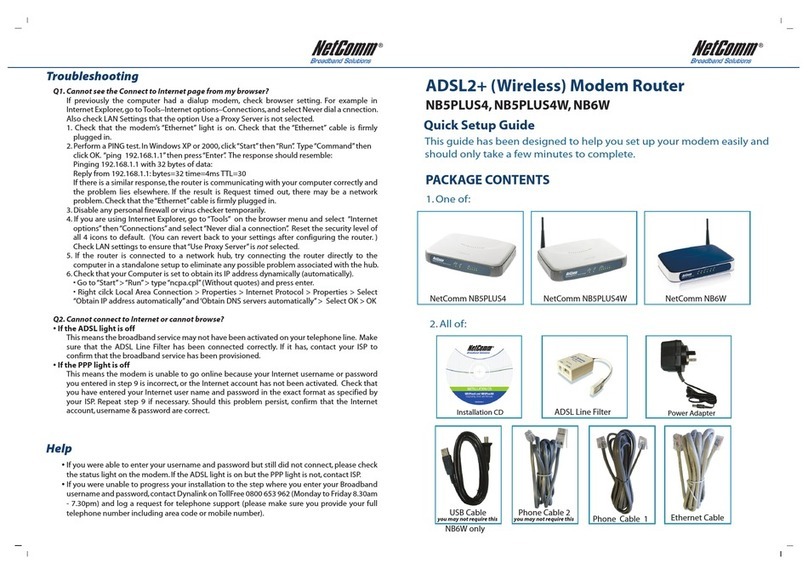

NetComm NB5PLUS4 User manual
