NetComm AV SERIES User manual

NETCOMM AV™ SERIES

Home Entertainment

Connection Kit

Quick Start Guide

Connect one end of the supplied Ethernet cable into the LAN Ethernet port

of your modem/router.

Connect the other end of the cable into the Single Port adapter.

1

Setting Up Your Home

Entertainment Connection Kit

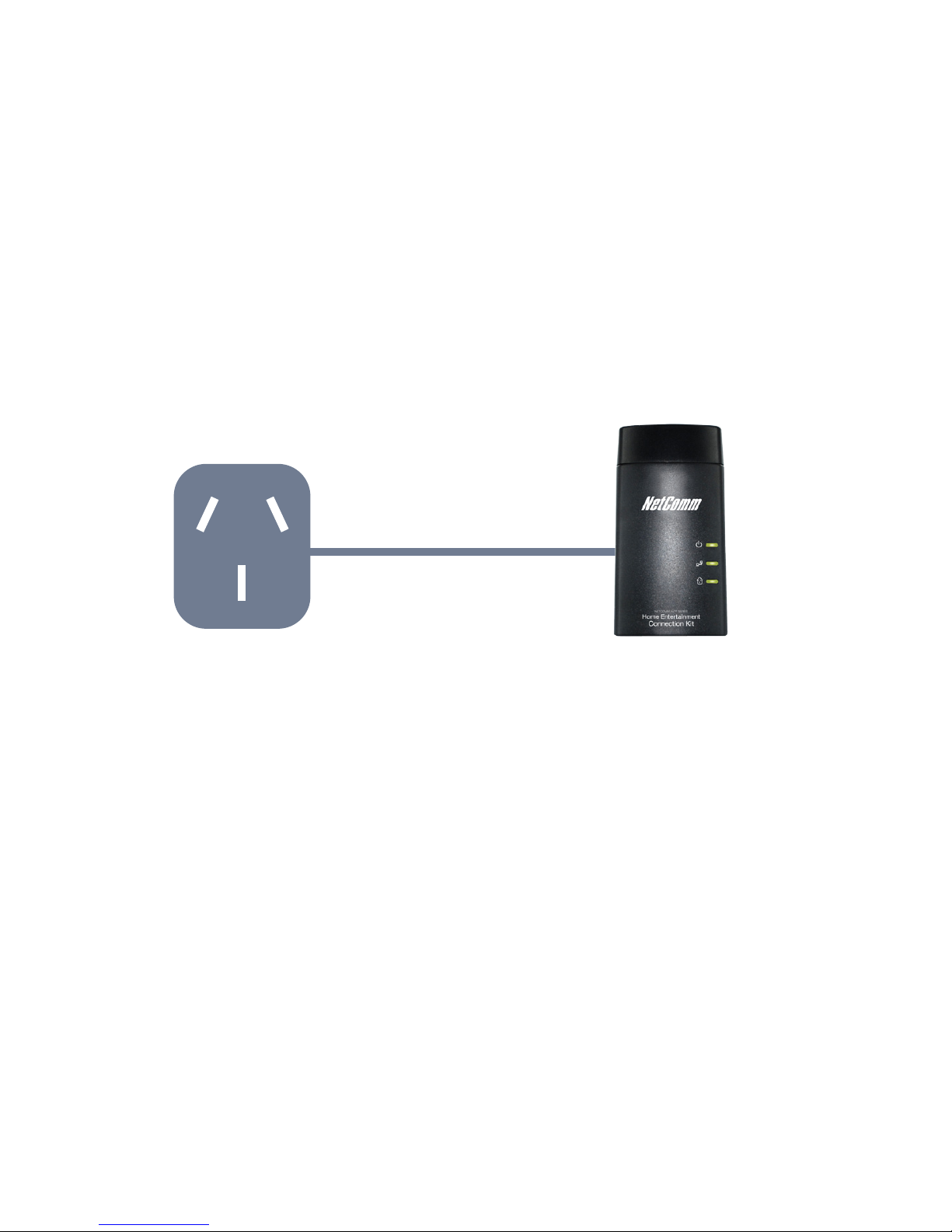

Connect one of the supplied power cables into the single port adapter and then

connect to a wall power outlet.

Connect one end of the other supplied Ethernet cable into an Ethernet port of

any device you want to connect to the Internet (PC, gaming console, blu-ray

player etc). Connect the other end of the cable into any of the LAN ports on the

4-Port adapter. You can connect up to 4 different devices this way.

Connect the other supplied power cable into the 4-Port adapter and then

connect to a wall power outlet.

Now you have successfully completed the set-up process.

Congratulations!

2

3

Troubleshooting

What can the LEDs tell me?

The powerline LED changes colour depending on the speed of your data transfer.

- Fastest

- Faster

- Fast

LED Off - The adapter is not paired or wall socket not turned on.

My Home Entertainment Connection Kit Will Not Connect To Each Other

Press the “GROUP” button on the back of one of the adapters for less than

3 seconds

Within 2 minutes, press the “GROUP” button on the second unit for less than

3 seconds

The network password has been reset and both adapters will be able to

communicate with each other.

4

NetComm GatewayTM Series

ADSL2+ Modem Routers for your product

The NB6 Series is ideal for home, small ofce/home ofce (SoHo) and small

business users needing a quality router for a variety of applications.

NB6 1 Ethernet port, 1 USB port

NB6W 1 Ethernet port, 1 USB port, 54Mbps Wireless G

NB6Plus4 4 Ethernet ports

NB6Plus4W 4 Ethernet ports, 1 USB port, 54Mbps Wireless G

NB6Plus4Wn 4 Ethernet ports, 300Mbps Wireless N

* Maximum wireless signal rate and coverage values are derived from IEEE Standard 802.11g and 802.11n Draft 2.0 specications. Actual wireless

speed and coverage are dependent on network and environmental conditions included but not limited to volume of network trafc, building

materials and construction/layout.

NB6

NB6Plus4W

NB6Plus4

NB6W

NB6Plus4Wn
