NetComm 3G25W-R User manual

Overview

The NetComm 3G25W-R integrates a Wireless LAN and 3G WAN into

one unit. Connection to the Internet is achieved through either a 3G

service or via a fixed line xDSL/Cable/Satellite connection to the

3G25W-R’s WAN port, providing you with the flexibility to choose how

you access the Internet. The 3G25W-R’s automatic failover ensures

you are always connected by activating the 3G connection should the

xDSL/Cable/Satellite connection drop out.

Users are able to share a single 3G connection via both a wired and

wireless connection to the 3G25W-R. With a built in 802.11n wireless

access point, this router provides wireless speeds of up to 150Mbps,

150% faster than 11g technology¹. On top of this, the 3G25W-R has

four LAN ports for wired connections to multiple devices. Rather than

being restricted to certain USB modems, the 3G25W-R allows the

user to simply insert an active SIM and utilise 3G Mobile Broadband

for internet connectivity.

The 3G25W-R includes advanced security features such as VPN

pass-through, a full complement of wireless security options and a

built in firewall.

1 Maximum wireless signal rate and coverage values are derived from IEEE Standard 802.11g and

802.11n Draft 2.0 specifications. Actual wireless speed and coverage are dependent on network and

environmental conditions included but not limited to volume of network traffic, building materials and

construction/layout.

3G25W-R Features:

Powerful wireless router with support for 3G Mobile Broadband

Creates instant Wireless hotspots to share the Internet

connection of a 3G USB modem or DSL/Cable modem

Supports Wireless N standard with data speeds up to

150Mbps¹

One WAN port for alternate wired Internet connection

(DSL/Cable/Satellite via Ethernet)

Four LAN ports to connect wired devices like PCs or gaming

consoles

Ensures connectivity and business continuity with auto Internet

failover from WAN port to 3G Mobile Broadband

Easy WiFi Protected Setup (WPS) by the single touch of a

button to establish a secure wireless connection

Full Wireless security - WEP, WPA, WPA2

Browser based interface for configuration and management:

OS independent and easy to use

Package Contents

Your 3G25W-R Wireless Router with voice Package contains the

following items:

3G25W-R Wireless Router

Quick Installation Guide

User Guide on CD

Power Supply Unit

Ethernet Cable

If any of the above items are damaged or missing, please contact your

dealer immediately.

Minimum System Requirements

Before continuing with the installation of your 3G25W-R Wireless

Router, please confirm that you comply with the minimum system

requirements.

Active SIM card for 3G Broadband access if you want to use a

3G Broadband service.

Note: Subject to terms and conditions from your 3G Broadband Internet Service.

Computer with Windows, Macintosh, or Linux-based operating

systems with a working Ethernet adapter with TCP/IP Protocol

installed.

Internet Explorer version 6.0 or Netscape Navigator version 7.0

and above.

Wireless Computer System Requirements

Computer with a working 802.11b, 802.11g, 802.11n wireless

adapter

LED indicators:

(PICTURES)

LED color Description

Status Green in flash Device status is working.

Red in flash Disconnected.

No SIM card / signal or unverified

PIN code

Amber in flash Connecting.

Red Connected.

Signal strength in level one

(weak)

Red in quick flash Roaming alert, and 3G signal is

weak

3G Signal Strength LED

Amber Connected.

Signal strength in level two or

three (middle)

Amber in quick flash Roaming alert, and 3G signal is

middle

Green Connected.

Signal strength in level four or

five (strong)

Green in quick flash Roaming alert, and 3G signal is

strong

Green EDGE or GPRS connection is

established

2G/2.5G LED

Green in flash Data packet transferred via

2G/2.5G

Green UMTS/HSDPA/HSUPA

connection is established

3G/3.5G LED

Green in flash Data packet transferred via

3G/3.5G

USB / 3G LED Green Connected with 3G dongle via

USB port

Green RJ45 cable is pluggedWAN LED

Green in flash Data access

Green RJ45 cable is pluggedLAN LED

Green in flash Data access

Green WLAN is on

Green in flash Device is in WPS PBC mode

WiFi LED

Green in fast flash Device is in WPS PBC mode

Restoring Factory Defaults

This feature will reset the Router to its factory default configuration. Occasions may present

themselves where you need to restore the factory default settings on your router. Typical

situations are:

You have lost your password and unable to login to the router;

You have purchased the router from someone else and need to reconfigure the

device.

You are asked to perform a factory reset by a member of the excellent NetComm

Support Staff.

In order to restore your router to its factory default settings, please follow these steps:

Ensure that the router is powered on (for at least 20 seconds).

Use a paper clip or a pencil tip to depress the reset button for ten seconds and

release. At this point, the reset is in progress. Do not power off the unit at this point.

After the router reboots, the default settings are now restored. This entire process

takes several minutes to complete.

Once you have reset the router to its default settings you will be able to access the

device’s web configuration using http://192.168.1.1 with password “admin”.

Default Settings

LAN (Management)

Static IP Address:192.168.1.x

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.1.1

WAN (Internet)

WAN mode: DHCP

WirelessSSID: (refer to the wireless security card insert)

Security: WPA2-PSK

WEP Key: (refer to the wireless security card insert)

Modem Access

Password: admin

Connecting your 3G25W-R Wireless Router

Step 1: Attach the antenna.

1. Remove the antenna from its plastic wrapper.

2. Screw the antenna in a clockwise direction to the back panel of the unit.

3. Once secured, position the antenna upward at its connecting joint. This will ensure optimal

reception.

4. And pull out the “USIM/SIM & PWR” labelled tag.

5. Ensure the Power Switch is off.

DO NOT connect the 3G25W-R to power before performing the installation

steps below.

Step 2: Insert a SIM/USIM into the 3G25W-R.

Step 3: Insert the Ethernet cable into the LAN Port:

Insert the Ethernet cable into LAN port on the back panel of the 3G25W-R, and an available

Ethernet port on the network adapter on the computer you will use to configure the 3G25W-R.

Step 4: Power on the 3G25W-R:

1. Connect the power adapter to the receptor on the back panel of your 3G25W-R.

2. Then plug the other end of the power adapter into a wall outlet or power strip.

3. Turn on the Power Switch.

Step 5: Complete the setup.

1. All LEDs will flash to indicate power has been applied.

2. The LEDs will flash ON and OFF as the 3G25W-R performs its startup initialisation and

Internet connection processes. This will take a few minutes.

3. When complete, the Status LED will flash.

SettingupyourPC

Having physically connected your 3G25W-R, the next step is to configure the router to

establish a broadband connection. Depending on your computers current settings you may

first need to reconfigure the TCP/IP (Network Settings) to access your Wireless Router.

Follow the instructions for your operating system.

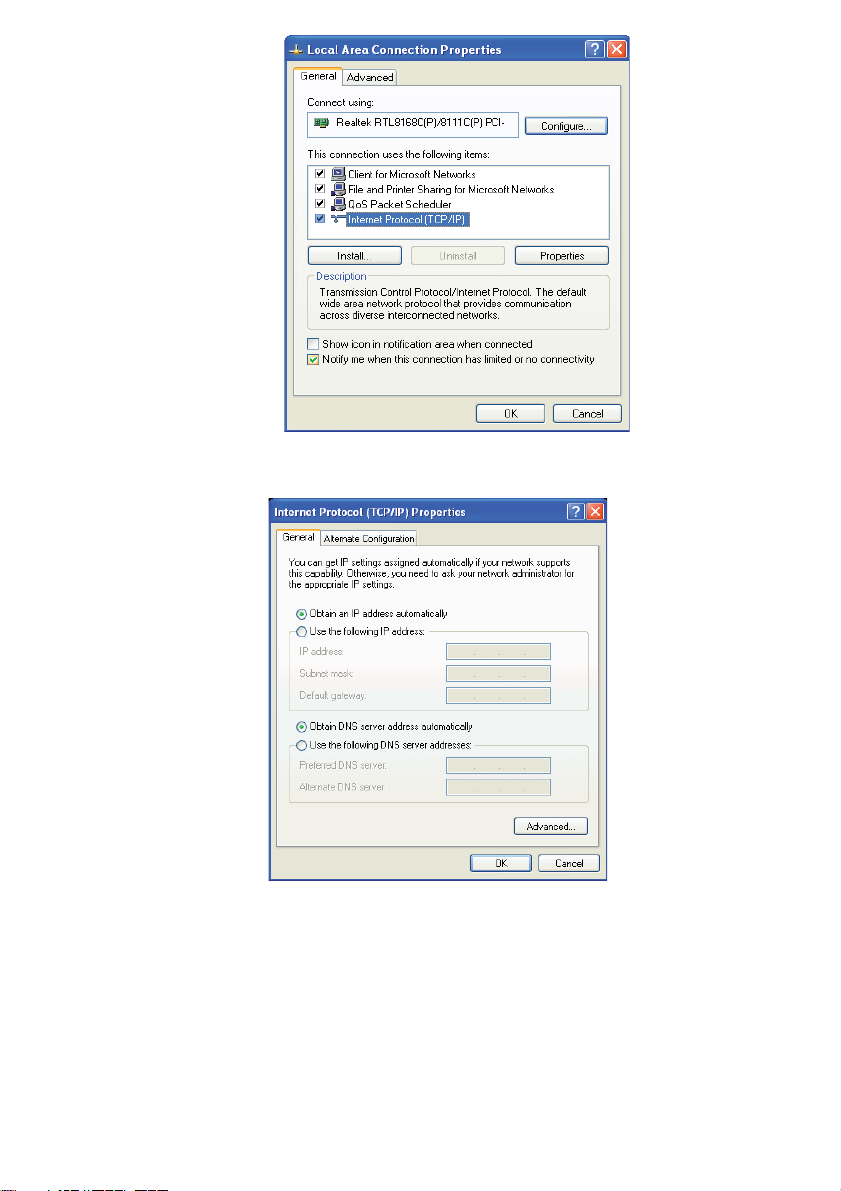

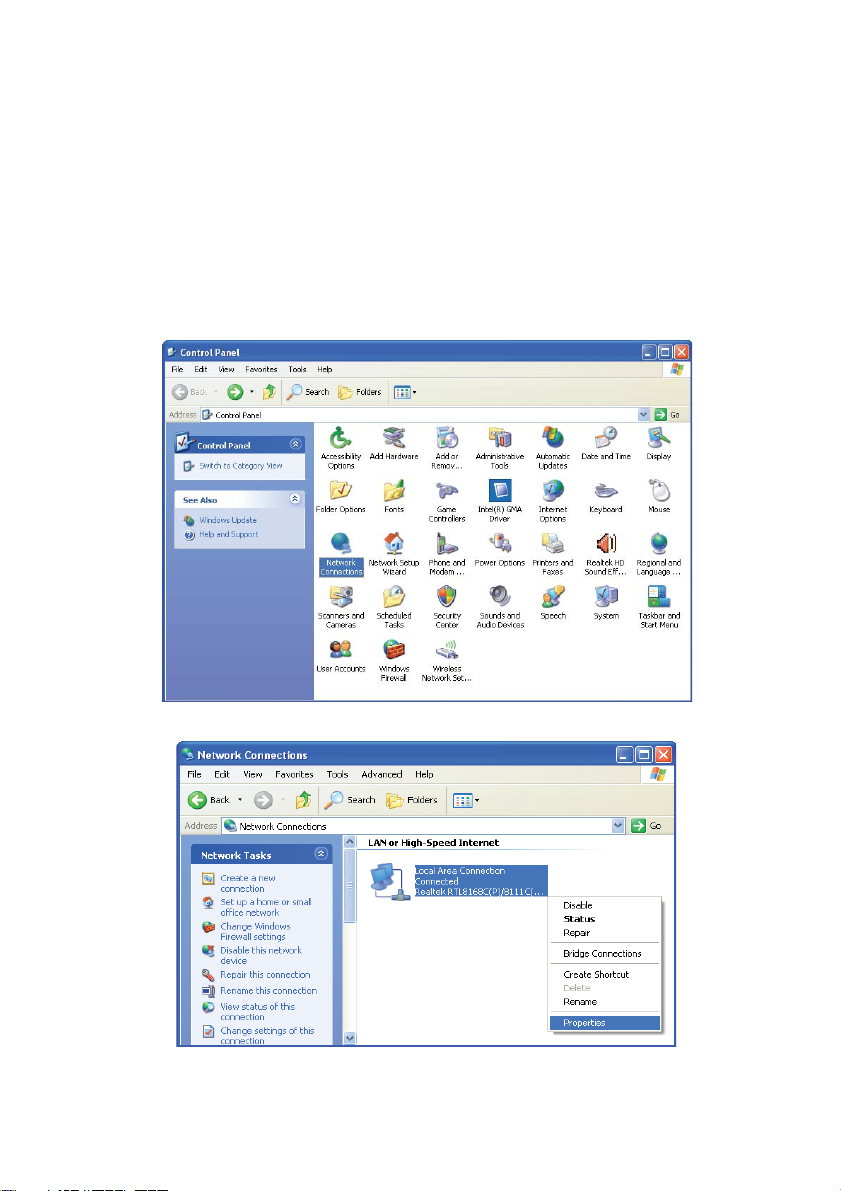

ForWindows98SE/ME/2000/XP

1. Click on “Start” -> “Control Panel” (in Classic View). In the Control Panel; double click on

“Network Connections” to continue.

2. Single RIGHT click on “Local Area connection”, then click “Properties”.

3. Double click on “Internet Protocol (TCP/IP)”.

4. Check “Obtain an IP address automatically” and “Obtain DNS server address automatically”

then click on “OK” to continue

5. Click “Show icon in notification area when connected” (see screen image in 3. above) then click on

“OK” to complete the setup procedures.

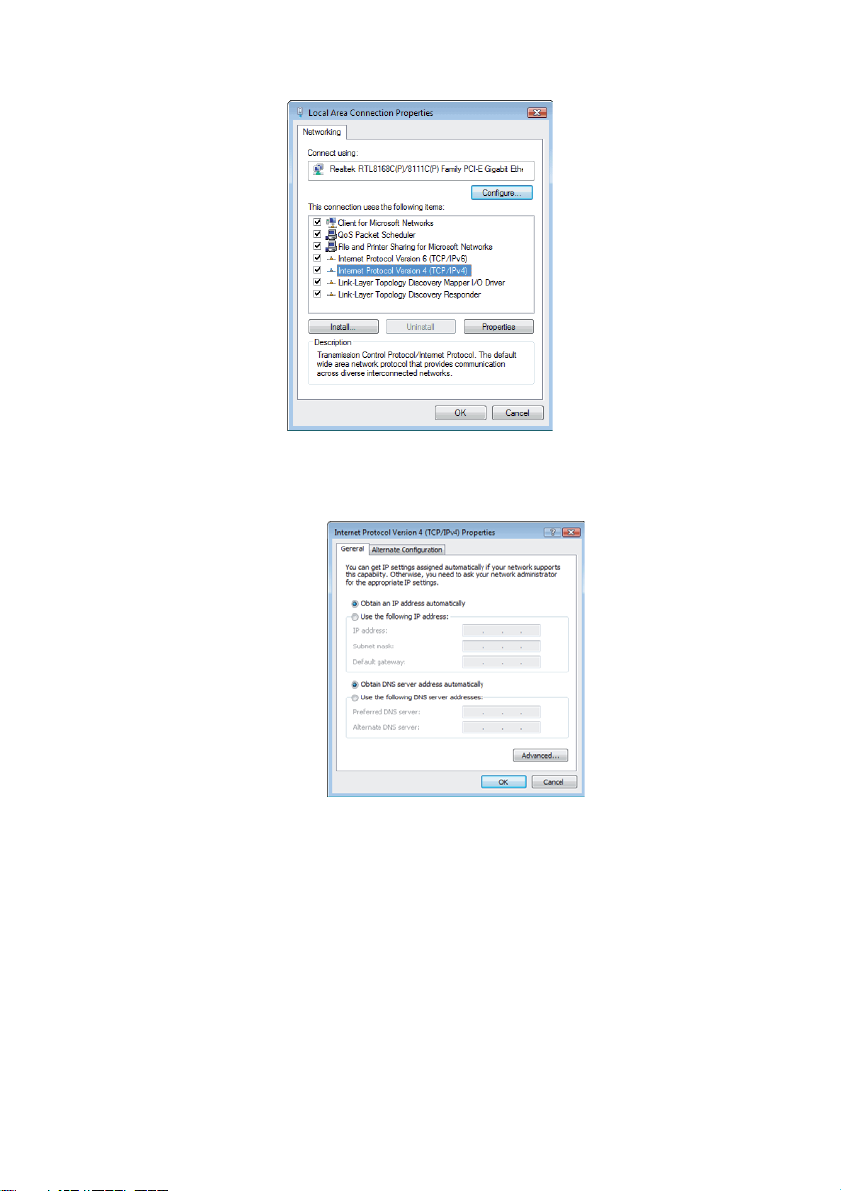

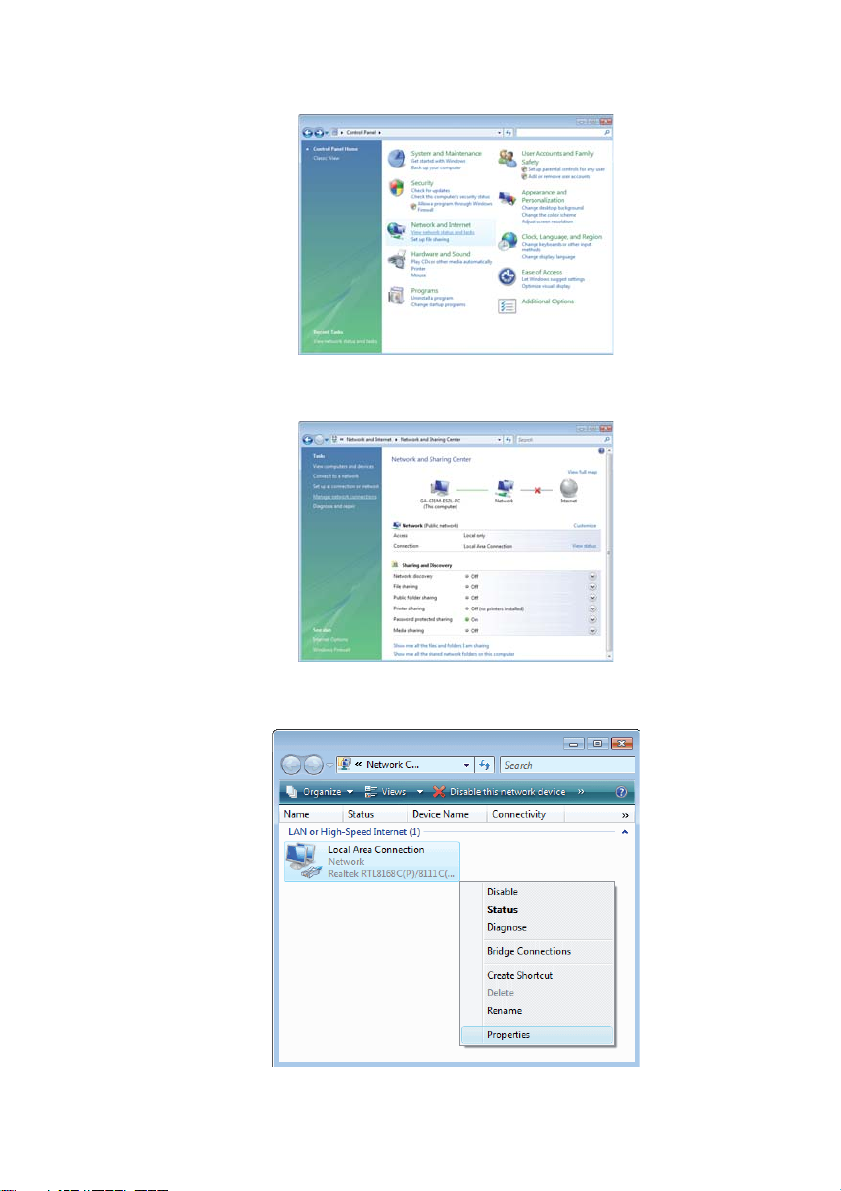

ForWindowsVista32/64

1. Click on “Start” -> “Control Panel” -> “Network and Sharing Center”.

2. In the Manage network connections, click on “Manage network connections” to continue.

3. Single RIGHT click on “Local Area connection”, then click “Properties”.

4. The screen will display the information “User Account Control” and click “Continue” to continue.

5. Double click on “Internet Protocol Version 4 (TCP/IPv4)”.

6. Check “Obtain an IP address automatically” and “Obtain DNS server address automatically”

then click on “OK” to continue.
