NetComm NB14 User manual
Broadband Setup
Netcomm NB14
Broadband Setup Netcomm NB14
- Requirements
- Connecting the NB14 to your computer
- Connecting lters
- Logging into your modem
- Connecting your ADSL modem to access ClubTelco
- Email setup
- Homepage setup
Index
Modem Reference Guide
1. Getting Started
2. Conguring Your Modem
3. Email & Homepage Setup
Broadband Setup Netcomm NB14
Modem light status

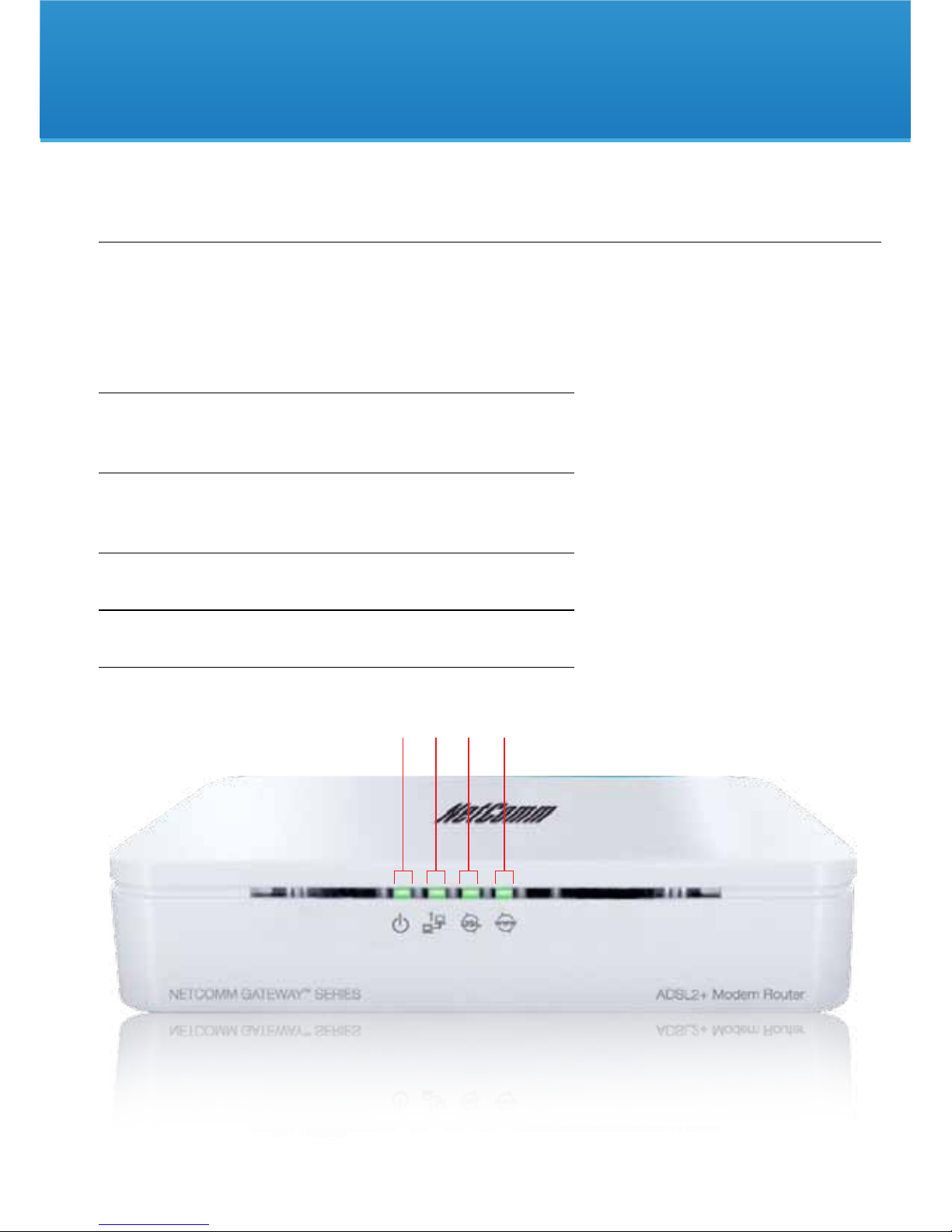

On the front of your modem you will notice a number of lights; the below table will explain
what each of these lights mean:
Diagram (1.1)
Label Action Description
(A) Power On Power is on
Blinking Waiting for device to be ready
O Power is o
(B) Ethernet On Connected via Ethernet
Blinking Data ow
O No Ethernet connection
(C) DSL On DSL signal established
Blinking No DSL signal
(D) www On The device has connected to internet
Blinking Data ow
(A) (C) (D)(B)
Modem Reference Guide
Broadband Setup Netcomm NB14
Requirements
1. Any operating system is compatible however depending on the version this may aect your
internet experience.
2. Internet Explorer 6.0 or higher/Firefox 2.0 or higher.
3. Ethernet network adapter.
Connecting the NB14 to your computer
1. Connect the network cable to the yellow network port located at the back of the modem; the
other end will connect to your computer.
2. Connect a telephone cable to the black port labelled ADSL at the back of the modem, and
connect the other end to your telephone wall socket.
3. Finally, connect the power cable to your modem and the power adaptor to your power point.
Press the power button to the“ON”state.

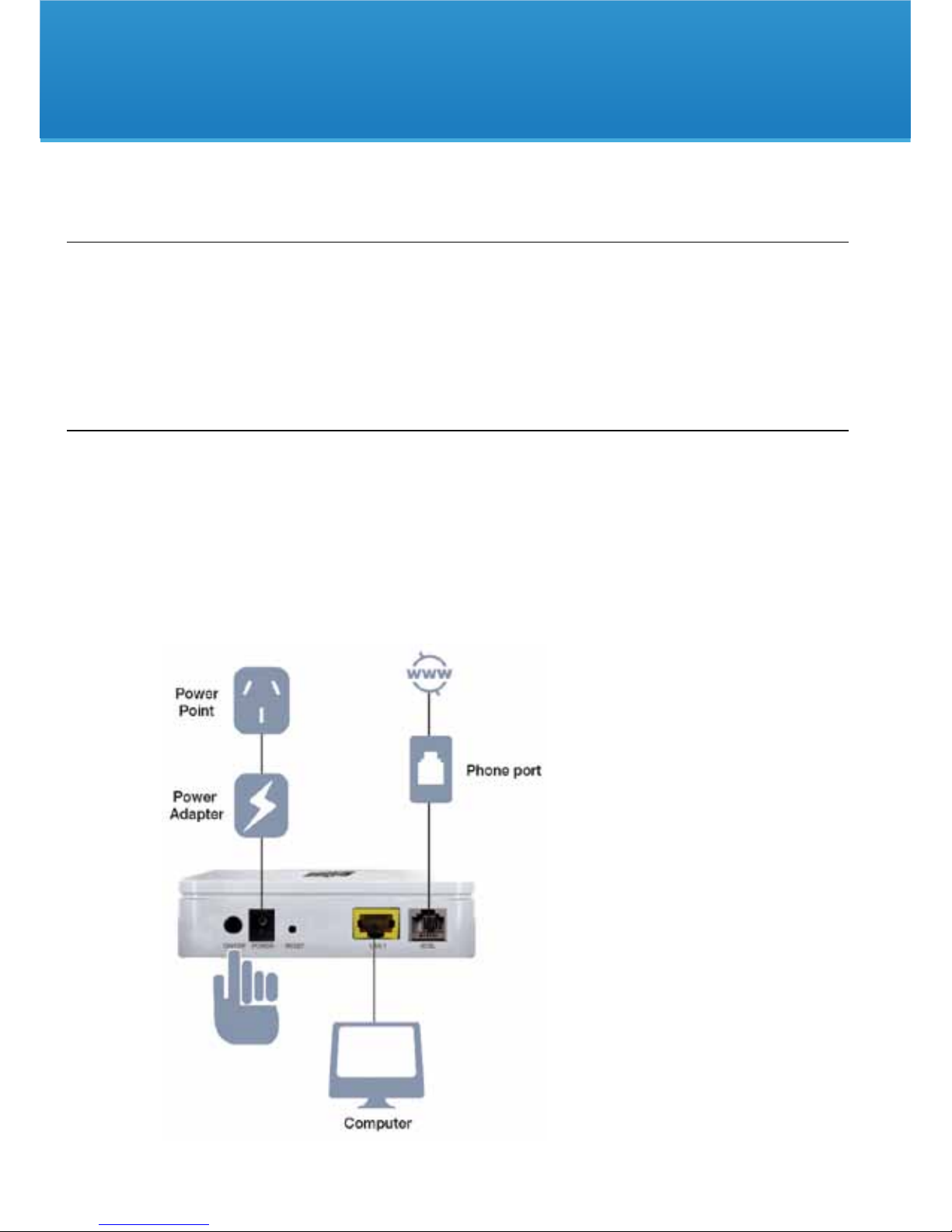

Thediagramlocatedbelowshowshowthemodemconnectsphysicallytoyourphoneline,computer
and power point.
1. Getting Started
Broadband Setup Netcomm NB14
4. Now that the modem is connected to your computer, phone line and powered on, you need
to ensure that the lights on the modem indicate the following:
Label Action
Power On
DSL On
Ethernet On or blinking
Once done you will also see a network icon appear in your task bar, you are now ready to setup

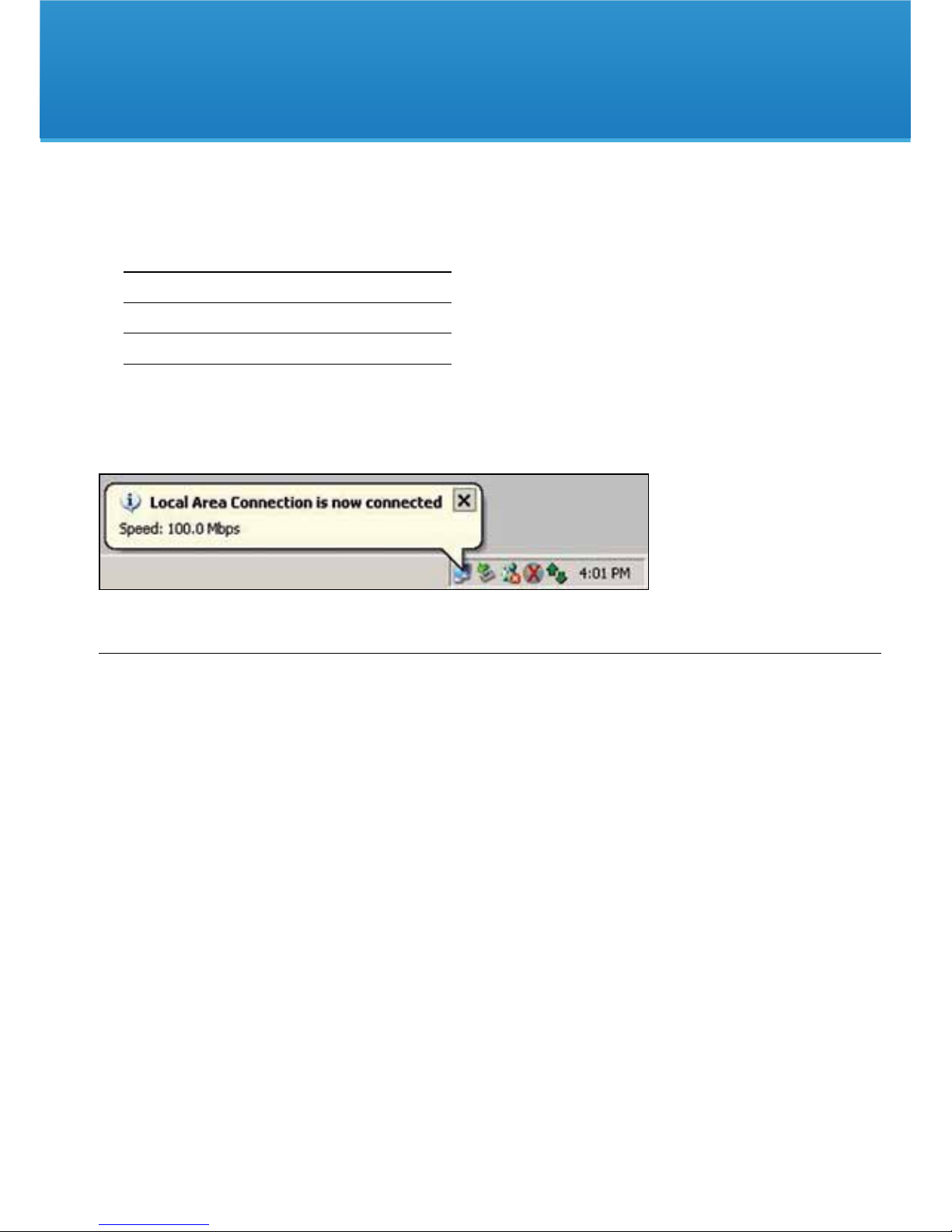

your ClubTelco internet connection. The image below shows the message box which should
appear once the modem is connected and powered on.
Connecting Filters
Connecting a Central or Splitter Filter
This lter is used when you need to plug a telephone and the modem in the same telephone
wall socket.
There are three ports on the central lter as follows:
Line – This port connects to your telephone wall socket.
ADSL – This port connects to the modem’s black port labeled ADSL.
Phone – This port connects to a telephone or other types of telephony devices (for example a
fax machine).
Broadband Setup Netcomm NB14

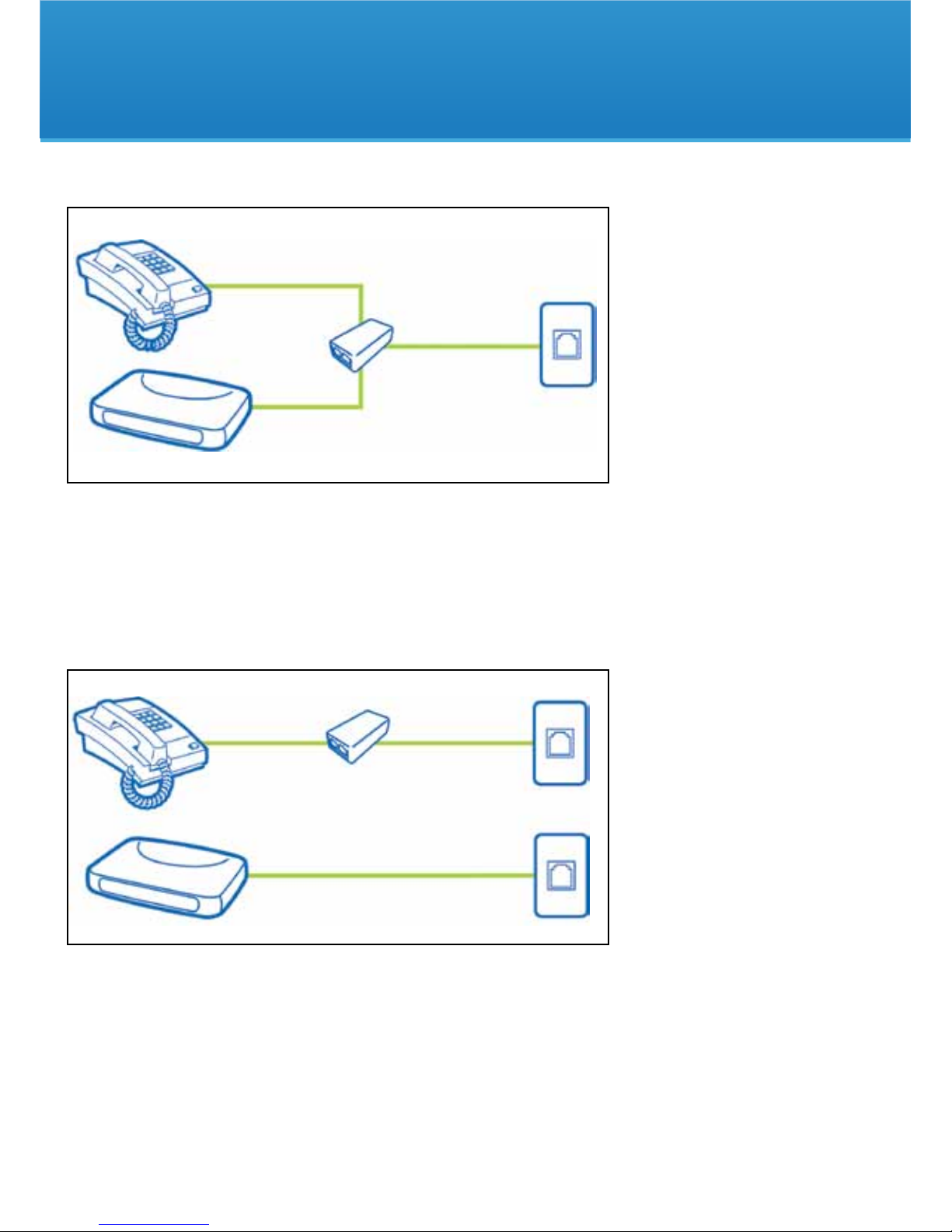

From the diagram below you can see the splitter (micro) lter acts as a double adapter and lter.
Telephone
Wall Socket
Home Phone
Microlter
Phone Jack
Phone Jack
Connecting an Inline Filter
This lter is used on all telephones, fax lines, etc.
An inlinelteris placed betweenthe telephonydeviceandthe telephone wallsocketand should
never be installed on the ADSL modem’s phone cable/connection.
The diagram below shows that the inline lter only connects to your telephony devices.
Home Phone
Modem Router
Telephone
Wall Socket
Inline Filter
Phone Jack
IMPORTANT - Do not put
lter on this line
Broadband Setup Netcomm NB14
Logging into your modem
1. Openawebbrowser(usuallyInternetExplorer)andintheaddressbarenter:http://192.168.1.1
2. You will be asked for a username and password, enter the following login details:
Username: admin
Password: admin
Aspicturedbelowyoucanseeoncethemodemaddress(http://192.168.1.1)hasbeenenteredthelogin
page will automatically appear.
2. Conguring Your Modem
Broadband Setup Netcomm NB14
Connecting your ADSL modem to access ClubTelco

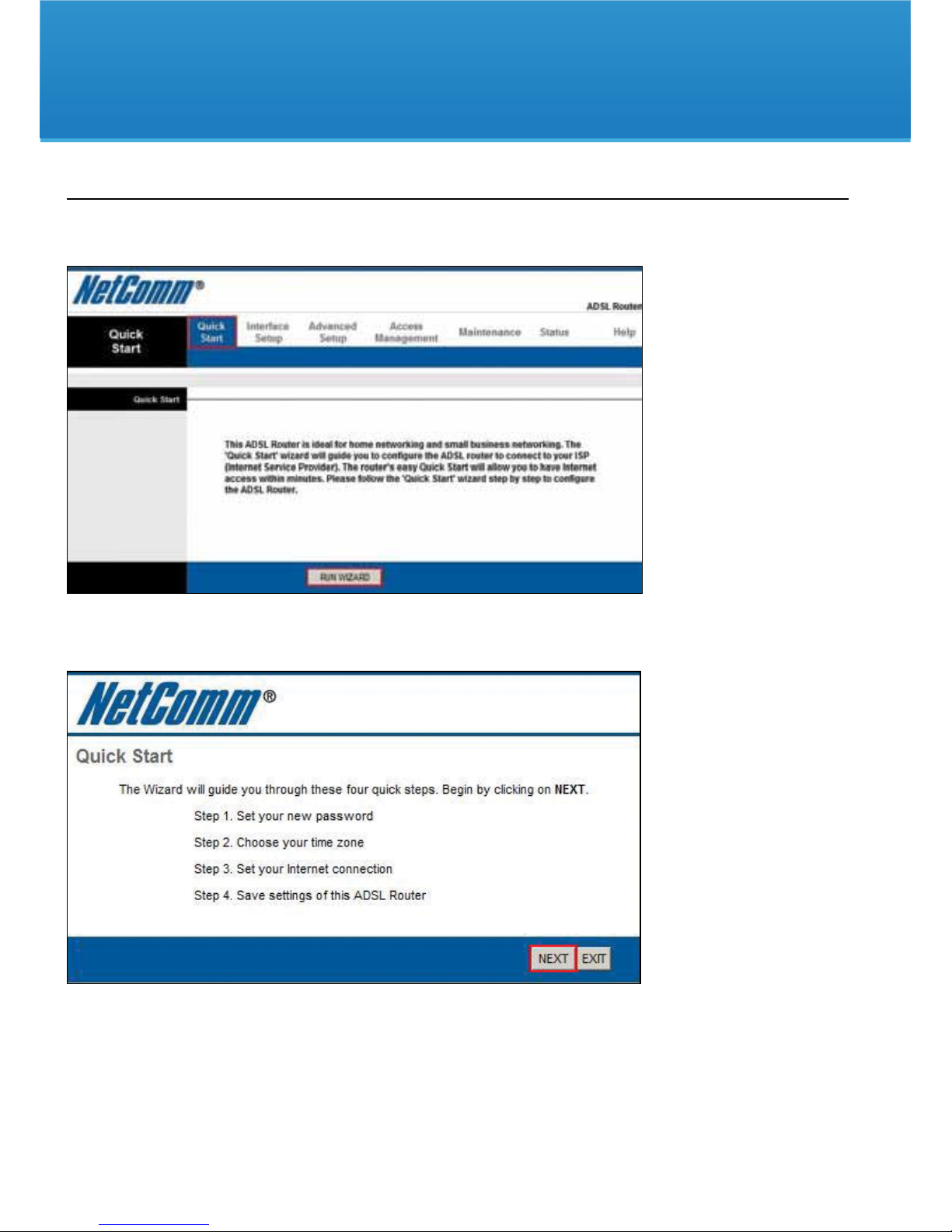

1. Once you have logged into your modem, at the top of the screen click on Quick Start followed
by the Run Wizard button once the screen has loaded.
2. The Quick Start screen will now load, providing you with the steps for the setup. Please
click Next to continue.
Broadband Setup Netcomm NB14
3. If you want to change the password for your modem you can by entering in a new password.
If you choose to do so please note down the new password somewhere safe as you will need
it later should you need to login to the modem.
If you do not want to change the modem’s password simply type “admin”in both the New
Password and Conrmed Password boxes. Click Next to continue.
4. Please select your time zone and click Next.
Broadband Setup Netcomm NB14

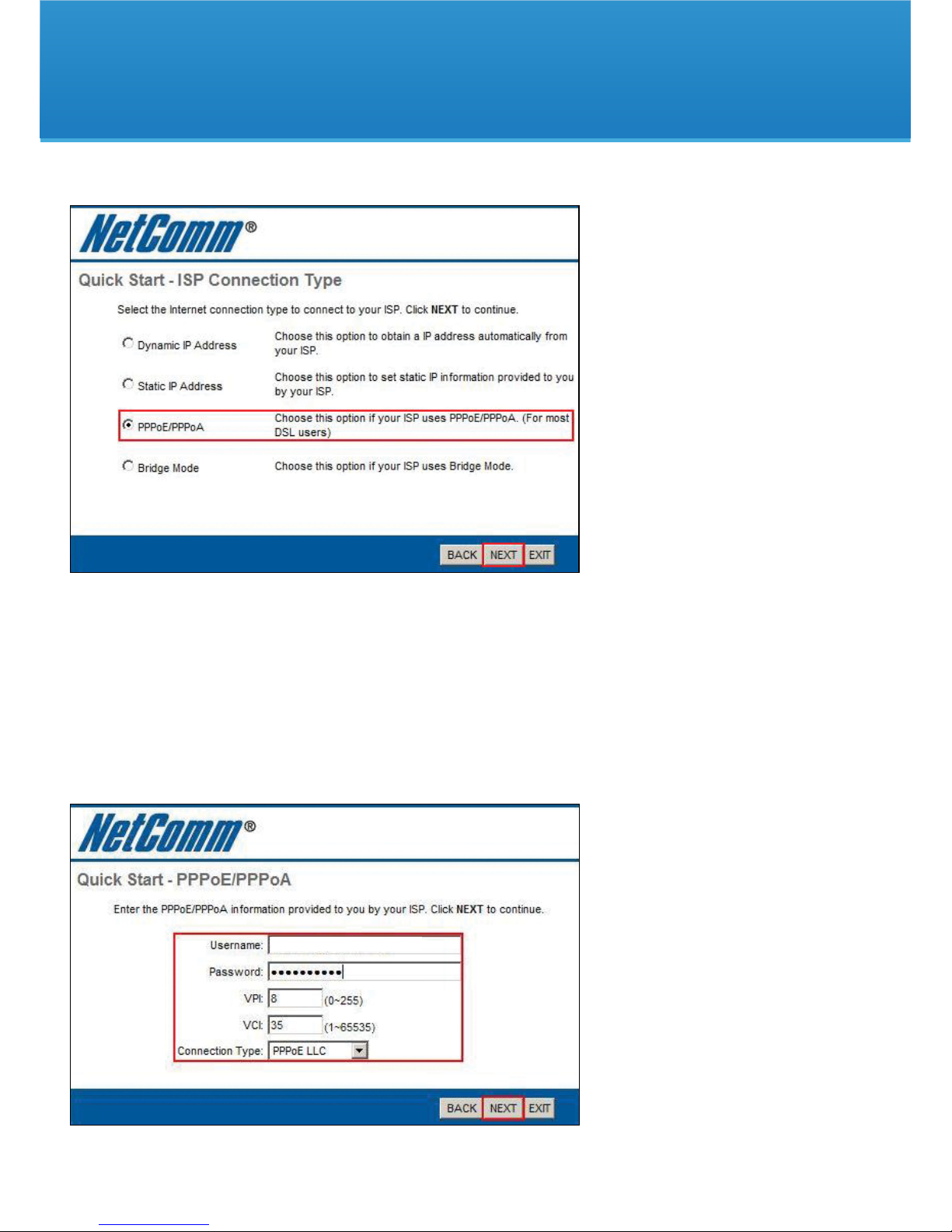

5. From the connection types please select PPPoE/PPPoA. Click Next to continue.
6. You will now need to enter in your ADSL connection settings. Please complete these as
follows and click Next when completed:
•Username: Simply enter your ClubTelco username but much like your email address, for
example; johnsmith@clubtelco.com
•Password: Enter the password you’ve selected at sign-up
•VPI: 8
•VCI: 35
•Connection Type: PPPoE LLC
username@clubtelco.com
