CS-200 Base Swap Process

The following steps will guide you through the removal of the base and installation of a new

base.

Replacing the Base Base Components

The following steps are performed when replacing the base

1. Disconnecting the old base

2. Connecting the new base

3. Installing the new base

CS-200 – Fee-Franking Meter

Base

Note: It is extremely important that you follow the steps outlined in this document

Disconnecting The Old Base

1. Disconnect the power cable from the wall outlet.

This will turn off the CS-200.

2. Disconnect the power adapter from the

CS-200.

Put the power adapter aside; it will be connected to the new

base.

3. Disconnect the USB cable on the internet adapter or

phone modem from the CS-200.

Put the internet adapter or phone modem aside.

Page 2

4. Place the CS-200 onto its back to access the PSD cover.

Open the PSD cover by pushing down on the tab.

5. Remove the PSD by sliding it up and then out of the base.

Put the PSD aside; it will be re-installed in the new base.

Close the PSD cover.

Connecting The New Base

1. Open the base door of the new CS-200 and remove the

cardboard packaging.

Close the base door.

Do not install the ink cartridge at this time.

2. Place the new CS-200 onto its back to access the PSD

cover.

Open the PSD cover by pushing down on the tab.

3. Re-install the PSD by sliding it in and then down. Close the

PSD cover. If the PSD cover does not close properly, the

PSD is not installed correctly.

4. Turn the new base back to an upright position.

Page 3

5. Reconnect the USB cable on the internet adapter or phone

modem to the USB port on the new CS-200.

6. Connect the power adapter to the back of the new CS-200.

7. Connect the power cable to the wall outlet. This will turn on

the CS-200.

Installing The New Base

1. Press “Next” to continue to install the new

base.

2. Ensure the LAN connection or phone modem

is connected to the base and the cable from the

internet adapter or analogue modem is

connected to the internet or phone outlet. Press

“NEXT”.

Page 4

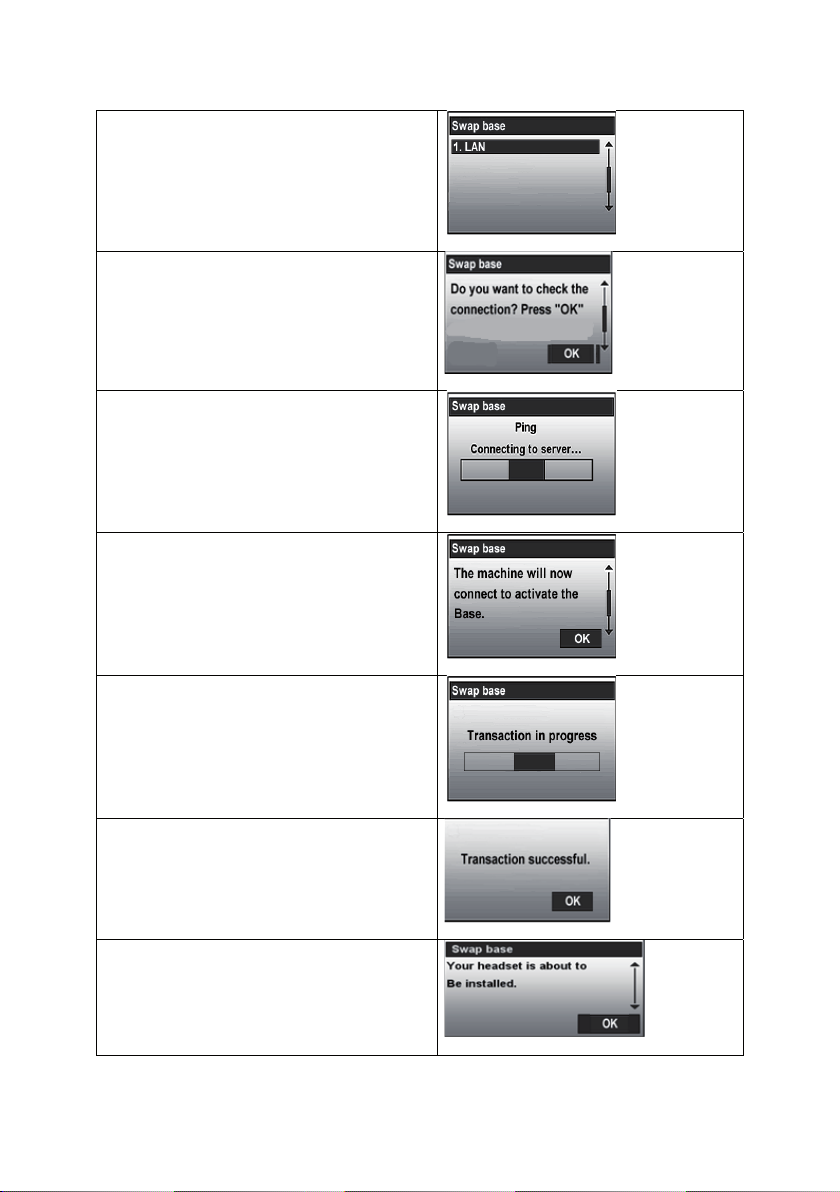

3. Depending on your connection type, one of

the following will be displayed:

- LAN (Internet)

- Modem

Press “OK”.

4. To check the connection to the server press

“OK” or “Continue”.

5. The call is connecting to the server.

Do not interrupt this process.

7. Press “OK” for the machine to establish a

connection to the server to activate the base.

8. The transaction is in progress.

Do not interrupt this process.

9. Transaction successful.

Press “OK” to continue.

11. Press “OK” to begin the Headset

Replacement Process

Page 5

12. It is now time to install the headset.

Press “OK” to continue.

13. To Install the headset, Open the front Cover

14. Pull the Blue lever to the open position

15. Fit the headset and then click the blue lever

back to the closed position

16. Select “OK” to carry out the headset

alignment process

17. Place an envelope into the print area

towards the back right corner. The unit will

perform a test print. When the process is

complete remove the envelope. You may have

to carry this test out several times to align the

head correctly.

Page 6

18. Select the letter that indicates the

straightest line and then select “OK”

19. Press “Yes” to restore the settings of your

previous base.

20. The transaction is in progress.

Do not interrupt this process.

21. The data has been successfully restored.

Press “OK”.

22. The base replacement process has now

been completed. Press “OK”.

Before processing mail, disconnect the power

cable from the wall outlet and reconnect it.
