mundoclima MUP-W9 Operating manual
Technical Service Manual
CL04325 a CL04328
Fan Coil Pared DC
www.mundoclima.comwww.mundoclima.com
MUP-W9
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
1
Wall-mounted
DC Fan Coil Unit
1. ExternalAppearance..............................................................................2
2. Features.................................................................................................3
3. Productlineup.......................................................................................3
4. Accessories............................................................................................4
5. Specifications........................................................................................5
6. Dimension...........................................................................................11
7. SoundLevels........................................................................................14
8. ServiceSpaces.....................................................................................18
9. WiringDiagrams..................................................................................19
10. Troubleshooting..................................................................................20
11. Installation..........................................................................................23
12. CapacityTable.....................................................................................31
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
2
1. External Appearance
A type panel
MUP-09-W9
MUP-12-W9
MUP-16-W9
MUP-18-W9
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
3

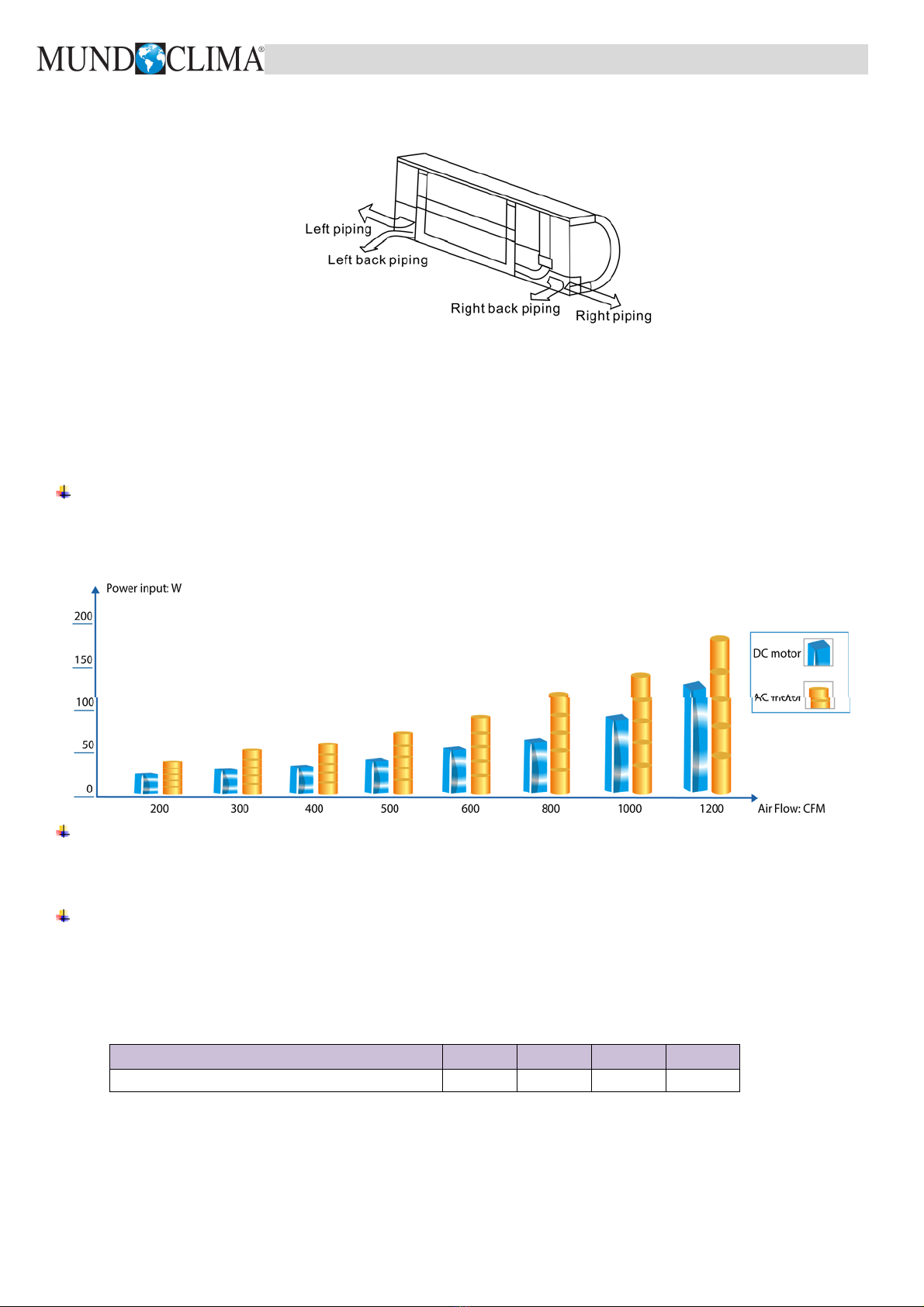

2. Features
• Multi-connection outlet pipe method: left\right\rear, satisfy the need of different rooms.
• Cross flow fan creates quiet and comfortable environment.
• Built-in the 3-way electromagnetic valve.
• Built-in network interface module.
• Easy maintenance has been realized as the front panel can be removed for easy access.
• Display shut off (for Type A and P panels though Wireless Remote Controllers RM12F/BGF-E )
Excellent efficiency
Mundoclima DC FCU
adopt the brushless DC motor, the DC motor efficiency is up to 90%.
DC FCU can be reduced by more than 30% in contrast to the corresponding AC FCU.
DC brushless motor
The motor adopts fully enclosed structure design; it is energy-saving, of high operating efficiency and durable
motor. The motor bearing can operate 80,000 hours continuously, and easy for maintenance.
Low noise
Advanced 3-D spiral fan design reduces air resistance and operating sound. The motor bearing with unique
design makes less operation vibration.
3. Product lineup
Type 09
12 16 18
● ● ● ●
Wall Mounted A Type Panel (MUP-W9)
The power consumption of
4

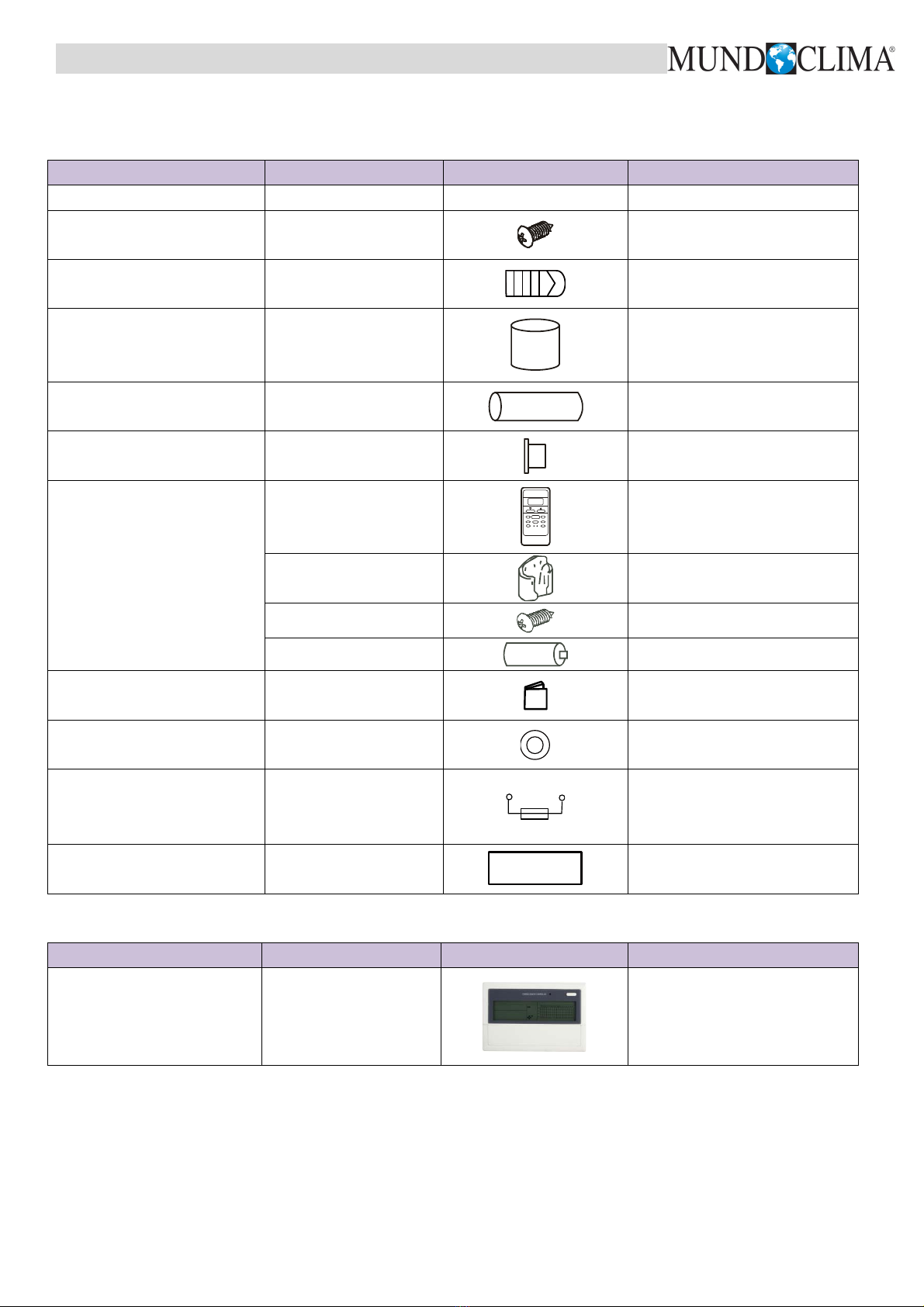

4. Accessories
4.1 Standard accessories
Accessory name Qty. Shape Usage
Owner’s & installation manual 1 / Installation guide
Screw ST3.9x25 for installation
board 8 Screw the installation board
Plastic expanded tube 8
Wrapping tape 1
Drain pipe 1
Wall conduit cover 1
Remote controller & Its Frame
1
Remote controller
R05/BGE
1 Frame
2 Mounting screw(ST2.9x10-C-H)
2 Alkaline dry batteries
Remote controller manual 1
Seet gasket 4 For conner water pipe
Network matching wire 1
The indoor unit which at the terminal of
communication system should connect
a impedance between port X and port
Y.
Insulation 1 Prevent the walls from getting damp
4.2 Optional accessories
Accessory name Qty. Shape Usage
Central controller CCM30 1
Central control
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
5
5.2 A type panel
MUP-09-W9 / MUP-12-W9
5. Specifications
Model MUP-09-W9 MUP-12-W9
Power supply V/Ph/Hz 220-240/1/50
Air flow (H/M/L) m3/h 492/454/400 825/689/590
CFM 289/267/235 485/405/347
Cooling1
Capacity (H/M/L) kW 2.7/2.59/2.39 3.81/3.3/2.88
Water flow rate(H/M/L) m3/h 0.48/0.46/0.42 0.67/0.57/0.51
Water pressure drop(H/M/L) kPa 31.61/28.63/25.36 56.75/41.23/33.02
Power input(H/M/L) W 13/11/10 34/22/15
Heating2
Capacity (H/M/L) kW 2.94/2.8/2.58 4.3/3.65/3.09
Water flow rate(H/M/L) m3/h 0.51/0.49/0.46 0.73/0.64/0.56
Water pressure drop(H/M/L) kPa 32.66/34.89/30.24 51.86/47.53/35.69
Power input(H/M/L) W 11/11/9 31/20/14
Heating3
Capacity (H/M/L) kW 3.29/3.03/2.63 5.08/4.33/3.77
Water flow rate(H/M/L) m3/h 0.48/0.46/0.42 0.67/0.57/0.51
Water pressure drop(H/M/L) kPa 37.49/30.25/26.53 61.94/37.88/30.34
Power input(H/M/L) W 12/10/8 31/20/14
Sound pressure level (H/M/L) dB(A) 32/30/27 45/39/35
Rated current A 0.16 0.28
Fan motor Type DC Motor DC Motor
Quantity 1 1
Fan Type Tangential fan Tangential fan
Quantity 1 1
Coil
Row 2
Max. Working pressure MPa 1.6
Coil length x height mm 635x26.74
Fin spacing mm 1.5
Fin type Hydrophilic aluminium
Number of circuits 5
Diameter mm Φ7
Body
Net dimensions (W×H×D) mm 915×290×229 915×290×229
Packing size (W×H×D) mm 1020×390×315 1020×390×315
Net weight kg 12,7 12.7
Gross weight kg 17,3 16.3
18.6
Pipe connection Water inlet/outlet pipe inch G3/4
Drain pipe mm ODΦ20
6
MUP-16-W9 /MUP-18-W9
Model MUP-16-W9 MUP-18-W9
Power supply V/Ph/Hz 220-240/1/50
Air flow (H/M/L) m3/h 862/741/634 979/849/717
CFM 507/435/372 575/499/421
Cooling1
Capacity (H/M/L) kW 4.47/3.98/3.48 4.87/4.26/3.79
Water flow rate(H/M/L) m3/h 0.77/0.68/0.61 0.85/0.72/0.65
Water pressure drop(H/M/L) kPa 41.17/33.54/27.05 50.68/39.47/33.66
Power input(H/M/L) W 26/18/13 38/26/18
Heating2
Capacity (H/M/L) kW 4.84/4.23/3.62 5.26/4.68/3.96
Water flow rate(H/M/L) m3/h 0.84/0.73/0.64 0.89/0.80/0.68
Water pressure drop(H/M/L) kPa 36.82/33.83/26.26 47.12/42.75/32.95
Power input(H/M/L) W 22/16/12 33/23/16
Heating3
Capacity (H/M/L) kW 5.68/4.94/4.24 6.31/5.57/4.77
Water flow rate(H/M/L) m3/h 0.77/0.68/0.61 0.85/0.72/0.65
Water pressure drop(H/M/L) kPa 43.74/29.69/23.98 51.65/36.3/30.3
Power input(H/M/L) W 23/16/12 33/23/16
Sound pressure level (H/M/L) dB(A) 38/34/30 44/40/35
Rated current A 0.32 0.39
Fan motor Type DC Motor DC Motor
Quantity 1 1
Fan Type Tangential fan Tangential fan
Quantity 1 1
Coil
Row 2
Max. Working pressure MPa 1.6
Coil length x height mm 785x26.74
Fin spacing mm 1.5
Fin type Hydrophilic aluminium
Number of circuits 7
Diameter mm Φ7
Body
Net dimensions (W×H×D) mm 1072×315×237 1072×315×237
Packing size (W×H×D) mm 1180×415×315 1180×415×315
Net weight kg 15.1 14.9
Gross weight kg 19 18.6
Pipe connection Water inlet/outlet pipe inch G3/4
Drain pipe mm ODΦ20
Notes:
Based on Eurovent conditions:
H: High fan speed; M: Medium fan speed; L: Low fan speed.
1: Cooling mode (2 and 4-pipe coil): entering air temperature 27°C DB/19°C WB, entering/leaving water temperature 7°C /12°C.
2: Heating mode (1): (2-pipe coil): entering air temperature 20°C DB, entering/leaving water temperature 45/40°C.
3: Heating mode (2): (2-pipe coil): entering air temperature 20°C DB, enter water teperaure/water flow 50°C.
(same water flow as in standard rating condition in cooling)
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
7

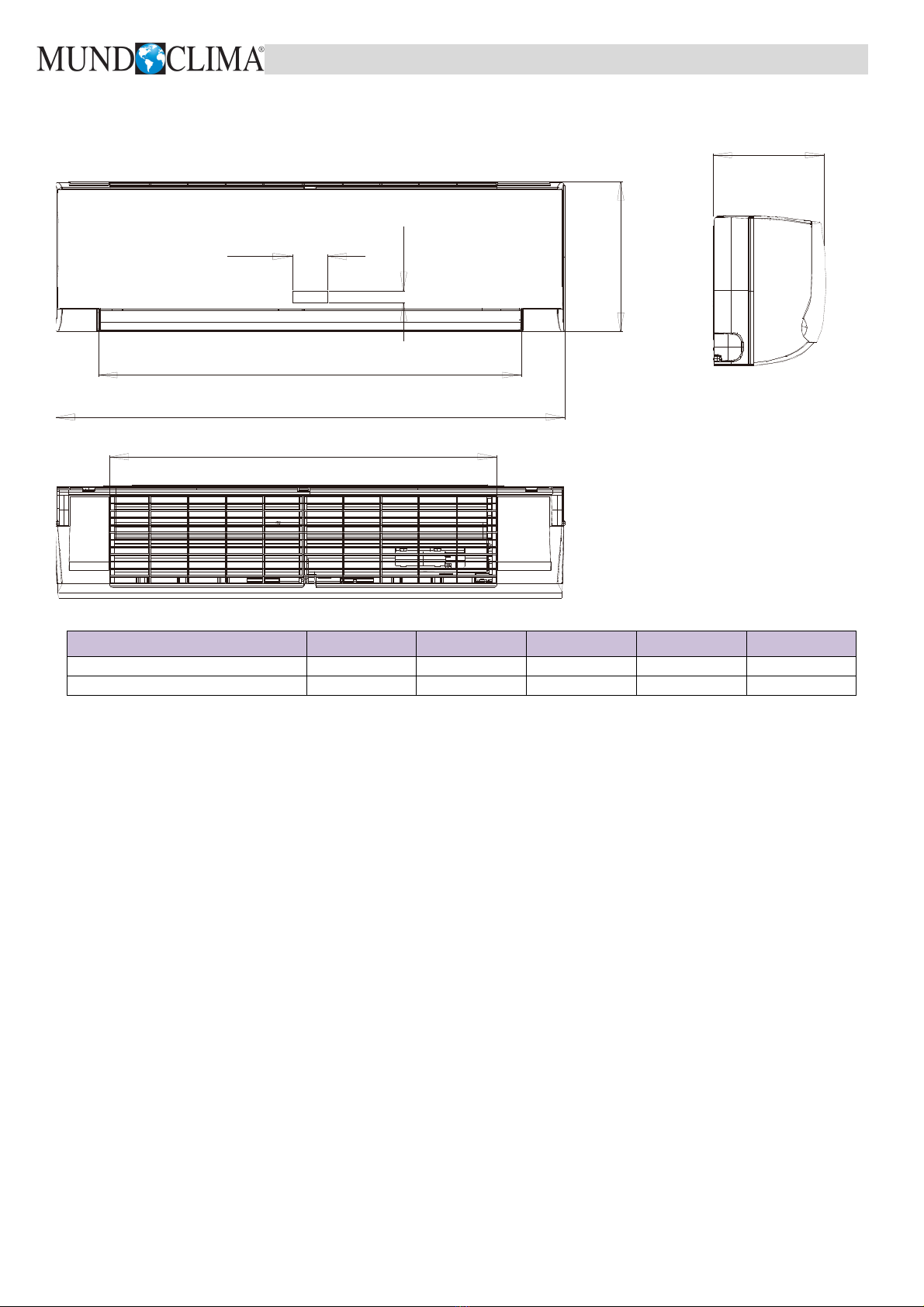

6.2 A type panel
MUP-09-W9 , MUP-12-W9 , MUP-16 -W9 , MUP-18-W9
Model A B C D E
MUP-09/12-W9 732 915 290 663 233
MUP-16/18-W9 892 1072 315 813 237
75
25
A
B
D
C
E
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
8

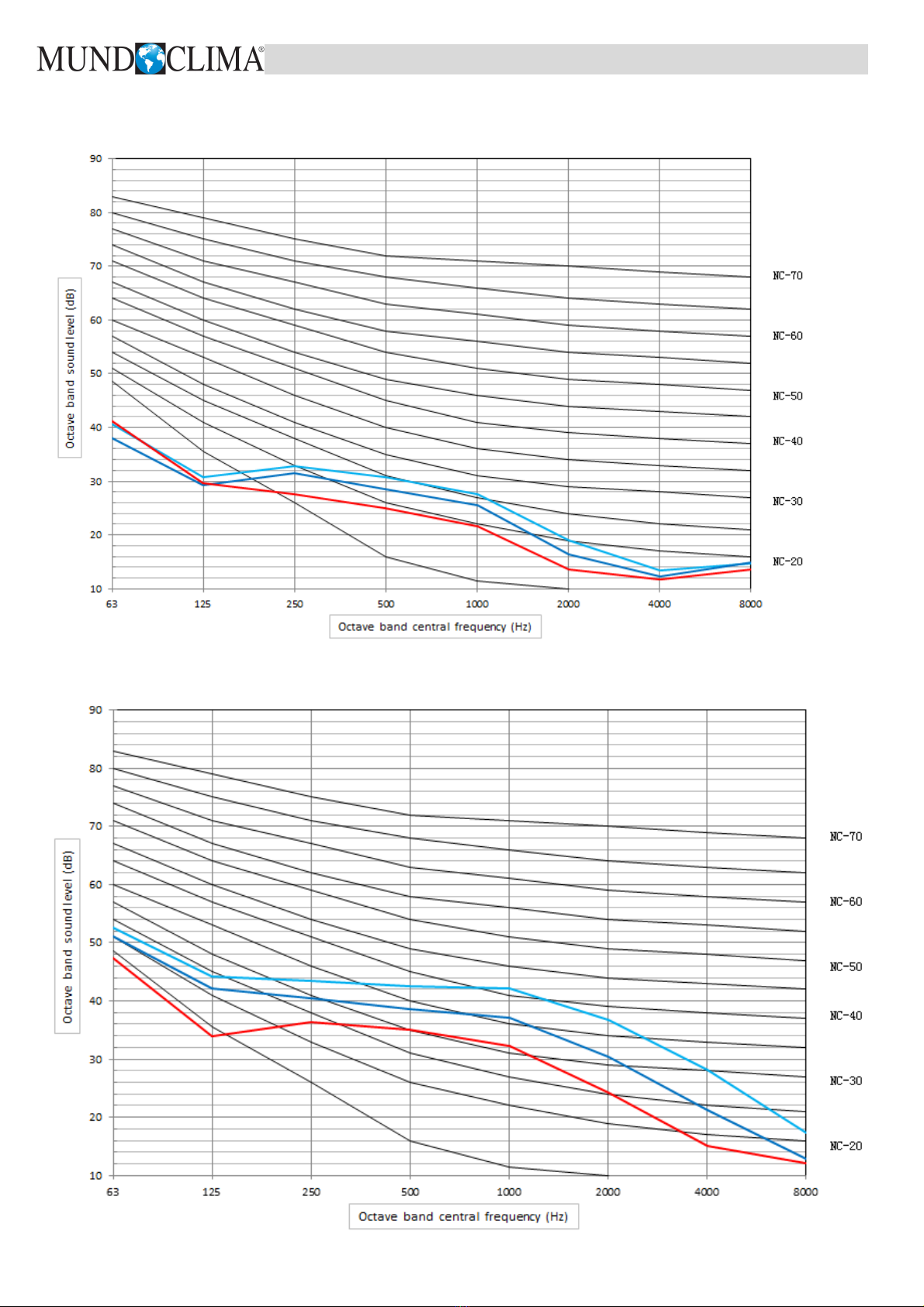

7. Sound Levels
Unit Number Model
Noise level under three speeds of fan [dB(A)]
H M L
1
MUP-09-W9
32 30 27
2 MUP-12-W9
45 39 35
3 MUP-16-W9
38 34 30
4
MUP-18-W9
44 40 35
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
9
MUP-09-W9
MUP-12-W9
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
DCFanCoilUnitTwo‐pipeWall‐mountedSeries
