Installation and Owner`s manual
DC INVERTER WINDOW TYPE
CL20384
AIR CONDITIONER
MUVR-12-H10
CONTENTS
Thank you for choosing air conditoner.Our design is based on the best eff-
iciency and the lowest noise operation and it can keep the room comfortable.
Please read this operating manual carefully before operating the unit and keep it
for consultation.
Structure mechanism and Installation
The Refrigerant 1
Safety operation of flammable refrigerant 22
Precautions 2
Installation 3
Function 7
Operation procedure
8
Power requirement
Notes for installation 6
9
Air direction adjustment
Part identification
9
Remote control operation procedure 10
Introduction for icons on display screen 10
Introduction for buttons on remote controller 11
Remote control panel 15
Care and maintenance
Operation Tips 16
Caution 17
Care and maintenance 19
Troubleshooting guide 20
21
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un-
controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-
rial resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for envi-
ronmental safe recycling.
R32: 675
After service
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
MUNDOCLIMA MUVR DC inverter window type
Please read this operating manual carefully before operating the unit.
● To realize the function of the air conditioner unit, a special refrigerant circulates
● Compared to common refrigerants, R32 is a nonpolluting refrigerant with no
lower. R32 has got very good thermodynamic features which lead to a really high
’s
- 1 -

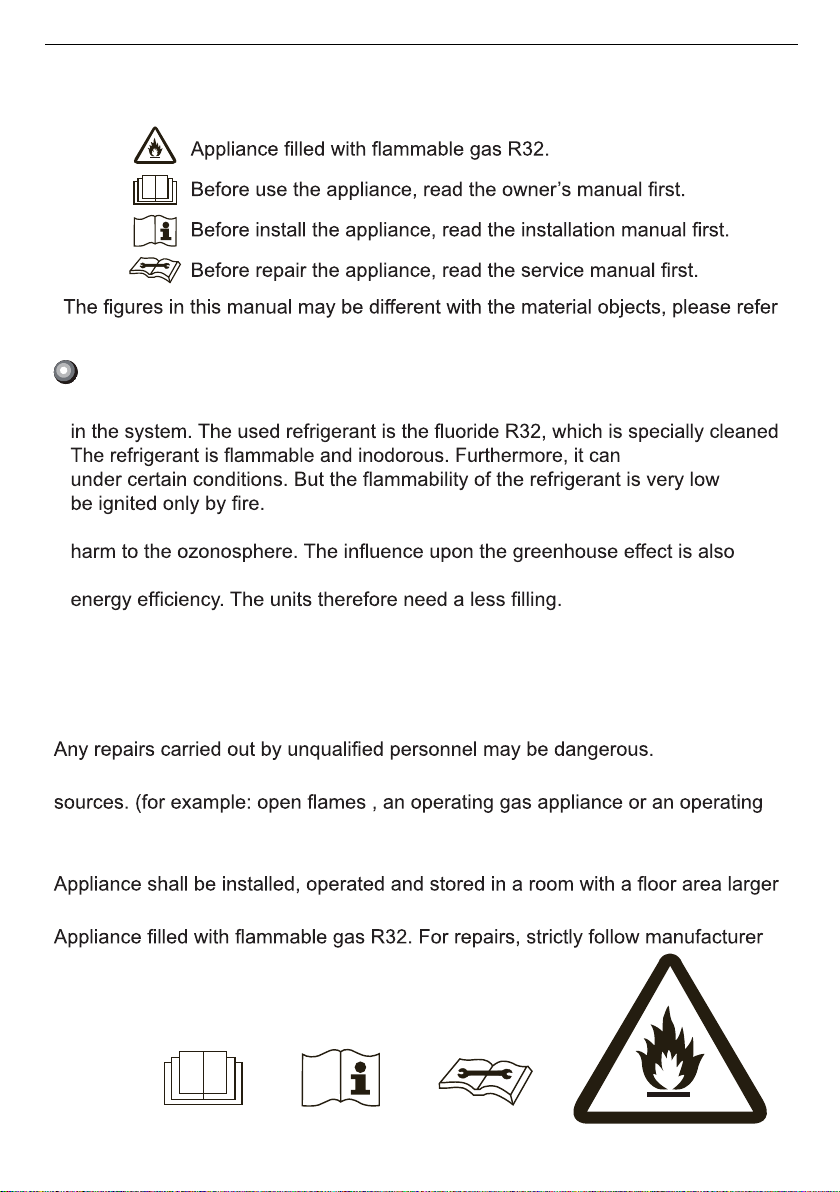

WARNING:
Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacture.Should repair be necessary, contact your
nearest authorized Service Centre.
The appliance shall be stored in a room without continuously operating ignition
electric heater.)
Do not pierce or burn.
than 4m .
2
instructions only.
Be aware that refrigerants may not contain an odour.
Read specialist’s manual.
to the material objects for reference.
The Refrigerant
.
leads to explosion
. It can
MUNDOCLIMA MUVR DC inverter window type
- 2 -

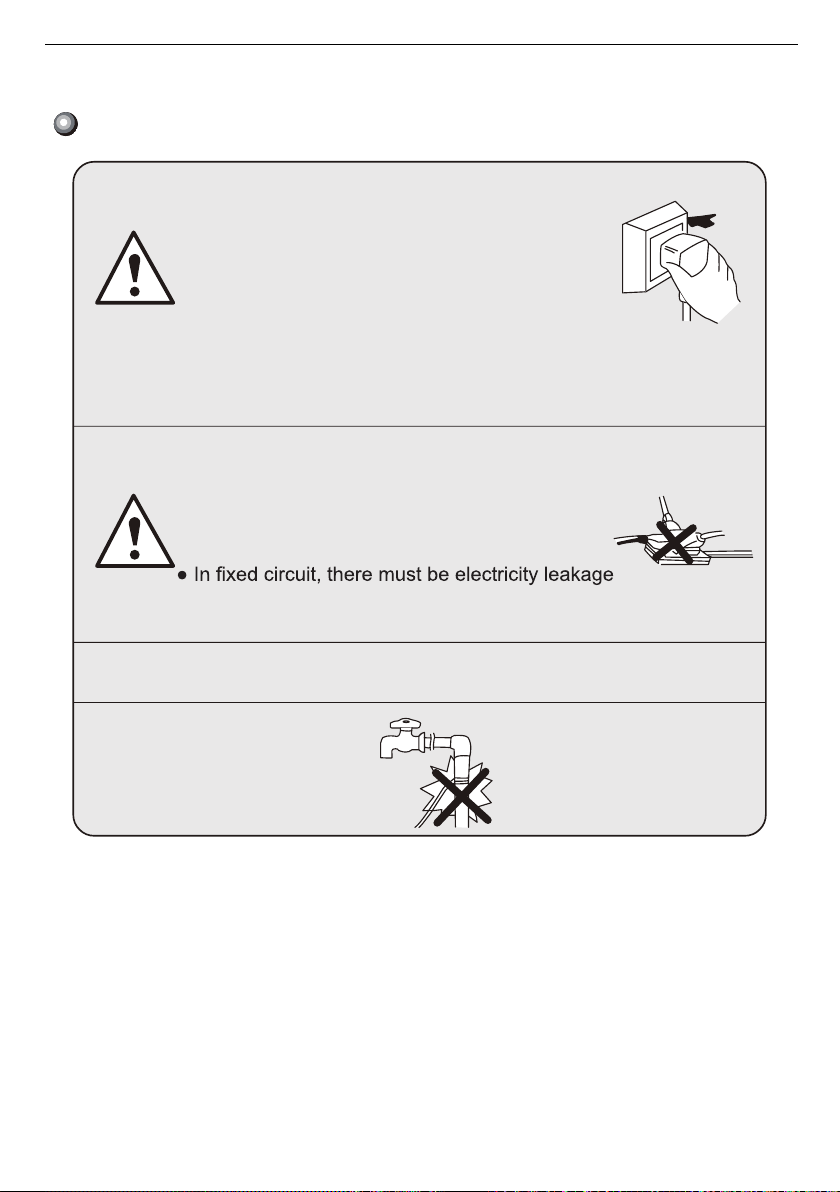

electric shock.
Please contact dealer when you need to repair air conditioner.
injury or damage.
sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction.
● Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause
● Do not repair air conditioner by yourself. It may cause electric shock or damage.
● Maintenance must be performed by qualified professionals.Otherwise,it may cause
● The appliance is not to be used by persons (including children) with reduced physical,
● Children being supervised not to play with the appliance.
Please install the devices for short-circuit protection and electrical leakage protection
According to the local safety regulations, use qualified power supply circuit and circuit
when installing the air conditioner.
break.
Working temperature range
※ Operating Temperature Range
Indoor side DB/WB(°C)
Maximum cooling 32/23 43/-
Maximum heating 27/- 24/18
Outdoor side DB/WB(°C)
The operating temperature range (outdoor temperature) for cooling only unit is
16°C~ 43°C; for heat pump unit is -7°C~ 43°C.
Precautions
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Warning
The air conditioner should be installed in accordance with national wiring regulation.
Air Conditioner should be properly grounded. Incorrect grounding may cause electric
shock.
hazard.
Do not spill water on the remote controller, otherwise the remote controller may
be broken.
injury or damage.
personal injury.
● Do not connect air conditioner to multi-purpose socket.Otherwise, it may cause fire
● Do install the air switch. If not, it may cause malfunction.
●
● Do not spray water on air conditioner. It may cause electric shock or malfunction.
● Do not extend fingers or objects into air inlet or air outlet. It may cause personal
● Do not step on air conditioner, or put heavy objects. It may cause damage or
●Do not block air outlet or air inlet. It may cause malfunction.
MUNDOCLIMA MUVR DC inverter window type
- 3 -
Installation
Installation precaution:
Window type conditioner is so valuable and the
improper installation of it will cause a lot of da-
mage! Please associate the professional tech-
nician to install the unit and don’t install it by yourself. Otherwise, we are not
responsible for the damage like this.
Location:
● The condensation water must be drained away conveniently.
● Install air conditioner unit far away from TV set or radio etc. to avoid distur-
bing video or voice.
● In salt and coastal area or place where is near thermal springsand polluted
by sulphurous gas, or other special areas, please contact the seller before
use.
● Avoid other heat sources or direct sun light.
● Avoid a place where is easy for children to touch.
●
Don't use the unit in the immediate surroundings of a laundry,a bath,a shower
or a swimming pool.
● For window type air conditioner with remote control, install in a location
where is strong electromagnetic disturbance, you should contact the seller
in advance to avoid the malfunction in use.
How to install:
●
Choose a location where there are
no any obstacle surrounding the
unit, and the plug is accessible.
● Prepare the installation hole slig-
htly bigger than unit size.
● Choose the installation space ac-
cording to the following diagram.
The distance of obstructions from
window unit inside should be upper
300mm, lower 1500mm, left 500mm,
right 500mm, front 1500mm.
Over
1500 mm
500mm 500mm
300mm
300mm
MUNDOCLIMA MUVR DC inverter window type
- 4 -
Installation procedure:
Remove the sticker from the front panel.1)
3)
Put the unit into the installation hole.2)
Fill up sews in the cabinet with sponge
or foam.
● When installing the unit, it should be sl-
between 6-10mm.) (Shown at right
anted down to the back to avoid the en-
largement of noise or vibration. (Slant
● The installation place should be strong
enough to avoid the enlargement of
noise or vibration.
Installation assistance:
● Use iron support
The installation hole should be stro-
●
ng enough to support the air condit-
ioner.
If it cannot, iron support has to
be used
outdoors. Iron support sho-
it block the air inlet at the side grille.
Wall Sunshade
board
Rubber
plate
6~10mm
Support
Horizontal line
Use sunshade board
Air conditioner should avoid anything
to be dropped into it and avoid direct
sunshine. If there is no cover on it,
you should contact the seller for inst-
alling the sunshade board. When in-
stalling the sunshade board, don’t let
MUNDOCLIMA MUVR DC inverter window type
- 5 -
Drain water :
Drain joint and drain hose need to be installed before using. Drain hose is
not included in the products, you need to purchase it locally to satisfy your
particular needs. Use the following procedure to install drain joint and
drain hose.
1. Slide out the chassis from the cabinet.
2. Connect the drain joint into the hole on the chassis, as shown in the picture
below.
3. Slide the chassis into its original place.
MUNDOCLIMA MUVR DC inverter window type
- 6 -
Notes for installation
Remove
Noise
Electric wiring
Before removing air conditioner to the other place, you
Then it must be done under the direction of the profe-
ssional technician. In addition, the charge of this must
be paid.
enlargement of noise and vibration.
● Don’t put anything in front of the outlet of the unit
to avoid increasing noise.
● Be sure that hot air or noise will not inconvenience neighbors.
● Please contact the seller as soon as there is strange noise during operation.
● Please use the safety support.
● Must connect with ground reliably.
● The exclusive circuit must be used. But removable socket
can’t be used because poor contact of it can cause over heat
● Don’t pull the power cord strongly.
and leakage current is less than 30mA.
● Connecting method between air conditioners and power cord and intercon-
necting method of each individual element with one another should accord
with wiring diagram on the unit.
● The air conditioner should be installed in accordance with national wiring
regulation.
● An all-pole disconnection switch having a contact separation of at least 3mm
● Air switch (thermal-magnetic breaker) should be installed in the circuit.
● If the supply cord is damaged,it must be replaced by the manufacturer or
●All the electrical work must be done according to the local wiring regulations.
MUNDOCLIMA MUVR DC inverter window type
- 7 -
Function
Introduction
Window type room air conditioners can
regulate the room temperature and dry the
room. It is convenient for your work, study
and life. It can be widely used in residence,
so on.
Room
temp.
Spring Autumn
Winter
Wind
direction
Summer
Cooling in summer
Heating in winter
(Only for heat unit)
Dehumidifying in rainy or
humid season
In hot summer, Air conditioner can
cool down the room air by
transferring heat out.
Without reducing the room temp., air
conditioner can dehumidify and make
the room air dry and comfortable.
Dry
In cold winter, Air conditioner can
heat up room air.
MUNDOCLIMA MUVR DC inverter window type
- 8 -
Power requirement
Rated voltage :
● The electric components will be damaged when
the voltage is too high. If the voltage is too low,
the compressor will vibrate violently to damage
the refrigerant system and easily cause the
compressor and electric components not work.
To ensure the reliable earthing, please do not connect earth
wire to the following places:
Earth wire
Water pipe
The ground must be connected.
● Special socket must be used. Furthermore, the
socket and wiring must conform to the wiring
regulations. And the earthing method must be
reliable.
protection switch of enough power capacity
and air switch with enough space.
220-240V~ 50Hz
MUNDOCLIMA MUVR DC inverter window type
Table of contents
Other mundoclima Air Conditioner manuals
mundoclima
mundoclima MUCS-W9 User manual
mundoclima
mundoclima H9A Series Installation instructions
mundoclima
mundoclima MUCS 12 HF User manual
mundoclima
mundoclima CL23420 User manual
mundoclima
mundoclima CL23410 User manual
mundoclima
mundoclima MAXI MVD V5X User manual
mundoclima
mundoclima MVD CL23130 User manual
mundoclima
mundoclima MUP-07 CE Operating manual
mundoclima
mundoclima MUCSR-H6 User manual
mundoclima
mundoclima H5A Serie User manual
mundoclima
mundoclima MUVR-C9 Operating instructions
mundoclima
mundoclima MVD Installation instructions
mundoclima
mundoclima MUCS-W7 User manual
mundoclima
mundoclima MVD DC2 Series Installation instructions
mundoclima
mundoclima MAXI MVD V6X User manual
mundoclima
mundoclima MVD CL23350 User manual
mundoclima
mundoclima H10X Series User manual
mundoclima
mundoclima WZ 25 User manual
mundoclima
mundoclima H6M SERIE User manual
mundoclima
mundoclima MVD-56Q4DN1 User manual
Popular Air Conditioner manuals by other brands
Fujitsu
Fujitsu Inverter ASBA30JFC operating manual
Toshiba
Toshiba RAS-M10SMUV-E installation manual
Daikin
Daikin FXLQ20MAVE Operation manual
Hitachi
Hitachi RAS-E24CAK instruction manual
CIAT
CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance
Bestron
Bestron AAC6000 instruction manual
