Multimo A 240 User manual

Assembly Instructions

VIDEO

link

100 min.

240min.

Technical Service

End User

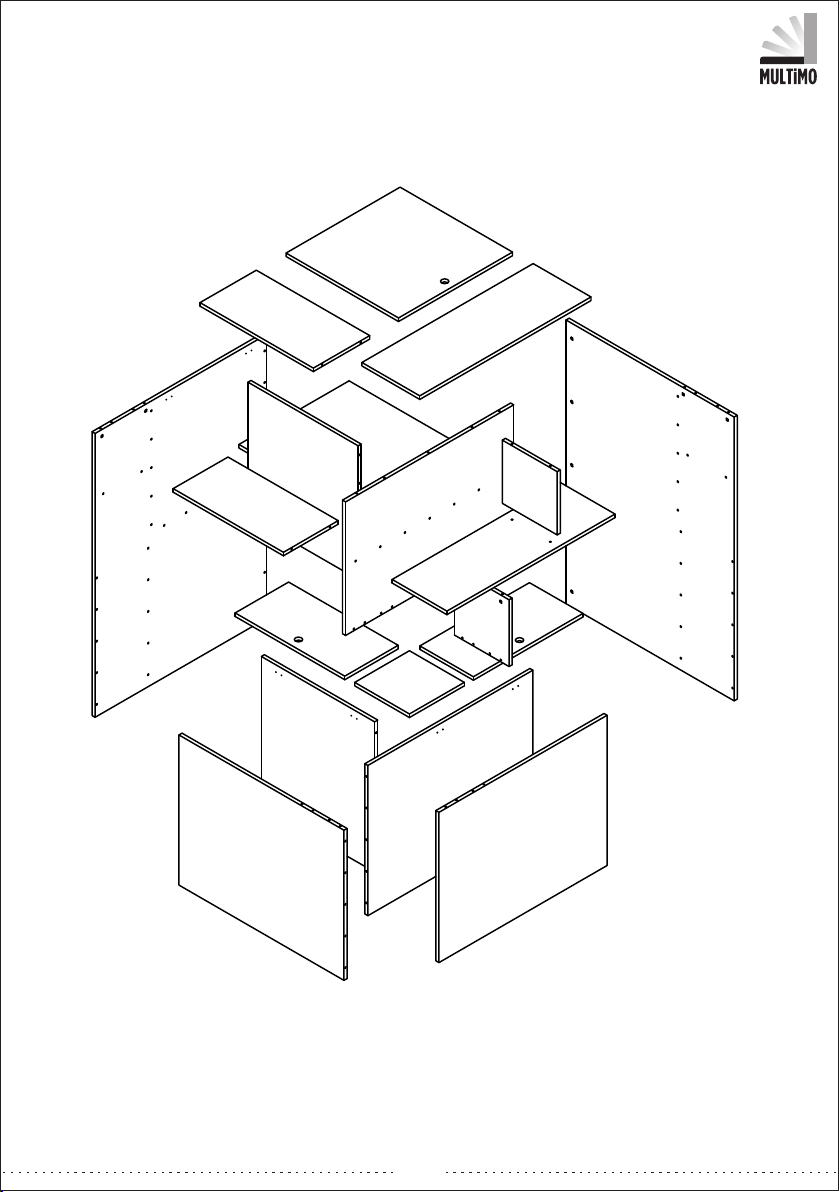

A 240 - CORNER BED

Page 1 Page 2

MNG - 01

62 / piece

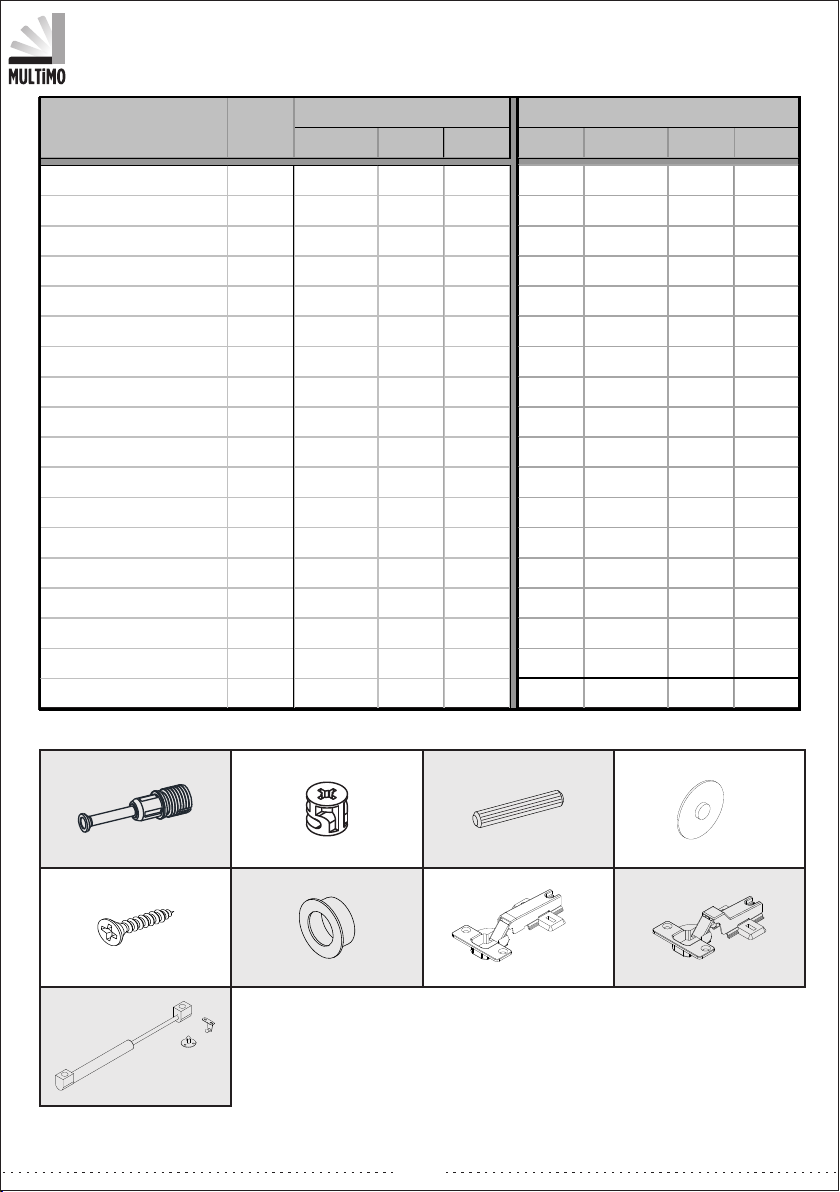

Accessories List

62 / piece

MNX 02 KVL 01

60 / piece

TAP - 01

62 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A0,71 56,54 38,66 118 1436 982

B1 0,71 56,54 39,37 1 18 1436 1000

C1 0,71 26,61 38,66 1 18 676 982

D1 0,71 26,61 25,35 1 18 676 644

E1 0,71 29,92 38,66 1 18 760 982

F1 0,71 29,92 37,95 1 18 760 964

G1 0,71 38,66 12,60 1 18 982 320

H1 0,71 25,35 12,60 1 18 644 320

K1 0,71 13,31 12,60 1 18 338 320

L1 0,71 12,60 12,60 1 18 320 320

M1 0,71 12,60 12,60 1 18 320 320

N1 0,71 29,92 37,95 1 18 760 964

P1 0,71 29,92 26,06 1 18 760 662

R1 0,71 39,37 13,31 1 18 1000 338

S1 0,71 26,06 12,95 1 18 662 329

T1 0,71 25,35 25,35 1 18 644 644

U1 0,71 26,22 25,87 1 18 666 657

V2 0,71 25,20 12,28 2 18 640 312

Track Title

(inch)

(mm)

VD - 03 ( 3,5x18 ) mm

44 / piece

TS - 01

2 / piece

TS - 02

4 / piece

KPG - 01

3 / piece

AMR - 01 ( 120N )

4 / piece

Page 1 Page 2

MNG - 01

62 / piece

Accessories List

62 / piece

MNX 02 KVL 01

60 / piece

TAP - 01

62 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A0,71 56,54 38,66 118 1436 982

B1 0,71 56,54 39,37 1 18 1436 1000

C1 0,71 26,61 38,66 1 18 676 982

D1 0,71 26,61 25,35 1 18 676 644

E1 0,71 29,92 38,66 1 18 760 982

F1 0,71 29,92 37,95 1 18 760 964

G1 0,71 38,66 12,60 1 18 982 320

H1 0,71 25,35 12,60 1 18 644 320

K1 0,71 13,31 12,60 1 18 338 320

L1 0,71 12,60 12,60 1 18 320 320

M1 0,71 12,60 12,60 1 18 320 320

N1 0,71 29,92 37,95 1 18 760 964

P1 0,71 29,92 26,06 1 18 760 662

R1 0,71 39,37 13,31 1 18 1000 338

S1 0,71 26,06 12,95 1 18 662 329

T1 0,71 25,35 25,35 1 18 644 644

U1 0,71 26,22 25,87 1 18 666 657

V2 0,71 25,20 12,28 2 18 640 312

Track Title

(inch)

(mm)

VD - 03 ( 3,5x18 ) mm

44 / piece

TS - 01

2 / piece

TS - 02

4 / piece

KPG - 01

3 / piece

AMR - 01 ( 120N )

4 / piece

Page 3 Page 4

MNX - 02 x 6

C-FRONT

STEP 2

VIDEO

link

VIDEO

link

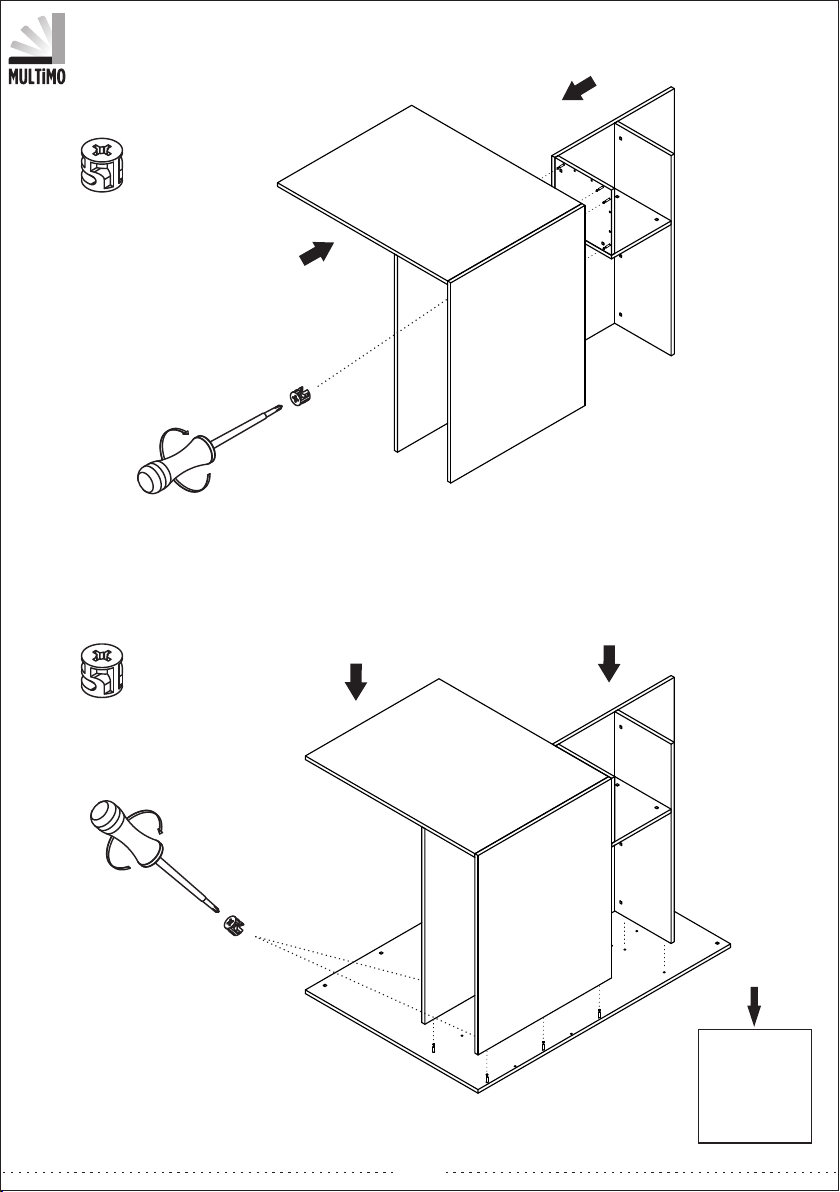

STEP 1

MNX - 02

KVL 01

MNX - 02

KVL 01

KVL - 01 x 6

MNX - 02 x 9

KVL - 01 x 2

MNX - 02 x 17

KVL - 01 x 4

MNX - 02 x 6

-BACK

KVL - 01 x 4

MNX - 02 x 3

KVL - 01 x 4

MNX - 02 x 3

KVL - 01 x 6

KVL - 01 x 4

MNX - 02 x 3

KVL - 01 x 4

Page 3 Page 4

MNX - 02 x 6

C-FRONT

STEP 2

VIDEO

link

VIDEO

link

STEP 1

MNX - 02

KVL 01

MNX - 02

KVL 01

KVL - 01 x 6

MNX - 02 x 9

KVL - 01 x 2

MNX - 02 x 17

KVL - 01 x 4

MNX - 02 x 6

-BACK

KVL - 01 x 4

MNX - 02 x 3

KVL - 01 x 4

MNX - 02 x 3

KVL - 01 x 6

KVL - 01 x 4

MNX - 02 x 3

KVL - 01 x 4

Page 5 Page 6

STEP 3 STEP 4

VIDEO

link

VIDEO

link

MNX - 02

KVL 01

KVL - 01 x 4

KVL - 01 x 4 M

MNX - 02 x 4

KVL - 01 x 2 K

MNX - 02 x 2

MNX - 02 x 2 KVL - 01 x 2

MNX - 02 x 5

KVL - 01 x 2

MNX - 02 x 2 KVL - 01 x 5

KVL - 01 x 4

VD - 03 x 4

TS - 01 x 2

TS - 02 x 2

STEP 5

VD - 03 x 4

V X 2

UKPG - 01

KPG - 01

Page 5 Page 6

STEP 3 STEP 4

VIDEO

link

VIDEO

link

MNX - 02

KVL 01

KVL - 01 x 4

KVL - 01 x 4 M

MNX - 02 x 4

KVL - 01 x 2 K

MNX - 02 x 2

MNX - 02 x 2 KVL - 01 x 2

MNX - 02 x 5

KVL - 01 x 2

MNX - 02 x 2 KVL - 01 x 5

KVL - 01 x 4

VD - 03 x 4

TS - 01 x 2

TS - 02 x 2

STEP 5

VD - 03 x 4

V X 2

UKPG - 01

KPG - 01

Page 7 Page 8

STEP 6 STEP 8

VIDEO

link

VIDEO

link

MNG - 01

STEP 7

MNG - 01

MNG - 02 x 2

210°

MNG - 02 x 2

210°

MNG - 02 x 6

210°

C-FRONT

MNG - 02 x 3

210°

MNG - 01

STEP 9

MNG - 01

MNG - 02 x 3

210° N

Page 7 Page 8

STEP 6 STEP 8

VIDEO

link

VIDEO

link

MNG - 01

STEP 7

MNG - 01

MNG - 02 x 2

210°

MNG - 02 x 2

210°

MNG - 02 x 6

210°

C-FRONT

MNG - 02 x 3

210°

MNG - 01

STEP 9

MNG - 01

MNG - 02 x 3

210° N

Page 9 Page 10

STEP 10 STEP 12

VIDEO

link

VIDEO

link

MNG - 01

STEP 11

MNG - 01

MNG - 02 x 9

210°

MNG - 01

STEP 13

MNG - 01

MNG - 02 x 3

210°

MNG - 02 x 3

MNG - 02 x 4

210°
