Getting Started
Getting Started
Congratulations for purchasing this computer. This system is your best PC choice.
With the fantastic appearance, it can easily be set anywhere. The feature packed
platform also gives you an exciting PC experience.
Package Contents
Personal Computer MS-B934
Documentation
User Manual (Optional)
Quick Guide (Optional)
Warranty Card
Warranty Book
Accessories
Power Cord
Mouse (Optional)
Keyboard (Optional)
⚠
Important
∙
Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙
Package contents may vary by country.
Safety & Comfort Tips
∙Choosing a good workspace is important if you have to work with your PC for a long
period of time.
∙Your work area should have enough illumination.
∙Choose the proper desk and chair and adjust their height to fit your posture when
operating.
∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s
back (if available) to support your back comfortably.
∙Place you feet flat and naturally on the floor, so that your knees and elbows have the
proper position (about 90-degree) when operating.
∙Put your hands on the desk naturally to support your wrists.
∙Avoid using your PC in a place where discomfort may occur (such as on the bed).
∙The PC is an electrical device. Please treat it with great care to avoid personal
injury.
4Contents
System Overview
7
8
9
13 14 15
11
10
12
16
17
18
3
RGB LED
1
642 3 5 3
5
Contents
1Power Button
Press the power button to turn the system on and off.
2Hard Disk Drive LED
This indicator shows the activity status of the HDD. It flashes when the
system is accessing data on the HDD and remains off when no disk activity
is detected.
3USB 3.2 Gen 1 Port
This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)
4Headphone Jack
This connector is provided for headphones or speakers.
5Microphone Jack
This connector is provided for microphones.
6RGB LED Button
Press the RGB LED button to switch the lighting effects. Long press the
button for 3 seconds to turn on and off the RGB LED.
7HDMI-Out Port
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/
video interface capable of transmitting uncompressed streams. HDMI
supports all TV format, including standard, enhanced, or high-definition
video, plus multi-channel digital audio on a single cable.
8DVI-D Port
The DVI-D port supports monitors and other DVI-D interface devices.
9PS/2® Keyboard Port
The PS/2® keyboard DIN connector for PS/2® keyboard.
10 PS/2® Mouse Port
The PS/2® mouse DIN connector for PS/2® mouse.
11 USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
6Contents
12 LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
Green/ OrangeYellow
LED Color LED State Condition
Yellow Off LAN link is not established.
On (steady state) LAN link is established.
On (blinking) The computer is communicating with
another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
13 Mic
This connector is provided for microphones.
14 Line-Out
This connector is provided for headphones or speakers.
15 Line-In
This connector is provided for external audio output devices.
16 Power Supply Switch
Switch this switch to Ican turn on the power supply. Switch it to 0to cut off
the power circulation.
17 Power Jack
Power supplied through this jack supplies power to your system.
18 Ventilator
The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilator.
7
Contents
Hardware Setup
Connect your peripheral devices to suitable ports.
⚠
Important
∙
For detailed instructions on how to connect, please refer to the manuals of your
peripheral devices.
∙
The images in this document may differ from your computer depending on the
model you purchased.
8Contents

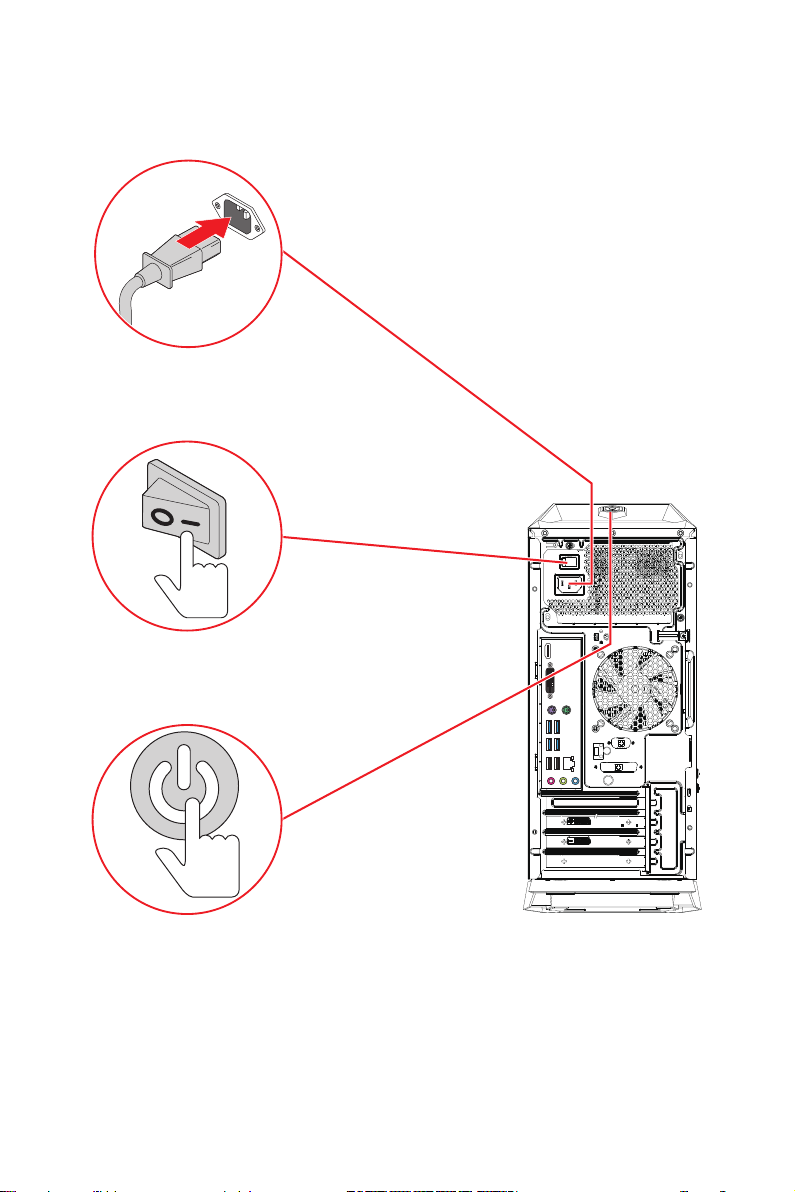

Connect the power cord to the system and electrical outlet.
∙Power Rating: 100-240V~, 50-60Hz, 7-3A
Switch the PSU switch to I.
Press the power button to power on the system.
⚠
Important
When unplugging the AC power cord,
always hold the connector part of the cord.
Never pull the cord directly.
9
System Operations
System Operations
This chapter provides you with essential information on system operations.
⚠
Important
All information is subject to change without prior notice.
Power Management
Power management of personal computers (PCs) and monitors has the potential to
save significant amounts of electricity as well as deliver environmental benefits.
To be energy efficient, turn off your display or set your PC to sleep mode after a period
of user inactivity.
Power Management in Windows 10
∙[Power Options] in Windows OS allow you to control the power management
features of your display, hard drive, and battery. Right-click [Start] , select
[Control Panel] from the list and then click [System and Security].
∙Select [Power Options] and choose a power plan that suits your personal needs. You
may also fine-tune the settings by clicking [Change plan settings].
∙The Shut Down Computer menu presents the options of Sleep (S3/S4) & Shut Down
(S5) for rapid and easy management of your system power.
Power Management
The power management feature allows the computer to initiate a low-power or
“Sleep” mode after a period of user inactivity. To take advantage of these potential
energy savings, the power management feature has been preset to behave in the
following ways when the system is operating on AC power:
∙Turn off the display after 10 minutes
∙Initiate Sleep after 30 minutes
10 System Operations
Waking the System Up
The computer shall be able to wake up from power saving mode in response to a
command from any of the following:
∙the power button,
∙the network (Wake On LAN),
∙the mouse,
∙the keyboard.
Energy Saving Tips:
∙Turn off the monitor by pressing the monitor power button after a period of user
inactivity.
∙Tune the settings in Power Options under Windows OS to optimize your PC’s power
management.
∙Install power saving software to manage your PC’s energy consumption.
∙Always disconnect the AC power cord or switch the wall socket off if your PC would
be left unused for a certain time to achieve zero energy consumption.
