Moxa Technologies IKS-G6524A User manual

P/N: 1802065240025

*1802065240025*

IKS-G6524A/G6824A Series

Quick Installation Guide

Version 3.3, March 2020

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Package Checklist

The Moxa IKS-G6524A/G6824A Series industrial rackmount switches are

shipped with the following items. If any of these items are missing or

damaged, please contact your customer service representative for

assistance.

•IKS-G6524A/G6824A switch

•USB cable (Type A male to Type B male)

•Power cord

•4 protective caps for unused ports

•2 rackmount ears

•Quick installation guide (printed)

•Warranty card

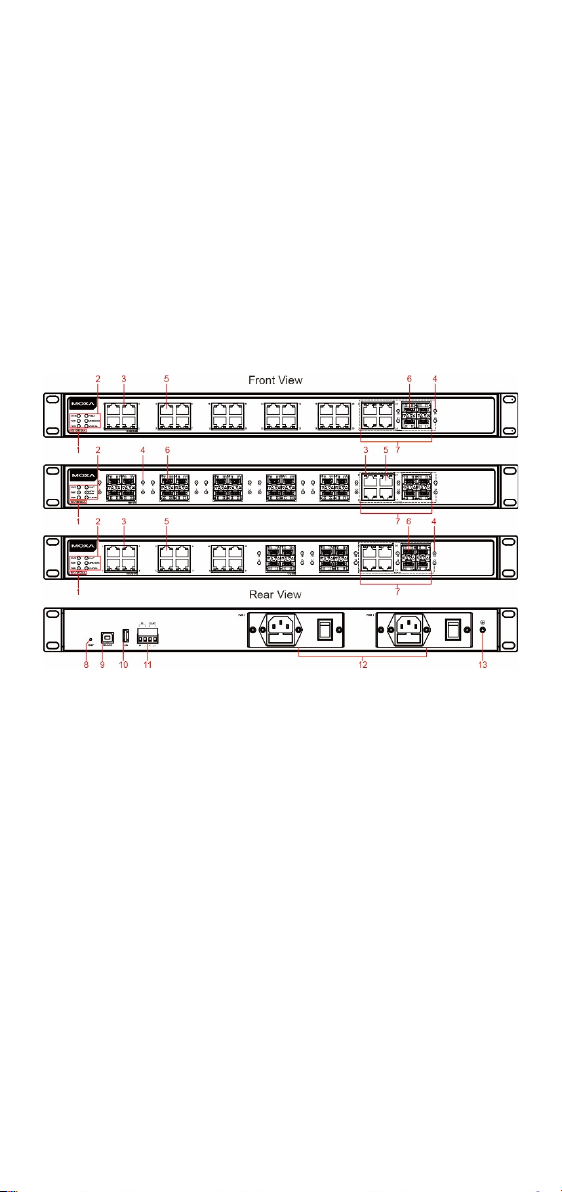

Panel Layouts

1. Model Name

2. System status LEDs

3. 10/100/1000BaseT(X) port status LEDs

4. 100/1000BaseSFP port status LEDs

5. 10/100/1000BaseT(X) port

6. 100/1000BaseSFP slot

7. 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports

8. Reset button

9. USB serial console port

10. USB storage port (ABC-02-USB)

11. Terminal block for Relay Output, Digital Input

12. AC power sockets for power inputs

13. Grounding screw

- 3 -

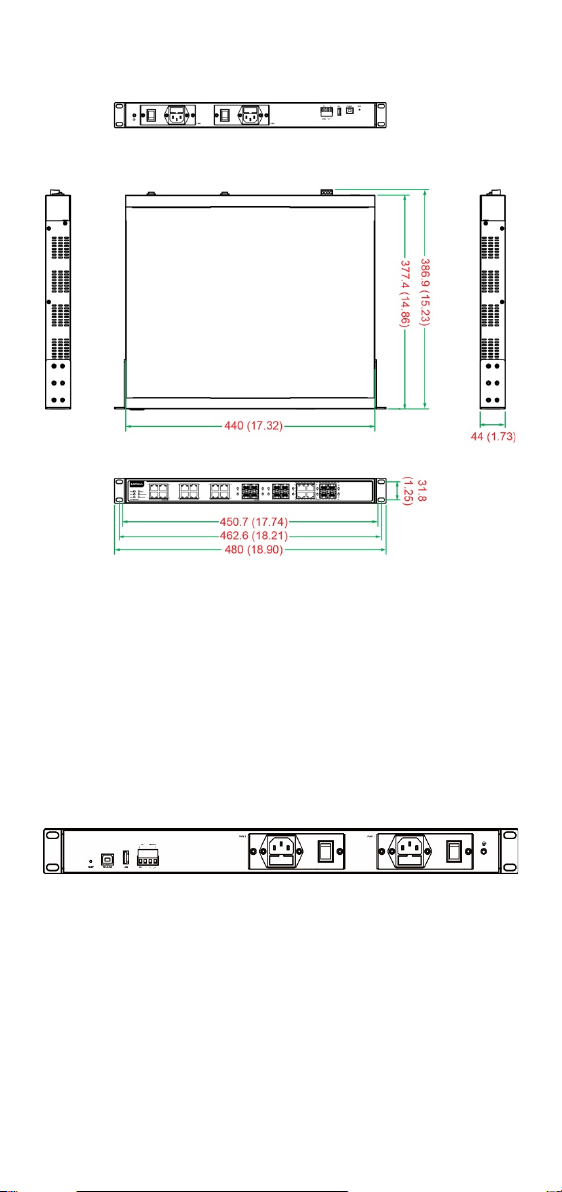

Dimensions (unit = mm)

Grounding the Industrial Rackmount Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

Connecting the Power Inputs

The IKS-G6524A/G6824A series of switches supports dual redundant

power supplies: Power Supply 1 (PWR1) and Power Supply 2 (PWR2). The

connections for PWR1 and PWR2 are located on the rear side (shown

below). Be sure to use a standard power cord with an IEC C13 connector,

which is compatible with the AC power inlet.

Wiring the Relay Contact

Each IKS-G6524A/G6824A switch has one relay output.

FAULT:

The relay contact of the 4-pin terminal block connector is used to detect

user-configured events. The two wires attached to the fault contacts form

an open circuit when a user-configured event is triggered. If a

user-configured event does not occur, the fault circuit remains closed.

- 4 -

USB Console Connection

The IKS-G6524A/G6824A series has one USB console port (type B

connector), located on the top panel. Use the USB cable (provided in the

product package) to connect the IKS-G6524A/G6824A’s console port to

your PC’s USB port and install the USB driver (available in the software CD)

on the PC. You may then use a console terminal program, such as Moxa

PComm Terminal Emulator, to access the IKS-G6524A/G6824A’s console

configuration utility.

USB Console Port (Type B Connector) Pinouts

Description

D– (Data -)

VCC (+5V)

D+ (Data+)

GND (Ground)

USB Storage Connection

The IKS-G6524A/G6824A series has one USB storage port (type A

connector) on the front panel. Use the Moxa ABC-02-USB automatic

backup configurator to connect the IKS-G6524A/G6824A’s USB storage

port for configuration backup, firmware upgrade, or system log file

backup.

USB Storage Port (Type A Connector) Pinouts

Description

VCC (+5V)

D– (Data -)

D+ (Data+)

GND (Ground)

NOTE

DO NOT pull out the ABC-02-USB automatic backup configurator

from the USB port while writing or reading data.

The Reset Button

Press the Reset button for five continuous seconds to load the factory

default settings. Use a pointed object, such as a straightened paper clip or

toothpick, to press the Reset button. When you do so, the STATE LED will

start to blink about once per second. Continue to press the STATE LED

until it begins blinking more rapidly, indicating that the button has been

pressed continuously for five seconds. You can now release the Reset

button to load factory default settings.

NOTE

DO NOT power off the switch when loading default settings.

- 5 -

LED Indicators

The front panel of the IKS-G6524A/G6824A Series switch contains

several LED indicators. The function of each LED is described in the

following table.

LED

Color

State

Description

System LEDs

STATE

GREEN

The system has passed the

self-diagnosis test on boot-

up and is

ready to run.

Blinking

1. System is undergoing the

self-diagnosis test.

2. Blinks continuously when pressing

the reset button 5 seconds to reset to

factory default.

3. Blinks slowly when an ABC-02

automatic backup device is detected.

RED On

The system failed self-diagnosis on

boot-up.

PWR1 AMBER

Power is being supplied to the main

module’s power input PWR1.

Off

Power is not being supplied to the

main module’s power input PWR1.

PWR2 AMBER

On Power is being supplied to the main

module’s power input PWR2.

Off

Power is not being supplied to the

main module’s power input PWR2.

FAULT RED On

The system has failed, or is under

quick inspection.

Off

The system is operating normally.

MSTR/

HEAD GREEN

The switch is set as the Master of the

Turbo Ring, or as the Head of the

Turbo Chain.

Blinking

The switch has become the Ring

Master of the Turbo Ring, or the Head

of the Turbo Chain, after the Turbo

Ring or the Turbo Chain is down.

Off

The switch is not the Master of this

Turbo Ring or is set as a Member of

the Turbo

Chain

CPLR/TAIL GREEN

The switch’s coupling function is

enabled to form a back-up path, or

when it’s set as the Tail of the Turbo

Chain.

Blinking

Turbo Chain is down

Off

The switch disables the coupling

function.

When the system is importing/exporting data from or to an ABC-02

automatic backup device, the FAULT, MSTR/HEAD, and CPLR/TAIL LEDs

will blink in sequence.

- 6 -

LED

Color

State

Description

Port Status LEDs

10/100/1000M

(TP ports) GREEN

On The corresponding port’s link is

active.

Blinking

Data is being transmitted.

Off

The corresponding port’s link is

inactive.

100/1000M

(Fiber Optic

ports)

GREEN

The corresponding port's link is

active at 1000 Mbps.

Blinking Data is being transmitted at 1000

Mbps.

Off

The corresponding port’s link is

inactive.

AMBER

The corresponding port's link is

active at 100 Mbps.

Blinking

Data is being transmitted at 100

Mbps.

Off

The corresponding port’s link is

inactive.

Specifications

Technology

Standards

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for Flow Control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN Tagging

IEEE 802.1p for Class of Service

IEEE 802.1X for Authentication

IEEE 802.3ad for Port Trunk with LACP

Protocols IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP

Server/Client, BootP, TFTP, SNTP, SMTP, RARP,

RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option

66/67/82, SSH, LLDP, IEEE 1588 PTP V2,

EtherNet/IP, Modbus/TCP, PROFINET,

SNMP Inform,

NTP Server/Client, IPv6 (IKS-G6524A)

Layer 3 Switching

(IKS-G6824A)

Static routing, RIP V1/V2, OSPF, DVMRP, PIM-DM,

PIM-SM, PIM-SSM

Layer 3 Switching

Redundancy

(IKS-G6824A)

VRRP

MIB

MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE

MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2,

3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

- 7 -

Interface

Gigabit Ethernet

10/100/1000BaseT(X) or 100/1000BaseSFP slot

Console Port

USB-serial console (Type B connector)

Storage Port

USB storage (Type A connector for ABC-02-USB)

LED Indicators STATE, PWR1, PWR2, FAULT, MSTR/HEAD,

CPLR/TAIL

Alarm Contact

1 relay output with current carrying capacity of

2 A @ 30 VDC

Digital Inputs

1 input with the same ground, but electrically

isolated from the electronics.

• +13 to +30V for state “1”

• -30 to +1V for state “0”

• Max. input current: 8 mA

Power Requirements

Input Voltage

110/220 VAC (85 to 264 VAC)

Input Current

Max. 0.79/0.44 A @ 110/220 VAC

Overload Current

Protection

Present

Reverse Polarity

Protection

Present

Physical Characteristics

Housing

IP 30 protection

Dimensions

440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)

Installation

19” rack mounting

Environmental Limits

Operating Temp.

Standard Models: -10 to 60°C (14 to 140°F)

Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temp.

-40 to 85°C (-40 to 185°F)

Ambient Relative

Humidity.

5 to 95% (non-condensing)

Standards and Certifications

Safety

UL 60950-1, EN 60950-1, UL 61010-1,

UL 61010-2-201

EMI

FCC Part 15 Subpart B Class A, EN 55032 Class A

EMS

EN 61000-4-2 (ESD) Level 3

EN 61000-4-3 (RS) Level 3

EN 61000-4-4 (EFT) Level 3

EN 61000-4-5 (Surge) Level 3

EN 61000-4-6 (CS) Level 3

EN 61000-4-8

EN 61000-4-11

Rail Traffic

EN 50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

- 8 -

Rack Mounting Instructions

1. Elevated Operating Ambient:If installed in a closed or multi-unit

rack assembly, the operating ambient temperature of the rack

environment may be greater than room ambient. Therefore,

consideration should be given to installing the equipment in an

environment compatible with the maximum ambient temperature

(Tma) specified by the manufacturer.

2. Reduced Air Flow:Installation of the equipment in a rack should be

such that the amount of air flow required for safe operation of the

equipment is not compromised.

3. Mechanical Loading:Mounting of the equipment in the rack should

be such that a hazardous condition is not achieved due to uneven

mechanical loading.

4. Circuit Overloading:Consideration should be given to the

connection of the equipment to the supply circuit and the effect that

overloading of the circuits might have on overcurrent protection and

supply wiring. Appropriate consideration of equipment nameplate

ratings should be used when addressing this concern.

5. Reliable Earthing:Reliable earthing of rack-mounted equipment

should be maintained. Particular attention should be given to supply

connections other than direct connections to the branch circuit (e.g.

use of power strips)."

Restricted Access Locations

•This equipment is intended to be used in Restricted

Access Locations, such as a computer room, with

access

limited to SERVICE PERSONAL

or USERS who have been

instructed on how to handle the metal chassis of

equipment that is so hot that special protection may be needed

before touching it. The location should only be accessible with a

key

or through a security identity system.

•External metal parts of this equipment are extremely hot!! Before

touching the equipment, you must take special precautions to protect

your hands and body from serious injury.

- 9 -

ATTENTION

This device is only for indoor use and Pollution degree 2.

Conductors rated to withstand at least 105

°C must be used

for the Power Supply Terminal.

When wiring the relay contact, digital input and power inputs

we suggest using the cable type - AWG (American Wire

Gauge) 16-24 and the corresponding pin type cable

terminals. The connector must be able to withstand torque at

maximum 5 pound-inches.

The equipment has a separate protective earthing terminal

on the chassis that must be permanently

connected to earth

ground to adequately ground the chassis and protect the

operator from electrical hazards. To avoid risks of electric

shock, do not replace or remove the protective conductor.

The IP rating is not part of the safety certification.

This device must be installed within a suitable enclosure.

The cable that is connected to the field wiring terminals must

be able to withstand at least 75°C.

Responsible Risk

If the equipment is used in a manner not specified by the manufacturer,

the protection provided by the equipment may be impaired. The

manufacture is not responsible for any accident caused by the scenario

mentioned above.

Moxa’s address: 4th Fl., No. 135, Lane 235, Baoqiao Road, Xindian District,

New Taipei City, 231 Taiwan

This manual suits for next models

Table of contents

Other Moxa Technologies Switch manuals

Moxa Technologies

Moxa Technologies PT-7728 Series User manual

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-205 User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G509 Manual

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2-HV User manual

Moxa Technologies

Moxa Technologies EDS-316 EtherDevice Manual

Moxa Technologies

Moxa Technologies PowerTrans PT-508-MM-ST-48 User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series User manual

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-728 Series Manual

Moxa Technologies

Moxa Technologies PT-7324 Series User manual

Moxa Technologies

Moxa Technologies PowerTransPT-7728-PTP User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A-T Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-505A Manual

Moxa Technologies

Moxa Technologies ICS-G7526A Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series User manual

Moxa Technologies

Moxa Technologies PT-G7728 User manual

Moxa Technologies

Moxa Technologies NE-4100 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series User manual

Moxa Technologies

Moxa Technologies EDS-G205-1GTXSFP Manual

Moxa Technologies

Moxa Technologies NSwitch Outdoors User manual

Moxa Technologies

Moxa Technologies ToughNet TN-5516 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
