Moxa Technologies EtherDevice EDS-518A-T Manual

P/N: 1802005180014

EDS-518A Series

Hardware Installation Guide

Moxa EtherDevice™ Switch

Sixth Edition, April 2014

- 2 -

Package Checklist

Moxa EtherDevice™ Switch is shipped with the following items. If any of

these items are missing or damaged, please contact your customer

service representative for assistance.

•1 Moxa EtherDevice Switch EDS-518A

•Hardware Installation Guide

•CD-ROM with User’s Manual and Windows Utility

•Moxa Product Warranty Booklet

•RJ45 to DB9 Console port cable

•Protective caps for unused ports

•Panel mounting kit (optional—must order separately)

Optional Accessories

•DR-4524—45W/2A DIN-Rail 24 VDC Power Supply with 85 to 264

VAC input

•DR-75-24—75W/3.2A DIN-Rail 24 VDC Power Supply with 85 to 264

VAC input

•DR-120-24—120W/5A DIN-Rail 24 VDC Power Supply with 88 to

132 VAC/176 to 264 VAC input by switch

•EDS-SNMP OPC Server Pro—CD with EDS-SNMP OPC Server

Software and manual

•WK-46—Wall Mounting Kit

•RK-4U—4U-high 19" rack mounting kit

- 3 -

Panel Views of EDS-518A

1. Grounding screw

2. Console port

3. Heat dissipation orifices

4. 6-pin terminal block for DI 1, DI

2, and PWR 2

5. 6-pin terminal block for PWR1

Relay 1, and Relay 2

6. 10/100BaseT(X), ports 1 to 16

7. PWR 1: LED for power input 1

8. PWR 2: LED for power input 2

9. Fault LED

10.

MSTR/HEAD LED

11.

CPLR/TAIL LED

12.

10/100/1000BaseT(X), port G2

13.

10/100/1000BaseT(X), port G1

14.

1000 Mbps LEDs

15.

TP port’s 100 Mbps LED

16.

TP port’s 10 Mbps LED

17.

Model Name

18.

Screw hole for Wall Mounting

Kit

19.

DIN-Rail Kit

- 4 -

Panel Views of EDS-518A (SC/ST Type)

NOTE:

The appearance of EDS

-518A-SS-

is identical

to EDS-518A-MM-SC.

The appearance of

EDS

-518A-MM-ST is identical to

EDS

-518A-MM-SC.

1. Grounding screw

2. Console port

3. Heat dissipation orifices

4. 6-pin terminal block for DI 1, DI

2, and PWR 2

5. 6-pin terminal block for PWR1

Relay 1, and Relay 2

6. 10/100BaseT(X), ports 1 to 14

7. PWR 1: LED for power input 1

8. PWR 2: LED for power input 2

9. Fault LED

10.

MSTR/HEAD LED

11.

CPLR/TAIL LED

12.

10/100/1000BaseT(X) Port G2

13.

10/100/1000BaseT(X) Port G1

14.

1000 Mbps LEDs

15.

TP port’s 100 Mbps LED

16.

TP port’s 10 Mbps LED

17.

Model Name

18.

100BaseFX Port 16

19.

100BaseFX Port 15

20.

100BaseFX LEDs

21.

Screw hole for Wall Mounting

Kit

22.

DIN-Rail Kit

- 5 -

Mounting Dimensions

Unit = mm (inch)

- 6 -

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of EDS-518A when you take it out of the box. If you need to

reattach the DIN-Rail attachment plate to EDS-518A, make sure the stiff

metal spring is situated towards the top, as shown by the following

figures.

STEP 1

—

Insert the top of the

DIN

-Rail into the slot just below

the stiff metal spring.

STEP 2

—

The DIN-Rail attachment

unit will snap into place as shown

the following illustration.

To remove the EDS-518A from the DIN-Rail, simply reverse Steps 1 and

2 above.

Wall Mounting (Optional)

For some applications, you will find it convenient to mount Moxa

EDS-518A on the wall, as shown by the following illustrations:

STEP 1—Remove the

aluminum DIN

-Rail

attachment plate from the

Moxa EDS

-518A rear panel

and then attach the wall

mount plates wi

th M3

screws, as shown

by the

figure

on the right.

STEP 2

—Mounting Moxa EDS-518A on the wall

requires 4 screws. Use the EDS

-518A, with wall

mount plates attached, as a guide to mark the

correct locations of the 4 screws. The heads of the

screws should be less than 6.0 mm in diameter, and

the shafts should be less than 3.5 mm in diameter, as

shown by the figure on the right.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room

for sliding the wall mount panel between the wall and the screws.

- 7 -

STEP 3—Once the screws are

fixed

the wall, insert the four

screw heads through the wide

parts of the keyhole

-shaped

apertures, and then slide

the

EDS

-518A downwards, as

ndicated in the figure at the

right. Tighten the four screws for

more stability.

ATEX Information

1. Certification number DEMKO 09 ATEX 0812123X

2. Ambient range (-40°C ≤Tamb ≤75°C)

3. Certification string (Ex nA nC IIC T4 Gc)

Standards covered ( EN60079-0:2012, EN60079-15:2010)

5. The conditions of safe usage:

•

The Ethernet Communication Devices are to be mounted in an

IP54 enclosure and used in an area of not more than pollution

degree 2 as defined by IEC60664-1.

•A 4mm2 conductor must be used when connection to the

external grounding screw is utilized.

•Conductors suitable for use in an ambient temperature of 93

°C

must be used for the Power Supply Terminal.

•

Provisions shall be made, either in external to the apparatus, to

prevent the rated voltage being exceeded by the transients

disturbances of more than 40%.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non

-hazardous. The

devices may only

be connected to the supply voltage shown on

the type plate. The devices are designed for operation with a

Safety Extra

Low Voltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact with the

Safety Extra

-Low Voltages (SELV) in compliance with IEC950/

EN60950/ VDE0805.

ATTENTION

This unit is a built

-in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit must

comply with fire enclosure

regulation IEC 60950/EN60950 (or

similar regulation).

- 8 -

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following points:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together

•Separate input wiring and output wiring

•We advise that you label wiring to all devices in the system when

necessary.

Grounding the Moxa EDS-518A

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product

is intended to be mounted to a well-grounded

mounting surface such as a metal panel.

- 9 -

Wiring the Relay Contact

EDS-518A has two sets of relay outputs—relay 1 and relay 2. Each Relay

Contact consists of the two contacts of the terminal block on EDS-518A’s

top panel. You can refer to the next section for detailed instructions on

how to connect the wires to the terminal block connector, and how to

attach the terminal block connector to the terminal block receptor.

In this section, we will explain the meaning of the two contacts used to

connect the Relay Contact.

FAULT: The two sets of relay

contacts of the 6

-pin terminal

block connector are used to detect

user

-configured events. The two

wires attached to the

fault

contacts form an open circuit

when a user

-configured event is

triggered. If a user

-configured

event does not occur, the

fault

circuit remains closed.

Wiring the Redundant Power Inputs

EDS-518A has two sets of power inputs—power input 1 and power input

2.The top two contacts and the bottom two contacts of the 6-pin terminal

block connector on EDS’ top panel are used for EDS’ two digital inputs.

The top and front views of one of the terminal block connectors are shown

here.

STEP 1: Insert the

negative/positive DC wires into

the V

/V+ terminals, respectively.

STEP 2:

To keep the DC wires

from pulling loose, use a small

flat

-blade screwdriver to tighten

the wire

clamp screws on the front

of the te

rminal block connector.

STEP 3:

Insert the plastic terminal

block connector prongs into the

terminal block receptor, which is

located on

the EDS-518A’s top

panel.

- 10 -

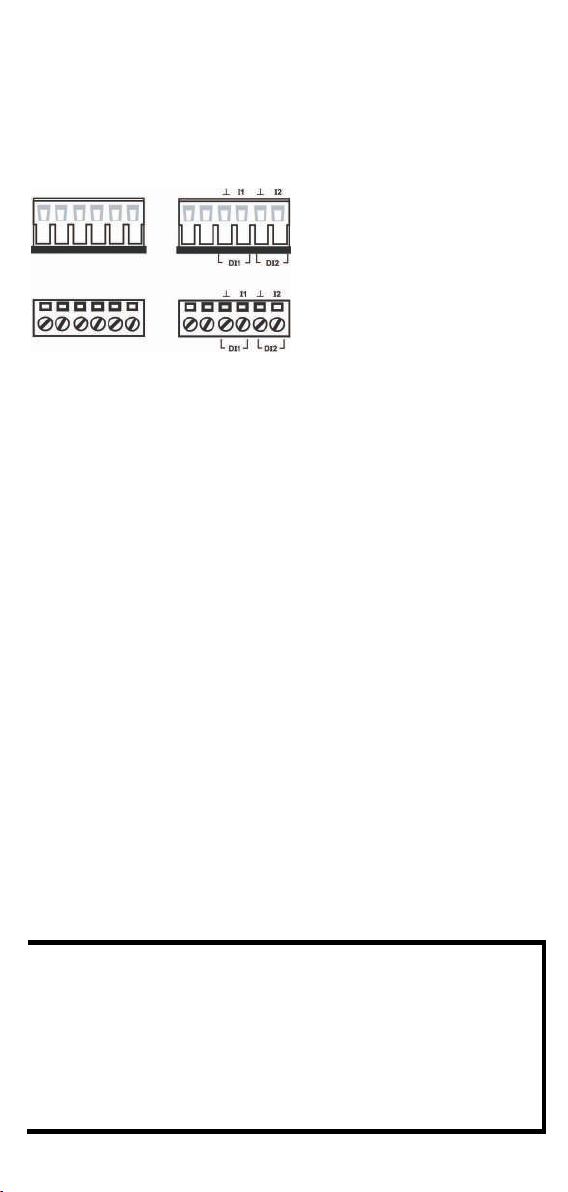

Wiring the Digital Inputs

EDS-518A has two sets of digital inputs, DI 1 and DI 2. Each DI consists

of two contacts of the 6-pin terminal block connector on EDS’s top panel,

which are used for EDS’s two DC inputs. The top and front views of one of

the terminal block connectors are shown here.

STEP 1: Insert the negative

(ground)/positive DI wires into the

┴

/I1 terminals, respectively.

STEP 2:

To keep the DI wires from

pulling loose, use a small

flat

-blade screwdriver to tighten

the wire

clamp screws on the front

of the terminal block connector.

STEP 3:

Insert the plastic terminal

block connect

or prongs into the

terminal block receptor, which is

located on

the EDS-518A’s top

panel.

Communication Connections

All models of EDS-518A have one RJ45 console port (RS-232 interface),

between 14 and 16 10/100BaseTX Ethernet ports. Some models also

have 2 100BaseFX (SC/ST-type connector) fiber ports.

In this section, we present two types of diagrams—Pinout Diagrams and

Cable Wiring Diagrams—to convey information about the ports and the

cables used to connect Moxa EDS-518A to other devices:

Pinouts—The meaning of the “Pinouts” diagrams is straightforward.

The diagrams simply display the type of signal passing through each of

the port’s pins.

Cable Wiring—Diagrams labeled “Cable Wiring” present standard

cable wiring schemes for cables used to connect Moxa EtherDevice

Switch’s ports to other devices. These diagrams display three pieces of

information:

1. When building your own cable, refer to the “pin-to-pin” Cable

Wiring information displayed between the two vertical dashed lines

to see which pin of the connector on the left should be connected to

which pin of the connector on the right.

2. The information to the left of the left vertical dashed lines gives the

pinouts of the relevant Moxa EtherDevice Switch port.

3. The information to the right of the right vertical dashed line gives the

pinouts of the opposing device’s port.

NOTE

1. The pin numbers for male DB9 and DB25 connectors, and

hole numbers for female DB9 and DB25 connectors are

labeled on the connector. However, the numbers are

typically quite small, so you may need to use a magnifying

glass to see the numbers clearly.

2. The pin numbers for both 8-pin and 10-

pin RJ45 connectors

(and ports) are typically not labeled on the connector (or

port). Refer to the following Pinout and Cable Wiring

diagrams to see how RJ45 pins are numbered.

This manual suits for next models

Table of contents

Other Moxa Technologies Switch manuals

Moxa Technologies

Moxa Technologies ToughNet Switch TN-5500 series User manual

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PN User manual

Moxa Technologies

Moxa Technologies IKS-G6524A User manual

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series User manual

Moxa Technologies

Moxa Technologies IKS-6728 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-4012 Series User manual

Moxa Technologies

Moxa Technologies EDS-516A Series Manual

Moxa Technologies

Moxa Technologies EDS-G205-1GTXSFP-T Manual

Moxa Technologies

Moxa Technologies EDS-510E Series User manual

Moxa Technologies

Moxa Technologies ICS-G7526A Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-4009 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510 Series Manual

Moxa Technologies

Moxa Technologies EDS-G308 Manual

Moxa Technologies

Moxa Technologies EDS-510E Series Manual

Moxa Technologies

Moxa Technologies TN-5308-LV User manual

Moxa Technologies

Moxa Technologies EDS-508A Series User manual

Moxa Technologies

Moxa Technologies EOM-104 Series User manual

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8-CE User manual

Moxa Technologies

Moxa Technologies PT-7728 Series Manual

Moxa Technologies

Moxa Technologies PowerTransPT-7728-PTP User manual

Moxa Technologies

Moxa Technologies ToughNet TN-5816A Series User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
