Moxa Technologies EtherDevice EDS-205A series Manual

P/N: 1802002050025

EDS-205A/208A Series

Hardware Installation Guide

Moxa EtherDevice Switch

Sixth Edition, April 2014

- 2 -

Overview

The EDS-205A/208A series of industrial Ethernet switches are entry-level

industrial 5 and 8-port Ethernet switches that support IEEE 802.3, IEEE

802.3u, and IEEE 802.3x with 10/100M, full/half-duplex, and MDI/MDIX

auto-sensing.

The EDS-205A/208A series provides 12/24/48 VDC (9.6 to 60 VDC)/18 to

30 VAC redundant power inputs that can be connected simultaneously to

a live AC/DC power source. The switches are available with a standard

operating temperature range from -10 to 60°C, or with a wide operating

temperature range from -40 to 75°C, and IP30 metal housing makes

them rugged enough for any harsh industrial environment.

To provide greater versatility for use with applications from different

industries, the EDS-205A/208A also allow users to enable or disable

broadcast storm protection with DIP switches on the outer panel.

The EDS-205A/208A switches can be easily installed with DIN-Rail

mounting as well as distribution boxes. The DIN-rail mounting capability

and IP30 metal housing with LED indicators make the plug-and-play

EDS-205A/208A switches reliable and easy to use.

NOTE

Throughout this Hardware Installation Guide, we use EDS as an

abbreviation f

or Moxa EtherDevice Switch:

EDS = Moxa EtherDevice Switch

ATTENTION

This device complies with part 15 of FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference,

and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Package Checklist

Your EDS is shipped with the following items. If any of these items is

missing or damaged, please contact your customer service

representative for assistance.

•Moxa EtherDevice™ Switch

•Hardware Installation Guide

•Moxa Product Warranty booklet

- 3 -

Panel Layout of EDS-205A/208A (Standard)

1. Grounding screw

2. Terminal block for

power input P1/P2

3. Heat dissipation orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100 Mbps

LED

9. Model Name

10.

Screw hole for wall

mounting kit

11.

DIN-Rail Kit

- 4 -

Panel Layout of EDS-205A-M-SC/ST

NOTE:

The appearance of

EDS

-205A-S-SC is identical

to EDS

-205A-M-SC.

1. Grounding screw

2. Terminal block for

power input P1/P2

Heat dissipation orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100 Mbps

LED

9. Model Name

10.

100BaseFX Port

11.

FX port’

s 100 Mbps LED

12.

Screw hole for wall

mounting kit

13.

DIN-Rail Kit

- 5 -

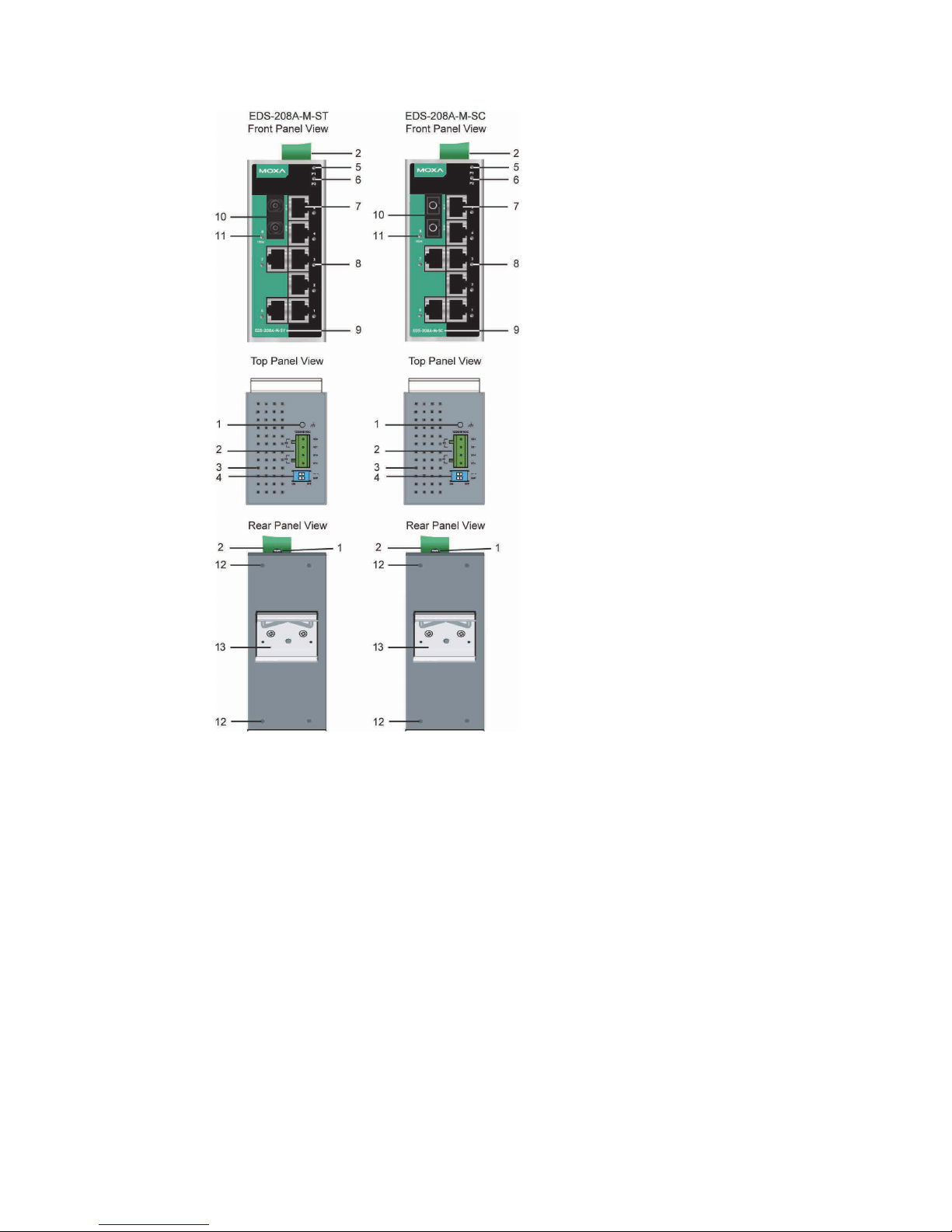

Panel Layout of EDS-208A-M-SC/ST

NOTE:

The appearance of

EDS

-208A-S-SC is identical

to EDS

-208A-M-SC.

1. Grounding screw

2. Terminal block for

power input P1/P2

3. Heat dissipation orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100 Mbps

LED

9. Model Name

10.

100BaseFX Port

11.

FX port’

s 100 Mbps LED

12.

Screw hole for wall

mounting kit

13.

DIN-Rail Kit

- 6 -

Panel Layout of EDS-208A-MM-SC/ST

NOTE:

The appearance of

EDS

-208A-SS-SC

is identical

to EDS

-208A-MM-SC.

1. Grounding screw

2. Terminal block for

power input P1/P2

3. Heat dissipation orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100 Mbps

LED

9. Model Name

10.

100BaseFX Port

11.

FX port’

s 100 Mbps LED

12.

Screw hole for wall

mounting kit

13.

DIN-Rail Kit

- 7 -

Mounting Dimensions

EDS-205A

EDS-208A

Unit = mm (inch)

- 8 -

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should already be fixed to the

back panel of the EDS when you take it out of the box. If you need to

reattach the DIN-rail attachment plate, make sure the stiff metal spring is

situated towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN

-Rail into

the slot

just below the stiff metal

spring.

STEP 2:

The DIN

-Rail attachment unit will

snap into

place as shown below.

To remove the EDS from the DIN-Rail, simply reverse Steps 1 and 2

above.

Wall Mounting (optional)

For some applications, you will find it convenient to mount the

EDS-205A/208A on the wall, as shown in the following figures.

STEP 1:

Remove the aluminum

DIN

-Rail attachment plate

from

the EDS-205A/208A’s

rear panel, and then attach

the wall mount plates as

shown

in the diagram at the

right.

STEP 2: Mounting the EDS-205A/208A on the wall

requires 4 screws. Use the

switch, with wall mount

plates attached, as a guide to mark the correct

locations of the 4 screws. The heads of the screws

should be less than 6.0 mm in diameter, and the shafts

should be less than 3.5

mm in diameter, as shown in

the figure at the right.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw into one

of the keyhole-shaped apertures of the wall mounting plates.

Do not screw the screws in completely—leave about 2 mm to allow room

for sliding the wall mount panel between the wall and the screws.

- 9 -

STEP 3:

Once the screws are fixed on the

wall, insert the four screw heads

through the large parts of the

keyhole

shaped apertures, and then

slide

the EDS-205A/208A

downwards

, as indicated. Tighten

the four screws for

added stability.

ATEX Information

1. Certificate number DEMKO 10 ATEX 0909900X

2. Ambient range (-40°C ≤Tamb ≤75°C)

3. Certification string (Ex nA nC IIC T4 Gc)

4. Standards covered (EN 60079-0:2012, EN 60079-15:2010)

5. The conditions of safe usage:

•Subject devices are for use in ambient temperature -40°C

≤Tamb ≤ +75°C.

•Subject devices are to be installed in an IP54 enclosure.

•

Subject devices are for use in an area of not more than pollution

degree 2 in accordance with IEC 60664-1.

•Subject devices are to use Conductors suitable for use in an

ambient temperature of 100°C must be used for the Power

Supply Terminal.

Wiring Requirements

WARNING

Safety First!

Turn the power off before

disconnecting modules or wires. The

correct power supply voltage is listed on the product label. Check

the voltage of your power source to make sure that you are using

the correct voltage. Do

NOT use a voltage greater than what is

specified on the product

label.

These devices must be supplied by a SELV source as defined in

the Low Voltage Directive 2006/95/EC and 2004/108/EC.

WARNING

Safety First!

Calculate the maximum possible current in each power wire and

common wire.

Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

- 10 -

You should also pay attention to the following points:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

in the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

•Keep input wiring and output wiring separated.

•It is strongly advised that you label wiring to all devices in the system

when necessary.

Grounding the EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is

intended to be mounted to a well-grounded

mounting surface such as a metal panel.

Wiring the Redundant Power Inputs

The top two contacts and the bottom two contacts of the 4-contact

terminal block connector on the EDS’s top panel are used for the EDS’s

two AC/DC inputs. Top and front views of one of the terminal block

connectors are shown here.

STEP 1:

Insert the negative/positive AC

/DC wires into the

-/V+ terminals.

STEP 2:

To keep the AC

/DC wires from pulling loose, use a

small flat

-blade screwdriver to tighten the wire-

clamp

screws on the front of the terminal block connector.

STEP 3:

Insert the plastic terminal block connector prongs into

the terminal block receptor, which is located on EDS’s

top panel.

ATTENTION

Before connecting the EtherDevice Switch to the

AC/DC power

inputs, make sure the AC/DC power source voltage is stable.

Other manuals for EtherDevice EDS-205A series

This manual suits for next models

Table of contents

Other Moxa Technologies Switch manuals

Moxa Technologies

Moxa Technologies PT-7528 Manual

Moxa Technologies

Moxa Technologies EDS-G2008-EL Series User manual

Moxa Technologies

Moxa Technologies PT-G7828 User manual

Moxa Technologies

Moxa Technologies EDS-G205-1GTXSFP Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Assembly instructions

Moxa Technologies

Moxa Technologies PT-G7728 User manual

Moxa Technologies

Moxa Technologies ioLogik E1200 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series User manual

Moxa Technologies

Moxa Technologies EDS-G509 Series User manual

Moxa Technologies

Moxa Technologies IKS-G6524A User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manual

Moxa Technologies

Moxa Technologies PowerTransPT-7528 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A-3GT Manual

Moxa Technologies

Moxa Technologies PT-7528 Manual

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV User manual

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manual

Moxa Technologies

Moxa Technologies PT-7528 User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PN User manual

Moxa Technologies

Moxa Technologies S9450I Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-505A Manual

Moxa Technologies

Moxa Technologies NPort S8458 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PTP Series Manual

Moxa Technologies

Moxa Technologies PT-7728 Series User manual

Moxa Technologies

Moxa Technologies EDS-516A Series Manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
