Motorola PMLN6396 User manual
BLUETOOTHTM
ACCESSORY POD
PMLN6396
User Guide
DEEN ES IT PR NL
DA SV SF NO TU PL RU
FR
Cover.fm Page 1 Monday, December 17, 2012 10:58 AM
Blank.fm Page 1 Wednesday, March 24, 2010 3:47 PM
1
English
BLUETOOTHTM ACCESSORY POD
PMLN6396
Congratulations on your new Motorola Bluetooth
Accessory Pod! This Pod device is designed to allow
you the convenience of Bluetooth technology by
simply connecting it to a Motorola swivel earpiece,
enabling you to comfortably wear it in many
convenient ways for long periods of time.
Furthermore, the Bluetooth Pod is exclusively
designed for business radio applications and
optimized to work with Motorola two-way radios.
This user guide contains the operation and pairing
instructions of Bluetooth Pod. Before getting started,
please make sure you read and understand the RF
and Acoustic Safety sections, which contain very
important information about this product.
FOREWORD
Product Safety and RF Exposure
Compliance
ATTENTION!
The radio is restricted to occupational use only to
satisfy ICNIRP/FCC RF energy exposure
requirements. Before using this product, read the RF
energy awareness information and operating
instructions in the RF Energy Exposure and Product
Safety Guide enclosed with your radio [Motorola
Publication part number 6881095C98 (US) or
6864117B25 (EMEA)] to ensure compliance with RF
energy exposure limits.
Before using this product, read the
operating instructions for safety
usage contained in the RF Energy
Exposure and Product Safety Guide
enclosed with your radio.
68012007082_a_book.book Page 1 Tuesday, January 8, 2013 2:24 PM
2
English
This device complies with part 15 of the FCC Rules
and Industry Canada license-exempt RSS standard
(s). Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation. Any changes or
modifications not expressly approved by
Motorola may void the user’s authority to
operate this device.
Battery Information:
Battery is shipped with a nominal charge between
30% and 50%. Battery should be stored between
-10 °C (14 °F) and 30 °C (86 °F) to minimize
permanent capacity loss.
Caution: Storing your fully charged accessory in
high-temperature conditions may
permanently reduce the life of the internal
battery.
Note: The battery is not a user replaceable part.
Important Information:
• Do not charge your accessory in temperatures
below 0 °C (32 °F) or above 45 °C (113 °F). Do
not store your accessory in direct sunlight or
where expected temperatures can exceed this
range such as inside a parked car.
• Storing your fully charged accessory in
high-temperature conditions may permanently
reduce the life of the internal battery.
• Battery life may temporarily shorten in
low-temperature conditions.
68012007082_a_book.book Page 2 Tuesday, January 8, 2013 2:24 PM
3
English
ACOUSTIC SAFETY
Exposure to loud noises from any source for
extended periods of time may temporarily or
permanently affect your hearing. The louder the
radio's volume, the less time is required before your
hearing could be affected. Hearing damage from
loud noise is sometimes undetectable at first and
can have a cumulative effect.
To protect your hearing:
• Use the lowest volume necessary to do your job.
• Turn up the volume only if you are in noisy
surroundings.
• Turn down the volume before adding headset or
earpiece.
• Limit the amount of time you use headsets or
earpieces at high volume.
GETTING STARTED
Before you start, make sure the pod is fully charged.
Recommended charging time is three (3) hours. For
detailed instructions on pod charging, please
refer to the Charging Cradle Instructions Leaflet
(P/N: 68012008029).
BLUETOOTH ACCESSORY POD
OVERVIEW

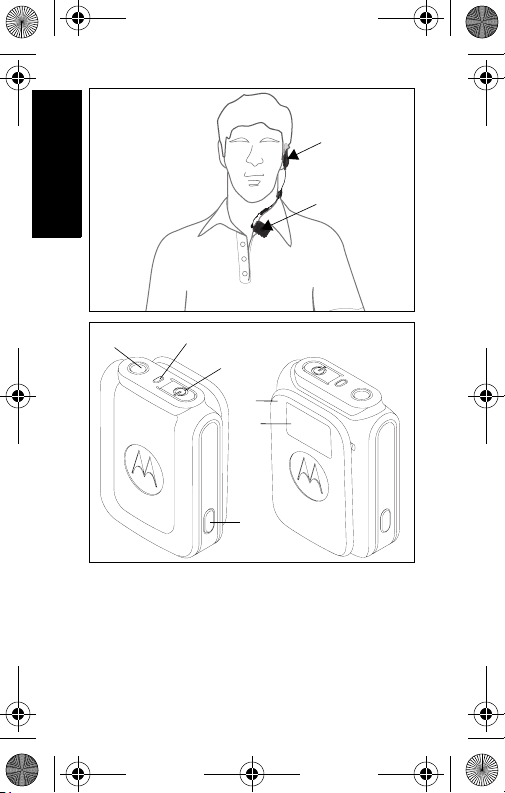

This Bluetooth Accessory Pod is designed to be
used in conjunction with the Motorola Earpiece
PMLN6397 as shown in the figure below:
68012007082_a_book.book Page 3 Tuesday, January 8, 2013 2:24 PM
4
English
Swivel
Earpiece
Bluetooth
Pod
12
4
6
3
5
68012007082_a_book.book Page 4 Tuesday, January 8, 2013 2:24 PM
5
English

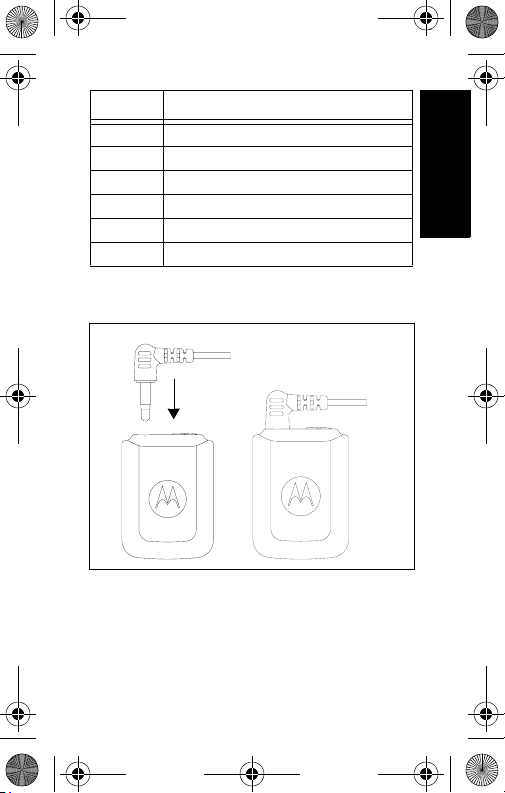

In order to connect the Swivel Earpiece, insert the
earpiece audio connector into the pod audio jack
connector, making sure it is firmly attached.
Note: Power ON the pod only after the earpiece is
inserted.
Number Indication
13.5 mm Audio Jack
2Bluetooth Status Indicator
3Power / Volume Button
4Clip
5Recess for Label
6Charger Contact
68012007082_a_book.book Page 5 Tuesday, January 8, 2013 2:24 PM
6
English
PAIRING THE POD WITH YOUR
TWO-WAY RADIO
Pairing your pod for the first time
1. Before starting, make sure your two-way radio
is in pairing mode.
2. With the pod OFF, press and hold the pod
power until the LED is solid Blue.
3. Position the pod next to the two-way radio that
you want to pair.
4. Pod will provide voice prompt to indicate
successful connection.
5. Refer to the table below for additional LED
status indications.
Clearing/Erasing Pairing Information
1. Ensure the previous connected two-way radio
is turned OFF.
2. Turn off the pod.
3. Long press the power button until you hear a
voice prompt “Pairing Cleared”.
4. LED will show solid Blue, indicating the pod is
in pairing mode.
For more information about this product, please
contact your Motorola Authorized Dealer or visit us
at:
www.motorolasolutions.com/bluetoothaccessories
68012007082_a_book.book Page 6 Tuesday, January 8, 2013 2:24 PM
7
English
BLUETOOTH POD STATUS AND LED
INDICATORS
CHARGING YOUR DEVICE
The pod can be charged with Motorola Bluetooth
Pod Charging Cradle (PMLN6428).
Note: For assuring proper operation DO NOT power
on the device while charging.
State LED Indication
Power
Power ON (LED
ON) (press and
hold for 1 second)
Solid Green LED for 3
seconds then OFF
Power OFF
(Press and hold
for 3 seconds)
Flashing Red LED 3
times then OFF
BT Status
Pairing Mode Solid Blue LED
BT Connecting Flashing Green LED
Pairing Fail/
Timeout
Flashing Purple LED
for 2 seconds
Wireless Link
Connected With
Host
Flashing Blue LED
every 5 seconds
Wireless Link
Disconnected
From Host
Fast Flashing Blue
LED
Battery Low Flashing Red LED
every 2 minutes
Charging Charging Solid Red LED
Fully Charged Solid Green LED
68012007082_a_book.book Page 7 Tuesday, January 8, 2013 2:24 PM
8
English
CHANGING YOUR POD VOLUME
To change pod volume:
1. After the pod is connected to the radio, select
the pod volume range (high, medium and low).
2. Cycle through to the desired volume range
with sequential short presses (less than 1
second) of the power button.
3. If the pod is used with a CLP radio, the CLP
radio up/down volume controls a finer
resolution volume adjustment within each pod
volume range. Consult CLP user manual for
accessing radio volume up/down control.
4. If the pod is used with any other Motorola
radio, volume is adjusted only on the pod as
described in Step 2.
WARRANTY
Motorola offers a standard one year warranty.
Contact your Motorola dealer for detailed information
on the standard warranty.
Note: Warranty is void after customer replacement
of any parts other than replacement parts
listed.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the
Stylized M logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under
license. All other trademarks are the property of their
respective owners.
© 2013 Motorola Solutions, Inc. All rights reserved.
68012007082_a_book.book Page 8 Tuesday, January 8, 2013 2:24 PM
