Moen KINGSLEY 6102AN Setup guide

■ Order by Part Number

KINGSLEY™

Single-Handle Lavatory

MODELS FINISH

6102 Chrome

6102AN Antique Nickel

6102BN Brushed Nickel

6102ORB Oil Rubbed Bronze

6102WR Wrought Iron

6102AZ Antique Bronze

Deck Plate

118881 Chrome

118881AN Antique Nickel

118881BN Brushed Nickel

118881ORB Oil Rubbed Bronze

118881WR Wrought Iron

118881AZ Antique Bronze

Aerator Kit Aerator Kit

(1.5 gpm) (2.2 gpm)

101046 118239 Chrome

101046AN 118239AN Antique Nickel

101046BN 118239BN Brushed Nickel

101046ORB 118239ORB Oil Rubbed Bronze

101046WR 118239WR Wrought Iron

101046AZ 118239AZ Antique Bronze

Hardware Kit

146190

Vessel Extension Kit - Not included with faucet

Single Mount Escutcheon

118882 Chrome

118882AN Antique Nickel

118882BN Brushed Nickel

118882ORB Oil Rubbed Bronze

118882WR Wrought Iron

118882AZ Antique Bronze

Vessel Extension Kit

A1616 Chrome

A1616AN Antique Nickel

A1616BN Brushed Nickel

A1616ORB Oil Rubbed Bronze

A1616WR Wrought Iron

A1616AZ Antique Bronze

Plug Button

118243 Chrome

118243AN Antique Nickel

118243BN Brushed Nickel

118243ORB Oil Rubbed Bronze

118243WR Wrought Iron

118243AZ Antique Bronze

Handle

146191 Chrome

146191AN Antique Nickel

146191BN Brushed Nickel

146191ORB Oil Rubbed Bronze

146191WR Wrought Iron

146191AZ Antique Bronze

Lift Rod Kit

118244 Chrome

118244AN Antique Nickel

118244BN Brushed Nickel

118244ORB Oil Rubbed Bronze

118244WR Wrought Iron

118244AZ Antique Bronze

Handle Cap (for finishes)

118240 Chrome

118240AN Antique Nickel

118240BN Brushed Nickel

118240ORB Oil Rubbed Bronze

118240WR Wrought Iron

118240AZ Antique Bronze

Pop-Up Plug & Seat

10709 Chrome

10709AN Antique Nickel

10709BN Brushed Nickel

10709ORB Oil Rubbed Bronze

10709WR Wrought Iron

10709AZ Antique Bronze

Waste Nut & Seal

Rev. 7/11

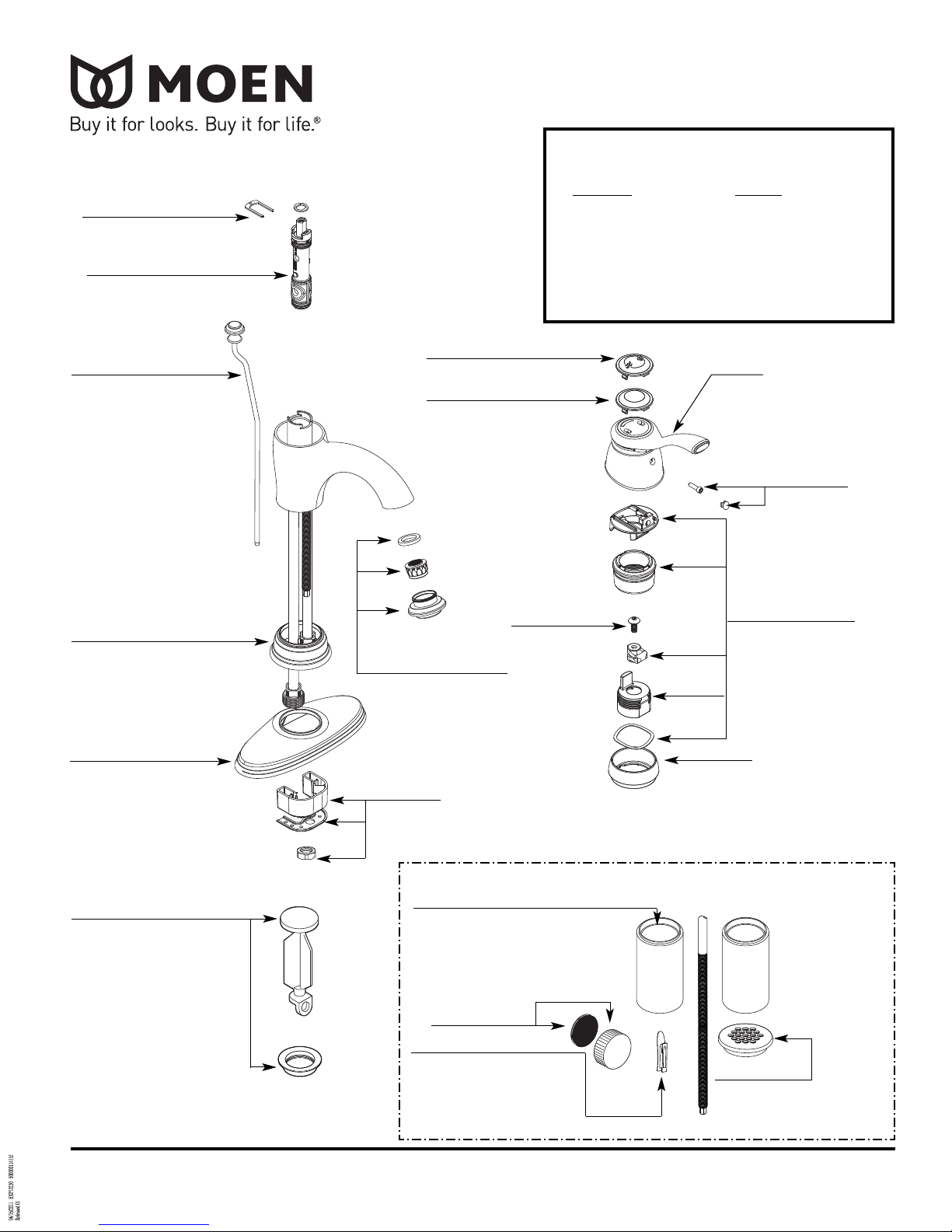

Illustrated Parts

Handle Cap (H & C)

118241 White

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

Grid Strainer

125752 Chrome

125752BN Brushed Nickel

125752AZ Antique Bronze

Plug Button

152859 Chrome

152859CSL (for Antique Nickel,

Brushed Nickel)

152859ORB Oil Rubbed Bronze

152859BL (for Wrought Iron)

152859AZ Antique Bronze

Set Screw

155023

Cartridge, Cartridge Nut

and Set Screw

1255

Cartridge Nut

Note: Must change nut with cartridge

144266

Plug

Button Kit

137403

HANDLE PLUG BUTTON

PRIOR TO 1/2011

There is more than 1 version of this model.

Page down to identify the version you have.

■ Order by Part Number

KINGSLEY™

Single-Handle Lavatory

MODELS FINISH

6102 Chrome

6102AN Antique Nickel

6102BN Brushed Nickel

6102ORB Oil Rubbed Bronze

6102WR Wrought Iron

6102AZ Antique Bronze

Lever Mechanism Kit

101957

Deck Plate

118881 Chrome

118881AN Antique Nickel

118881BN Brushed Nickel

118881ORB Oil Rubbed Bronze

118881WR Wrought Iron

118881AZ Antique Bronze

Retainer Clip

SK1711

Aerator Kit Aerator Kit

(1.5 gpm) (2.2 gpm)

101046 118239 Chrome

101046AN 118239AN Antique Nickel

101046BN 118239BN Brushed Nickel

101046ORB 118239ORB Oil Rubbed Bronze

101046WR 118239WR Wrought Iron

101046AZ 118239AZ Antique Bronze

Hardware Kit

118245

Vessel Extension Kit - Not included with faucet

Single Mount Escutcheon

118882 Chrome

118882AN Antique Nickel

118882BN Brushed Nickel

118882ORB Oil Rubbed Bronze

118882WR Wrought Iron

118882AZ Antique Bronze

Vessel Extension Kit

A1616 Chrome

A1616AN Antique Nickel

A1616BN Brushed Nickel

A1616ORB Oil Rubbed Bronze

A1616WR Wrought Iron

A1616AZ Antique Bronze

Plug Button

118243 Chrome

118243AN Antique Nickel

118243BN Brushed Nickel

118243ORB Oil Rubbed Bronze

118243WR Wrought Iron

118243AZ Antique Bronze

Replacement Cartridge

1225

Dome

113959 Chrome

113959AN Antique Nickel

113959BN Brushed Nickel

113959ORB Oil Rubbed Bronze

113959WR Wrought Iron

113959AZ Antique Bronze

Hardware Kit

96804

Handle

118242 Chrome

118242AN Antique Nickel

118242BN Brushed Nickel

118242ORB Oil Rubbed Bronze

118242WR Wrought Iron

118242AZ Antique Bronze

Lift Rod Kit

118244 Chrome

118244AN Antique Nickel

118244BN Brushed Nickel

118244ORB Oil Rubbed Bronze

118244WR Wrought Iron

118244AZ Antique Bronze

Plug Button

113957

Handle Cap (for finishes)

118240 Chrome

118240AN Antique Nickel

118240BN Brushed Nickel

118240ORB Oil Rubbed Bronze

118240WR Wrought Iron

118240AZ Antique Bronze

Pop-Up Plug & Seat

10709 Chrome

10709AN Antique Nickel

10709BN Brushed Nickel

10709ORB Oil Rubbed Bronze

10709WR Wrought Iron

10709AZ Antique Bronze

Waste Nut & Seal

Rev. 7/11

Illustrated Parts

Handle Cap (H & C)

118241 White

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

Grid Strainer

125752 Chrome

125752BN Brushed Nickel

125752AZ Antique Bronze
