Mira Azora

9.8 kW

Installation and User Guide

For SPARES,

ADVICE or REPAIRS

please call us free

on 0800 001 4040

(UK only)

21062243-W2-N

WARNING - This shower can deliver scalding temperatures, cause

re, electric shock or other personal injury if not operated, or

maintained in accordance with the instructions, warnings and

cautions contained in this guide and on the appliance.

Please read the important safety information and the operation section

of this guide before using the shower. Failure to follow the instructions

provided with this shower will invalidate the guarantee.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

1. This appliance can be used by all children and persons with reduced

physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the

hazards involved.

2. Children shall not be allowed to play with the shower.

3. Cleaning and user maintenance shall not be made by children

without supervision.

4. The appliance is not to be used by persons (including children)

with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given

supervision or instruction.

5. Theoutletmustnotbeconnectedtoanytaporttingotherthan

thosespecied.

6. The showerhead must be descaled regularly. Any blockage of the

showerhead or hose can cause damage to the shower.

7. Warning! Do not switch on if there is a possibility that the water

in the heater is frozen.

8. The shower must be provided with means for local disconnection

from the supply mains having a contact separation in all poles

that provide full disconnection under over voltage category III,

the instructions state that means for disconnection must be

incorporatedinthexedwiringinaccordancewiththewiringrules.

Important Safety Information

31062243-W2-N

9. Installation of the shower must be carried out in accordance with

these instructions by qualied, competent personnel. Read all

instructions before installing the shower.

10.DO NOT switch the shower on if water starts leaking from the shower

case. Isolate the electrical supply to the shower immediately.

11.DO NOT switch the shower on if the case appears to be damaged

or incorrectly tted. Isolate the electrical supply to the shower

immediately.

12.DO NOT increase the power setting or adjust the temperature

control rapidly while using the shower.

13.DO NOTswitchtheshowero󰀨andbackonwhilestandinginthe

waterow.

14.DO NOT change the handset model. Fit only shower heads

recommendedbyMiraanddonotanyadditionaldevicetorestrict

thewateroutletow.

15.When adjusting the handset mode, point handset away from body

and make sure that the water temperature has stabilised before

continuing to shower.

16.Use caution when altering the water temperature, always check

the temperature before continuing to shower.

17.Switchtheshowero󰀨attheelectricalisolatingswitchwhennotin

use. This is recommended with all electrical appliances.

18.Installation of the shower must be carried out in accordance with

these instructions by qualied, competent personnel. Read all

instructions before installing the shower.

19.Isolate the electrical and water supplies before commencing

installation. The electricity must be isolated at the consumer unit

and the appropriate circuit fuse removed, if applicable. Mains

connections are exposed when the cover is removed.

20.DO NOT install the shower in areas with high humidity and

temperature (i.e. Steam rooms and saunas).

21.DO NOT install the shower where it may be exposed to freezing

conditions. Ensure that any pipework that could become frozen is

properly insulated.

41062243-W2-N

22.DO NOT connect the outlet of the shower to any tap, control valve,

triggeroperatedhandsetorshowerheadotherthanthosespecied

for use with this shower as the outlet acts as a vent for the tank

body. Only Kohler Mira recommended accessories should be used.

23.DO NOTperformanyunspeciedmodications,ordrillorcutholes

in the product other than instructed by this guide. When servicing

only use genuine Kohler Mira replacement parts.

24.Always check the water temperature is safe before entering the

shower.

25.The water supplies to this product must be isolated if the product is

not to be used for a long period of time. If the product or pipework

is at risk of freezing during this period they should also be drained

of water.

26.If the shower is dismantled during installation or servicing then,

upon completion, an inspection must be made to ensure all

electrical connections are tight and that there are no leaks.

27.This appliance is intended to be permanently connected to the

water mains and not connected by a hose set.

28.Maximum Static Pressure is 1000 kPa (10 bar).

29.Minimum Dynamic Pressure is 70kPa (0.7 bar) 9.8 kW.

Decommissioning and Recycling

When this appliance has reached the end of its serviceable life, it

should be disposed of in a safe manner, in accordance with current

local authority recycling, or waste disposal policy. For more information

aboutrecycling,pleasecontactyourlocalcouncilo󰀩ce.

51062243-W2-N

Pack Contents

Ticktheappropriateboxestofamiliarizeyourselfwiththepartnamesandtoconrm

that the parts are included.

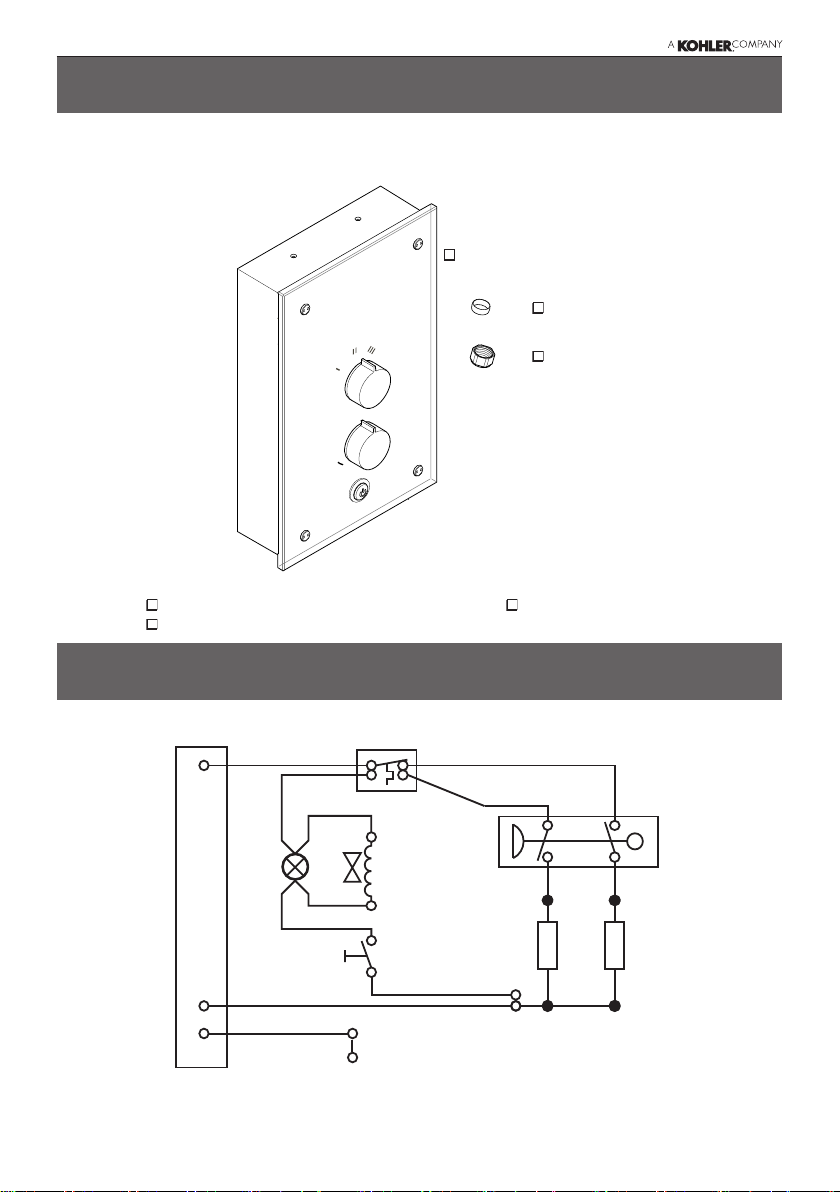

Wiring Diagram

Internal Wiring Diagram

1 x Olive

1 x Compression Nut

1 x Mira Azora

Documentation

1 x Installation and User Guide 1 x Installation Template

1xGuaranteeandRegistrationDocument

BROWN

RED

BROWN

GREEN BLUE

BLUE

BLACK

GREEN

Thermal Cutout

Disc

Tank Connection

Load

Inlet Connector

Pressure/Power

Selector Switch

Solenoid

Valve

Start/Stop

L.E.D.

START/STOP

61062243-W2-N

DesignRegistration: 000578463-001-002

Patents: GB: 2341667,2404000,2428286,2427460

Ireland:82835,85128,85163

Thank you for purchasing a quality Mira product. To enjoy the full potential of your

new product, please take time to read this guide thoroughly. Having done so, keep

it handy for future reference.

The Mira Azora is a thermostatic electric shower with separate controls for power

selectionandtemperature/owadjustment.Auniquethermostaticvalvestabilises

temperaturechangescausedbywaterpressureuctuations.Thesecanresultfrom

tapsbeingturnedonoro󰀨,oratoiletbeingushed.Anindividuallightindicates

“START/STOP”.

The Mira Azora comes complete with a set of Mira Energise Shower Fittings.

A 9.8 kW 240 V AC (9.0 kW 230 V AC) heater with Mira Energise adjustable spray

handsetwithfourdi󰀨erentsprayactions(start,soothe,forceandeco*).Supplied

complete with exible hose, clamp bracket assembly, slide bar, supports, hose

retaining ring and soap dish.

*The ‘eco’ setting will have no eect, and will give the same spray action as the

‘start’ setting.

MiraElectricShowerscoveredbythisguide:

Domestic Light Commercial 

Heavy Commercial Healthcare 

Product Kw Model Number Colour

Azora 9.8 J95L

Frosted Glass

Azora Dual 9.8 J95Lm

Introduction

Mira Azora 9.8 kW

Recommended Usage

Patents and Design Registration

71062243-W2-N

Specications

Dimensions

Height 367 mm

Width 233 mm

Depth 100 mm

Electrical Variant

Azora 9.8

Nominal Power at 230 V ac 9.0 kW

Nominal Power at 240 V ac 9.8 kW

RecommendedMCBRating 45 A

Maximum Supply Cable Size 16 mm²

RecommendedRCDRating 30 mA tripping current

RecommendedIsolatorSwitch 45 A double-pole with 3 mm contact separation

ApplianceSealingRating IP X4 - Suitable for installation in Zone 1

Maximum Ambient Temperature 30°C

Minimum Ambient Temperature 2°C

Plumbing

Variant

Azora 9.8

Minimum Dynamic Pressure 70 kPa (0.7 bar)

Maximum Dynamic Pressure 500 kPa (5 bar)

Maximum Static Pressure 1000 kPa (10 bar)

Minimum Static Pressure 20 kPa (0.2 bar)

Maximum Inlet Temperature 30°C

Minimum Inlet Temperature 2°C

Inlet Connection 1/2”BSPMale/15mmCompressionFitting

Maximum Water Hardness 200 ppm CaCO3

Outlet Connection 1/2”BSPMale

81062243-W2-N

European Conformity Information

For domestic installations, Mira Showers guarantee the Mira Azora 9.8 kW against

any defect in materials or workmanship for a period of two years from the date of

purchase(showerttingsforoneyear).

For non-domestic installations, Mira Showers guarantee the Mira Azora 9.8 kW

against any defect in materials or workmanship for a period of one year from the

date of purchase. For terms and conditions refer to section “Customer Services”.

Guarantee

TheMiraAzorashowercomplieswiththefollowingEuropeandirectives:

2006/95/EC Low Voltage Directive, 2004/108/EC EMC Directive.

The Mira Azora shower is a high power appliance and is subject to conditional

connection. If the main electrical supply fuse is rated less than 80 Amps, the local

electricitysupplycompanymustbecontactedtoconrmiftheelectricalsupplyis

adequate.

The Mira Azora shower complies with the requirements of the UK’s water regulations.

91062243-W2-N

Installation Requirements

Plumbing

1. The plumbing installation must comply with all national or local water regulations

and all relevant building regulations, or any particular regulation or practice

speciedbythelocalwatersupplycompany.

2. DO NOT install the product in a position in which service access is limited.

3. Decide on a suitable position for the shower (minimum distance of 200 mm from

theceilingtoallowforcovertandremoval).

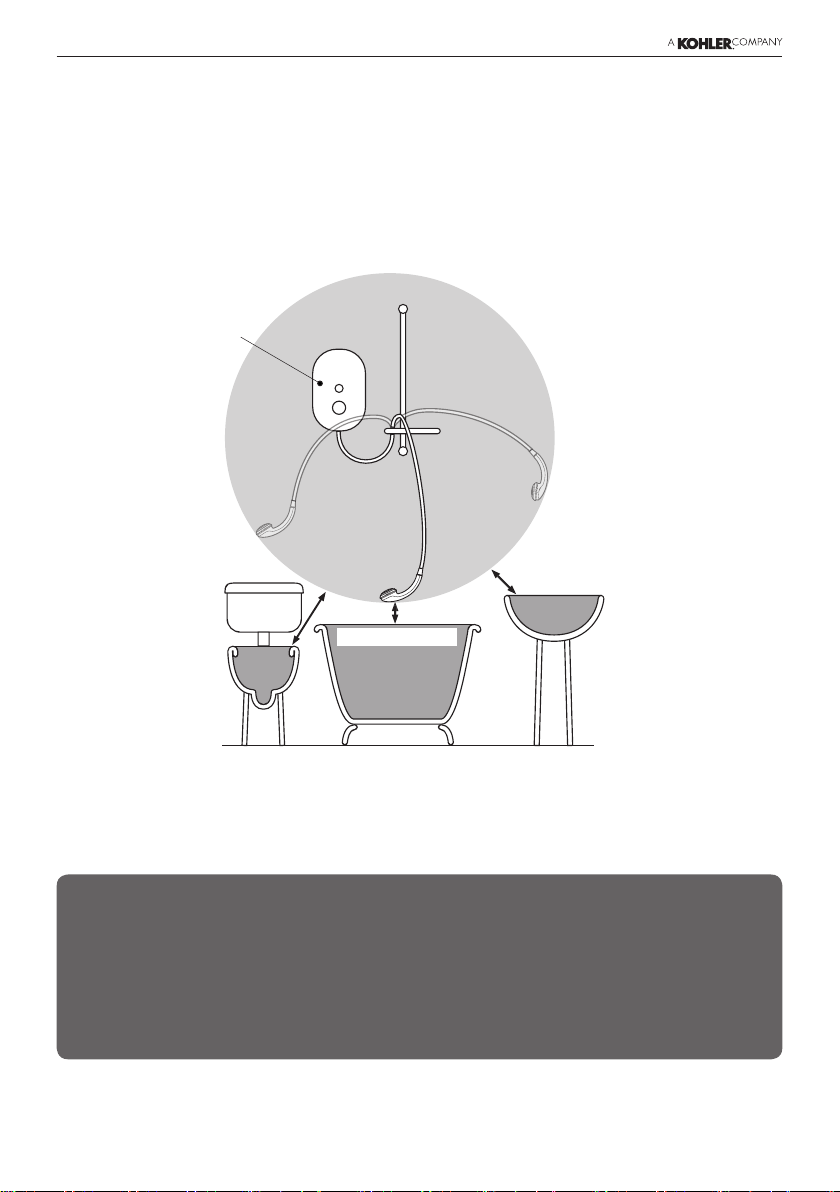

4. Thepositionoftheshowerandshowerttingsmustprovideaminimumgapof

25 mm between the showerhead and the spill over level of any bath, shower

tray or basin and a minimum gap of 30 mm between the showerhead and the

spill over level of any toilet, bidet or other appliance with a Fluid Category 5

backowrisk(seediagramonpage10).

5. Theshowerissuitableforinstallationwithintheshowerareaandisttedwith

a pressure relief valve. It must be positioned over a water catchment area with

the controls at a convenient height for the user.

6. Theshowermustbettedtoawaterproofatandevenwallsurface.

7. DO NOTttheshowertothewallandtileuptothecase.

8. DO NOT seal the gap between the shower and the wall surface.

9. The showerhead should be positioned so that it discharges down the centre

line of the bath or across the opening of a shower cubicle.

10. The showerhead must be directed away from the shower unit, during normal

use the showerhead must not spray directly on to the shower unit.

11. DO NOT apply excessive force to plumbing connections; always provide

mechanical support when making plumbing connections. Any soldered joints

should be made before connecting the shower.

12. This shower is not designed to be plumbed directly from the rear. For rear-entry

supply, add an elbow to the supply pipe and connect as a rising or a falling

supply.

13. If pipework and/or electrical cables enter the shower from the rear through a

hole in the wall provision must be made to prevent water ingress back into the

wall structure.

14. Only use the inlet connector supplied with the shower. DO NOT use any other

typeoftting.

15.Afullbore/nonrestrictiveservicingvalvemustbettedinareadilyaccessible

position adjacent to the shower to facilitate maintenance of the shower.

DO NOT use a valve with a loose washer plate (jumper) as this can lead to a

build up of static pressure.

101062243-W2-N

Zone of

BackflowRisk

30 mm

Minimum

Toilet or Bidet

FC5

Hand Basin

FC3

Bath or Shower

Tray FC3

Electric

Shower

25 mm

Minimum

25 mm Minimum

16. A water treatment device should be installed where the water hardness may

exceed 200 ppm. Malfunctions caused by excessive limescale formation are

not covered by this shower’s guarantee (see back page for details).

17. The installation must not cause the hose to be sharply kinked during normal

use.

18. DO NOT perform the electrical installation until the plumbing has been completed

and checked for leaks.

Hose retaining ring tted and shower ttings xed at a suitable height

preventing dirty water backow

Note: There will be occasions when the hose retaining ring will not provide

a suitable solution for Fluid Category 3 installations, in these instances

an outlet double check valve must be tted, this will increase the required

supply pressure typically by 10kPa (0.1 bar). Double check valves tted in

the inlet supply to the appliance cause a pressure build up, which a󰀨ect

the maximum static inlet pressure for the appliance and must not be tted.

For Fluid category 5 double check valves are not suitable.

Other manuals for Azora

Table of contents

Popular Plumbing Product manuals by other brands

Weka

Weka 506.2020.00E ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS

Kohler

Kohler K-6228 Installation and care guide

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Operator's manual

American Standard

American Standard DetectLink 6072121 manual

Uponor

Uponor Contec TS Mounting instructions

Pfister

Pfister Selia 49-SL Quick installation guide

Fortis

Fortis VITRINA 6068700 quick start guide

Fortis

Fortis MILANO 78211JS installation instructions

Kohler

Kohler K-12183 Homeowner's guide

Maxxus

Maxxus MX-M206-01 instruction manual

Moen

Moen 5922 Series installation instructions

Viega

Viega Prevista Pure 8512 Instructions for use

Kohler

Kohler Centerset K-15240 Homeowner's guide

Viega

Viega Prevista Dry 8522.33 Instructions for use

Sanela

Sanela Lema SLP 59RB Instructions for use

Elkay

Elkay EDF15AC Installation, care & use manual

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Instructions for use/assembly instructions

baliv

baliv WT-140 manual
