MinimumRC NANCHANG CJ-6 User manual

NANCHANG CJ-6

Assembly Instructions

Important notification

1.The model is supplied with UFO and 502 glue. UFO is for bonding foam parts, and 502 for bonding wood, carbon fiber

and metal parts. 502 glue will cause serious corrosion to foam parts.

2.Please wait for the glue to dry and solidify in each installation step before the next installation.

3.Please avoid using flame to heat the heat shrinkable tube on the model. Electric iron shall be used for heating.

4.Please use razor blade to remove the parts from the plate. Do not tear the parts by force.

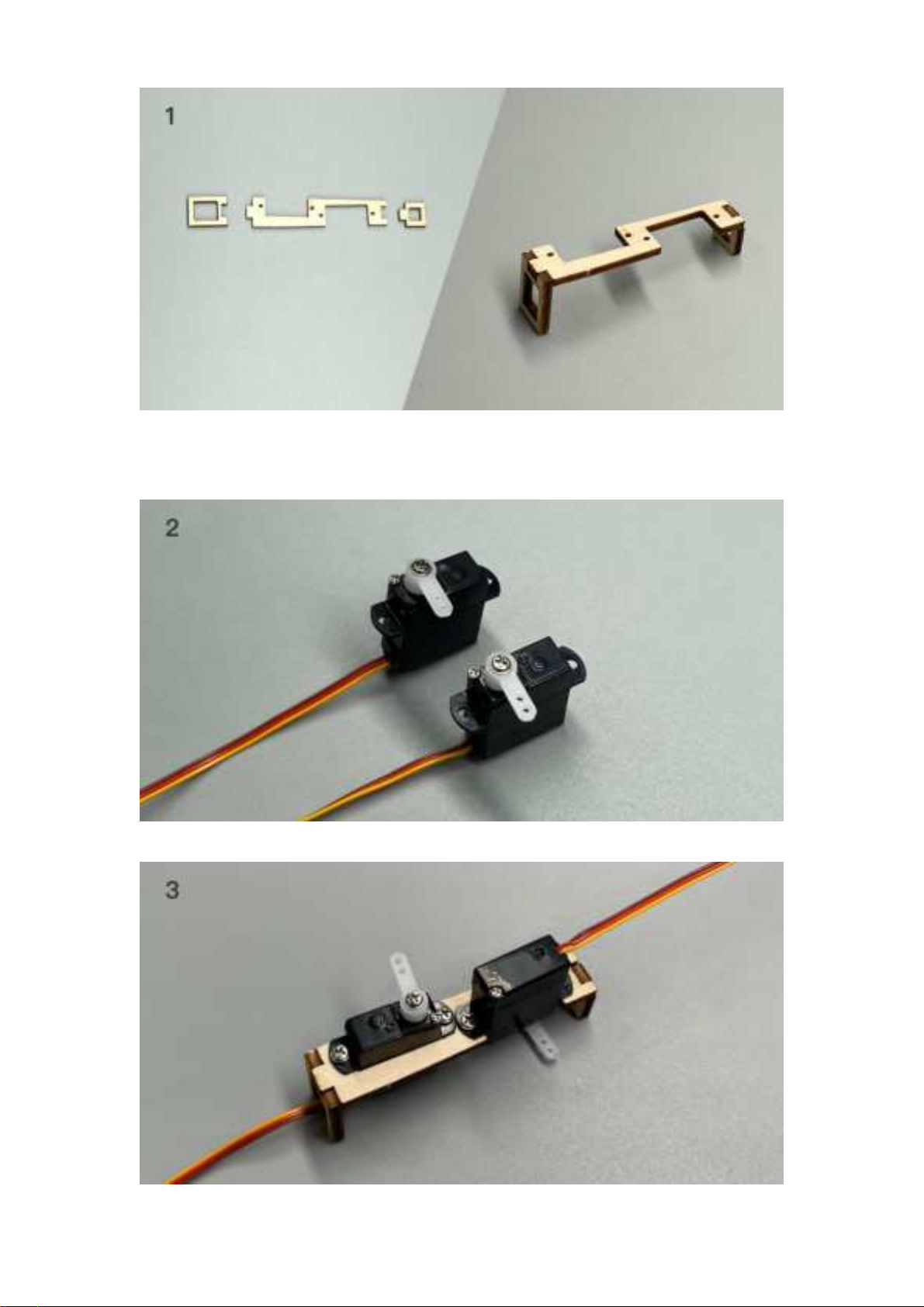

1. Assemble the tail servo base.

2. Connect the servos to a powered receiver. Bind the receiver with your transmitter to make the servos return to their

neutral point. Test whether the servos are normal, and install the servo arms according to the position shown in the picture.

Note: Important step.

3. Fix the servos onto the servo base with screws.

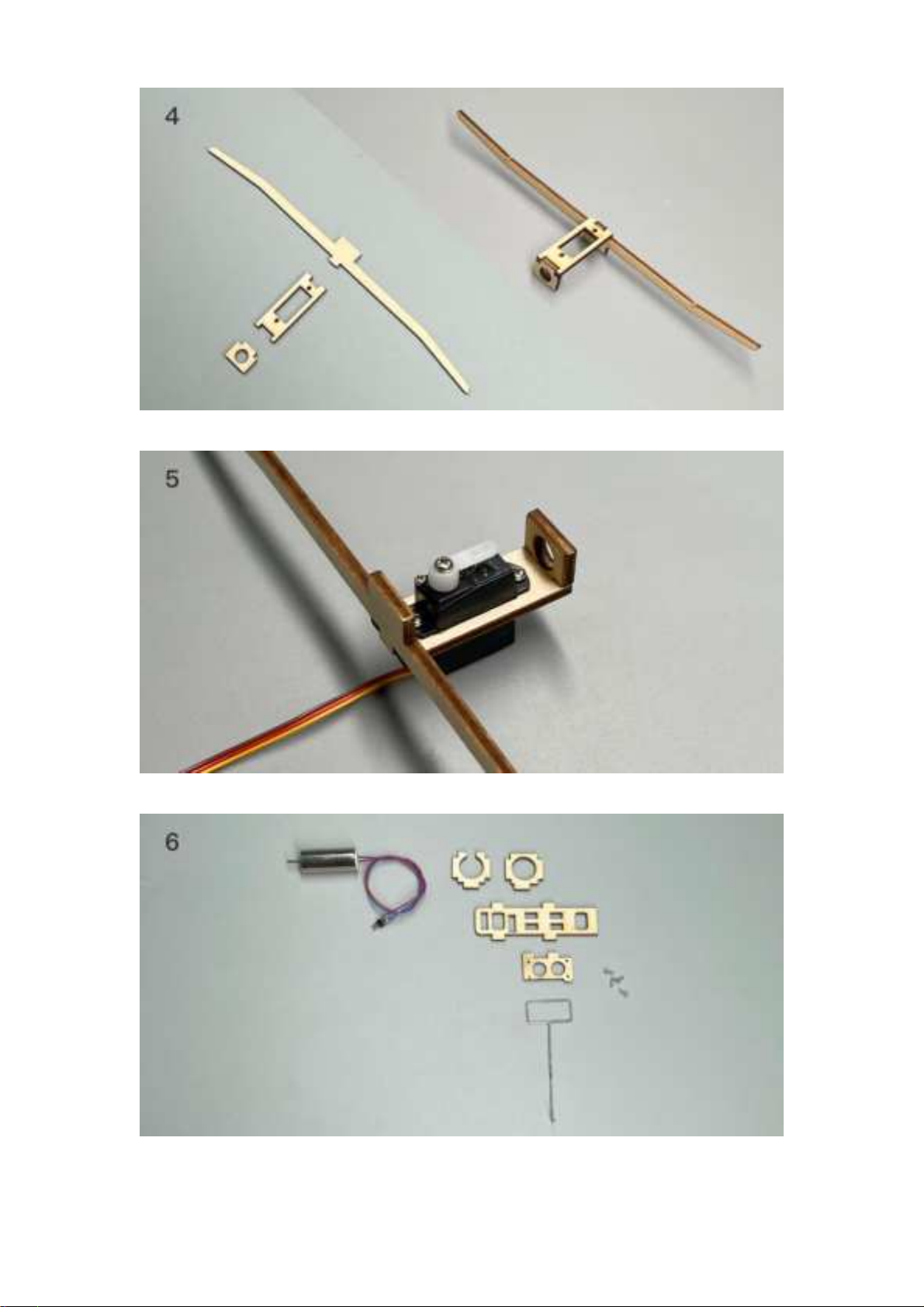

4. Assemble the aileron servo base.

5. Fix the aileron servo.

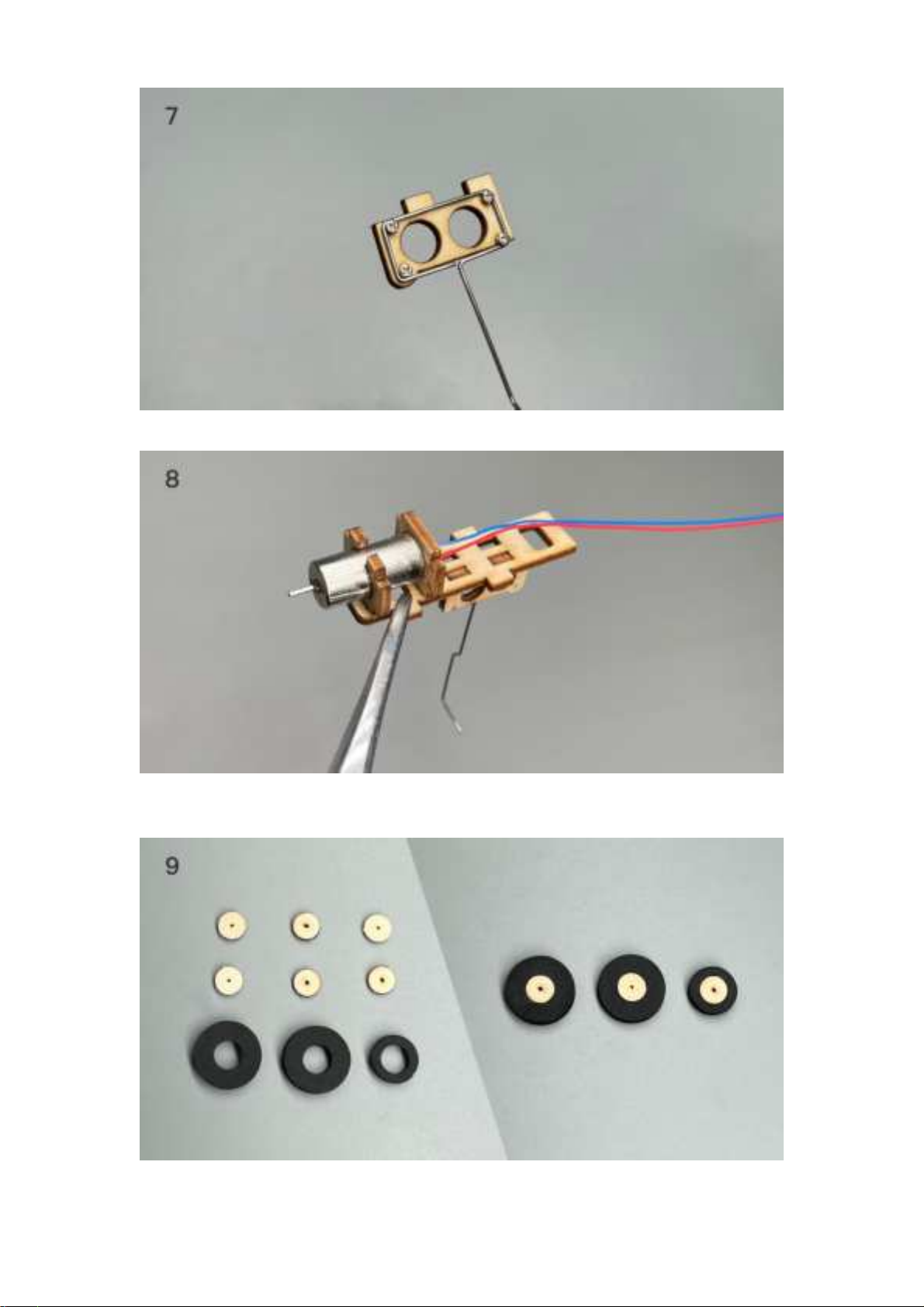

1. Nose gear and motor base parts.

7. Fix the nose gear steel wire with screws.

8. Combine nose gear & motor base parts. Fix the motor with glue.

9. Assemble the wheels. Thread the wood wheel cores on the landing gear steel wire, apply glue on the outer edge, and

then put it into the tire.

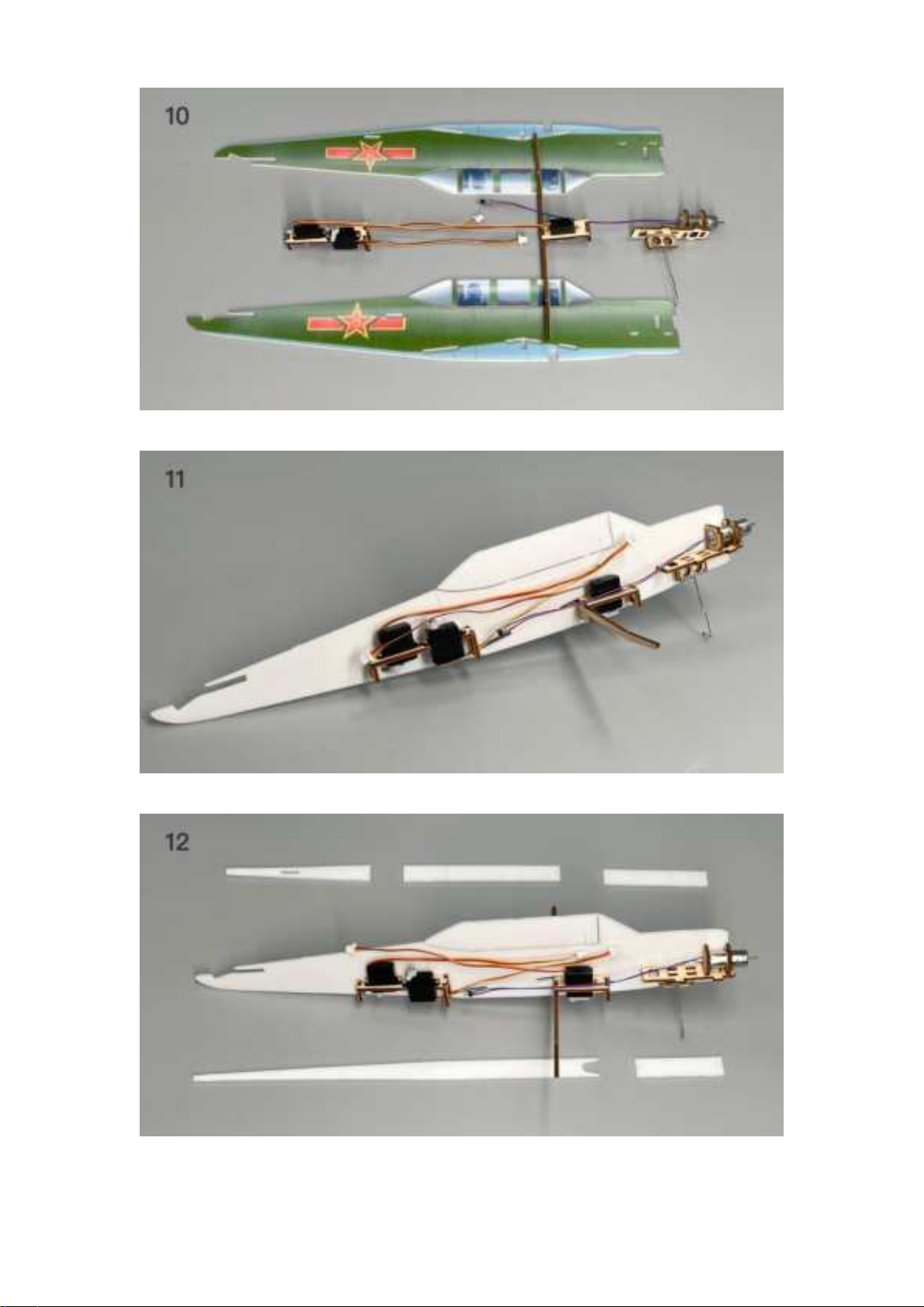

10. Fuselage side plate.

11. Install the fuselage internals according to the marked position inside the fuselage

12. Bend the fuselage edge strip according to the fuselage contour.

13. Use glue to fix the fuselage edge strip.

14. Align and close the other side of the fuselage.

15. Fix the tail trim with glue.

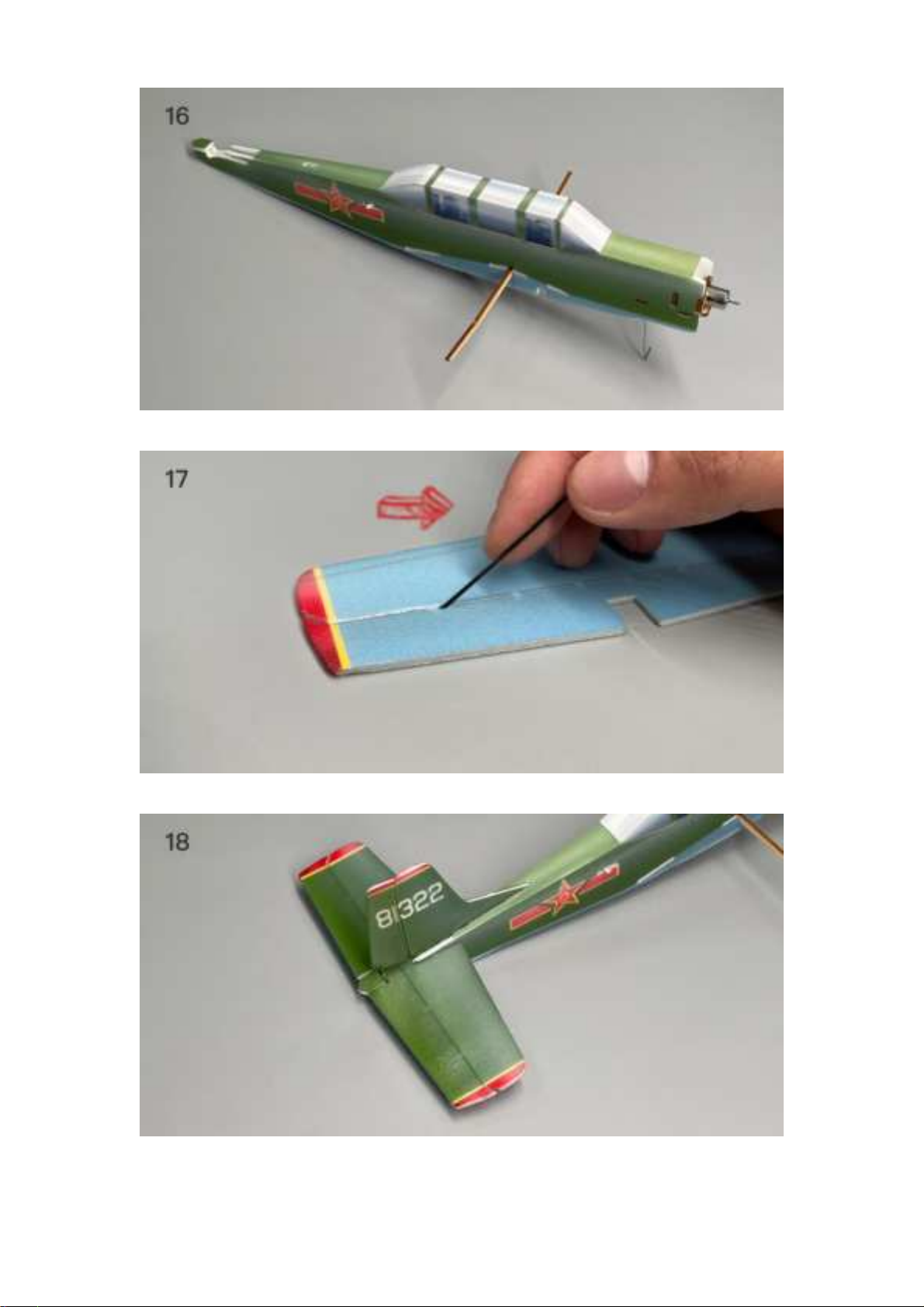

16. Paste stickers on the top and bottom of the fuselage. Use a small amount of glue to strengthen the fixation.

17. Use the end of a carbon fiber rod to score through the half -cut line of the elevator surface.

18. Install the tail. Make sure the horizontal tail is parallel to the fuselage and the vertical tail is vertic al to the fuselage.

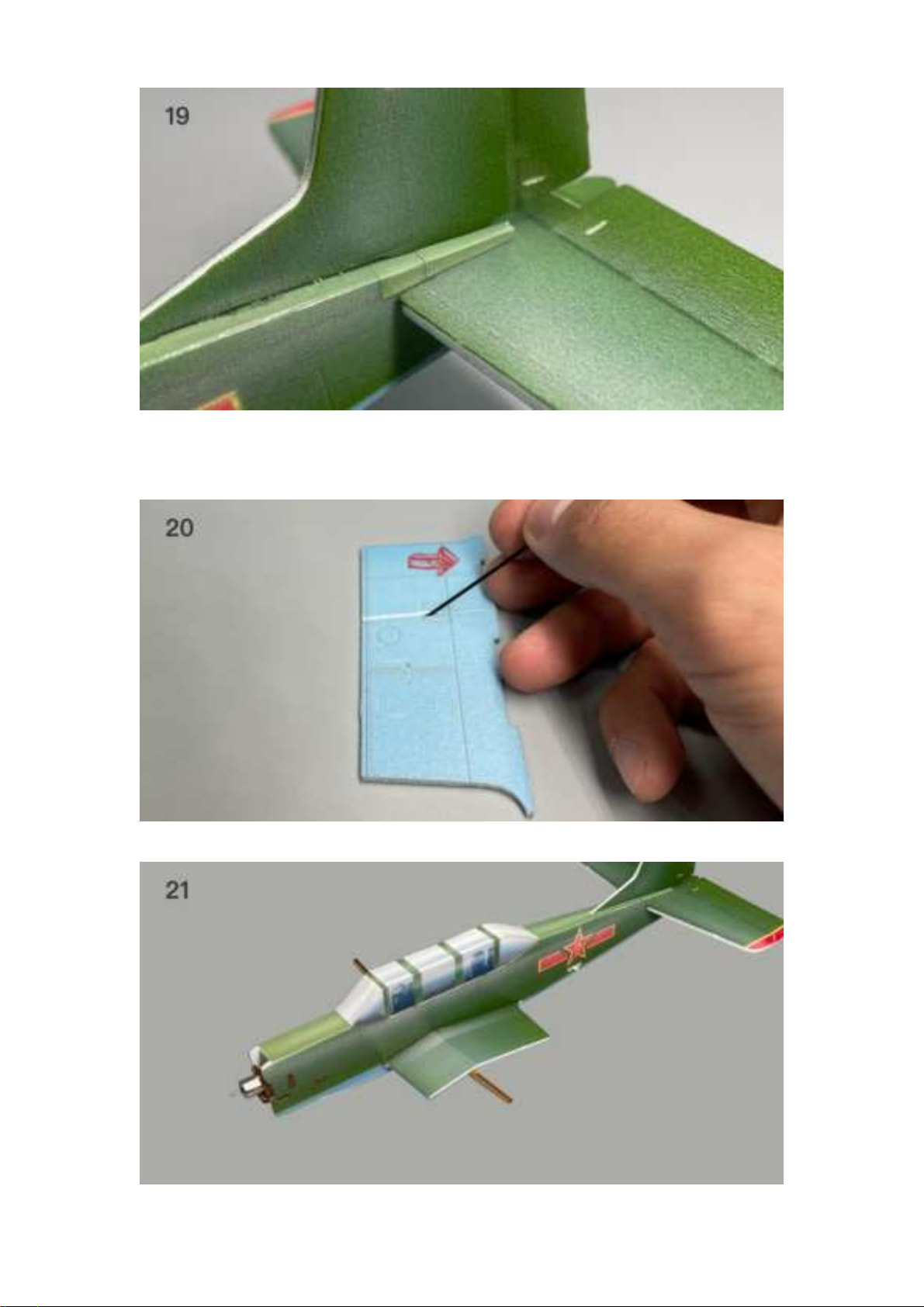

19. Paste the tail side sticker.

20. The carbon fiber rod is used to obliquely cut through one side of the wing marking line (both the inner and outer ends

of the wing are operated in this way), so that the aileron control surface can move up and down, and the wing can bend

down along the longitudinal marking line of the center.

21. Install the inner wing.

22. The top of main landing gear is bent inward for 90 degrees.

23. Use glue to fix the main landing gear according to the marking position, and paste the landing gear reinforcing piece .

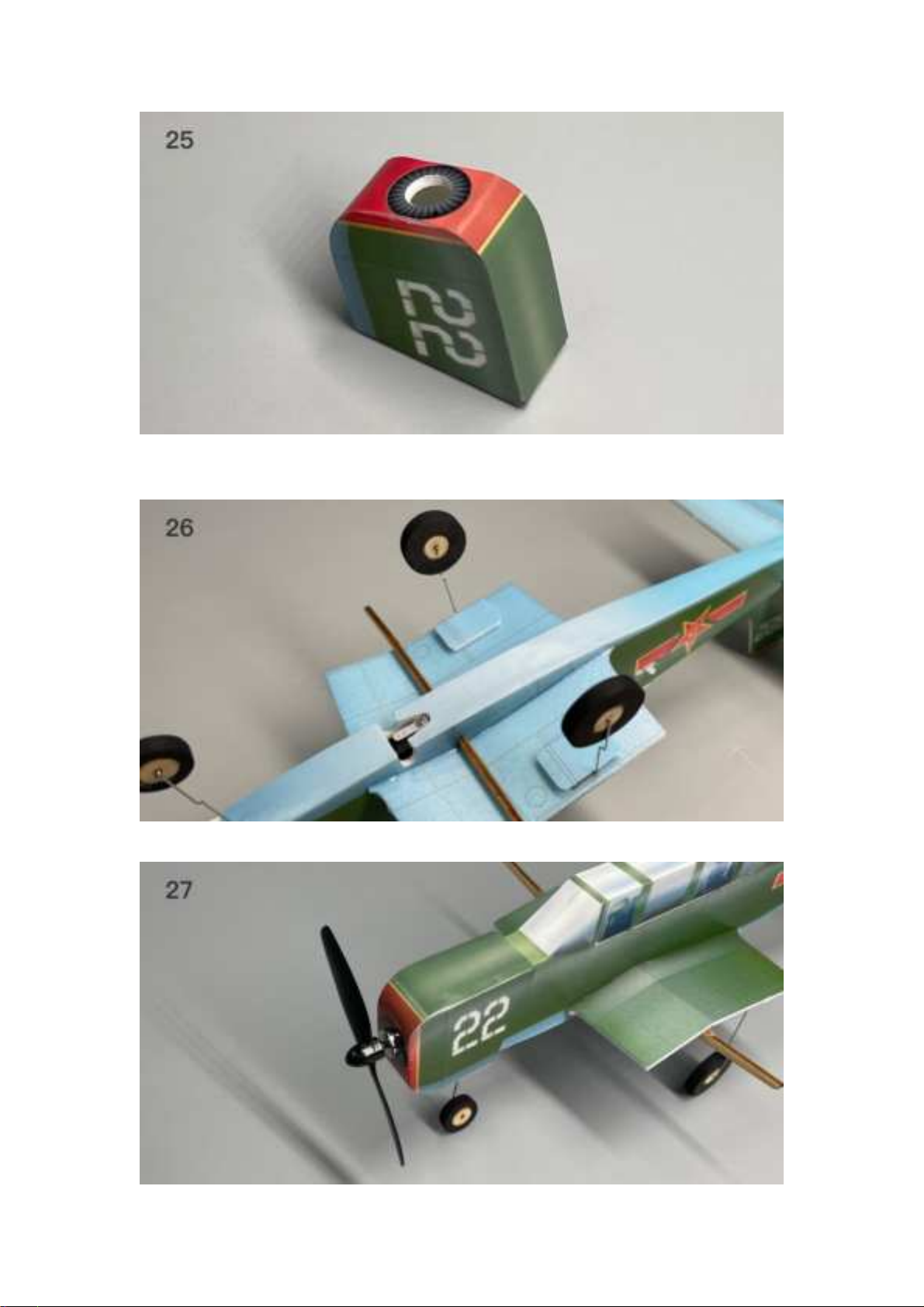

24. Combined hood.

25. Paste the hood sticker.

26. Thread the wheels into the landing gear steel wire, and bend the outer end of the steel wire with pointed nose pliers.

Or: put 2mm heat shrinkable pipe into the outer end of steel wire, and fix the pipe with glue to hold the wheels.

27. Insert the hood and install the propeller.
