MIMAKI JV150-130 User manual

Mimaki Europe B.V.

Sign Graphics Products

Product Guide

The information in this document is subject to change without notice.

07-03-2019

V1.61EU

Engineering excellence and creative innovation

Affordable, high-spec, high-performance printer

Mimaki Europe B.V.

Sign Graphics Products

•The contents of this presentation are intended only for Mimaki authorized

resellers. Authorized persons are not permitted to distribute, copy or change

this presentation without explicit approval of Mimaki Europe B.V.

•Contents and technical explanations in this presentation are based on the

test results achieved at Mimaki at the time of testing and are not a guarantee

for performance. Substrates should be tested beforehand.

•In addition, the contents in this presentation do not lead to any legal

obligations from Mimaki and Mimaki does not take any responsibility. Please

verify in advance whether your intended prints will result in sufficient

quality.

•Contents of this presentation are subject to change without prior notice for

improvement. Compositors errors reserved.

Mimaki Europe B.V.

Sign Graphics Products

Features

•High quality printing by Mimaki’s original technologies

•Smooth image quality by waveform control and precise dot placement

technology

•Mimaki’s proprietary 3-way intelligent heater for optimization of the

dot gain

•MAPS3 eliminates banding and delivers smooth print densities

•Unattended operation support package

•Nozzle Check Unit for delivering a continuous high printing quality

•Uninterrupted Ink Supply System for large amount of productions

•Strong media feeding system, max weight of 40kg and up to a

diameter of 250mm

Mimaki Europe B.V.

Sign Graphics Products

Features

•High quality printing and high printing speeds of 56 m ²/ h

•High quality printing with a resolution of 1440dpi with a 4pl drop size

•High densities at the maximum print speed of 56m²/h with the 35pl

drop size

•More applications with Orange and Light Black ink

•Printing with orange ink gives a larger color gamut for printing more

corporate colors

•Accurate gray scale printing with light black ink without color shifts

Mimaki Europe B.V.

Sign Graphics Products

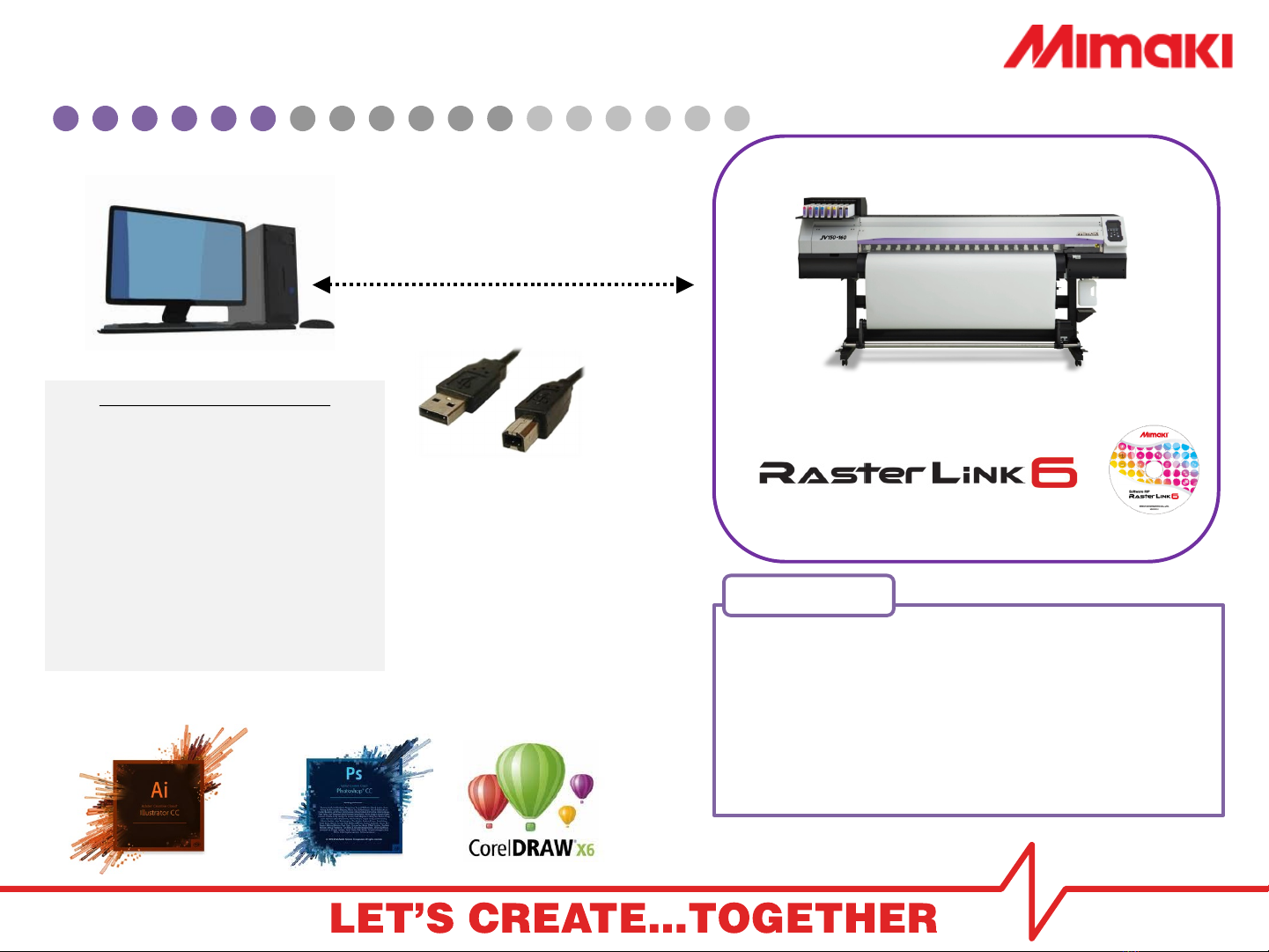

System configuration

Works also with:

USB 2 0

5m(15ft) cable is recommended

Connection

Including Rip software

AMF Kit

MBIS3

Drying Fan

Air exhaust unit

Anti-static sheet

Additional Pinch roller

8x Eco-cartridge for BS3/BS4 inks

Options

Recommended PC configuration

CPU: Core i5 3.5GHz

Memory: 8GB

HDD: 500GB

I/F : USB2.0, 4 ports or more

ODD: DVD-ROM

Network: 1000BASE-T

Compatible OS: Windows Vista(32/64bit)

Windows 7(32/64bit)

Windows 8(32/64bit)

Windows 10(32/64bit)

Monitor: 1366x768

Mimaki Europe B.V.

Sign Graphics Products

Ink type SS21 ES3 BS3 / BS4 Sb53 Sb54

Colors

6C 4C 6C

*K is also available

Ink set

4C: High speed printing 4C: High speed printing 4C: High speed printing 4C: High speed printing 4C: High speed printing

8C: Smooth result &

vibrant expression

6C: Smooth Result 6C: Smooth Result

Ink

capacity

C,M,Y,K,Lc,Lm,Lk,Or:

-440ml cartridge

-2L Ink pack (for MBIS3)

C,M,Y,K,Lc,Lm:

-440ml cartridge

C,M,Y,K:

-600ml Ink pack

(with Eco-cartridge)

-2L Ink pack (for MBIS3)

B,M,Y,Dk(K),Lb,Lm:

-440ml cartridge

-2L Ink pack (for MBIS3)

KT,BLT,MT,YT:

-2L Ink pack (for MBIS3)

MC Y KKY C M

M C YKLc Lm Lk Or

M B YDk Dk Y B M

M B Y Dk Lb Lm B M

M C Y KKY C M

M C Y KLc Lm Lk Or

M B Y Dk Lb Lm

MCYK

M C Y KLc Lm

Ink type / Ink set

Mimaki Europe B.V.

Sign Graphics Products

Head layout

•1 Print head is incorporated

•Capable of ejecting 7 different drop sizes from 4pl/7pl/8pl/14pl/16pl/24pl/35pl

•Prints both high quality mode and high speed mode

(3 drop sizes are automatically selected depending on print modes)

Nozzle row length

Approx.25.4mm

(1 inch)

Nozzle width

Approx.31mm

(1.2 inch)

1-head:1440-nozzle

(180-nozzle x 8-lines)

123 4 5 6 7 8

Mimaki Europe B.V.

Sign Graphics Products

Highly versatile printer

•Larger ink drop

•3 different drop sizes are automatically selected from 7drop sizes, depending

on the selected print quality (profile)

•When working with SS21, the 7 drop sizes are 4pl,7pl,8pl,14pl,16pl,24pl, and 35pl

•For high speed printing with high densities, the variable dot technology with a maximum

dot size of 35pl is used (56.2m²/h with SS21/BS3/BS4, and 58m²/h with Sb53/SB54)

•This gives the printer a wide coverage from high resolutions, to low resolution printing

with higher densities

Case 1 : Maximum dot size =21pl Case 2 : Maximum dot size =35pl

Large

21ｐｌ

Middle

14ｐｌ

Small

4ｐｌ

1 /360 inch

1 /360

inch

Large

35ｐｌ

Middle

14ｐｌ

Small

4ｐｌ

1 /360 inch

1 /360

inch

Low density due to a gap between the dots

↓

Not suitable for high speed mode (low resolution)

High density with no gap between the dots

↓

Suitable for High speed mode

Mimaki Europe B.V.

Sign Graphics Products

1,9

4,9

6,3

9,7

11,4

13,9

17,0

2,2

5,6

7,2

11,1

13,1

19,5

010 20 30

Super Smooth

1440x1440,16P,Bi

High Quality②

720x1440,12P,Bi

High Quality①

720x1080,8P,Bi

Standard②

720x720,6P,Bi

Standard①

720x720,5P,Bi

High Speed

720x720,4P,Bi

Draft

540x720,4P,Bi

JV150-160

JV150-130 5,7

9,7

13,9

17,0

31,3

48,9

6,6

11,1

19,5

56,2

020 40 60

High Quality

720x1440,10P,Bi

Standard②

720x1080,6P,Bi

Standard①

720x720,4P,Bi

High Speed

540x720,4P,Bi

Draft

540x360,2P,Bi

Super Draft

360x360,1P,Bi

JV150-160

JV150-130

Print speed (SS21/BS3/BS4)

•4C ink set, CMYK

PVC

Banner

m²/h

The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type.

When the profile is not available, use MPM-3 to create the profile for the media.

* MAPS works with “Quality priority” setting in RasterLink6

** MAPS does not work

Mimaki Europe B.V.

Sign Graphics Products

3,1

4,1

5,7

7,1

8,5

15,5

24,4

3,6

4,7

6,6

8,2

9,8

17,8

28,1

010 20 30

Super Smooth

720x1440,18P,Bi

High Quality

720x1080,14P,Bi

Standard②

720x720,10P,Bi

Standard①

720x720,8P,Bi

High Speed

540x720,8P,Bi

Draft

540x360,4P,Bi

Super Draft

360x360,2P,Bi

JV150-160

JV150-130

*MAPS works with “Quality priority” setting in RasterLink6

** MAPS does not work

Print speed (SS21)

•8C: CMYKLcLmLkOr

m2/h

1,5

3,1

3,7

4,9

5,7

7,1

1,7

3,6

4,3

5,6

6,6

8,2

0 5 10 15 20

Super Smooth

1440x1440,20P,Bi

High Quality

720x1440,18P,Bi

Standard②

720x1080,16P,Bi

Standard①

720x1080,12P,Bi

High Speed

720x720,10P,Bi

Draft

720x720,8P,Bi

JV150-160

JV150-130

PVC Banner

The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type.

When the profile is not available, use MPM-3 to create the profile for the media.

m2/h
