Miele TWC220WP User manual
11946850-00
Installation
*INSTALLATION*
Front view
aMains connection cable
bControl panel
cCondensed water container
dDoor
ePlinth filter flap
f4height-adjustable feet
gCooling air grille
hDrain hose for condensed water
11946850-00
Installation
*INSTALLATION*
Rear view
aProtruding lid for holding when mov-
ing the appliance
bDrain hose for condensed water
cHook for winding up the mains con-
nection cable during transport
dMains connection cable
Transporting the tumble dryer
Danger of injury to people and
damage to property caused by mov-
ing the appliance incorrectly.
If the tumble dryer tips up there is a
danger of injury to people and dam-
age to property.
Ensure that the tumble dryer is stable
during transportation.
If the tumble dryer is being transpor-
ted on its side, it must be tipped onto
its left or right side.
If the tumble dryer is being transpor-
ted upright and you are using a hand
truck, you must transport it with its
left or right side resting on the truck.
Transporting the tumble dryer to its
installation site
Make sure the fixings at the back
of the lid are secure.
Otherwise there is a danger of the lid
being pulled off when carrying the
appliance.
Before carrying the appliance check
that the lid is secure where it pro-
trudes at the back of the appliance.
Carry the tumble dryer by the front
feet and by the lid where it protrudes
at the back of the appliance.
11946850-00
Installation
*INSTALLATION*
Installation
Levelling the tumble dryer
Ensure that no closeable door, slid-
ing door or oppositely hinged door is
installed that could hinder opening of
the tumble dryer door in any way.
To ensure proper operation, the tumble
dryer must stand perfectly level. The
screw feet on the tumble dryer can be
adjusted to compensate for unevenness
in the floor.
Turn the screw feet by hand or with a
flat open spanner.
Risk of fire and explosion due to
damage to the tumble dryer.
The refrigerant is flammable and ex-
plosive.
Do not make any alterations to the
tumble dryer. Take measures to pro-
tect the tumble dryer against dam-
age.
If the tumble dryer is damaged, proceed
as follows:
- Avoid naked flames or anything
which creates a spark.
- Disconnect the tumble dryer from the
electrical supply.
- Air the room where the tumble dryer
is located.
- Contact the Miele Customer Service
Department.
Downtime after installation
Damage to the tumble dryer by
switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer wait
for at least one hour before switching
it on.
11946850-00
Installation
*INSTALLATION*
Ventilation
The cool air intake at the front of the
tumble dryer must not be blocked or
covered. This would hinder a suffi-
cient intake of cool air for the heat
exchanger.
Do not block the gap between the
bottom of the tumble dryer and the
floor with plinth facings, deep pile
carpet etc. This would hinder a suffi-
cient flow of air to the tumble dryer.
The hot air that is blown out from the
heat exchanger warms the room air. En-
sure sufficient ventilation of the room:
e.g., open the window. The drying time
will otherwise take longer (higher energy
requirement).
The heat pump that is essential to
the operation of this tumble dryer
generates a great deal of heat inside
its casing. There must be a reliable
means of dissipating this heat.
Otherwise loads could take longer to
dry or the tumble dryer might sustain
damage in the long term.
Permanent room ventilation during
every drying programme and the gap
between the bottom of the tumble
dryer and the floor are mandatory re-
quirements at all times.
Before moving the tumble dryer
again
A small quantity of condensed water
that remains in the area around the
pump after the drying process can run
out if the tumble dryer is tilted. Recom-
mendation: start a programme for ap-
prox. 1minute before transporting the
dryer. Any remaining condensed water
will then be fed into the condensed wa-
ter container (which you will need to
empty again) or out through the drain
hose.
11946850-00
Installation
*INSTALLATION*
Additional installation require-
ments
Slot-in
This tumble dryer is suitable for pushing
under a worktop.
Appliance defect due to a build-up of
heat.
Make sure there is adequate room
for warm air from the dryer to be dir-
ected away.
- The appliance lid cannot be removed.
- The electrical socket must be located
in an accessible position near the
tumble dryer.
- Drying durations may increase
slightly.
Optional accessories
– Washer-dryer stack
The tumble dryer can be combined with
a Miele washing machine in a washer-
dryer stack. The appropriate Miele
washer-dryer stacking kit is required.
– Plinth
The tumble dryer can be fitted on a
plinth with drawer (please note the
plinth may not be available in all coun-
tries).
11946850-00
Installation
*INSTALLATION*
External condensed water out-
let
Note
When drying is in progress, con-
densed water is pumped into the con-
densed water container through the
drain hose which is located at the
back of the dryer.
The condensed water can also be ex-
ternally drained away via the drain hose
at the back of the dryer. This means
that the condensed water container no
longer has to be emptied.
Drain hose length: 1.49m
Max. delivery head: 1.00m
Max. drain hose length: 4.00m
Drainage accessories
- Supplied: Adapter (b), Hose clip (c),
Hose holder (e);
- Available to purchase: “Non-return
valve” kit for connection to an ex-
ternal water connection. Non-return
valve (d), Hose extension (a) and
Hose clips (c) are supplied.
Installation conditions requiring a
non-return valve
Danger of condensed water
back-flow.
Water could flow back into the
tumble dryer or be drawn into it.
Back-flow water could damage the
tumble dryer and also the room in
which it is located.
The non-return valve should be used
if the end of the hose is immersed in
water, or if other water connections
are installed.
Maximum delivery head with non-return
valve fitted: 1.00m
Installation conditions requiring the fit-
ting of a non-return valve:
- Drainage into a sink or floor gully
where the end of the hose is im-
mersed in water.
- Connection to a sink drain outlet.
- Connection to a drainage system
already in use by another appliance,
e.g. a dishwasher or washing ma-
chine.
If the non-return valve is incorrectly
fitted the appliance will not drain.
The non-return valve has to be fitted
with the arrow on it pointing in the
direction of flow.
11946850-00
Installation
*INSTALLATION*
Arranging the drain hose
Damage to the drain hose
through incorrect handling.
The drain hose can suffer damage
and leak.
Do not pull on the drain hose and do
not stretch it or allow it to become
kinked.
There will be a small amount of residual
water left in the drain hose. Have a con-
tainer ready to collect this.
Pull the drain hose off its connection
(light arrow).
Pull the hose out of the holders (dark
arrow) and unwind it.
Allow any residual water to run into a
container.
Examples
Drainage into a sink or floor gully
Use the hose holder to secure the drain
hose.
Water damage.
Should the end of the hose come
loose, overflowing water can cause
damage.
Secure the drain hose carefully (e.g.,
by tying it) to make sure it cannot
slip.
The non-return valve can be fitted in the
end of the hose.
11946850-00
Installation
*INSTALLATION*

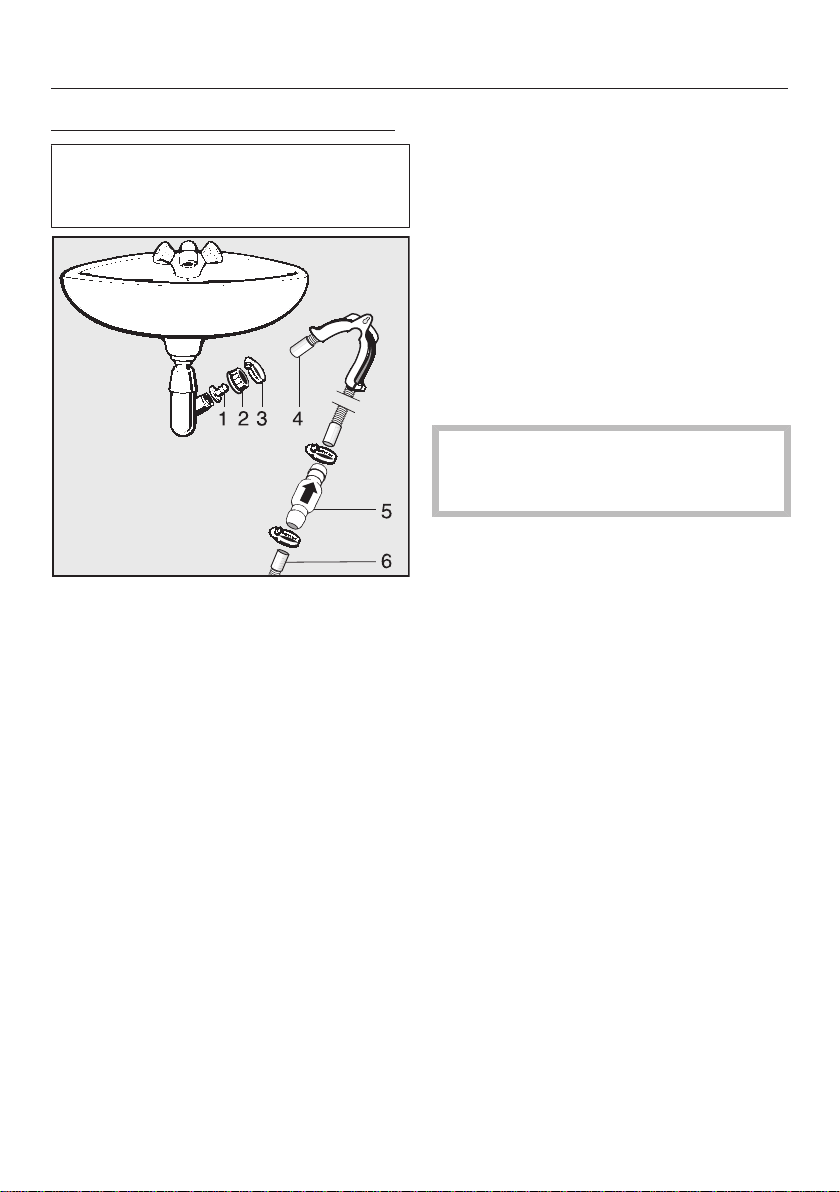

Direct connection to a sink drain outlet
Use the hose holder, the adapter, the
hose clips and the non-return valve
(available to purchase).
1. Adapter
2. Nut
3. Hose clip
4. End of the hose (secured with the
hose holder)
5. Non-return valve
6. Tumble dryer drain hose
Fit adapter 1 to the sink drain outlet
using nut 2.
The nut is usually fitted with a washer
which must be removed.
Attach the end of the hose 4 to ad-
apter 1.
Use the hose holder.
Use a screwdriver to tighten hose clip
3 up close to the nut.
Fit non-return valve 5 to tumble dryer
drain hose 6.
Non-return valve 5 has to be fitted so
that the arrow points in the direction
of flow (i.e. towards the sink).
Secure the non-return valve using
hose clips.
11946850-00
Installation
*INSTALLATION*
Changing the door hinging
You can change the door hinging on
this tumble dryer yourself.
For safety reasons the tumble dryer
must be disconnected from the elec-
tricity supply before changing the
door hinging.
You will need:
- a Torx T20 and T30 screwdriver
- a flat head screwdriver or pointed pli-
ers
- the lock catch cover supplied
- the door hinge cover supplied
- a soft surface (e.g. a tablecloth)
Changing the hinging over

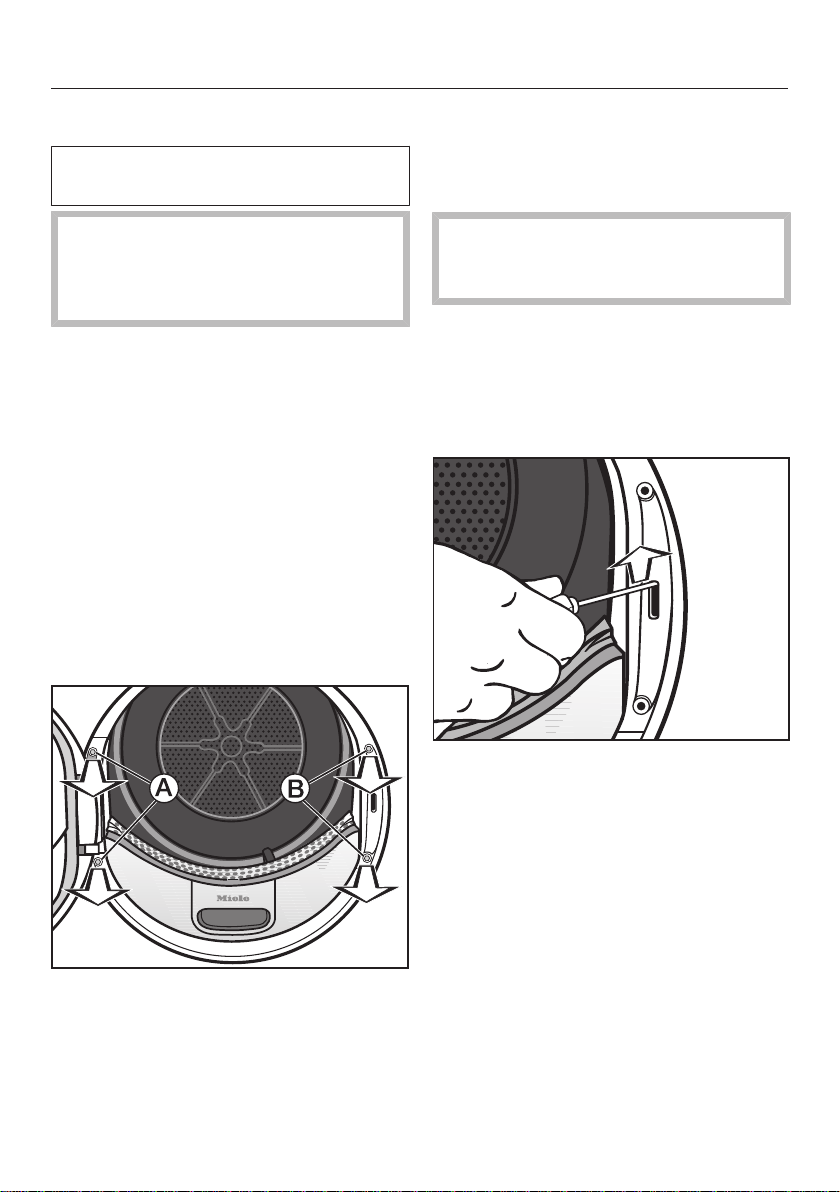

1. Remove the door from the dryer
Open the door.
Use a T30 Torx screwdriver to un-
screw the two screws on the base
plate of the door hinge .
The door cannot fall off as it is held in
place by 2 pins.
Hold the door securely and pull it for-
wards: to remove the door you will
need to pull the base plate of the
hinge with its 2 pins out of the dryer.
To avoid scratching the door, place it
outer side downwards on a soft sur-
face (e.g. a tablecloth).
2. Change over the door lock on the
dryer
Use a Torx T30 screwdriver to un-
screw the two screws on the door
lock .
Use the screwdriver to press the door
lock upwards.
The door lock will spring out of its posi-
tion and can then be removed.
11946850-00
Installation
*INSTALLATION*
Turn the door lock through 180°.
Press the door lock into openings
on the opposite side of the door
opening.
Adjust the position of the door lock
so that the screw holes line up with
those in the front panel of the dryer
.
Secure the door lock with the two
Torx screws.
3. Remove the lock catch from the
door
First take the rubber seal off the door
and place this to one side.
Use a T20 Torx screwdriver to remove
screw on the lock catch.
Pull off the lock catch together with
lock catch cover .
Remove the lock catch from the
cover.
This lock catch cover is no longer
needed, however, please keep it in a
safe place.
Table of contents
Other Miele Dryer manuals
Miele
Miele PDR 510 EL User manual
Miele
Miele TXR 860 WP User manual
Miele
Miele TOUCHTRONIC T 8003 User instructions
Miele
Miele PT 8257 WP User manual
Miele
Miele EcoSpeed TWD440 WP User manual
Miele
Miele T 1039C CONDENSER DRYER - OPERATING User manual
Miele
Miele PT 7136 User manual
Miele
Miele PT 8301 SL User manual
Miele
Miele PDR 516 SL EL User manual
Miele
Miele T 1576 VENT ED DRYER - OPERATING User manual
Miele
Miele TWV 680 WP User manual
Miele
Miele T8012C User manual
Miele
Miele TOUCHTRONIC T 9820 User manual
Miele
Miele T 8402 C User manual
Miele
Miele Novotronic T 220 User manual
Miele
Miele T 490 User manual
Miele
Miele PT 6185 User manual
Miele
Miele TXR 860 WP User manual
Miele
Miele PDR 514 User manual
Miele
Miele PT 5137 WP User manual
Popular Dryer manuals by other brands
Bosch
Bosch WTA79200GB Installation and operating instructions
Amana
Amana W10233410A Use and care guide
Asko
Asko T760 user guide
Alliance Laundry Systems
Alliance Laundry Systems 25 Series Original instructions
Bosch
Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions
STIEBEL ELTRON
STIEBEL ELTRON Ultronic S Operation and installation
Infiniton
Infiniton SD-DG85C manual
BOMANN
BOMANN WT 5019 instruction manual
Alliance Laundry Systems
Alliance Laundry Systems TMB795C Installation
Asko
Asko T793C operating instructions
Kenmore
Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
Frigidaire
Frigidaire CAQE7077KW0 use & care
