Miele TOUCHTRONIC T 9820 User manual

Installation instructions for the

T 9820 Gas Dryer

The T 9820 gas dryer is only

approved for use in the USA

and Canada. It is not approved

for use in Mexico.

To prevent accidents

and machine damage

read these instructions

before

installation or use. M.-Nr. 07 268 180

en - US, CA

,WARNING

For your safety the information in this manual

must be followed to minimize the risk of fire or

explosion or to prevent property damage,

personal injury or death.

–Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

–WHAT TO DO IF YOU SMELL GAS

ßDo not try to light any appliance.

ßDo not touch any electrical switch.

ßDo not use any phone in your building.

ßClear the room, building or area

of all occupants.

ßImmediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s

instructions.

ßIf you cannot reach your gas supplier,

call the fire department.

–Installation and service must be performed by a

qualified installer, service agency or the gas

supplier.

(In Massachusetts a licensed plumber / gas fitter.)

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Stand ............................................................7

Installation site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Transporting the dryer to the installation site.............................11

Level the dryer ....................................................11

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Ducting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

How to calculate the effective duct length ..............................19

Exhaust connection with a flexible exhaust hose or rigid pipe ...............22

Direct wall connection ..............................................24

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Contents

Installation and connection

When using your gas appliance

follow basic safety precautions

including the following:

~Installation, repair and maintenance

work should be performed by a

qualified installer, service agency or the

gas supplier. Work by unqualified

persons could be dangerous and could

void the warranty.

~In Massachusetts:

This dryer must be installed by a

licensed plumber or gas fitter.

~Before installation, disconnect the

tumble dryer from the electrical supply

by shutting off the power main,

unplugging the power cord or tripping

the circuit breaker. Do not restore

power until the installation is complete.

~GROUNDING INSTRUCTIONS

This appliance must be grounded. In

the event of malfunction or breakdown,

grounding will reduce the risk of

electric shock by providing a path of

least resistance for electric current. This

appliance is equipped with a cord

having an equipment grounding

conductor and a grounding plug. Only

place the plug in an appropriate outlet

that is properly installed and grounded

in accordance with all local codes and

ordinances.

~WARNING – Improper connection of

the equipment grounding conductor

can result in a risk of electric shock.

Check with a qualified electrician if you

are in doubt as to whether the

appliance is properly grounded.

~Do not modify the plug provided

with the appliance! If it will not fit the

outlet, have a proper outlet installed by

a qualified electrician.

~Do not use an extension cord to

connect this appliance to the power

supply. Extension cords do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

~This dryer must be vented outdoors

to reduce the risk of fire. Be sure to

observe local building codes.

~Use flexible or rigid metal pipe for

venting. Non-metallic flexible hose

should not be used, it is a potential fire

hazard.

IMPORTANT SAFETY INSTRUCTIONS

~The dryer exhaust must not be

connected to a chimney, fireplace

ducting, a combustion appliance vent

flue, a wall, ceiling or concealed space

of a building.

~Do not install the machine in rooms

where temperatures below freezing

may occur.

~Proper installation is the

responsibility of the installer.

~Product failure due to improper

installation is not covered under the

Warranty.

~Gas dryers are not approved for

mobile home installation.

~If there is any doubt concerning

installation, contact Miele’s Technical

Service Department.

U1-800-999-1360

[email protected]

V1-800-565-6435

[email protected]

IMPORTANT SAFETY INSTRUCTIONS

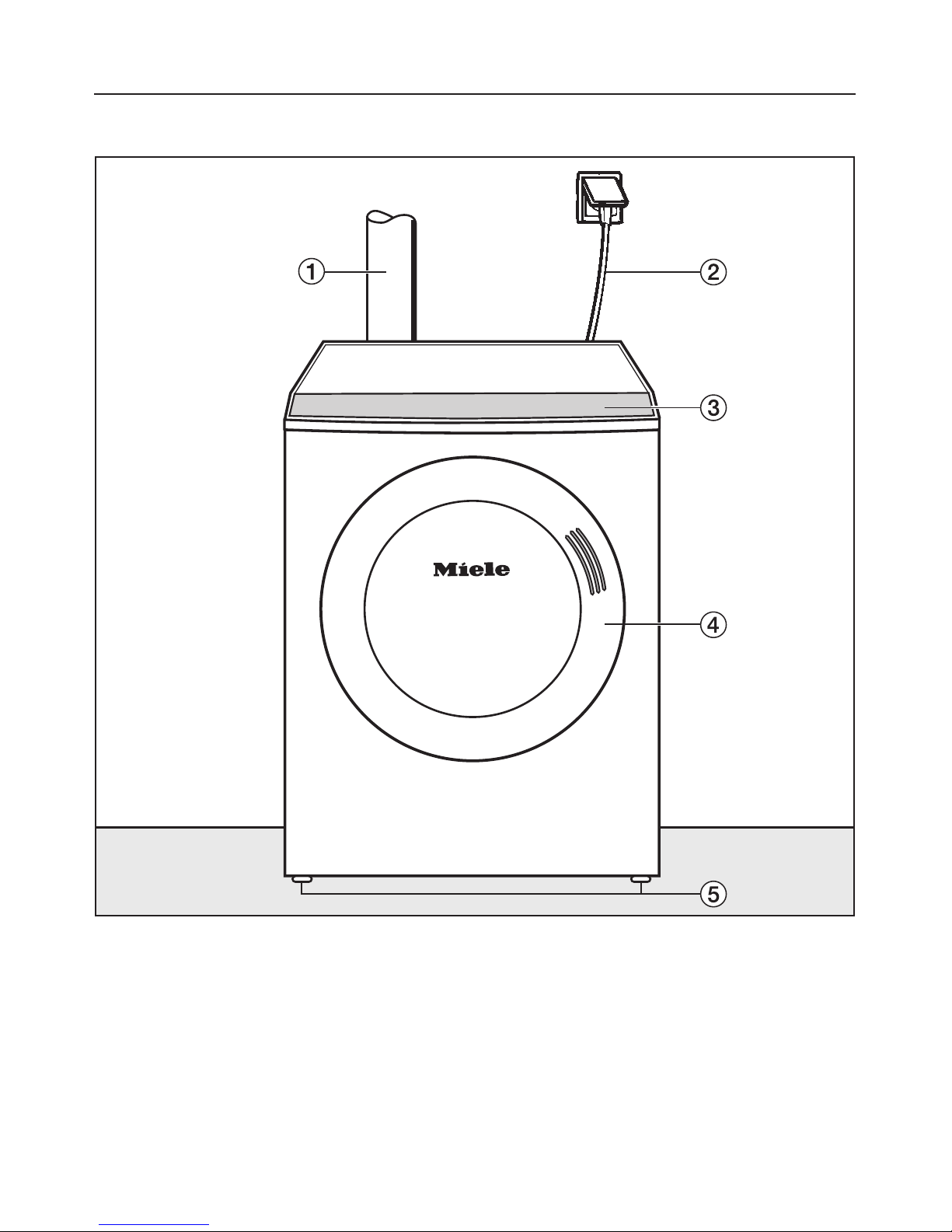

Front view

aExhaust connection

bPower cord with plug

cControl panel

dDoor

eFour height adjustable screw feet

Stand

A dryer stand, with drawer, can be

purchased as an optional accessory.

Installation

Rear

aHandle for transportation (arrows)

bPower cord with plug

cSlot for module

dAir intake

eGas connection

fVent connection with restriction insert

,WARNING

Do not remove the restriction insert

in the vent opening. It may result in

poor drying results, damage to the

laundry and higher Carbon

monoxide emissions.

Installation

,WARNING:

Do not install the dryer:

- outdoors

- in an environment with dripping

water or weather

- near flammable materials

- in rooms which may contain gas

or other fuels

- in closets with solid doors

- with other fuel-burning

appliances in the same closet

- in a location where its door

could conflict with room doors.

- next to a refrigerator

- under a countertop

- on top of a washer.

,The National Fuel Gas Code

restricts installations of gas

appliances in garages. They must

be 18 inches off the ground and

protected by a barrier from

vehicles.

Installation site

Confined space installation

^When installed in any space with less

than 122 square feet, minimum

clearances around the dryer must be

adhered to for proper ventilation and

vents for make up air must be

installed.

^Do not install any other fuel-burning

appliance in the same space as the

dryer.

Confined door openings

Any doors limiting circulation must be

louvered or otherwise ventilated.

Aminimum of 200 square inches

(1,290 cm2) of opening is required. It

must be equally divided within 12"

(30.5 cm) from the top and bottom of

the door.

Minimum installation clearance

Sides: 0"(0cm)

Top: 12" (30.5 cm)

Rear: 0" (0 cm) (as close to wall as

gas connection and venting allows)

Front to door: 2" (5 cm)

Make sure the dryer door can open

completely once installed.

Exhaust duct clearance

to combustible material: 2" (5 cm)

Installation site
