OWNER’S MANUAL
AIR COOLER
Model: AC100-20ARB
READ AND SAVE THESE INSTRUCTIONS
Attention: Pictures in the IM are for reference only.
1
IMPORTANT SAFETY INSTRUCTIONS
Read Rules for Safe Operation and Instructions Carefully.
Caution
WARNING
1. If the supply cord is damaged, it must be replaced by
manufacturer, its service agent or a similarly qualified person
in order to avoid a hazard.
2. Household and indoor use only.
3. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
4. Unplug the appliance during filling and cleaning.
5. Prior to cleaning or other maintenance, the appliance must be
disconnected from the supply mains.
6. Correct Disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems
or contact the retailer where the product was purchased. They
can take this product for environmental safe recycling. The
packaging material is recyclable. Dispose of the packaging in
an environmentally friendly manner and make it available for
the recyclable material collection-service.
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING
7. Non-specialized personnel or unauthorized repair personnel
shall not to repair or modify the machine.
8. It is forbidden to operate with wet hands to avoid electric
shock.
9. If the unit is not in use for a long time, unplug the power cord.
10. To prevent accidental injury or damage to the unit, please do
not insert any foreign matter into the air inlet and outlet,
because the unit incorporates a high-speed wind rotor.
11. It is prohibited to use this unit in environments with flammable
and explosive gases and direct sunlight for a long period shall
be avoided.
12. Do not place this unit in an inclined or other uneven place to
prevent the unit from falling and causing damage to the unit
or internal parts.
13. This machine has a safety switch. If the honeycomb filter
support has not been installed well, the unit will not work as
usual; when the machine is working, do not remove the
honeycomb filter frame.
14. At any time the water level in the tank shall not exceed
"MAX" (maximum) scale, and during humidification, the total
water level in the tank shall be controlled, and shall not be
below "MIN" (minimum) scale.
15. After the water tank is filled with water, do not tilt or collide
with the unit when placing or moving it. To move the unit
body, please drive it slowly from the side to prevent water
overflow.
16. In using the unit, prohibit overturning to avoid any accident.
If the unit topples over accidentally, and it contains water,
unplug the power cord immediately and take it to repair store.
3
17. Do not place items on the unit, and covering the outlet is
strictly prohibited.
18. When wash the unit appearance, apply a damp cloth (or add
a little cleaning agent) to wipe, and never use corrosive
cleaning agent or solvent for cleaning. Never rinse the unit
with water.
19. Do not have the air inlet and outlet of the unit close to walls,
curtains and other objects, or they may block the airflow and
affect air supply.
20. When the unit is running, do not knock at or shock the unit
body forcibly or it may lead to automatic shutdown, in which
case simply restart the unit.
21. In summer, the water in the tank may easily deteriorate and
generate odor, please pay attention to regular change of
water; if the indoor temperature is below zero in winter
humidification, it is best to use warm water for humidification.
22. Do not place the unit directly below the power outlet.
23. Do not use the unit around the tub, sprinkler or swimming
pool.
24. Product repair must be carried out in a designated agency.
25. To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
26. Use a soft cloth moisten with mild soap, and then use a dry
cloth to wipe it again.
27.Be aware that high humidity levels may encourage the growth
of biological organisms in the Environment.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
4
1. Never insert fingers, pencils, or any other object through the
grille when fan is running.
2. Disconnect fan when moving from one location to another.
3. Be sure fan is on a stable surface when operating to avoid
overturning.
4. DO NOT use fan in window, rain may create electrical hazard.
5. Household use only.
RULES FOR SAFE OPERATION
28.Do not permit the area around the humidifier to become damp
or wet. If dampness occurs, turn the output of the humidifier
down. If the humidifier output volume cannot be turned down,
use the humidifier intermittently. Do not allow absorbent
materials, such as carpeting, curtains, drapes, or tablecloths,
to become damp.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
5
Control part
Reel
Water tank
buckles
Wet curtain
Ice crystal box
Water tank
PRODUCT INTRODUCTION
Notice
Pictures in the manual are for reference only, and real objects within the packaging box will
prevail in the end.
Notice
Parts name
Guidance on feeding water and disassemble & washing of the
water tank
INSTRUCTIONS
Please clean up water accumulated at the bottom of the water tank in a timely manner when the product
is left unused.
Please remove the power plug when feeding water and cleaning.
Please make sure that the water pump module is fixed in position before startup. Random displacement
of the water pump module can cause the abnormalities of the product in cool wind function.
Two ways for feeding water:
①Pull out half of the water tank, and feed water directly without disassembling the water pump module.
②Separate water pump module, and fully pull out the water tank, to feed water or clean the water tank.
6

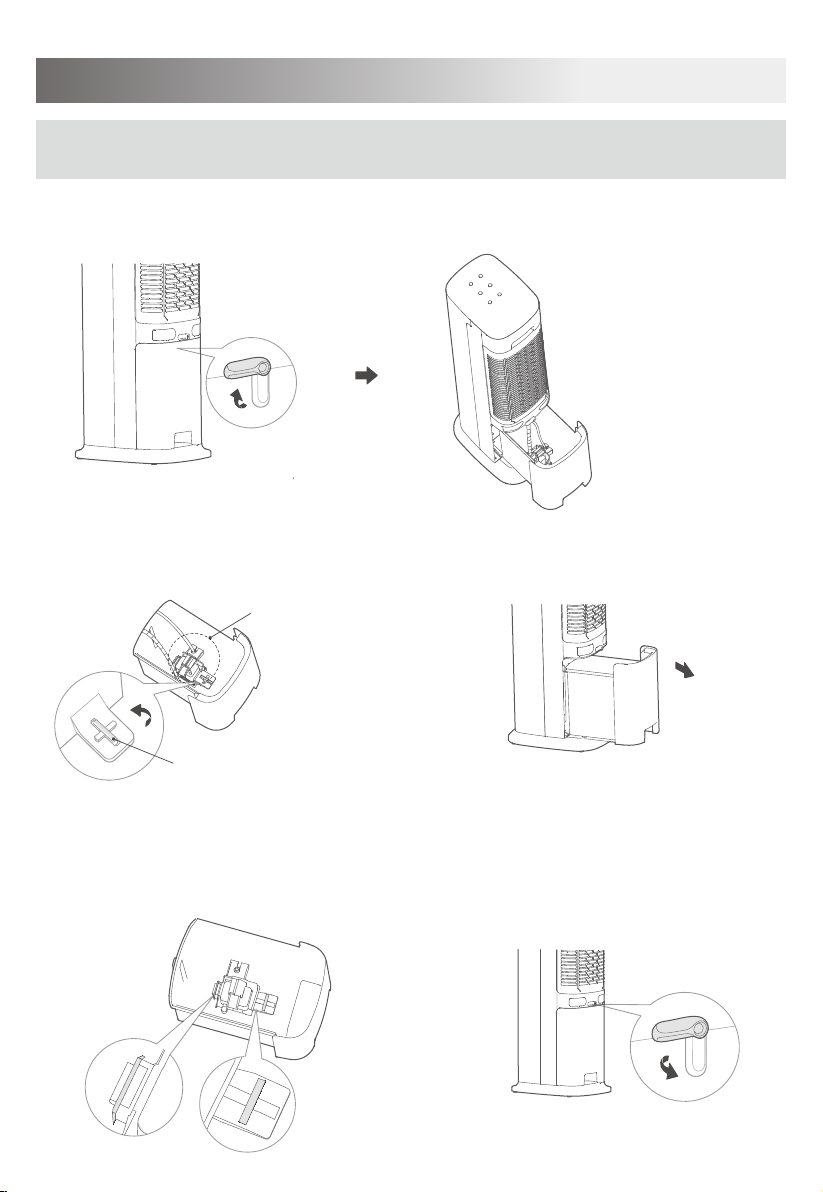

Pull out the water tank to the position
as shown in the figure (push the water
tank inside after feeding water)
2
Pull the water tank buckle to
the horizontal state.
1
Guidance on feeding water and disassemble & washing of the
water tank
INSTRUCTIONS
Unscrew the rotary knob in "—" shape
manually (90° anticlockwise) to separate
the water tank from the water pump
module (including the water pipe).
3Pull out the water tank slowly to
clean it up or feed water.
4
After feeding water or cleaning the water
tank, install the water pump module in the
water tank. Insert front hook into the slot
of the water tank, and then rotate rotary
knob in "—" shape clockwise for 90°, and
close it as shown in the figure.
5Push the water tank inside slowly, and
stir the water tank buckle to lock it up.
6
Water pump module
Rotary knob in "—" shape
7
1Pull out half of the water tank below
the machine.
Scale of the water tank
①The ice crystal box can be frozen repeatedly and recycled; You can also choose not to use it
based on the temperature.
②Please keep the ice crystal box closed to prevent from damage and liquid leakage.
③The ice crystal box is made of eco-friendly and toxic-free materials, and can be refrigerated in
fridge safely.
④When using the frozen ice crystal box in the water tank, the temperature at the air outlet will drop
after operating cool wind function.
⑤Ice blocks can be used to replace the frozen ice crystal box, to exert the same cooling effect.
⑥Control the water level of the water tank to be lower than the "max" (maximum) indicating scale
when feeding water, and if the water level is lower than "min" (minimum) indicating scale, please
feed water in time.
Take the ice crystal box out of the
package and place it inside a refrigerator
to freeze for more than 3 hours. Put the
frozen ice crystal box in the water tank,
and feed water below "max" (maximum)
indicating scale.
Usage of the ice crystal box
INSTRUCTIONS
Notice
2
8
The product is activated or shut down.
Touch the air swing button, to activate or shut down air swing.
Buttons Function description
Startup/Standby
Timing/
Reservation
Wind type
Air swing
Wind speed
Cool wind
Press the button to switch wind speed to low-grade , medium-grade
, and high-grade .
Press the button to select among these three types of wind: Normal wind
(grade 3, the wind speed indicator light is on), sleep wind (grade 1,
sleep wind the indicator light is on), natural wind (grade 1,
natural wind the indicator light is on).
The indicator light will be on when pressing the button under startup
state, and the timed shutdown time can be set by shortly pressing the
button (the cyclic is based on 1-2-3 ···-7-0-1··· )
The indicator light will be on when pressing the button under standby
state, and the reserved startup time can be set by shortly pressing the
button (the cyclic is based on 1-2-3 ···-7-0-1···)
Shortly press to open or close cool wind under startup state. The
experience effect is better, when opening the cool wind function in dried
or hot weather.
If indicator light flashes, please feed water in time, and repress
Operating instructions of the machine body
INSTRUCTIONS
9
Notice
Notice

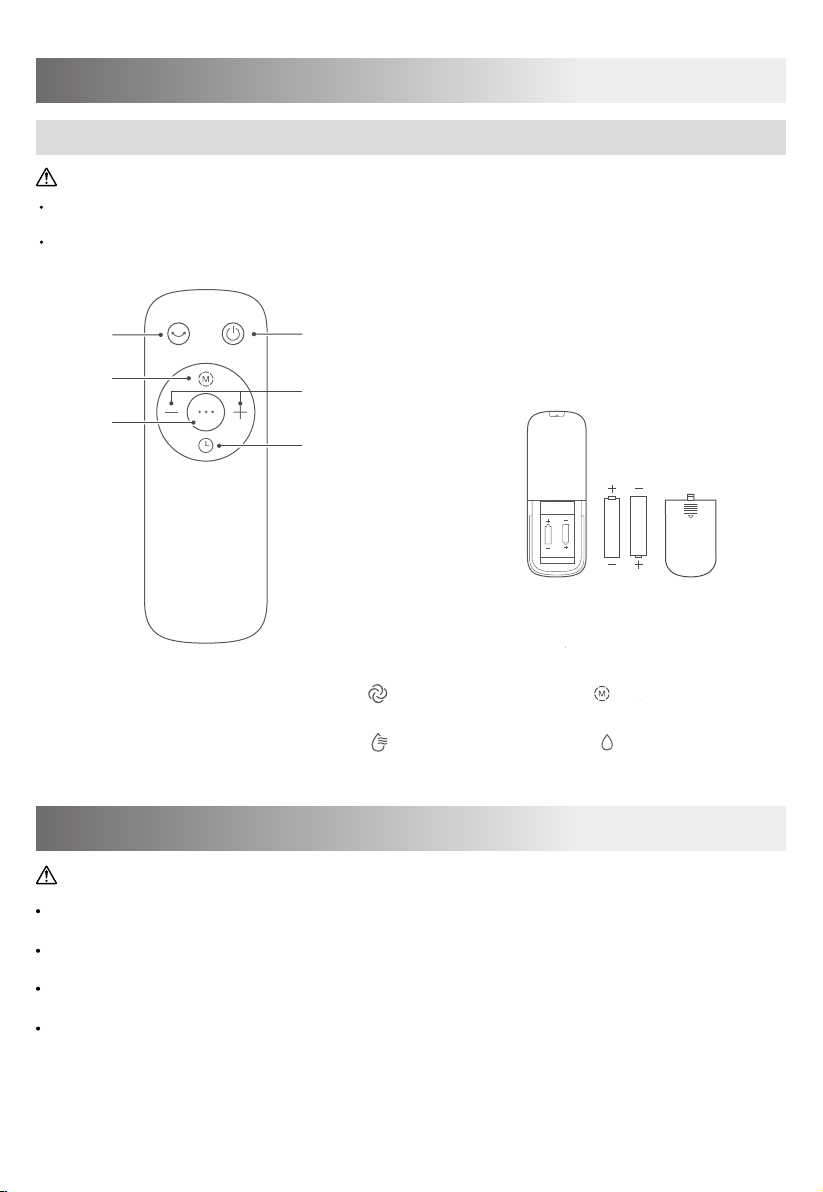

The remote control should be normally used within 5 meters of the front of the product and 30 degrees
of the deviation angle.
The battery contains many heavy metals, acids and bases, etc., which may threaten human's health;
Waste batteries should be recycled separately.
Note: Both machine body operation " " and remote control " "
are buttons of wind type;
Both machine body operation " " and remote control " "
are buttons of cool wind;
Open/stop
air swing
Startup/Standby
Set the timed shutdown/
reserved startup
"+" indicates accelerating
wind speed
"-" indicates decreasing
wind speed
Set wind
type
Open/close
cool wind
Remote control button description
INSTRUCTIONS
CLEANING AND MAINTENANCE
AAA Battery, 1.5 V
Battery
Use manganese or alkaline batteries of type
"AAA". DO not use rechargeable batteries.
Disconnect the power before cleaning the product. Clean after the product is shut down for two
minutes.
Prevent from using any abrasive tools and solvents that may damage the surface to clean up the
product. Detergent can be used in the cleaning, and then wiped clean with dried cloth in time.
Prevent from washing the machine body with water directly, and wash disassemble parts (wet
curtain parts) with a soft brush and then install them after they are cleaned and dried.
It is not allowed to take the product apart for any modification. It is recommended that this product
should be checked and cleaned regularly in order to extend its service life.
Table of contents
Other Midea Air Conditioner manuals
Midea
Midea MAP12S1TBL User manual
Midea
Midea WCPPHA06CRA User manual
Midea
Midea MSG-24CR User manual
Midea
Midea CTBU-09HWFN1-M User manual
Midea
Midea CP012IU-PD User manual
Midea
Midea V6 Series User manual
Midea
Midea MTIU-18FNXD0 User manual
Midea
Midea PH Series User manual
Midea
Midea MFA-18HRDN1-Q User manual
Midea
Midea EWK06CW5 User manual
Midea
Midea Ultimate Comfort Series User manual
Midea
Midea MWB10CW71 User manual
Midea
Midea MSR1-09HRN1-QC2 User manual
Midea
Midea MAP05R1WT User manual
Midea
Midea mcd-24hrdn1 User manual
Midea
Midea MAW Series User manual
Midea
Midea MAW User manual
Midea
Midea MUB60HRN1 User manual
Midea
Midea MP15EMC62 User manual
Midea
Midea MSQ-07CR User manual
Popular Air Conditioner manuals by other brands
Fujitsu
Fujitsu Inverter ASBA30JFC operating manual
Toshiba
Toshiba RAS-M10SMUV-E installation manual
Daikin
Daikin FXLQ20MAVE Operation manual
Hitachi
Hitachi RAS-E24CAK instruction manual
CIAT
CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance
Bestron
Bestron AAC6000 instruction manual
