Metra Electronics 99-7516B User manual
METRA. THE WORLD’S BEST KITS.™
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
APPLICATIONS
1-800-221-0932 metraonline.com
INSTALLATION INSTRUCTIONS FOR PART 99-7516B
Small Flat Blade Screwdriver • Panel Removal Tool • Phillips Screwdriver
TOOLS REQUIRED
Mazda CX9 2007-up
99-7516B
B
E
C
F
A D
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket
KIT FEATURES
KIT COMPONENTS
• DIN radio provision with pocket
• ISO radio provision with pocket
• Double DIN radio provision
• Stacked ISO units provision
• Painted matte black to match factory
WIRING & ANTENNA CONNECTIONS (Sold Separately)
• MZTO-01 - Mazda Amp Integration Harness 2007-Up
• 70-7903T - Mazda service harness 2007-up
Table of Contents
Dash Disassembly
– Mazda CX9 2007-up 3-4
Kit Assembly
– DIN Head Unit provisions with pocket 5
– ISO DIN head unit provisions with pocket 6
– DDIN/stacked ISO DIN head unit provision 7
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
99-7516B
Caution
Metra recommends disconnecting the negative battery terminal before beginning any
installation. All accessories, switches, and especially air bag indicator lights must be
plugged in before reconnecting the battery or cycling the ignition.
*NOTE: Refer also to the instructions included with the aftermarket radio.

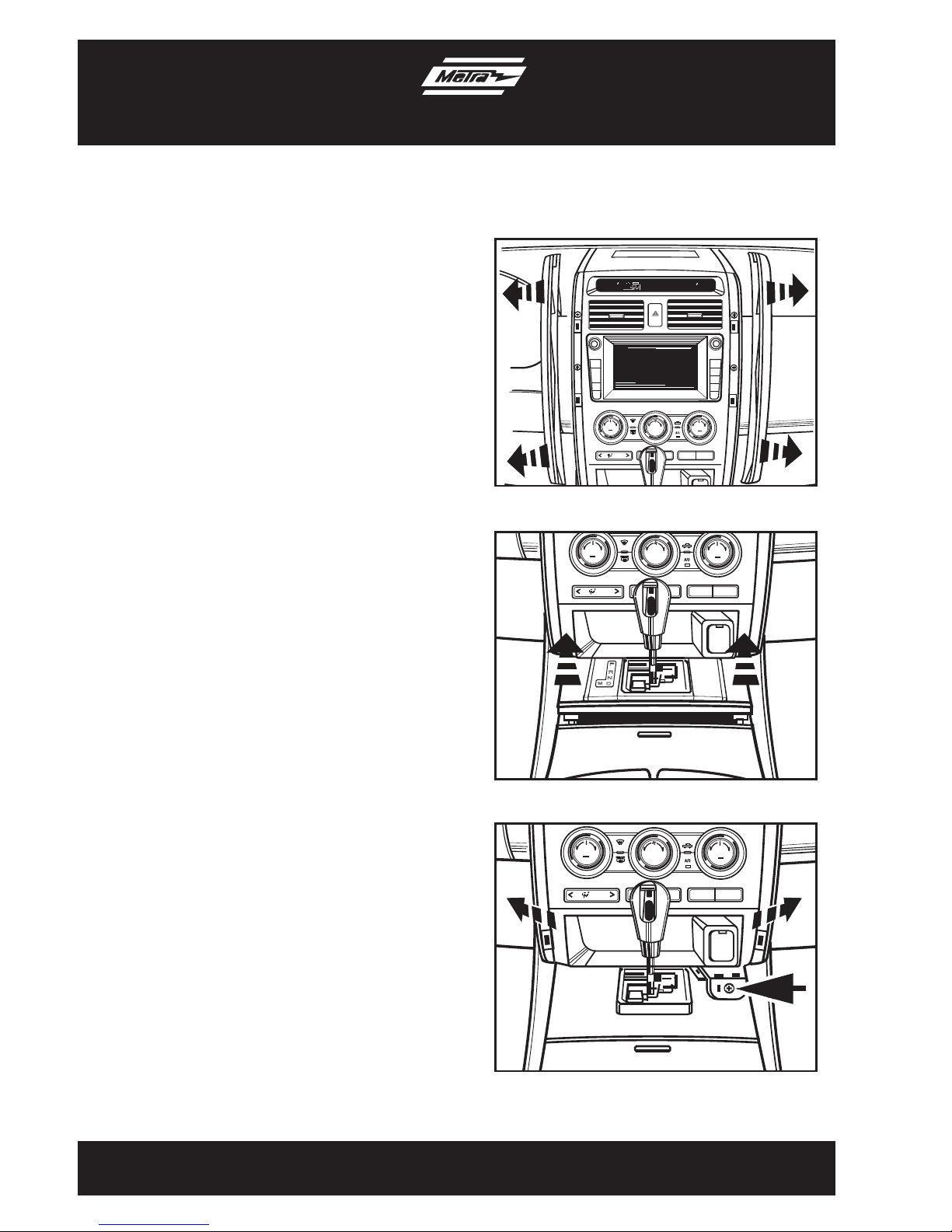

1. Unclip and remove both side panels
from center radio trim panel.
(Figure A)
2. Unclip and remove the shifter trim
panel. (Figure B)
3. Remove (1) Phillips screw from the
accessory socket trim panel then unclip
and remove the panel. (Figure C)
Continued on next page
3
Dash Disassembly
99-7516B
73 73
883
0FM1ch1
VOL
PUSH POWER
TUNE
PUSH AUDIO
LOAD/
SOURCE
SCAN
INFO
RETURN
MENU
DISP
MAP
VOICE
SEEK
TRACK
PUSH
AUTO ON
PUSH
OFF
PUSH
DUAL
PASS
A/C
LO HI
FRONT
REAR
MODE OUTSIDE
TEMP
P
R
N
D
M
73 73
883
0FM1ch1
VOL
PUSH POWER
TUNE
PUSH AUDIO
LOAD/
SOURCE
SCAN
INFO
RETURN
MENU
DISP
MAP
VOICE
SEEK
TRACK
PUSH
AUTO ON
PUSH
OFF
PUSH
DUAL
PASS
A/C
LO HI
FRONT
REAR
MODE OUTSIDE
TEMP
P
R
N
D
M
73 73
883
0FM1ch1
VOL
PUSH POWER
TUNE
PUSH AUDIO
LOAD/
SOURCE
SCAN
INFO
RETURN
MENU
DISP
MAP
VOICE
SEEK
TRACK
PUSH
AUTO ON
PUSH
OFF
PUSH
DUAL
PASS
A/C
LO HI
FRONT
REAR
MODE OUTSIDE
TEMP
(Figure A)
(Figure B)
(Figure C)
4
99-7516B
Dash Disassembly
4. Remove (2) Phillips screws from the
radio trim panel. (Figure D)
5. Unclip and remove the entire radio trim
panel including the A/C controls.
(Figure D)
6. Remove (4) Phillips screws securing
the radio.
Continue to kit assembly
VOL
PUSH POWER
TUNE
PUSH AUDIO
LOAD/ INFO
RETURN
MAP
VOICE
SEEK
TRACK
73 73
883
0FM1ch1
PUSH
AUTO ON
PUSH
OFF
PUSH
DUAL
PASS
A/C
LO HI
FRONT
REAR
MODE OUTSIDE
TEMP
(Figure D)
5
Kit Assembly 99-7516B
1. Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
2 Slide the DIN cage into the radio
housing and secure by bending the
metal locking tabs down. (Figure A)
3. Snap the pocket into the bottom
opening of the radio housing.
(Figure B)
4. Slide the aftermarket head unit into the
cage and secure. (Figure C)
5. Reassemble dash in reverse order
of disassembly.
DIN head unit provision with pocket
(Figure A)
(Figure B)
(Figure C)
Kit Assembly 99-7516B
6

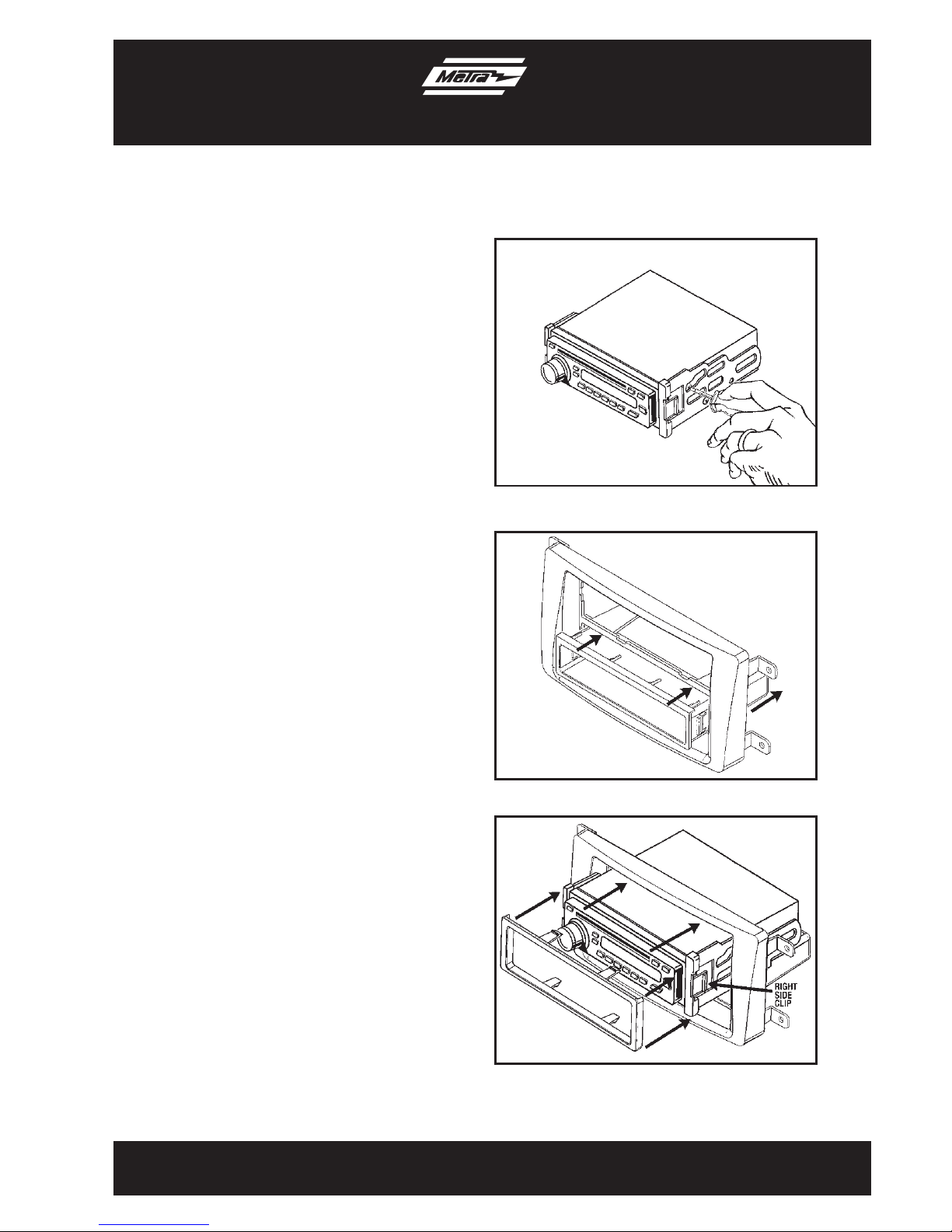

ISO DIN head unit provision with pocket
(Figure A)
(Figure B)
(Figure C)
1. Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
2 Mount the ISO brackets to the head unit
with the screws supplied with the unit.
(Figure A)
3. Snap the pocket into the bottom
opening of the radio housing. (Figure B)
4 Slide the head unit into the radio
opening until the side clips engage.
(Figure C)
5. Snap the Trim plate into the radio
housing. (Figure C)
6. Reassemble dash in reverse order
of disassembly.
Kit Assembly 99-7516B
7
Double DIN head unit provision/
stacaked ISO DIN head unit provision
(Figure A)
(Figure B)
(Figure C)
1. Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
2 Cut and remove the center bar from the
radio housing. (Figure A)
3. Snap the Double DIN brackets to the
inside edge of the Double DIN trim
plate. (Figure B)
4. Slide the double DIN head unit or
stacked ISO head units into the bracket/
radio housing assembly and secure the
double DIN head unit or stacked ISO
head units to the assembly using the
screws supplied with the radio.
(Figure C)
5. Snap the double DIN trim plate into the
radio housing. (Figure C)
6. Reassemble dash in reverse order
of disassembly.
METRA. THE WORLD’S BEST KITS.™
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
1-800-221-0932 metraonline.com
INSTALLATION INSTRUCTIONS FOR PART 99-7516B
REV. 6/02/11
