Metra Electronics 99-5822B User manual

INSTALLATION INSTRUCTIONS FOR PART 99-5822B

KIT FEATURES

•DIN Radio Provision With Pocket

•ISO Mount Radio Provision With Pocket

• Painted or Wood Grain

•A) Radio Housing • B) Radio Housing Brackets

•

C) Radio Housing Trim Panel

•D) ISO Brackets • E) ISO Trim Plate • F) (6) U Style Panel Clips

KIT COMPONENTS

1-800-221-0932

www.metraonline.com

•Cutting Tool • Phillips Screwdriver • Socket Wrench • Torx Driver

•Panel Removal Tool

TOOLS REQUIRED:

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

Harness:

•Please see www.metraonline.com for

specific interface harness

Antenna Adapter:

•40-CR10 - Chrysler antenna adapter 02-up

99-5822AS – PLATINUM / ASH SATIN

99-5822CM - KING RANCH / CURLY MAPLE

99-5822MM – LARIAT / MILANO MAPLE

99-5822B - BLACK

APPLICATIONS

2009-10 FORD F-150

LARIAT / KING RANCH / PLATINUM MODELS

(Not for NAV Equipped Models)

Dash Disassembly

FORDF-1502009-10 ..............................

. 1,2

Kit Preparation

FORDF-1502009-10................................

Kit Assembly

-DIN Radio Provision With Pocket ............................. 4

-ISO Mount Radio Provision With Pocket . . . . . . . . . . . . . . . . . . . . . . . 5

Final Assembly .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

TABLE OF CONTENTS

99-5822B

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

99-5822B DASH DISASSEMBLY

FORD F-150 2009-10

Remove the rubber pad at the top of

the radio trim panel then remove the

(2) 9/32” screws exposed. (

Figure B)

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the switch panel

to the right of the cigarette lighter

then remove the (1) 9/32” screw

exposed. (

Figure A)

Unclip and pull the side panels con-

taining the a/c vents away from the

radio trim panel. Note: It is not nec-

essary to remove the panels com-

pletely. (

Figure C)

Unclip and remove the radio trim

panel. (

Figure D)

Continued on page 2.

99-5822B DASH DISASSEMBLY

FORD F-150 2009-10

FACTORY RADIO TRIM PANEL-REAR VIEW

Remove (4) Torx screws securing the

factory climate control to the radio

trim panel. (

Figure G)

Unclip and remove the cigarette

lighter socket from the radio trim

panel. (

Figure F)

Remove (4) 9/32” screws to remove

the factory radio.

Unclip and remove the hazard/airbag

switchand driver info switch assem-

blies from the factory radio trim

panel. (

Figure E)

Continue to kit preparation.

99-5822B KIT ASSEMBLY

FORD F-150 2009-10

KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW

Secure the climate control into the

radio housing using the factory

hardware in the same location as

the factory radio trim panel. (

Figure C)

Clip the cigarette lighter socket into

the radio housing in the same loca-

tion as the factoryradio trim panel.

(

Figure B)

Attach the (6) U style panel clips to

the radio housing in the same

location as the factory radio trim

panel. (

Figure D)

Clip the hazard/airbag switch and

driver info switch assemblies into

the radio housing in the same loca-

tion as the factory radio trim panel.

(

Figure A)

Continue to kit assembly.

99-5822B KIT ASSEMBLY

DIN RADIO PROVISION WITH POCKET

Cut and remove the top (2) mounting

holes off of the radio housing.

Note: The notch in the housing

should be on top.

(Figure A)

Slide the included brackets onto the

sides of the radio housings pocket

from the back of the housing

forward.

(Figure B)

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down.

(Figure C)

Slide the aftermarket head unit into

the cage and secure.

(Figure D)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

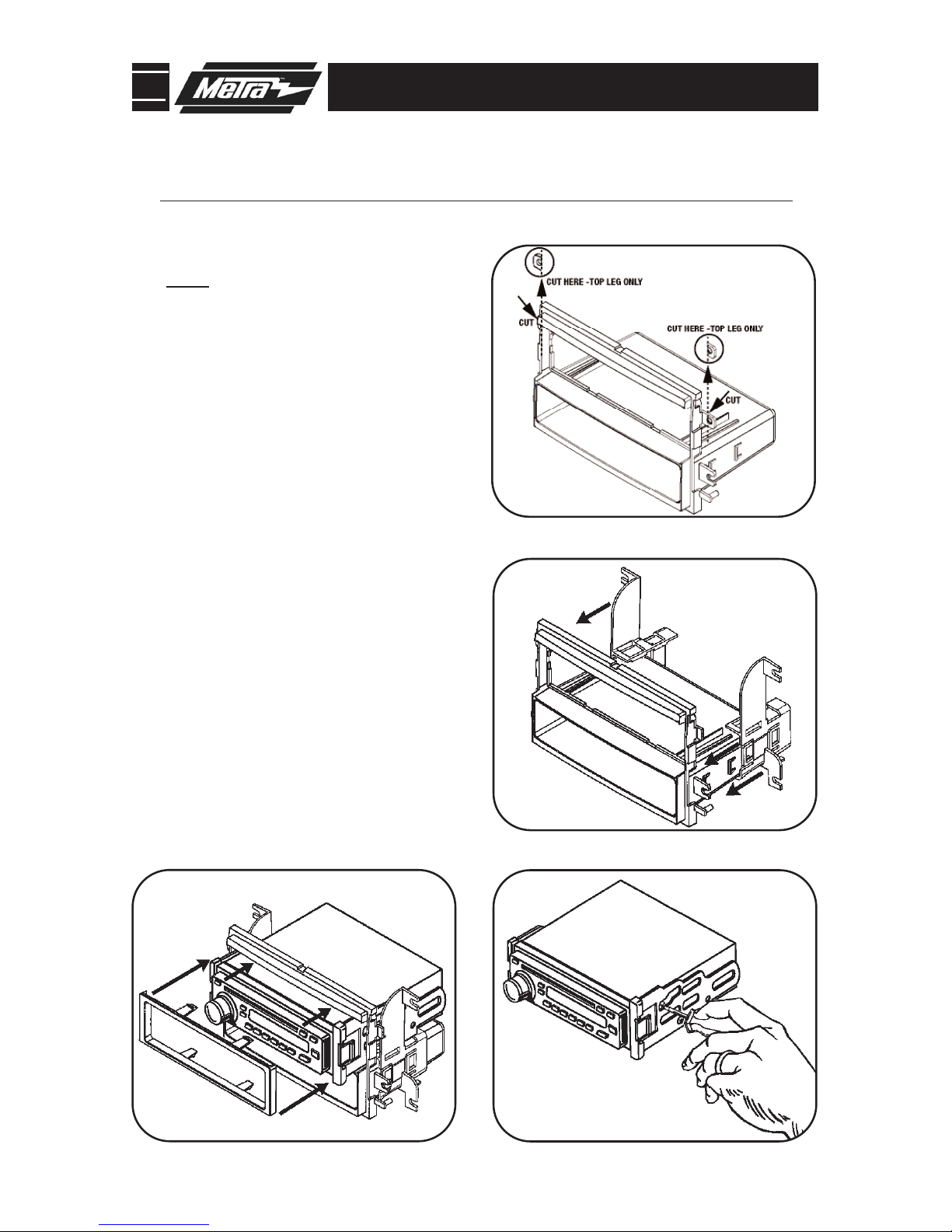

99-5822B KIT ASSEMBLY

ISO MOUNT RADIO PROVISION WITH POCKET

Cut and remove the top (2) mounting

holes off of the radio housing.

Note: The notch in the housing

should be on top.

(Figure A)

Slide the included brackets onto the

sides of the radio housings pocket

from the back of the housing

forward.

(Figure B)

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit.

(Figure C)

Slide the head unit into the radio

opening until the side clips engage.

(Figure D)

Snap the trim plate into the Radio

Housing.

(Figure D)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

99-5822B FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factorywiring harness in the dash. Metra recommends using the proper mating

adapter and making the connections as shown. (Isolate and individually tape off the ends of

any unused wires to prevent electrical short circuit).

Re-connect the negative batteryterminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly using the

99-5822B radio housing in place of the factory radio trim panel.

Make wiring connections using the EIA color code chart shown below and the instructions

included with the head unit. Metra recommends making connections shown below; Strip, Splice,

Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short

circuit.

FINAL WIRING CONNECTIONS

METRA / EIA WIRING CODE

12V Ignition / Acc..........Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna............Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE:

When a Blackwireis not present, ground radio to vehicle chassis. All colors may not be

present on all leads due to manufacturer’sspecifications.

1-800-221-0932

www.metraonline.com
