Metra Electronics 99-7329 User manual
METRA. THE WORLD’S BEST KITS.™
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
APPLICATIONS
1-800-221-0932 metraonline.com
INSTALLATION INSTRUCTIONS FOR PART 99-7329
REV. 3/23/12
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1004 Hyundai/Kia harness 2004-up
• 70-7303 Hyundai/Kia harness 2009-up
Antenna Adapter:
• 40-KI11 Hyundai/Kia antenna adapter
• Small flat blade screwdriver • Panel removal tool • Phillips screwdriver
TOOLS REQUIRED
Kia Rondo 2007-2010
99-7329
• A) Radio housing • B) ISO brackets • C) ISO trim plate
KIT FEATURES
KIT COMPONENTS
BA
• Recessed DIN mount radio provision with pocket
• ISO mount radio provision with pocket
C
Table of Contents
Dash Disassembly
–Kia Rondo 2007-2010 .....................................................................................................3
Kit Assembly
–Recessed DIN mount radio provision with pocket.............................................................4
–ISO mount radio provision with pocket.............................................................................5
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
99-7329
CAUTION: Metra recommends disconnecting the negative battery terminal before
beginning any installation. All accessories, switches, and especially air bag indicator
lights must be plugged in before reconnecting the battery or cycling the ignition.
Note: Refer to the instructions included with the aftermarket radio.
1. Unclip and remove the panel
surrounding the shifter. (Figure A)
2. Remove (2) Phillips head screws
securing the radio trim panel. Unplug
and remove panel. (Figure B)
3. Remove (4) Phillips screws securing
the radio. Unplug and remove the radio.
(Figure C)
Continue to kit assembly
3
Kia Rondo 2007-2010
Dash Disassembly 99-7329
(Figure A)
(Figure C)
(Figure B)
Kit Assembly 99-7329
4
Recessed DIN mount radio provision
with pocket
1. Slide the DIN cage into the radio
housing and secure by bending the
metal locking tabs outward. (Figure A)
2 Slide the radio into the DIN cage/
housing assembly until it snaps into
place. (Figure B)
3. Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
4. Reassemble dash in reverse order
of disassembly.

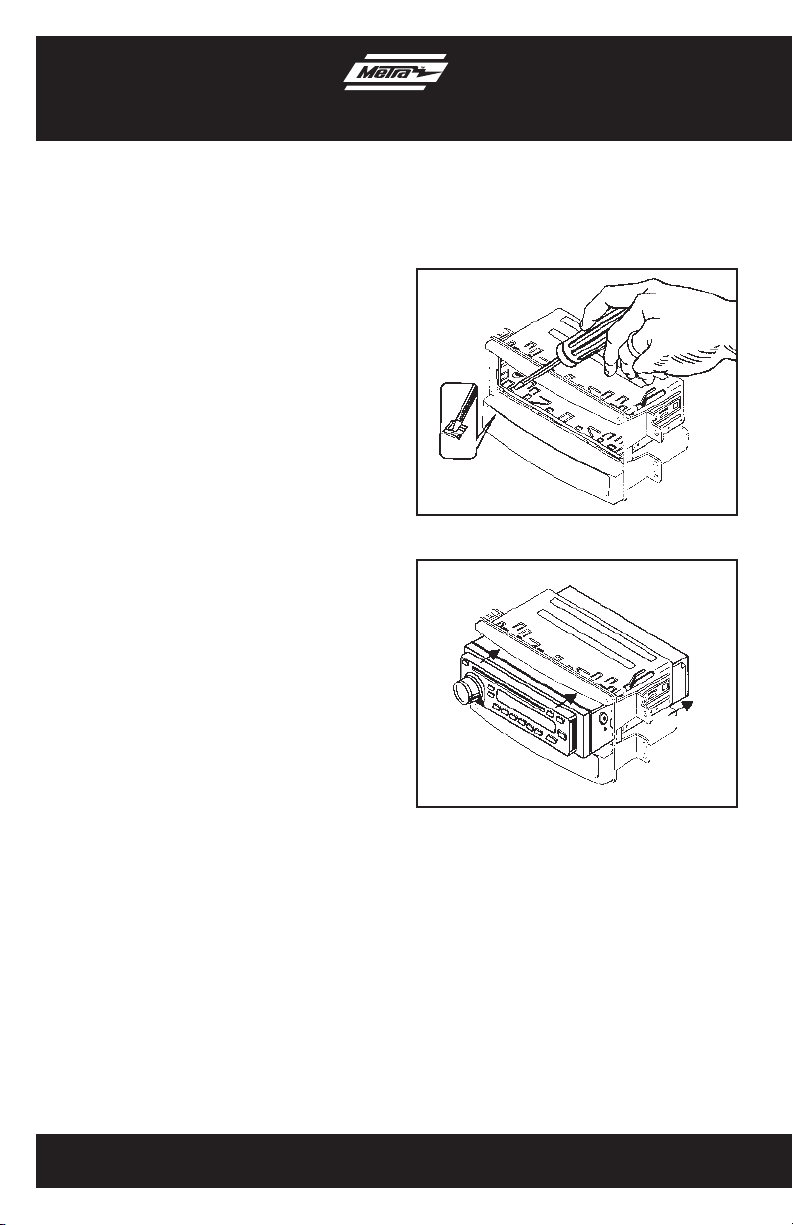

(Figure A)
(Figure B)
5
Kit Assembly 99-7329
1. Align the holes from the ISO snap in
brackets with the holes in the side of
the radio and mount the brackets to the
radio using screws supplied with the
radio. (Figure A)
2. Slide the radio/bracket assembly into
the radio housing until the assembly
snaps into place. (Figure B)
3. Snap the ISO Trim-plate onto the Radio
and housing assembly. (Figure B)
4. Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
5. Reassemble dash in reverse order
of disassembly.
Stacked ISO mount radio provision
with pocket
(Figure A)
(Figure B)
Notes
Notes
METRA. THE WORLD’S BEST KITS.™
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
1-800-221-0932 metraonline.com
INSTALLATION INSTRUCTIONS FOR PART 99-7329
REV. 3/23/12
METRA. THE WORLD’S BEST KITS.™
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
APLICACIONES
1-800-221-0932 metraonline.com
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7329
REV. 3/23/12
• Destornillador cabeza plana • Herramienta de remoción de panel • Destornillador Phillips
HERRAMIENTAS REQUERIDAS
Kia Rondo 2007-2010
99-7329
• A) Alojamiento del radio • B) Soportes ISO • C) Placa de moldura ISO
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
BA
• Provisión de radio de montaje DIN empotrada con bolsillo
• Provisión de radio de montaje ISO con bolsillo
CABLEADO Y CONEXIONES DE ANTENA (se venden por separado)
Arnés de cableado:
• 70-1004 Arnés Hyundai/Kia 2004 y más recientes
• 70-7303 Arnés Hyundai/Kia 2009 y más recientes
Adaptador de antena:
• 40-KI11 Adaptador de antena Hyundai/Kia
C
Indice
Desmontaje del tablero
–Kia Rondo 2007-2010 .....................................................................................................3
Ensamble del kit
–Provisión de radio de montaje DIN empotrada con bolsillo ...............................................4
–Provisión de radio de montaje ISO con bolsillo ................................................................5
99-7329
PRECAUCIÓN: Metra recomienda desconectar el terminal negativo de la batería antes de
comenzar cualquier instalación. Todos los accesorios, interruptores y, especialmente, las luces
indicadoras de airbag deben estar enchufados antes de volver a conectar la batería o comenzar
el ciclo de ignición.
Nota: Remítase a las instrucciones incluidas con el radio de posventa.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recomienda técnicos con
certificación del Programa de
Certificación en Electrónica Móvil
(Mobile Electronics Certification
Program, MECP).
EL CONOCIMIENTO ES PODER
Mejore sus habilidades de instalación y fabricación
inscribiéndose en la escuela de dispositivos
electrónicos móviles más reconocida y respetada de
nuestra industria. Regístrese en www.installerinstitute.
com o llame al 800-354-6782 para obtener más
información y avance hacia un futuro mejor.
