Metra Electronics 95-7309 User manual
APPLICATIONS
INSTALLATION INSTRUCTIONS FOR PART 95-7309
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-7300 - Hyundai harness 1990-2001
• 70-7301 - Hyundai Kia harness 1999-2008
• 70-2003 - GM harness 1998-2008
Antenna Adapter:
• 40-GM 10 - GM antenna adapter
• Flat blade screwdriver • Phillips screwdriver
TOOLS REQUIRED
Hyundai 1995-2006
95-7309
• A) Double DIN trim plate • B) Double DIN brackets • C) Spacers, thick and thin
• D) (4) #10 x 3/4” Phillips screws
KIT FEATURES
KIT COMPONENTS
B CA
• Double DIN head unit provision
• Stacked ISO DIN head unit provision
D
thick thin
1. Unclip and remove the dimmer
switch panel then remove (1) Phillips
screw exposed behind. (Figure A)
2. Unclip and remove shifter trim panel.
(Figure B)
3. Remove (1) Phillips screw at bottom of
radio trim panel. (Figure C)
4. Unclip and remove the temperature
control cable under the drivers side
dash from the white plastic bracket.
5. Remove (4) Phillips screws
securing radio.
Continue to kit assembly
Hyundai Elantra 1996-2000
Dash Disassembly 95-7309
(Figure A)
(Figure C)
(Figure B)
Dash Disassembly 95-7309
Hyundai Tiburon 1997-2001
1. Unclip and remove the panel
surrounding the shift lever. (Figure A)
2. Unclip and remove the radio trim panel.
(Figure B)
3. Remove (2) Phillips screws securing
the radio.
Continue to kit assembly
(Figure A)
(Figure B)
Dash Disassembly 95-7309

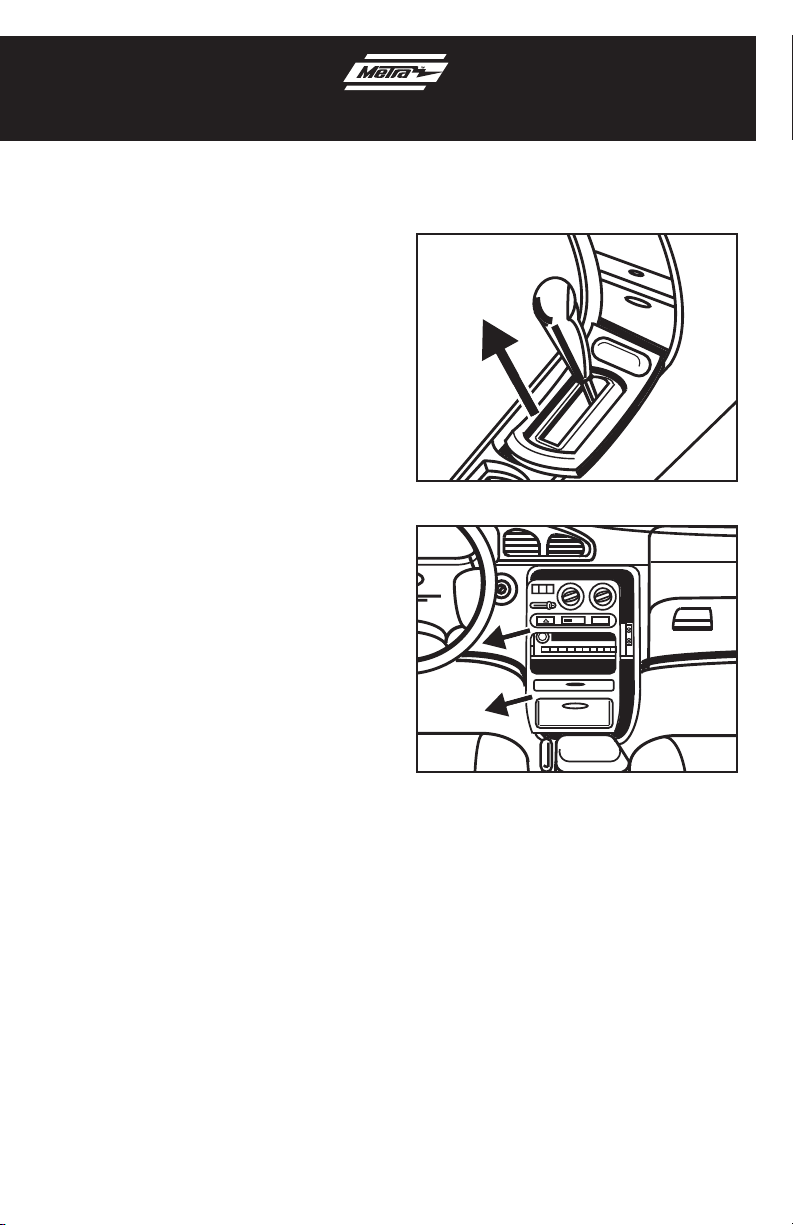

Hyundai Sonata 1995-1998
1. Unclip and remove trim panel around
the shifter. (Figure A)
2. Remove (1) Phillips screw at bottom of
radio trim panel.
3. Unclip and remove radio trim panel.
(Figure B)
4. Remove (4) Phillips screws securing the
radio.
Continue to kit assembly
(Figure A)
(Figure B)
Dash Disassembly 95-7309

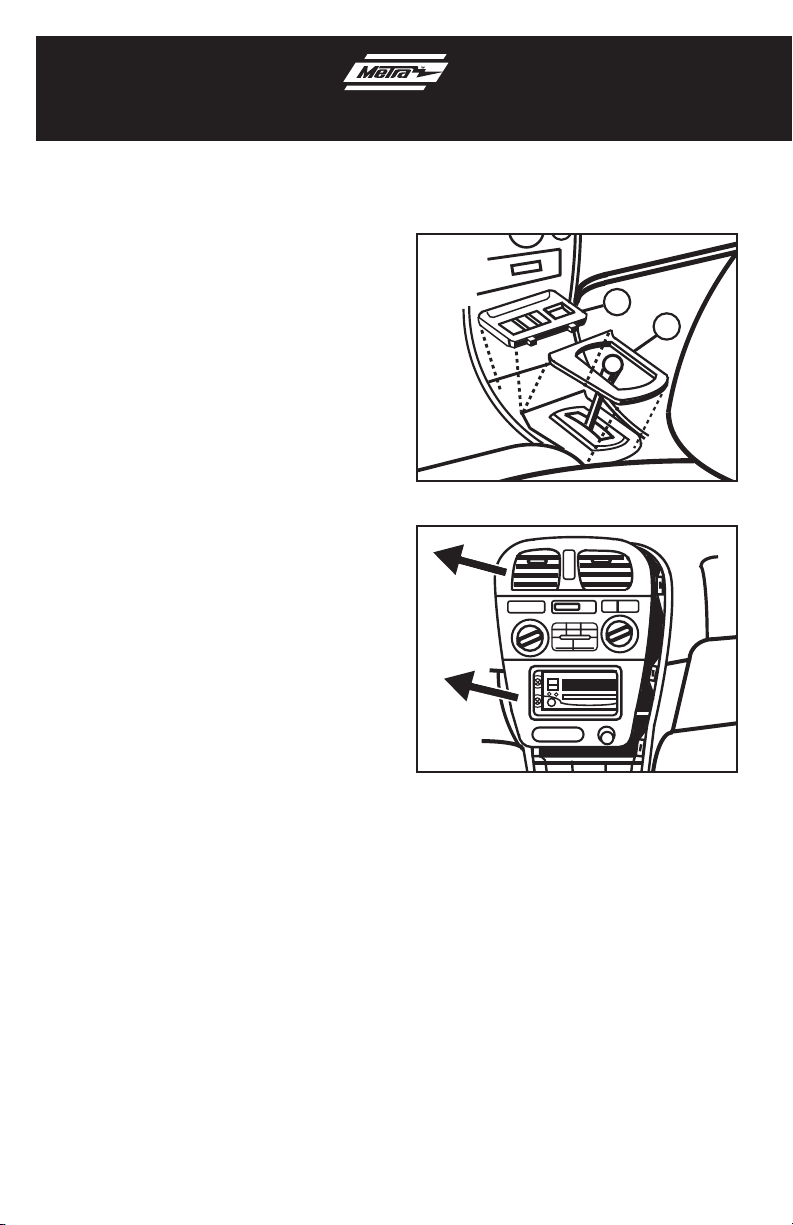

Hyundai Sonata 1999-2001
1. Unclip and remove the trim panel in
front of the shift lever and remove (2)
Phillips screws exposed underneath.
(Figure A)
2. Unclip and remove the shift lever trim
panel. (Figure A)
3. Remove (2) Phillips screws at bottom
of radio trim panel.
4. Unclip and remove radio trim panel.
(Figure B)
5. Remove (4) Phillips screws securing
the radio.
Continue to kit assembly
B
A
(Figure A)
(Figure B)
Dash Disassembly 95-7309
Hyundai Santa Fe 2001-2006
1. Remove the ashtray and the (2) Phillips
screws exposed in the cavity. (Figure A)
2. Unclip and remove trim panel with
climate controls. (Figure B)
3. Remove (2) Phillips screws facing up at
bottom of radio trim panel. (Figure C)
4. Unclip and remove the radio trim panel.
(Figure D)
5. Remove (4) Phillips screws securing
the radio.
Continue to kit assembly
(Figure B)
(Figure D)
(Figure C)
(Figure A)
Kit Assembly 95-7309
1. Slide the appropriate bracket into the
trim plate aligning the holes in the trim
plate to the clips on the bracket.
(Figure A)
2. Slide the DDIN radio unit into the trim
plate bracket assembly and secure the
unit to the kit using the screws supplied
with the head unit. (Figure B)
3. Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
4. Reassemble dash in reverse order
of disassembly.
Double DIN head unit provision
(Figure A)
(Figure B)
Note:
• For the Hyundai Sonata 1991-2001,
Hyundai Tiburon 1997-2002, and the
Hyundai Santa Fe 2001-2006 vehicles
you will need to attach the provided
thick spacers to the double DIN
brackets. (Figure A)
• For the Hyundai Elantra 1996-2000
vehicles you will need to attach the
provided thin spacers to the DDIN
brackets. (Figure B)
• Spacers will need to be removed from
shipping bar.
Kit Assembly 95-7309
Stacked ISO DIN head unit provision
1. Slide the appropriate bracket into the
trim plate aligning the holes in the trim
plate to the clips on the bracket.
(Figure A)
2. Slide the stacked ISO DIN units into the
trim plate bracket assembly and secure
the unit to the kit using the screws
supplied with the head unit. (Figure B)
3. Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
4. Reassemble dash in reverse order
of disassembly.
(Figure A)
(Figure B)
Note:
• For the Hyundai Sonata 1991-2001,
Hyundai Tiburon 1997-2002, and the
Hyundai Santa Fe 2001-2006 vehicles
you will need to attach the provided
thick spacers to the double DIN
brackets. (Figure A)
• For the Hyundai Elantra 1996-2000
vehicles you will need to attach the
provided thin spacers to the DDIN
brackets. (Figure B)
• Spacers will need to be removed from
shipping bar.
APLICACIONES
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-7309
• Destornillador cabeza plana • Destornillador Phillips
HERRAMIENTAS REQUERIDAS
Hyundai 1995-2006
95-7309
• A) Placa de moldura DDIN • B) Soportes DDIN • C) Espaciadores, grueso y delgado
• D) (4) tornillos Phillips #10 x 3/4”
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
B CA
• Provisión de unidad central doble DIN
• Provisión de unidad central ISO DIN vertical
CABLEADO Y CONEXIONES DE ANTENA (se venden por separado)
Arnés de cableado:
• 70-7300 Arnés para Hyundai 1990-2001
• 70-7301 Arnés para Hyundai Kia 1999-2008
• 70-2003 Arnés para GM 1998-2008
Adaptador de antena:
• Adaptador de antena 40-GM 10 GM
D
grueso delgado
1. Desenganche y quite el panel del
interruptor atenuador y quite (1) tornillo
Phillips que queda a la vista. (Figura A)
2. Suelte y retire el panel de moldura de la
palanca de velocidades. (Figura B)
3. Quite (1) tornillo Phillips de la parte de
abajo del panel de la moldura del radio.
(Figura C)
4. Desenganche y quite el cable de
control de temperatura debajo del
tablero del lado del conductor del
soporte blanco plástico.
5. Quite los (4) tornillos Phillips que
sostienen el radio.
Continuará al ensamble del kit
Hyundai Elantra 1996-2000
Desmontaje del tablero 95-7309
(Figura A)
(Figura C)
(Figura B)
