Metra Electronics 95-7321 User manual

INSTALLATION INSTRUCTIONS FOR PART 95-7321

1-800-221-0932 www.metraonline.com

KIT FEATURES

• DDIN Head Unit Provision

• ISO Stacked Head Unit Provision

A) DDIN Brackets B) DDIN Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

95-7321

APPLICATIONS

Hyundai Accent 2006-2010

Kia Rio / RIO 5 2006-2010

Kia Sportage 2005-2010

Phillips Screwdriver • Small Flat Blade Screwdriver • Panel Removal Tool • Cutting Tool

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

HARNESS:

ANTENNA ADAPTER:

• 70-7303 - Hyundai / Kia Harness 2009

• 70-1004 - Hyundai 2006-up/KIA harness 2004-up

• 40-KI11 - KIA antenna adapter 2007-up

• 40-KI10 - KIA antenna adapter 2007-up

METRA. THE WORLD’S BEST KITS.™

Dash Disassembly ........................................................................ 1-2

Kit Preparation ................................................................................. 3

Kit Assembly ..................................................................................... 4

95-7321

TABLE OF CONTENTS

Metra recommends MECP certified

technicians

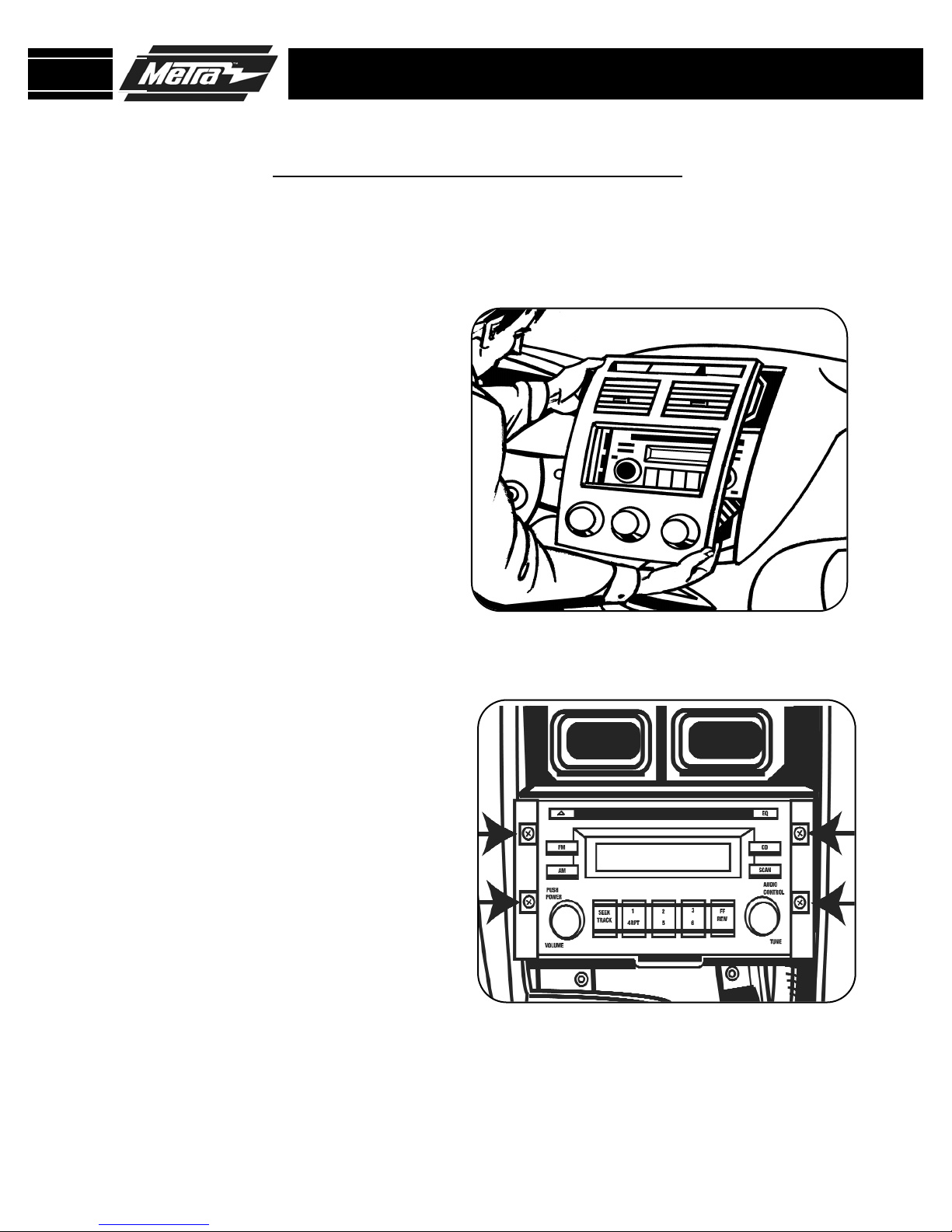

95-7321 DASH DISASSEMBLY

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the trim panel

surrounding the radio and including

the a/c vents.

(Figure A)

HYUNDAI ACCENT 2006-2010

KIA RIO / RIO 5 2006-2010

Remove (4) Phillips screws securing

the radio.

(Figure B)

95-7321 DASH DISASSEMBLY

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the entire panel

surrounding the radio and including

the A/C controls. Note: Start at

bottom of panel.

(Figure A)

KIA SPORTAGE 2005-2010

Remove (4) Phillips screws to extract

radio from dash.

(Figure B)

HYUNDAI ACCENT: Cut and remove

shaded areas.

(Figure A)

KIA RIO: Cut and remove shaded

areas.

(Figure B)

KIA SPORTAGE: Cut and remove

shaded areas.

(Figure C)

95-7321

KIT PREPARATION

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from

Metra or AXXESS. Re-connect the

negative battery terminal and test

the unit for proper operation.

Attach the Double DIN brackets to

the inside edge of the Double DIN

trim plate. (Figure A)

Slide the Double DIN head unit or

stacked ISO head units into the

bracket/radio housing assembly and

secure the Double DIN head unit or

stacked ISO head units to the

assembly using the screws supplied

with the radio. (Figure B)

Reassemble dash in reverse order of

disassembly.

DOUBLE DIN / STACKED ISO DIN

HEAD UNIT PROVISION

95-7321

KIT ASSEMBLY

95-7321

NOTES

95-7321 INSTRUCTIONS

1-800-221-0932 www.metraonline.com

REV. 04/26/10

METRA. THE WORLD’S BEST KITS.™
