INSTALLATION INSTRUCTIONS FOR PART 95-7337B

95-7337B

KIT FEATURES

•DDIN Head Unit Provision

•ISO Stacked Head Unit Provision

•Painted Matte Black

A) Double DIN Trim Plate B) Double DIN Brackets

KIT COMPONENTS

•Small Flat Blade Screwdriver • Panel Removal Tool

•Phillips Screwdriver

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

KIA Soul

2010

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

•70-7303 - Kia / Hyundai Harness 2009-up

Antenna Adapter:

•40-KI11 - Kia / Hyundai Antenna Adapter 2007-up

Dash Disassembly

-KIASoul2010...................................................1

Kit Assembly

-DDIN / Stacked ISO DIN Head Unit Provisions . . . . . . . . . . . . . . . . . . . . . . . . 2

Final Assembly ..........................................3

TABLE OF CONTENTS

95-7337B

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

Metra recommends MECP certified

technicians.

95-7337B DASH DISASSEMBLY

KIA SOUL 2010

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove the radio/climate

control trim panel.

(Figure A)

Remove (4) Phillips screws securing

the climate control.

(Figure B)

Remove (4) Phillips screws securing

the radio.

(Figure C)

Continue to kit assembly.

95-7337B KIT ASSEMBLY

DOUBLE DIN / STACKED ISO DIN HEAD UNIT

PROVISIONS

Slide the radio into the bracket/radio

housing assembly and secure using

the screws supplied with the radio.

(Figure B)

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from

Metra or AXXESS. Re-connect the

negative battery terminal and test

the unit for proper operation.

Reassemble dash in reverse order of

disassembly.

*Note: Refer also to the instructions included with the aftermarket radio.

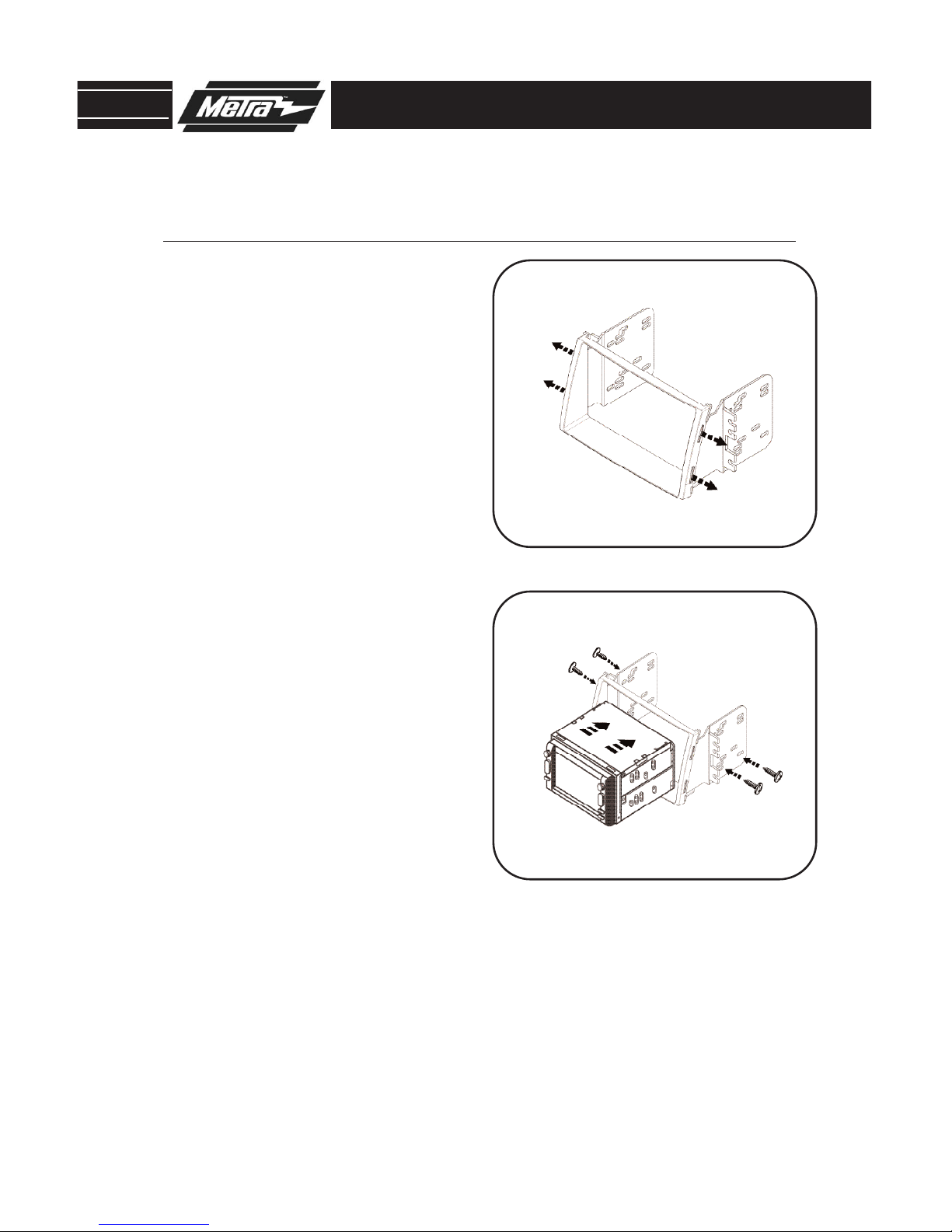

Attach the Double DIN brackets to the

Double DIN Trim Plate.

(Figure A)
