METHVEN Amio 01-4002 User manual

Methven Australia Pty Ltd

ABN 15 104 813 390

Melbourne, Australia

www.methven.com

NOV 2009 MA433400

Basin Mixer

Āmio 01-4002

Rere 01-3005

Ø 35mm

(1 3/8”)

Cold Hot

Use of this product in non-domestic applications voids warranty.

All pipe work must be thoroughly ﬂushed prior to the installation of the mixer.

NEFA inline ﬁlters must be installed on both hot and cold supplies.

Do not remove the ceramic cartridge from the mixer when installing.

Damage caused by hydrostatic testing is not covered by our warranty.

IMPORTANT

Please read all of the instructions before installation

Installation Guide

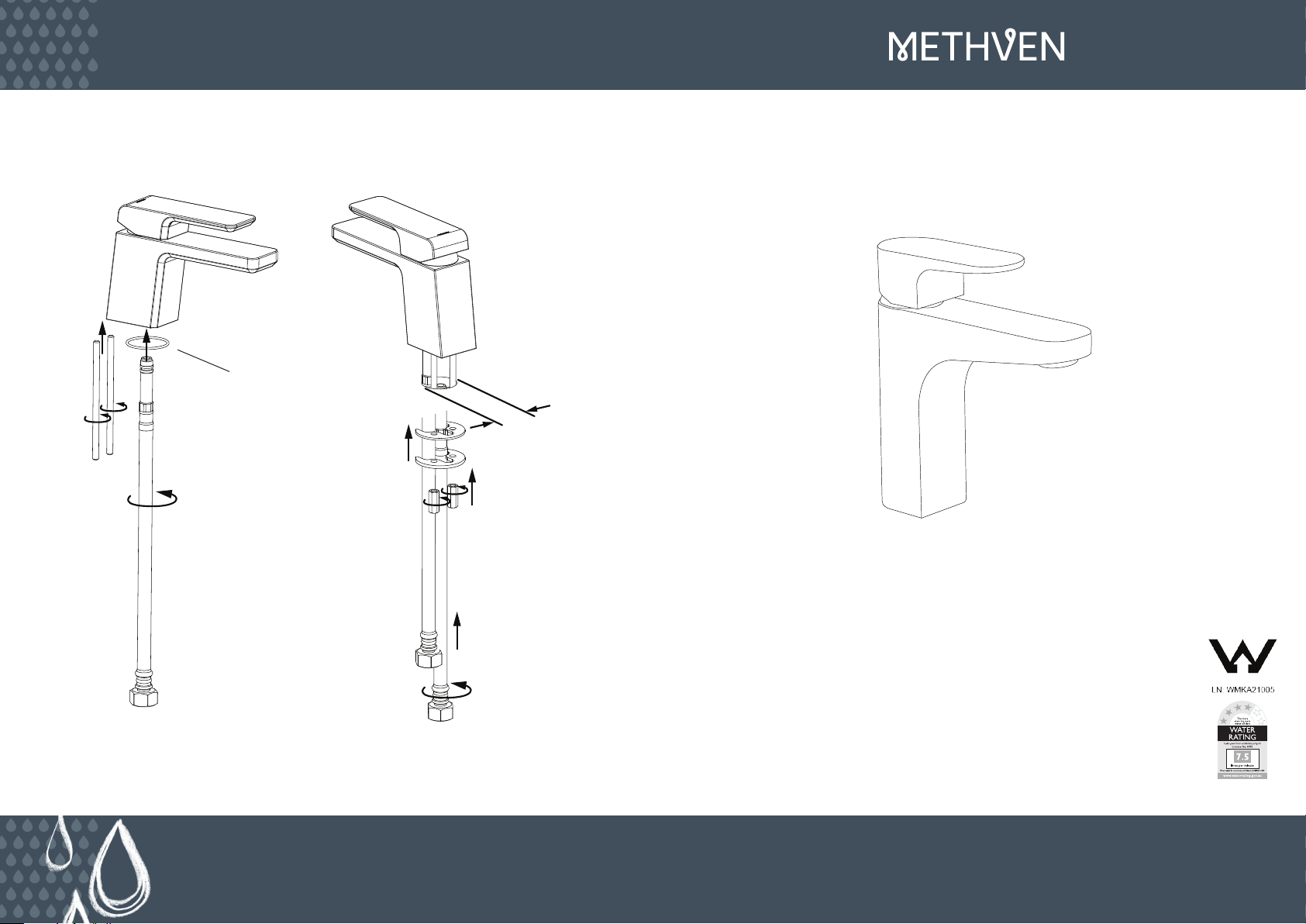

Mixer and Hose Assembly

Illustration may not reﬂect actual product shape.

SPEC 001

BRASS

BASE RING

We recommend that this product is installed by a licensed plumber.

THE METHVEN GUARANTEE

The warranty statement shall apply to all tapware & showers supplied by Methven

For more information visit www.methven.com

THIS WARRANTY ISSUED BY: Methven Australia Pty Ltd, Melbourne Australia

Technical Speciﬁcations Installation

Refer to diagram atright.

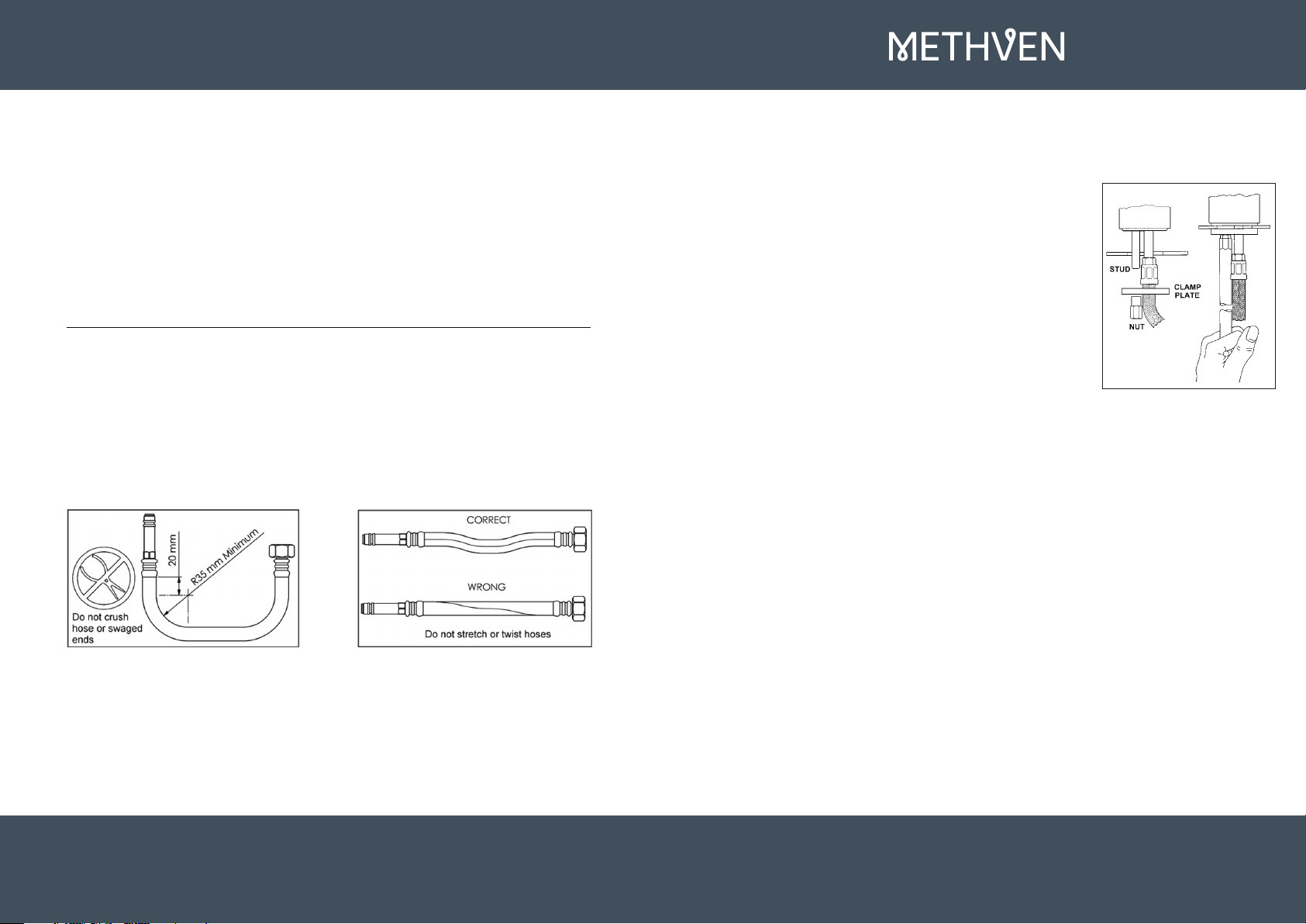

Hose Requirements for mixers

The maximum working pressure of the ceramic cartridge is 1000kPa.

Do not hydrostatic test the installation with this mixer installed. Damage to

the ceramic cartridge may occur.

1. A single 35mm diameter hole is required in the

mounting surface.The mounting surfacecan be a

maximum of 40mm thick.

2. Screw the threaded studs into the base of the mixer.

Insert the O ring into the groove in the the base ring

and ﬁt the base ring to the bottom of the mixer.

3. If ﬁtting optional chrome base ﬂange where supplied

discard brass base ring.

4. Insert the ﬂexible hoses through the hole in the

mounting surface (from the underside)and screw

them into the baseof the mixer.

5. Position the base Flange (if used) under the mixer.

6. Feed the threaded studs through the hole in the

mounting surface. Fit the mounting gasket and

mounting plate onto the threaded rods.

7. Tighten the mounting nuts to secure the mixer in

place.

8. Connect the ﬂexible hoses to the hot and cold

supplies (hot on the left, cold on the right).

Inlet Connections: All 1/2’ BSP

Operating Pressure: 150kPa - 500kPa

Operating Temperatures: Recommended hot water supply 50°C,

maximum 70°C. AS 3500 requires all hot

water supplies to any sanitary ﬁtting to be

tempered to 50°C.

The maximum working pressure of the ceramic cartridge is 1000kPa. Do not

hydrostatic test the installation with this mixer installed. Damage to the ceramic

cartridge may occur, voiding our warranty.

“In situ” testing
