Mediclinics E05 User manual

Saniflow E05 hand dryer

Safety regulations

All installation, maintenance and repair tasks must be carried out by qualified

technicians.

Mediclinics remembers the importance of:

1. Becoming familiar with the equipment and carefully reading the user manual prior to

operating.

2. Disconnecting power prior to beginning any repair or maintenance action.

3. Exercise care in accordance with the procedures included herein.

General maintenance

Preventive Maintenance - Cleaning

Inspect the units annually or quarterly, depending on the dryer’s operating cycles.

Clean the active parts of the unit, such as: the motor, the heating element, the fan

and the electronic circuit board with a soft brush.

Maintain the air inlet and outlet free of dust and other obstructions; use a soft flat

ended brush.

Cleaning of chromed and plated covers.

Removal of the casing

Using a Saniflow security screwdriver, release the two screws in the lower part of the

casing. The 2 screws have to be rotated clock wise to release the casing from the base

plate.

Carefully remove the casing.

Motor

Characteristics

- Type: Universal brush motor

- Power: 250 W

- Speed of rotation: 5,500 rpm

- Class F.

- Incorporates a safety thermal limiter

Maintenance of the motor

As preventive maintenance, we recommend using a soft brush to remove dust and dirt on

an annual or quaterly basis, depending on the dryer’s operating cycles.

.

Replacement of the brushes

Use a screwdriver to apply pressure on the clip that covers the brushes, and move the

clip to one side to free the brush.

Remove the brush from its location and replace it.

Carry out the same procedure for the second motor brush.

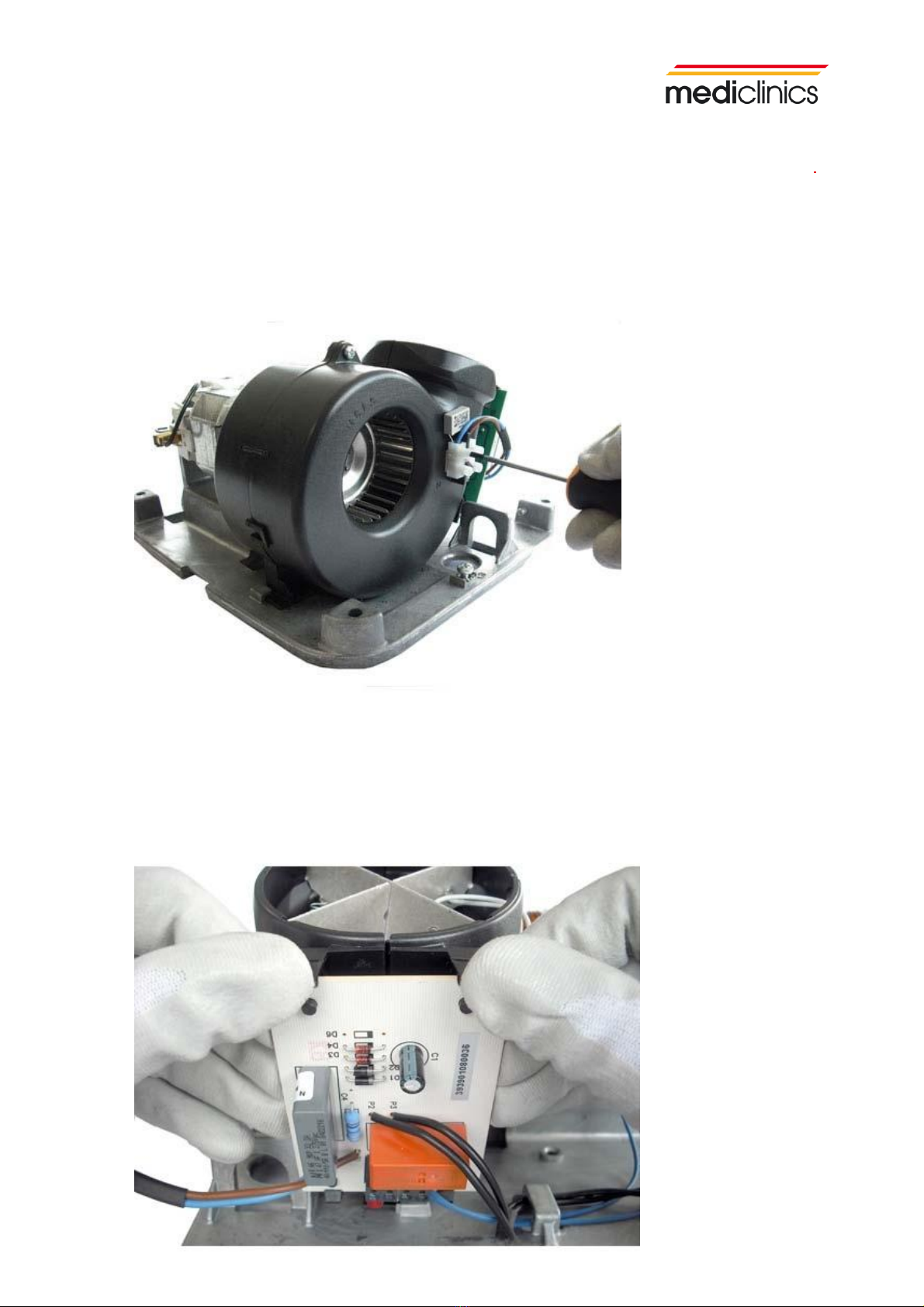

Replacement of the motor

Unscrew the terminal block to release the power supply cables from the circuit board.

Carefully remove the clips that secure the electronic circuit board at the top.

Carefully remove the clips that secure the electronic circuit board at the bottom.

Unscrew the motor cables from the electronic circuit board.

Unscrew the screws that secure the volutes together.

Remove the left volute. (If the volute is difficult to remove, use a flathead screwdriver to

help, taking care not to damage the plastic parts.)

Remove the heating element.

Loosen the retainer screw that fixes the fan to the

motor shaft.

Remove the heating element.

Use pliers to release the springs securing the motor to the base

plate.

Remove the motor from its housing on the base and replace it.

Heating element

Characteristics

- Type: Universal brush motor

- Power: 250 W

- Speed of rotation: 5,500 rpm

- Class F.

- Incorporates a safety thermal limiter

Maintenance

As preventive maintenance, we recommend using a soft brush to remove dust and

dirt on an annual or quaterly basis, depending on the dryer’s operating cycles.
