Maytronics Dolphin Skagerrak20 User manual

Robotic Pool Cleaner Skagerrak 20

User Instructions

Robotic Pool Cleaner

Skagerrak 20

User Instructions

Contents

Robotic Pool Cleaner Skagerrak 20

User Instructions

Robotic Pool Cleaner

Skagerrak 20

User Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

WearesurethatyourMaytronicsRoboticPoolCleanerwillprovideyouwithreliable,convenient

andcost-effectivepoolcleaning.Itsreliablefiltrationinallpoolconditionsandactivebrushing,

enhance poolhygiene.

RoboticPoolCleanersbyMaytronicsdeliveradvancedcleaningtechnologys,long-lasting

performance andeasymaintenance.Youandyourfamilywillbefreetoenjoyyourswimwith

full confidence that your pool is completely clean.

2. SPECIFICATIONS

Motor protection: IP 68

Minimumdepth:0.80m/2.6ft

Maximumdepth:5m/16.4ft

Digital Power supply

Input:

100-125AC Volts/ 200-230 AC Volts

50-60 Hertz

Output: <30 VDC

IP 54

3. WARNINGS AND CAUTIONS

3.1

Warnings

•

Use the originally supplied power supply only

•

Ensuretheelectricaloutletisprotectedbyagroundfaultinterrupter(GFI)oran

earth leakage interrupter(ELI)

•

Keep the power supply out of standing water

•

Position the power supply at least 3m/10ft away from the edge of the pool

•

Do not enter the pool while the Pool Cleaner is working

•

Unplug the power supply before servicing

3.2

Cautions

Use the Pool Cleaner in the following water conditions only:

Chlorine

Maximum 4 ppm

7.0-7.8

Temperature

6-34°C / 43-93°F

NaCl

Maximum 5000 ppm

Robotic Pool Cleaner Skagerrak 20

User Instructions

4. POOL CLEANER PARTS

Robotic Pool Cleaner Model Skagerrak 20

Power supply unit - options

Filtration options

Caddy kit - optional

Robotic Pool Cleaner Skagerrak 20

User Instructions

5. USING THE POOL CLEANER

5.1

Setup

Before using the Pool Cleaner for the first time, perform the following steps:

5.1.1

Position the power supply

5.1.2

Unwind the cable and stretch it out completely so that it has

so that it is approximately in the

middle of the long side of the

pool at a distance of 3m /10ft.

no kinks.

5.1.3

Attach the floating cable to the power

5.1.4

Plug in the power supply and leave it in the

supply by inserting it with the notch on the

connector (1), lined up with the groove in

the socket on the power supply, and turning

clockwise (2).

OFF position.

3m/10ft

Robotic Pool Cleaner Skagerrak 20

User Instructions

5.2

Putting the Pool Cleaner into the pool

5.2.1

PutthePoolCleanerintothepool.

5.2.2

Turn the power supply ON.

ReleasethePoolCleanerandletitsinktothefloor

of the pool.

Makesurethatthefloatingcableisfreeofany

obstructions.

The Pool Cleaner will now operate until it has

reached the end of the cleaning cycle.

5.3

Indicator Lights - Model Classic 11+ only

Light

Indication

Blue blinking

Normal operation of the Pool Cleaner

Green blinking

Remote-Control or Smartphone communicate with the Pool Cleaner

5.3.1 Indicator lights.

Robotic Pool Cleaner Skagerrak 20

User Instructions

5.4

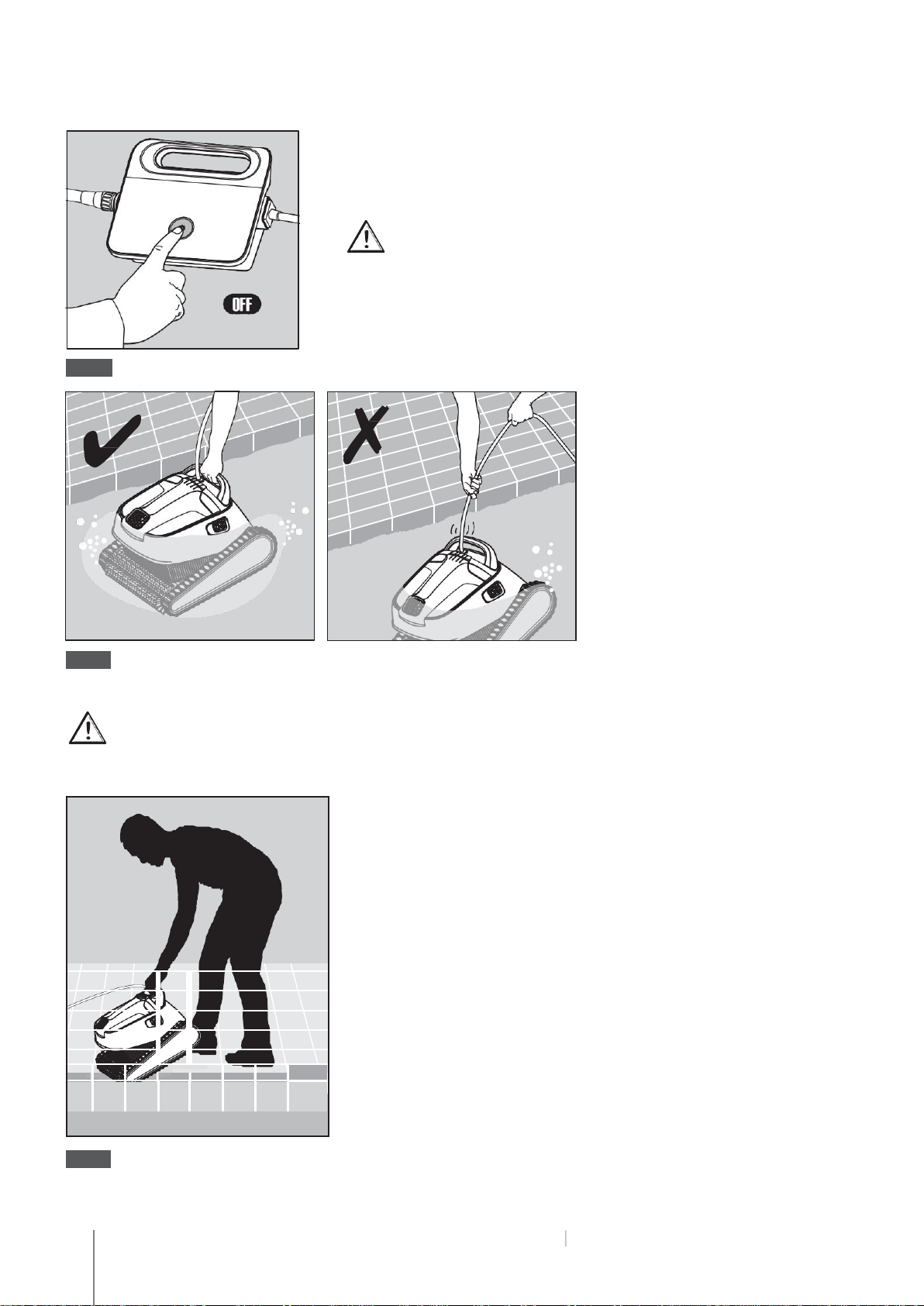

Removing the Pool Cleaner from the pool

Turn OFF and unplug the power supply.

5.4.1

5.4.2

Using the floating cable, bring the Pool Cleaner to the pool’s edge.

Using the handle, remove the Pool Cleaner from the pool.

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

5.4.3

Place the Pool Cleaner on the edge of the pool and let the water drain out.

Robotic Pool Cleaner Skagerrak 20

User Instructions

6. CLEANING THE DUAL FILTERBASKET

Make sure the power supply is switched off and unplugged.

It is highly recommended to clean the filter basket after each cleaning cycle.

Note: Do not let the filter panels dry out before cleaning.

6.1

Cleaning after use - removing and cleaning the dual filter basket

6.1.1

Openthefiltercover.

6.1.2

Upon opening the filter cover,

the handle will lift independently.

6.1.3

Liftupthebasket.

6.1.4

Open thelatch

6.1.5

Clean the filter basket

torelease the bottom lid

in order to remove the

debris.

with a hose.

Robotic Pool Cleaner Skagerrak 20

User Instructions

6.2

Periodic filter cleaning –recommended at least once a month

Dismantle the 4 ultra-fine filter panels of the outer basket, according to the following steps:

6.2.1

Holding downthe

6.2.2

Dismantle the panels,

6.2.3

Continue to dismantle

handle,removetheinner

net basket. starting by pressing on

panel1usingyourthumbs. the panels in the order of their

numbers:

—

6.2.4

Cleanthefilterpanelswithahose.

6.2.5

Assemble the filter panels according to the

following order:

Panel

—

6.2.6

Insert the clean filter basket and close the filter cover.
