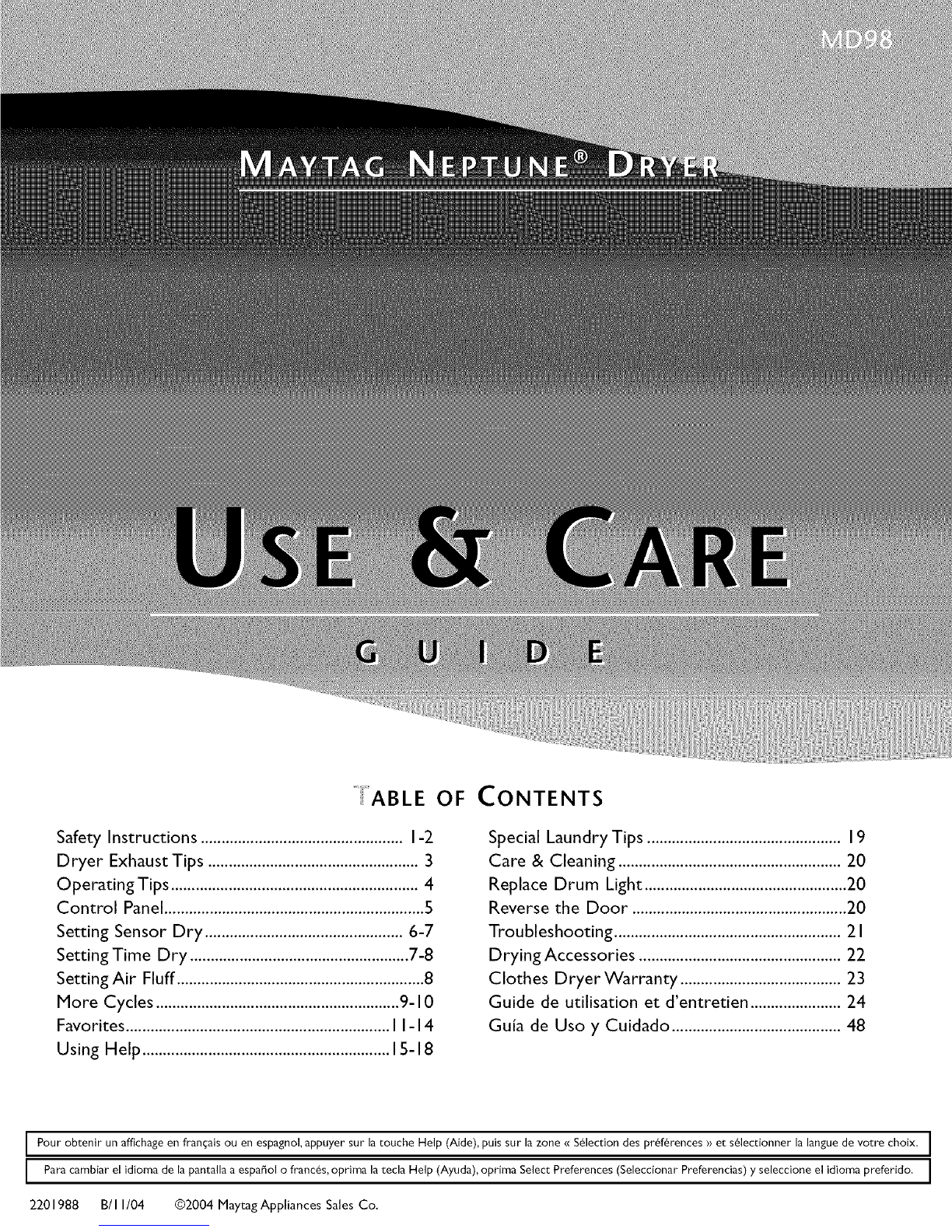

Maytag Neptune MD9800AYW User manual

ABLE OF

Safety Instructions ................................................. I-2

Dryer Exhaust Tips ................................................... 3

Operating Tips ............................................................ 4

Control Panel ............................................................... 5

Setting Sensor Dry ................................................ 6-7

Setting Time Dry ..................................................... 7-8

Setting Air Fluff ............................................................ 8

More Cycles ........................................................... 9- I0

Favorites ................................................................ I I- 14

Using Help ............................................................ 15-18

CONTENTS

Special Laundry Tips ............................................... 19

Care & Cleaning ...................................................... 20

Replace Drum Light ................................................. 20

Reverse the Door .................................................... 20

Troubleshooting ....................................................... 2 I

Drying Accessories ................................................. 22

Clothes Dryer Warranty ....................................... 23

Guide de utilisation et d'entretien ...................... 24

Guia de Uso y Cuidado ......................................... 48

I Pour obtenir un affichage en fran_ais ou en espagnol, appuyer sur la touche Help (Aide), puis sur la zone <<Selection des pr6f6rences >>et s61ectionner la langue de votre choix. I

I Para cambiar el idioma de la pantalla a espafiol o frances, oprima lat:ecla Help (Ayuda), oprirna Select Preferences (Seleccionar Preferencias) yseleccione el idiorna preferido. I

Welcome

Welcome and congratulations on your

purchase of a Maytag Neptune ®dryer!

Your complete satisfaction is very

important to us. For best results, we

suggest reading this material to help

acquaint you with proper operating and

maintenance procedures.

Should you need assistance in the future,

it is helpful to:

I) Have complete model and serial

number identification of your dryer.

This is located on a data plate in the

lower center of the door opening.

Date of Purchase

Model Number

Serial Number

2) IMPORTANT: Keep this guide and

the sales receipt in asafe place for

future reference. Proof of original

purchase date is needed for

warranty service.

If you have questions call:

Maytag Customer Assistance

1-800-688-9900 USA

1-800-688-2002 CANADA

(Mon.-Fri., 8am-8pm Eastern Time)

Internet: http://www, maytag.com

U.S.A. customers using TTY for deaf,

hearing impaired or speech

impaired, call 1-800-688-2080

NOTE: In our continuing effort to

improve the quality of our appliances, it

may be necessary to make changes to

the appliance without revising this

guide.

For service and warranty

information, see page 23.

MPORTANT SAFETY INSTRUCTIONS

read before operatin£ your dryer

WHAT YOU NEED To KNOW ABOUT SAFETY INSTRUCTIONS

Warning and Important Safety Instructions appearing in this manual are not

meant to cover all possible conditions and situations that may occur.

Common sense, caution, and care must be exercised when installing,

maintaining or operating appliance.

Always contact your manufacturer about problems or conditions you do not

understand.

WARNING -Hazards or unsafe practices which COULD result in severe

personal injury or death.

CAUTION - Hazards or unsafe practices which COULD result in minor

_ersonal injury.

Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor's phone.

Follow the gas supplier's instructions.

•If you cannot reach your gas supplier,call the fire department.

Installation and service must be performed by a qualified installer,

service agency or the gas supplier.

2. Read all instructions before using the appliance.

To avoid the possibility of fire or explosion:

a. Do not dry items that have been previously cleaned in,washed in,

soaked in, or spored with gasoline, dry-cleaning solvents, other

flammable or explosive substances asthey give off vapors that could

ignite or explode. Any material on which you have used a cleaning

solvent, or which is saturated with flammable liquids or solids, should

not be placed in the dryer, until all traces of these flammable

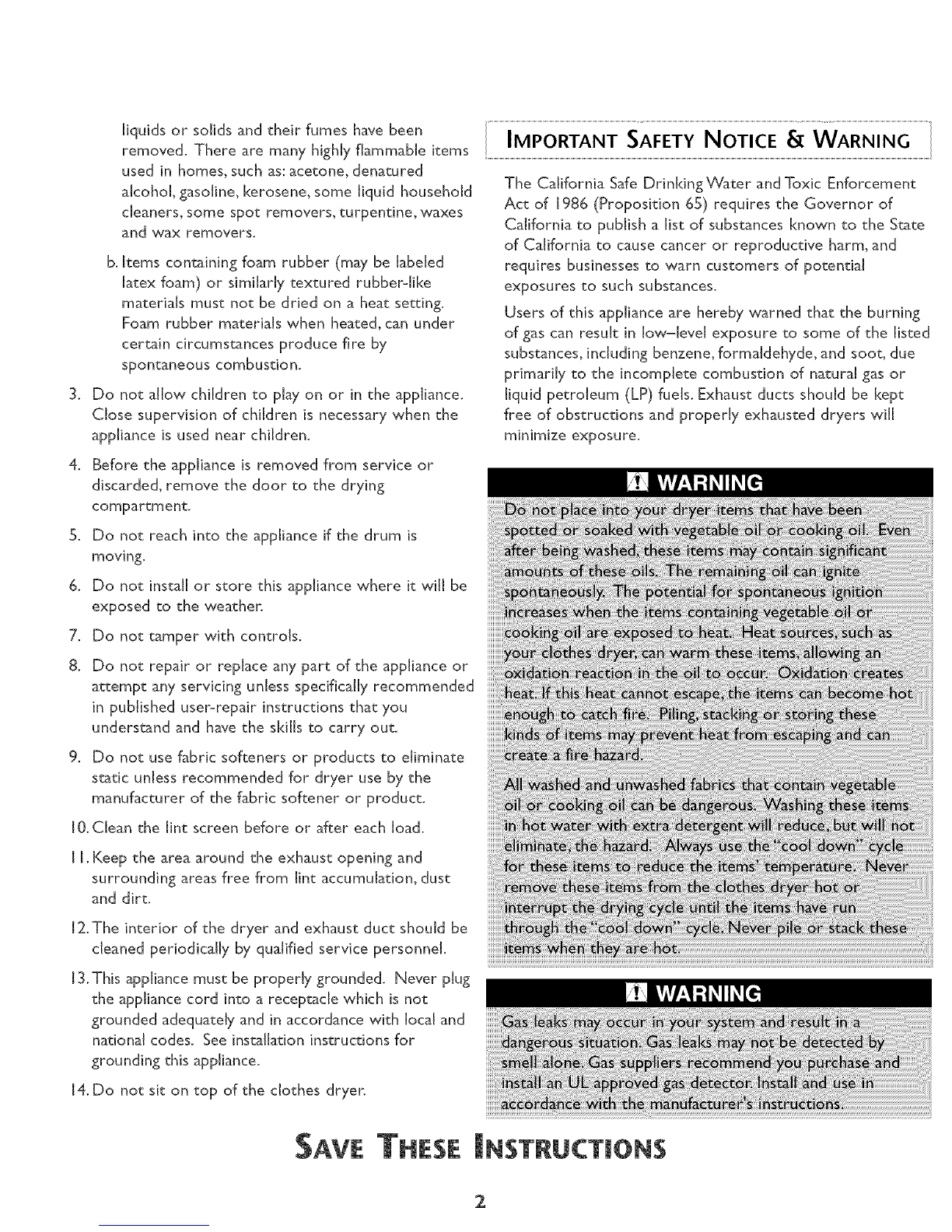

liquids or solids and their fumes have been

removed. There are many highly flammable items

used in homes, such as: acetone, denatured

alcohol, gasoline, kerosene, some liquid household

cleaners, some spot removers, turpentine, waxes

and wax removers.

b. Items containing foam rubber (may be labeled

latex foam) or similarly textured rubber-like

materials must not be dried on a heat setting.

Foam rubber materials when heated, can under

certain circumstances produce fire by

spontaneous combustion.

3. Do not allow children to play on or in the appliance.

Close supervision of children is necessary when the

appliance is used near children.

4. Before the appliance is removed from service or

discarded, remove the door to the drying

compartment.

S. Do not reach into the appliance if the drum is

moving.

6. Do not install or store this appliance where it will be

exposed to the weather.

7. Do not tamper with controls.

&Do not repair or replace any part of the appliance or

attempt any servicing unless specifically recommended

in published user-repair instructions that you

understand and have the skills to carry out.

9. Do not use fabric softeners or products to eliminate

static unless recommended for dryer use by the

manufacturer of the fabric softener or product.

0. Clean the lint screen before or after each load.

I. Keep the area around the exhaust opening and

surrounding areas free from lint accumulation, dust

and dirt.

2.The interior of the dryer and exhaust duct should be

cleaned periodically by qualified service personnel.

3.This appliance must be properly grounded. Never plug

the appliance cord into a receptacle which is not

grounded adequately and in accordance with local and

national codes. See installation instructions for

grounding this appliance.

14.Do not sit on top of the clothes dryer.

The California Safe Drinking Water and Toxic Enforcement

Act of 1986 (Proposition 65) requires the Governor of

California to publish a list of substances known to the State

of California to cause cancer or reproductive harm, and

requires businesses to warn customers of potential

exposures to such substances.

Users of this appliance are hereby warned that the burning

of gas can result in low-level exposure to some of the listed

substances, including benzene, formaldehyde, and soot, due

primarily to the incomplete combustion of natural gas or

liquid petroleum (LP) fuels. Exhaust ducts should be kept

free of obstructions and properly exhausted dryers will

minimize exposure.

SAVE THESE |NSTRUCTiONS

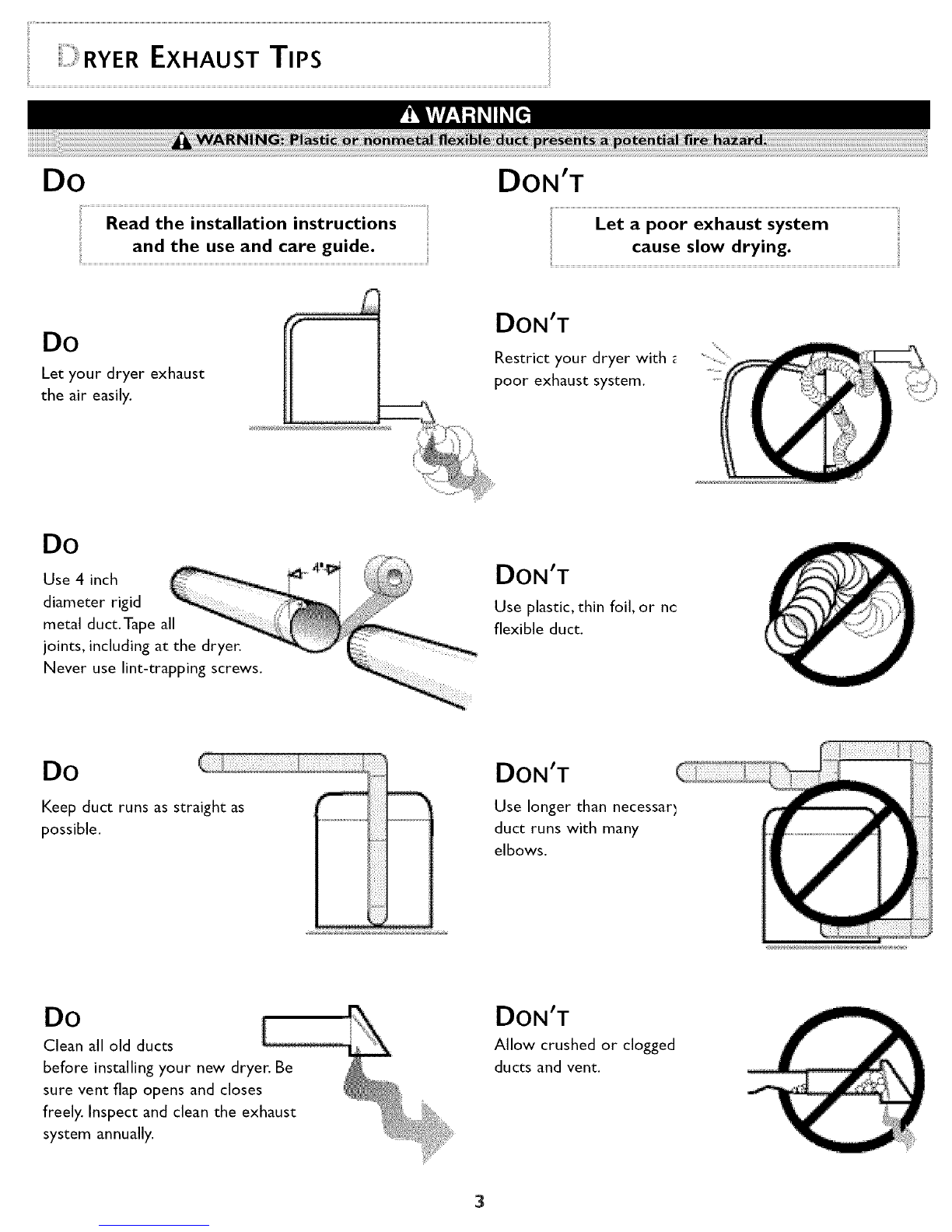

IliRYER EXHAUST TIPS

Do DON'T

Let your dryer exhaust

the air easily.

DON'T

Restrict your dryer with

poor exhaust system.

Use 4 inch

diameter rigid

metal duct.Tape all

joints, including at the dryer.

Never use lint-trapping screws.

DON'T

Use plastic, chinfoil, or ne

flexible duct.

DON'T

Use longer than necessar)

duct runs with many

elbows.

Clean all old ducts

before installing your new dryer. Be

sure vent flap opens and closes

freely. Inspect and clean the exhaust

system annually.

DON'T

Allow crushedor clogged

ducts and vent.

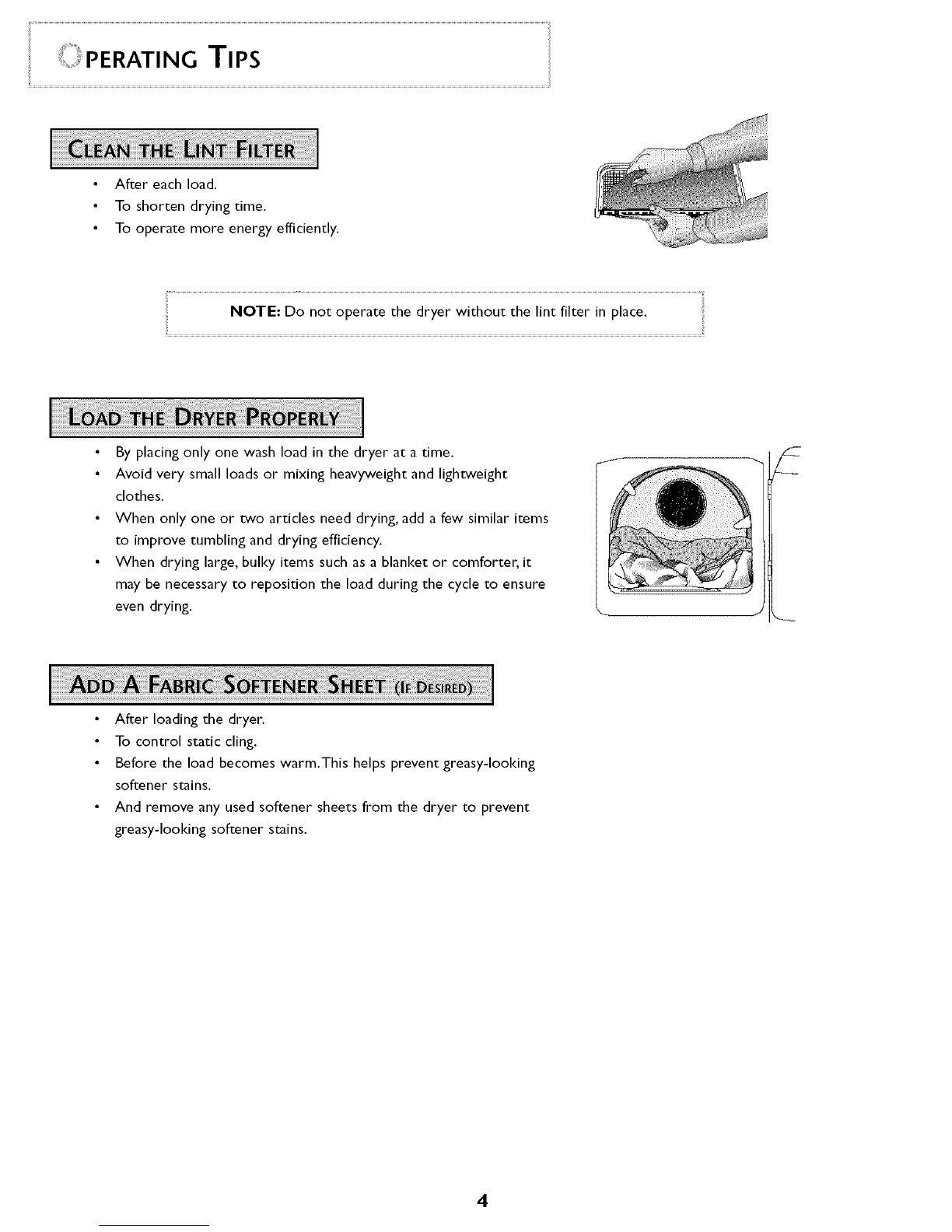

PERATING TIPS

After each load.

To shorten drying time.

To operate more energy efficiently.

By placing only one wash load in the dryer at a time.

Avoid very small loads or mixing heavyweight and lightweight

clothes.

When only one or two articles need drying, add a few similar items

to improve tumbling and drying efficiency.

When drying large, bulky items such as a blanket or comforter, it

may be necessary to reposition the load during the cycle to ensure

even drying.

After loading the dryer.

To control static cling.

Before the load becomes warm.This helps prevent greasy-looldng

softener stains.

And remove any used softener sheets from the dryer to prevent

greasy-looldng softener stains.

ONTROL PANEL

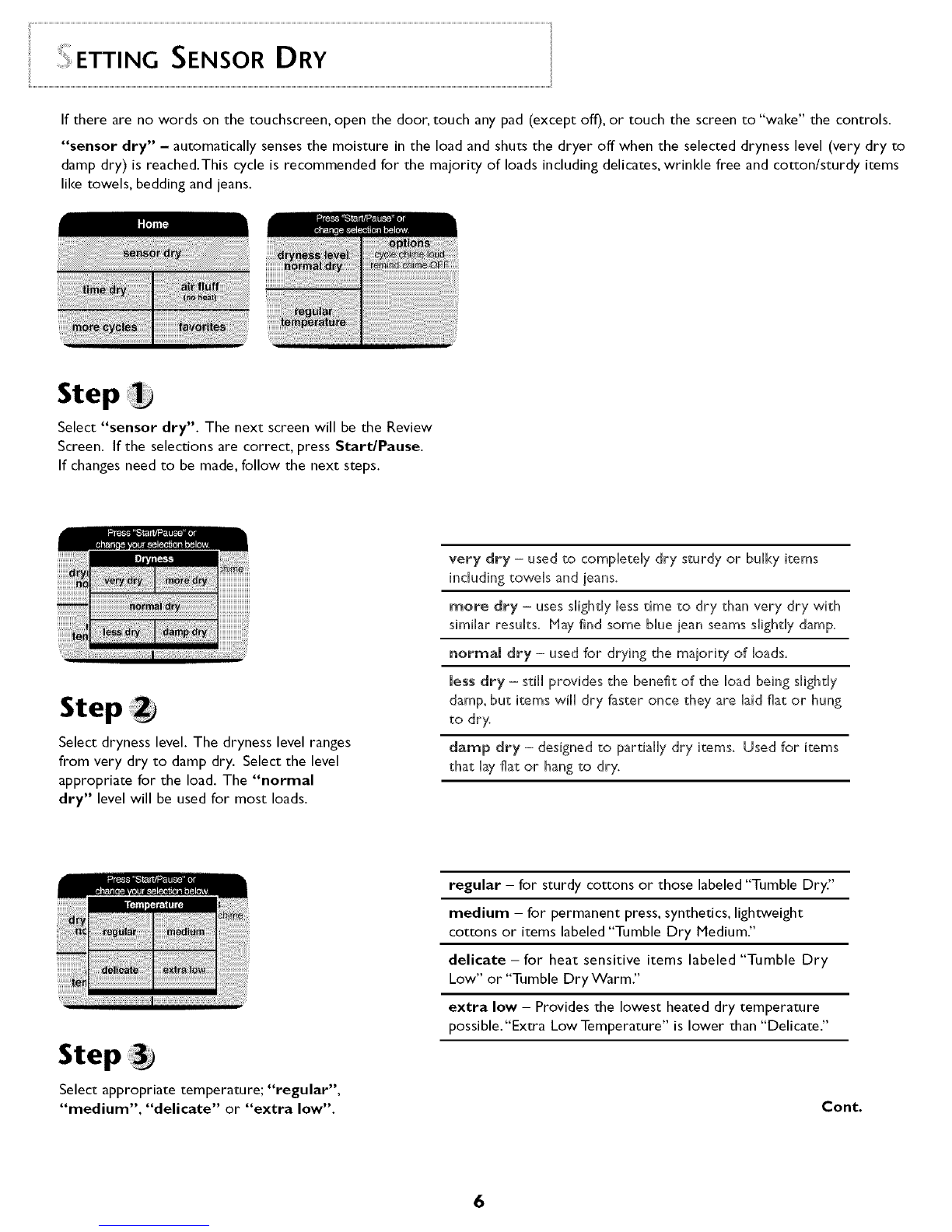

ETTING SENSOR DRY

If there are no words on the touchscreen, open the door, touch any pad (except off), or touch the screen to "wake" the controls.

"sensor dry" - automatically senses the moisture in the load and shuts the dryer off when the selected dryness level (very dry to

damp dry) is reached.This cycle is recommended for the majority of loads including delicates, wrinlde free and cotton/sturdy items

like towels, bedding and jeans.

Step

Select "sensor dry". The next screen will be the Review

Screen. If the selections are correct, press Start/Pause.

If changes need to be made, follow the next steps.

Step

Select dryness level. The dryness level ranges

from very dry to damp dry. Select the level

appropriate for the load. The "normal

dry" level will be used for most loads.

very dry - used to compHetely dry sturdy or bulky items

including towels and ieans.

more dry - uses slightly less time to dry than very dry with

similar results. May find some blue iean seams slightly damp.

normam dry - used for drying the maiority of loads.

messdry - still provides the benefit of the load being slightly

damp, but items will dry faster once they are laid flat or hung

to dry.

damp dry - designed to partially dry items. Used for items

that lay flat or hang to dry.

regular - for sturdy cottons or those labeled "Tumble Dry."

medium - for permanent press, synthetics, lightweight

cottons or items labeled "Tumble Dry Medium."

delicate - for heat sensitive items labeled "Tumble Dry

Low" or "Tumble DryWarm."

extra low - Provides the lowest heated dry temperature

possible."Extra Low Temperature" is lower than "Delicate."

Step

Select appropriate temperature; "regular",

medium , delicate or "extra low". Cont.

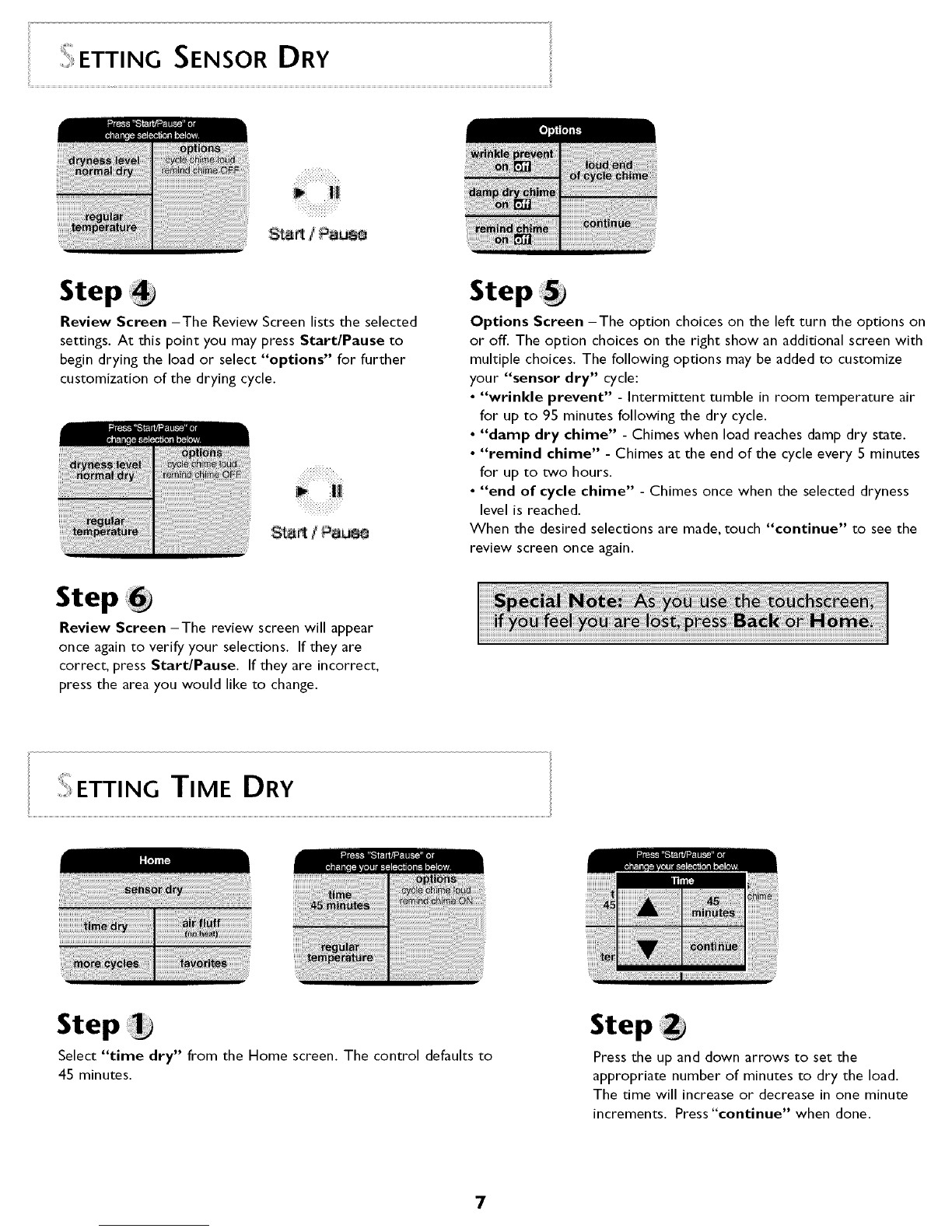

ETTING SENSOR DRY

?i : ::7

Step

Review Screen -The Review Screen lists the selected

settings. At this point you may press Start/Pause to

begin drying the load or select "options" for further

customization of the drying cycle.

i 7

Step

Review Screen -The review screen will appear

once again to verify your selections. If they are

correct, press Start/Pause. If they are incorrect,

press the area you would like to change.

Step

Options Screen -The option choices on the left turn the options on

or off. The option choices on the right show an additional screen with

multiple choices. The following options may be added to customize

your "sensor dry" cycle:

•"wrinkle prevent" - Intermittent tumble in room temperature air

for up to 95 minutes following the dry cycle.

• "damp dry chime" - Chimes when load reaches damp dry state.

• "remind chime" - Chimes at the end of the cycle every 5 minutes

for up to two hours.

• "end of cycle chime" - Chimes once when the selected dryness

level is reached.

When the desired selections are made, touch "continue" to see the

review screen once again.

ETTING TIME DRY

Step

Select "time dry" from the Home screen. The control defaults to

45 minutes.

Step

Press the up and down arrows to set the

appropriate number of minutes to dry the load.

The time will increase or decrease in one minute

increments. Press "continue" when done.

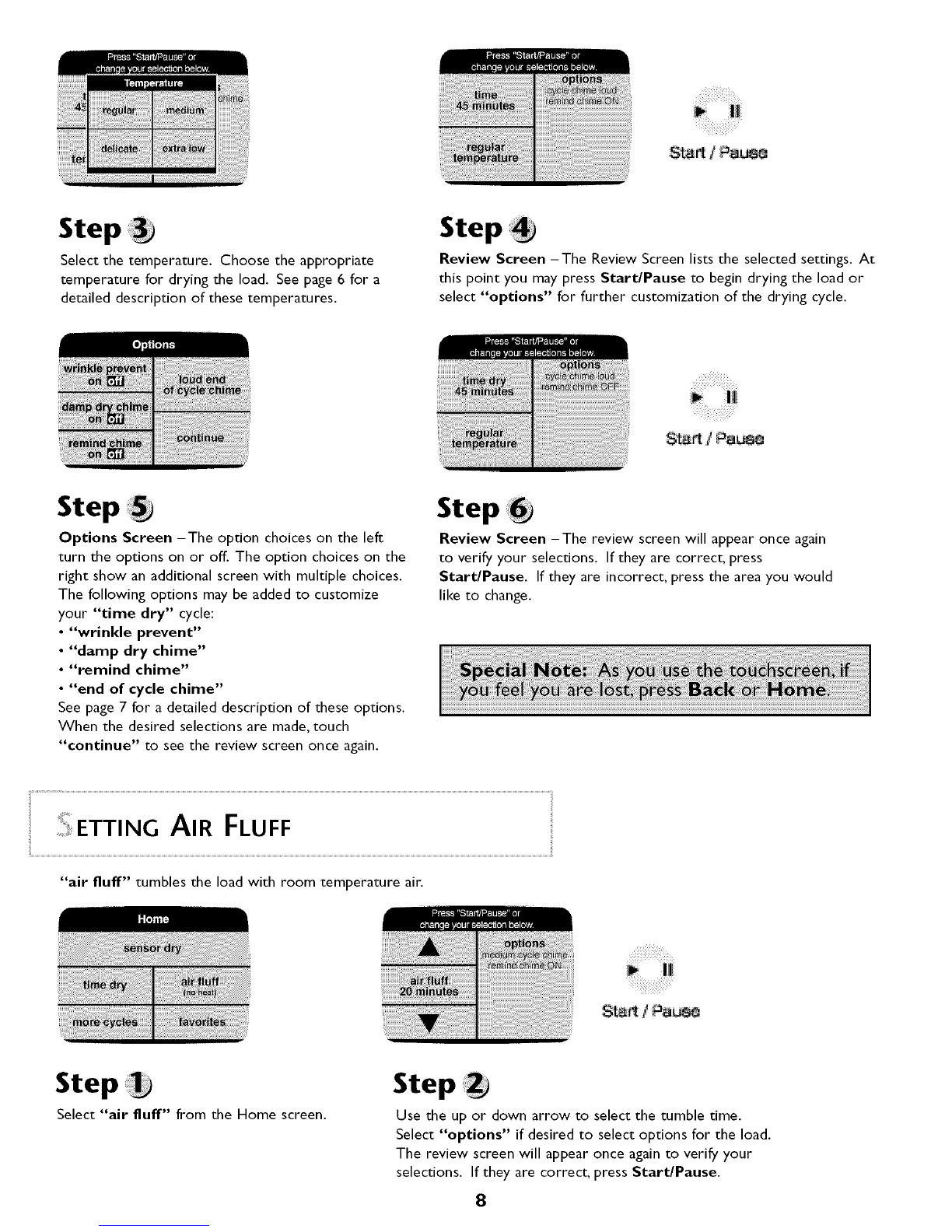

Step

Select the temperature. Choose the appropriate

temperature for drying the load. See page 6 for a

detailed description of these temperatures.

Step

Review Screen -The Review Screen lists the selected settings. At

this point you may press Start/Pause to begin drying the load or

select "options" for further customization of the drying cycle.

Step

Options Screen -The option choices on the lefc

turn the options on or off. The option choices on the

right show an additional screen with multiple choices.

The following options may be added to customize

your "time dry" cycle:

•"wrinlde prevent"

• "damp dry chime"

• "remind chime"

• "end of cycle chime"

See page 7 for a detailed description of these options.

When the desired selections are made, touch

"continue" to see the review screen once again.

Step

Review Screen -The review screen will appear once again

to verify your selections. If they are correct, press

Start/Pause. If they are incorrect, press the area you would

like to change.

;ETTING AIR FLUFF

"air fluff" tumbles the load with room temperature air.

Step

Select "air fluff" from the Home screen. Step

Use the up or down arrow to select the tumble time.

Select "options" if desired to select options for the load.

The review screen will appear once again to verify your

selections. If they are correct, press Start/Pause.

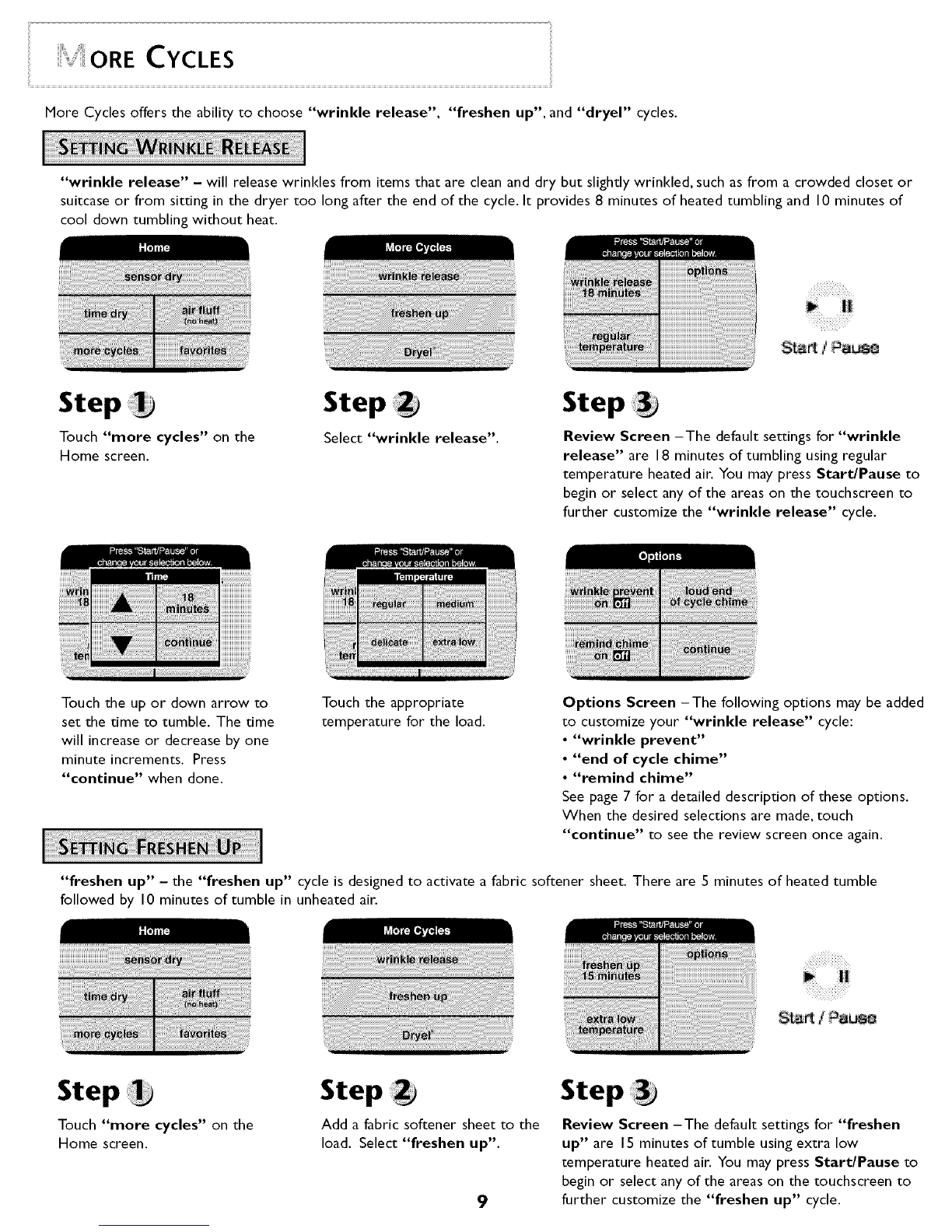

0RE C YC LES

More Cycles offers the abilit7 to choose "wrinkle release", "freshen up", and "dryel" cycles.

"wrinkle release" - will release wrinldes from items that are clean and dry but slightly wrinkled, such as from a crowded closet or

suitcase or from sitting in the dryer too long after the end of the cycle. It provides 8 minutes of heated tumbling and l0 minutes of

cool down tumbling without heat.

Step

Touch "more cycles" on the

Home screen.

Step

Select "wrinkle release".

Step

Review Screen -The default settings for "wrinkle

release" are 18 minutes of tumbling using regular

temperature heated air. You may press Start/Pause to

begin or select any of the areas on the touchscreen to

further customize the "wrinkle release" cycle.

Touch the up or down arrow to

set the time to tumble. The time

will increase or decrease by one

minute increments. Press

"continue" when done.

Touch the appropriate

temperature for the load. Options Screen -The following options may be added

to customize your "wrinkle release" cycle:

•"wrinlde prevent"

• "end of cycle chime"

• "remind chime"

See page7 for a detailed description of these options.

When the desired selections are made,touch

"continue" to see the review screen once again.

"freshen up" - the "freshen up" cycle is designed to activate a fabric softener sheet. There are 5 minutes of heated tumble

followed by 10 minutes of tumble in unheated air.

...... :li

Step

Touch "more cycles" on the

Home screen.

Step

Add a fabric softener sheet to the

load. Select freshen up".

Step

Review Screen -The default settings for "freshen

up" are 15 minutes of tumble using extra low

temperature heated air. You may press Start/Pause to

begin or select any of the areas on the touchscreen to

further customize the "freshen up" cycle.

This manual suits for next models

Table of contents

Languages:

Other Maytag Dryer manuals

Maytag

Maytag MDG22PD User manual

Maytag

Maytag 3395316 User manual

Maytag

Maytag SDE515DAZW User manual

Maytag

Maytag MCE8000AYW User manual

Maytag

Maytag MLG-30PDA User manual

Maytag

Maytag MD-170 Administrator Guide

Maytag

Maytag MDG-120PVV User manual

Maytag

Maytag Neptume MD98 User manual

Maytag

Maytag MDG30PNH User manual

Maytag

Maytag MDG2500BWW Manual

Maytag

Maytag MDE20MN User manual

Maytag

Maytag Neptune MDE5500AYQ User manual

Maytag

Maytag MEDE300V Parts list manual

Maytag

Maytag MGDE500VW - Performance Series Front Load Steam Gas... User manual

Maytag

Maytag MGDC700VW - Centennial Gas Dryer User manual

Maytag

Maytag BRAVOS W10201176C User manual

Maytag

Maytag HY-1 53-4350 User manual

Maytag

Maytag MGDE900VW2 User manual

Maytag

Maytag MDG22PN User manual

Maytag

Maytag MDE9800AYW User manual

Maytag

Maytag MDE9651 User manual

Maytag

Maytag MLG31PCB User manual

Maytag

Maytag 4KMEDC215 User manual

Maytag

Maytag Bravos MEDX600XW0 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
