TOP AND CONSOLE PARTS

For Model: MEDZ600TW2, MEDZ600TB2, MEDZ600TK2

(White) (Black) (Pacific Blue)

11−07 Printed in U.S.A. (LT) Part No. W10176726 Rev. A

27" ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Model: MEDZ600TW2, MEDZ600TB2, MEDZ600TK2

(White) (Black) (Pacific Blue)

W10176726

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10112937

Use & Care Guide

W10117402

Tech Sheet

W10117403

Guide,

Quick Start

2 Top

8563730 White

W10129703

Black

W10140767

Pacific Blue

W10110972

Harness, Main

4 Panel, Console

(Includes Illus.

15.)

W10117389

White

W10117393

Black

W10119034

Pacific Blue

5 3394427 Clip, Harness

6 8565237 Bracket, Console

7 353424 Connector, Sensor

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 3390647 Screw, 8−18 x 1/2

W10117387

Lens, Display

13 3395683 Connector,

(Motor)

W10117417

Assembly,

User Interface

W10112569

Badge

W10119050

Knob, Assembly

17 8574968 Channel, Water

18 3400238 Screw, 2−28 x 1/2

CABINET PARTS

For Model: MEDZ600TW2, MEDZ600TB2, MEDZ600TK2

(White) (Black) (Pacific Blue)

W10176726

CABINET PARTS

For Model: MEDZ600TW2, MEDZ600TB2, MEDZ600TK2

(White) (Black) (Pacific Blue)

W10176726

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8576583 Cover,

Terminal Block

2 8533974 Screw Ground

3 3357011 Screw, 10−16 x 1/2

4 3397659 Block, Terminal

5 3394881 Switch, Broken

Belt

7 Panel, Side (L.H.)

8565054 White

W10112962

Black

W10119026

Pacific Blue

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

697750 White

3388309 Black

8561800 Pacific Blue

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Includes Illus. 33)

15 8066120 Lever, Snap

Switch

16 3394081 Wire, Belt Switch

17 343641 Screw, 10−16 x 1/2

18 233520 Washer, Thrust

19 8574875 Assembly,

Door Switch

W10121334

Tri Ring

21 8066115 Cover−Plate

22 8565083 Ramp, Door

24 Panel, Side (R.H.)

8565048 White

W10112963

Black

W10119027

Pacific Blue

26 8565059 Panel, Rear

27 8538263 Motor, Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

W10112954

Belt, Drive

31 8572546 Kit,

Stack Assembly

32 3387118 Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 49026 4" − 90 Elbow

35 8565043 Plug,

Front Panel

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

40 8519459 Clip, Toe Panel

41 Toe Panel

8540621 White

W10112964

Black

W10119028

Pacific Blue

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8565122 Strike−Door

47 8563727 Control Bracket

W10111606

Control Board

49 90767 Screw, 8−18 x 3/8

50 8565046 Base, Cabinet

51 Front Panel

(Includes

Illus. 44)

W10117421

White

W10117396

Black

W10119029

Pacific Blue

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

52 279818 White

279820 Black

280102 Pacific Blue

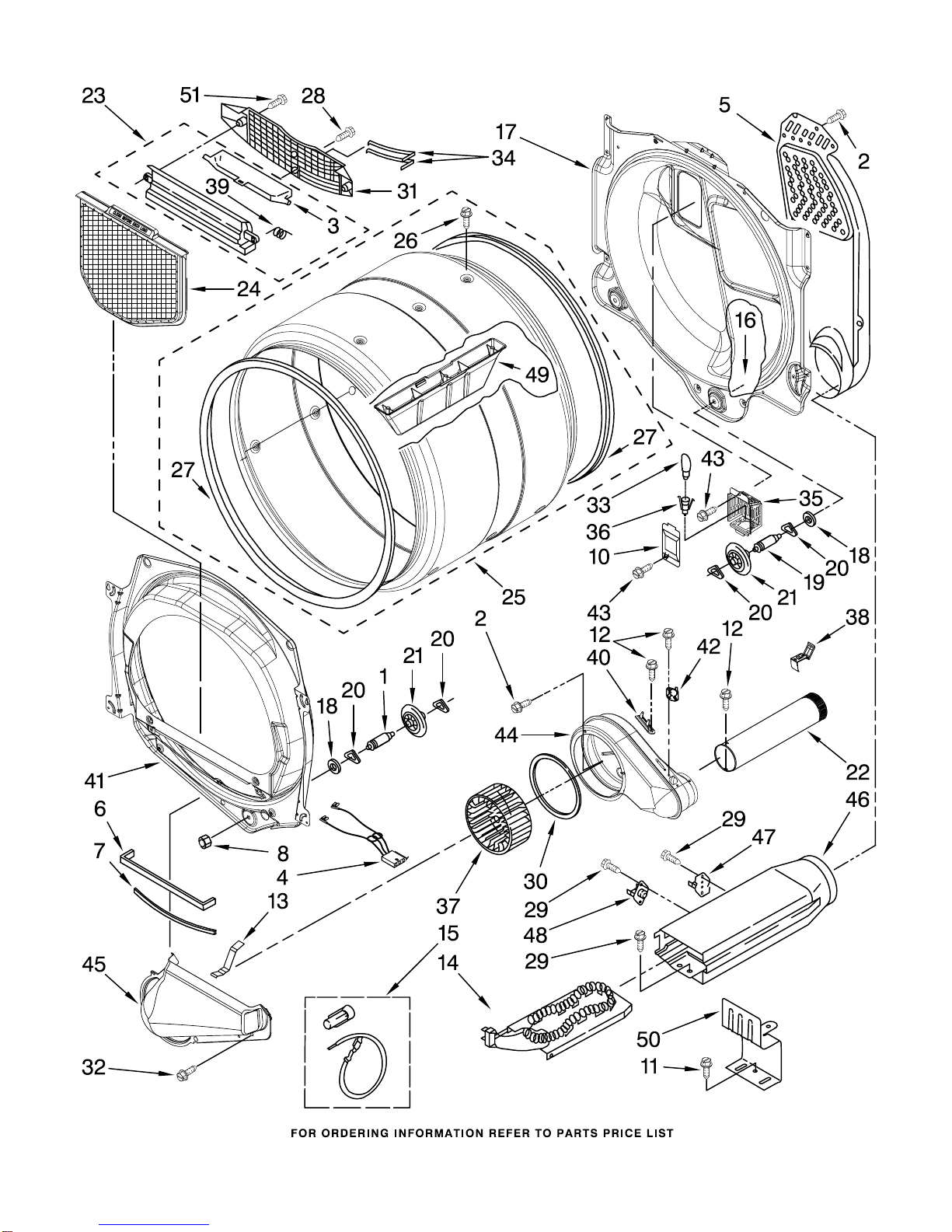

BULKHEAD PARTS

For Model: MEDZ600TW2, MEDZ600TB2, MEDZ600TK2

(White) (Black) (Pacific Blue)

W10176726

BULKHEAD PARTS

For Model: MEDZ600TW2, MEDZ600TB2, MEDZ600TK2

(White) (Black) (Pacific Blue)

W10176726

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

W10153413

Door, Lint

Screen

4 3406653 Harness, Sensor

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

10 3402841 Lens,

Drum Light

11 693995 Screw, 8−18 x 3/8

12 8533971 Screw, 8−18 x 5/16

13 8066208 Clip−Spring

14 3387747 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

W10001120

Nut, 3/8−16 (L.H.)

W10080170

Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8563728 Exhaust Pipe

W10153423

Housing, Outlet

Assembly

W10049370

Lint Screen

W10153420

Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

W10166807

Seal, Drum

28 695240 Screw, 8−18 x 1/2

29 90767 Screw, 8−18 x 3/8

30 697770 Seal, Cover Plate

W10153412

Grille, Outlet

32 489463 Screw, 8−18 x 5/8

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 8578825 Bracket,

Drum Light

W10136369

Socket Assembly

37 697772 Wheel, Blower

38 8572105 Clip−Exhaust

39 3394986 Spring, Lint

Screen Door

40 3392519 Thermal Fuse

(91 C)

41 8565061 Bulkhead, Front

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 3392537 Heater Box

47 8318314 Thermal Cut−Off

(Includes

Illus. 48)

48 3391914 Thermostat 295 F

(146 C)

W10153409

Baffle, Drum

50 8066099 Bracket,

Heater Box

51 3387230 Screw, 10−16 x 1

DOOR PARTS

For Model: MEDZ600TW2, MEDZ600TB2, MEDZ600TK2

(White) (Black) (Pacific Blue)

W10176726

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8565119 Plug Strip

(Inner Door)

2 8578887 Door Hinge

Assembly

W10119053

Door, Screen

Intermediate Assy.

4 9742177 Screw, 8−18 x 5/8

5 3400618 Screw, 6−32 x 3/8

6 3393258 Screw, 10−16 x 1/2

W10117478

Handle, Door

(Includes Illus.

19.)

W10159996

Screw

9 8519354 Retainer (Lower)

10 8578933 Door Assembly

(Inner)

(Includes

Illus. 1 & 14 )

11 355515 Screw,

8−18 x 11/16

W10112917

Door, Outer Ring

13 8565117 Window

14 690081 Door Catch

Assembly

15 8579663 Seal, Window

16 8580059 Door,

Intermediate

17 8534022 Screw

18 8519356 Retainer (Upper)

W10112927

Pad,

Door Handle

20 Door Seal

(Not Servicable)

OPTIONAL PARTS (NOT INCLUDED)

For Model: MEDZ600TW2, MEDZ600TB2, MEDZ600TK2

(White) (Black) (Pacific Blue)

W10176726

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72302 Black

4396816 Blue

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

786020 Black

350938 Primer, Gray

ACCESSORY PARTS

8529894 Hold Down Kit

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair

8563738 Dry Rack
