Maytag MDG6800AWW User manual

ABLE OF CONTENTS

Safety Instructions ................................................. I-2

Dryer Exhaust Tips ................................................... 3

Operating Tips ............................................................. 4

Using the Controls ................................................ 5-6

Special Laundry Tips ................................................... 7

Care and Cleaning ...................................................... 8

Replace Drum Light ................................................... 8

Reverse the Door ....................................................... 8

Troubleshooting ........................................................... 9

Drying Rack ............................................................... I0

Warranty ................................................................... II

Guide d'utilisation et d'entretien ....................... 12

Guia de Uso y Cuidaclo ........................................ 24

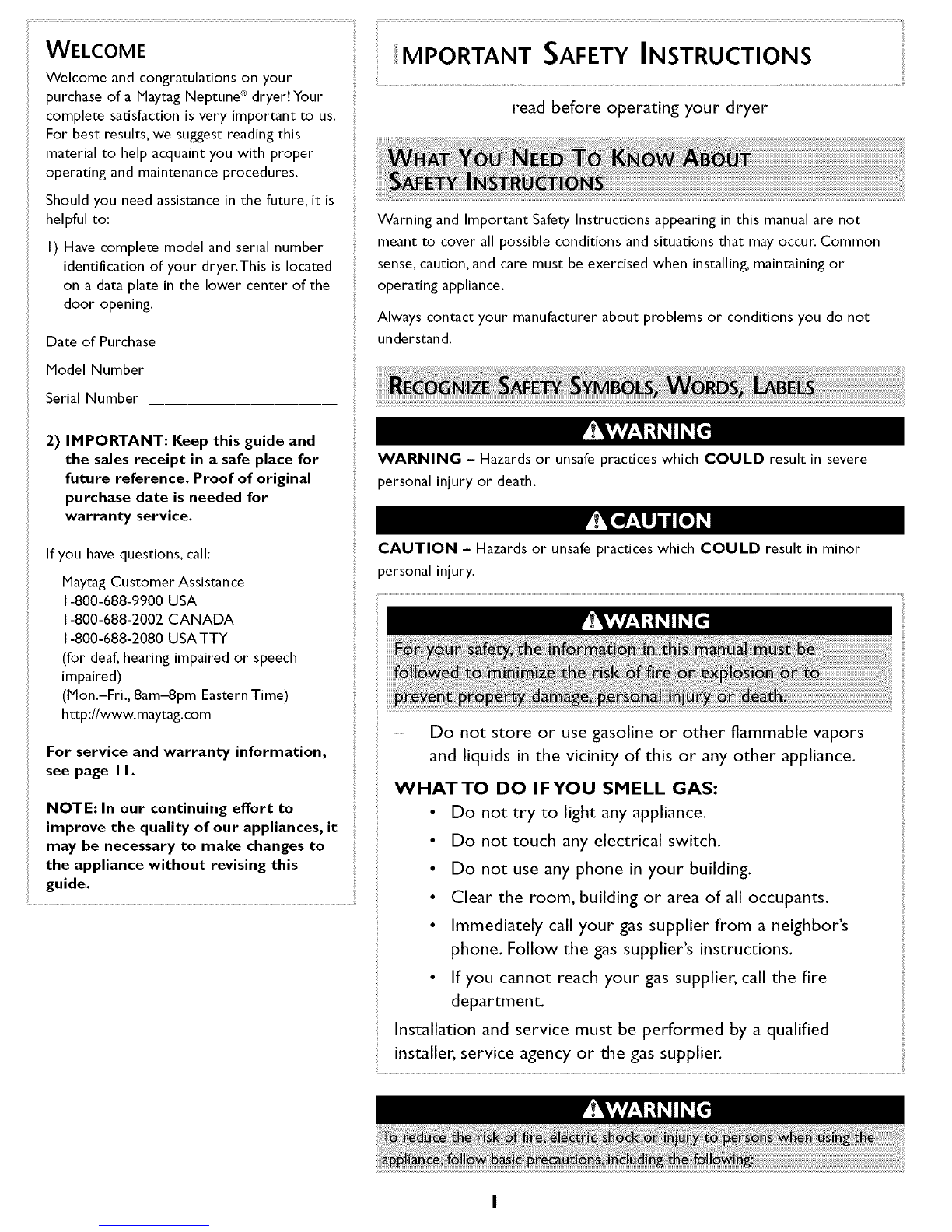

WELCOME

Welcome and congratulations on your

purchase of a Maytag Neptune ®dryer! Your

complete satisfaction is very important to us.

For best results, we suggest reading this

material to help acquaint you with proper

operating and maintenance procedures.

Should you need assistance in the future, it is

helpful to:

I) Have complete model and serial number

identification of your dryer.This is located

on a data plate in the lower center of the

door opening.

Date of Purchase

Model Number

Serial Number

2) IMPORTANT: Keep this guide and

the sales receipt in a safe place for

future reference. Proof of original

purchase date is needed for

warranty service.

If you have questions, call:

Maytag Customer Assistance

1-800-688-9900 USA

1-800-688-2002 CANADA

1-800-688-2080 USA TTY

(for deaf, hearing impaired or speech

impaired)

(Mon.-Fri., 8am-Spin Eastern Time)

http://www.maytag.com

For service and warranty information,

see page II.

NOTE: In our continuing effort to

improve the quality of our appliances, it

may be necessary to make changes to

the appliance without revising this

guide.

MPORTANT SAFETY INSTRUCTIONS

read before operating your dryer

Warning and Important Safety Instructions appearing in this manual are not

meant to cover all possible conditions and situations that may occur. Common

sense, caution, and care must be exercised when installing, maintaining or

operating appliance.

Always contact your manufacturer about problems or conditions you do not

understand.

WARNING - Hazards or unsafe practices which COULD result in severe

personal injury or death.

CAUTION - Hazards or unsafe practices which COULD result in minor

personal injury.

Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

WHATTO DO IFYOU SMELL GAS:

•Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor's

phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire

department.

Installation and service must be performed by a qualified

installer, service agency or the gas supplier.

MPORTANT SAFETY INSTRUCTIONS

I) Read all instructions before using the appliance.

2) To avoid the possibility of fire or explosion:

Do not dry items that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline,

dry-cleaning solvents, other flammable or explosive

substances asthey give off vapors that could ignite

or explode. Any material on which you have used a

cleaning solvent, or which is saturated with

flammable liquids or solids, should not be placed in

the dryer, until all traces of these flammable liquids

or solids and their fumes have been removed.There

are many highly flammable items used in homes, such

as:acetone, denatured alcohol, gasoline, kerosene,

some liquid household cleaners, some spot

removers, turpentine, waxes and wax removers.

Items containing foam rubber (may be labeled latex

foam) or similarly textured rubber-like materials

must not be dried on a heat setting. Foam rubber

materials when heated, can under certain

circumstances produce fire by spontaneous

combustion.

The California Safe DrinldngWater and Toxic EnforcementAct of

1986 (Proposition 65) requires the Governor of California to

publish a list of substances known to the State of California to

cause cancer or reproductive harm, and requires businesses to

warn customers of potential exposures to such substances.

Users of this appliance are hereby warned that the burning of gas

can result in low-level exposure to some of the listed

substances, including benzene, formaldehyde, and soot, due

primarily to the incomplete combustion of natural gas or liquid

petroleum (LP) fuels. Exhaust ducts should be kept free of

obstructions and properly exhausted dryers will minimize

exposure.

3) Do not allow children to play on or in the appliance. Close

supervision of children is necessary when the appliance is

used near children.

4) Before the appliance is removed from service or discarded,

remove the door to the drying compartment.

5) Do not reach into the appliance if the drum is moving.

6) Do not install or store this appliance where it will be

exposed to the weather.

7) Do not tamper with controls.

8) Do not repair or replace any part of the appliance or

attempt any servicing unless specifically recommended in

published user-repair instructions that you understand and

have the sldlls to carry out.

9) Do not use fabric softeners or products to eliminate static

unless recommended for dryer use by the manufacturer of

the fabric softener or product.

10) Clean the lint screen before or after each load.

I I) Keep the area around the exhaust opening and surrounding

areas free from lint accumulation, dust and dirt.

12) The interior of the dryer and exhaust duct should be

cleaned periodically by qualified service personnel.

13) This appliance must be properly grounded. Never plug the

appliance cord into a receptacle which is not grounded

adequately and in accordance with local and national codes.

See installation instructions for grounding this appliance.

14) Do not sit on top of the clothes dryer.SAVE THESE INSTRUCTIONS

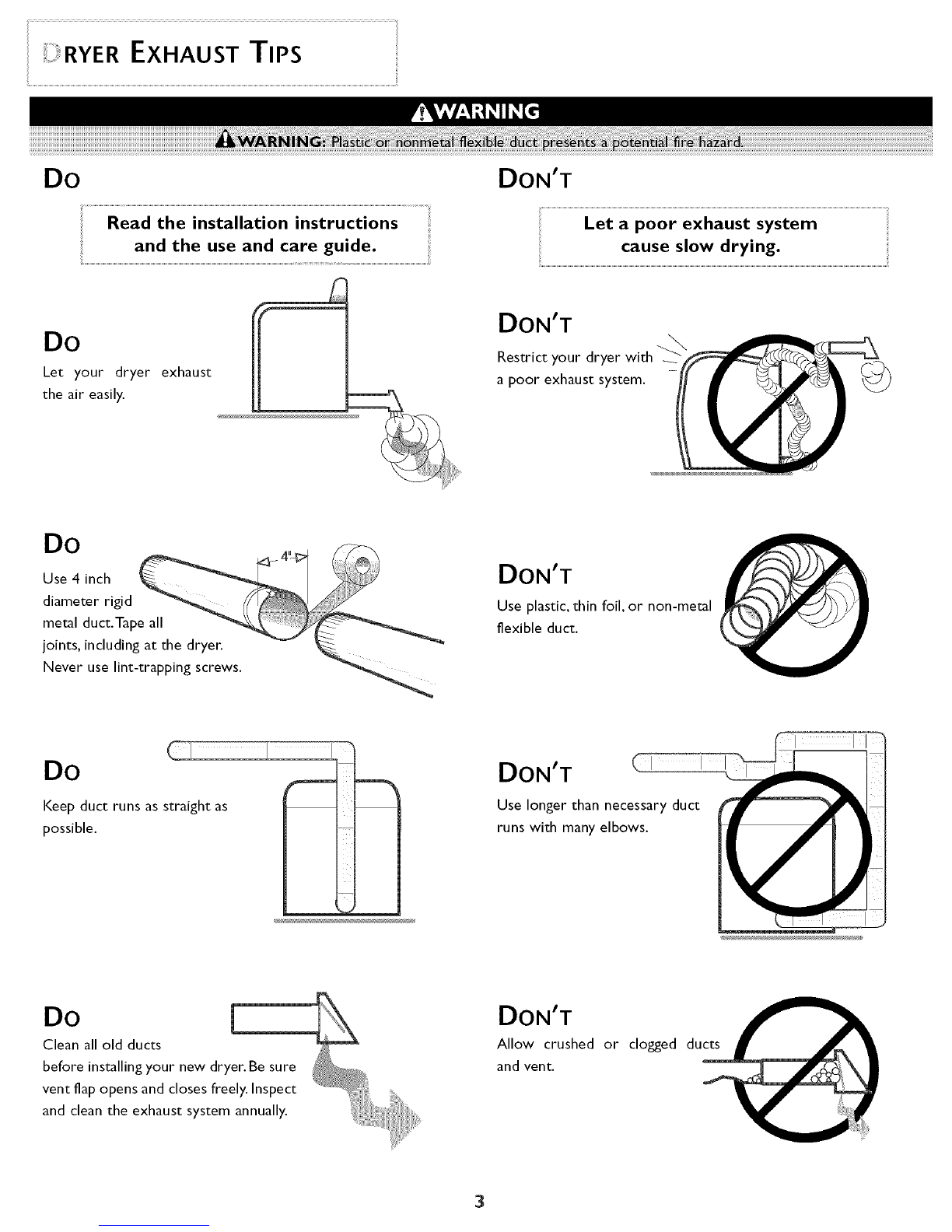

RYER EXHAU ST PS

Do DON'T

Let your dryer exhaust

the air easily.

DON'T

Restrictyour dryer

a poor exhaust system.

DON'T

Use plastic,thin foil,or non-metal

flexible duct.

Do _ I I

Keep duct runs as straight as

possible.

DON'T C- I I

Use longer than necessary duct

runs with many elbows.

DO {

Clean all old ducts

before installing your new dryer. Be sure

vent flap opens and closes freely. Inspect

and clean the exhaust system annually.

DON'T

Allow crushed or clogged ducts

and vent.

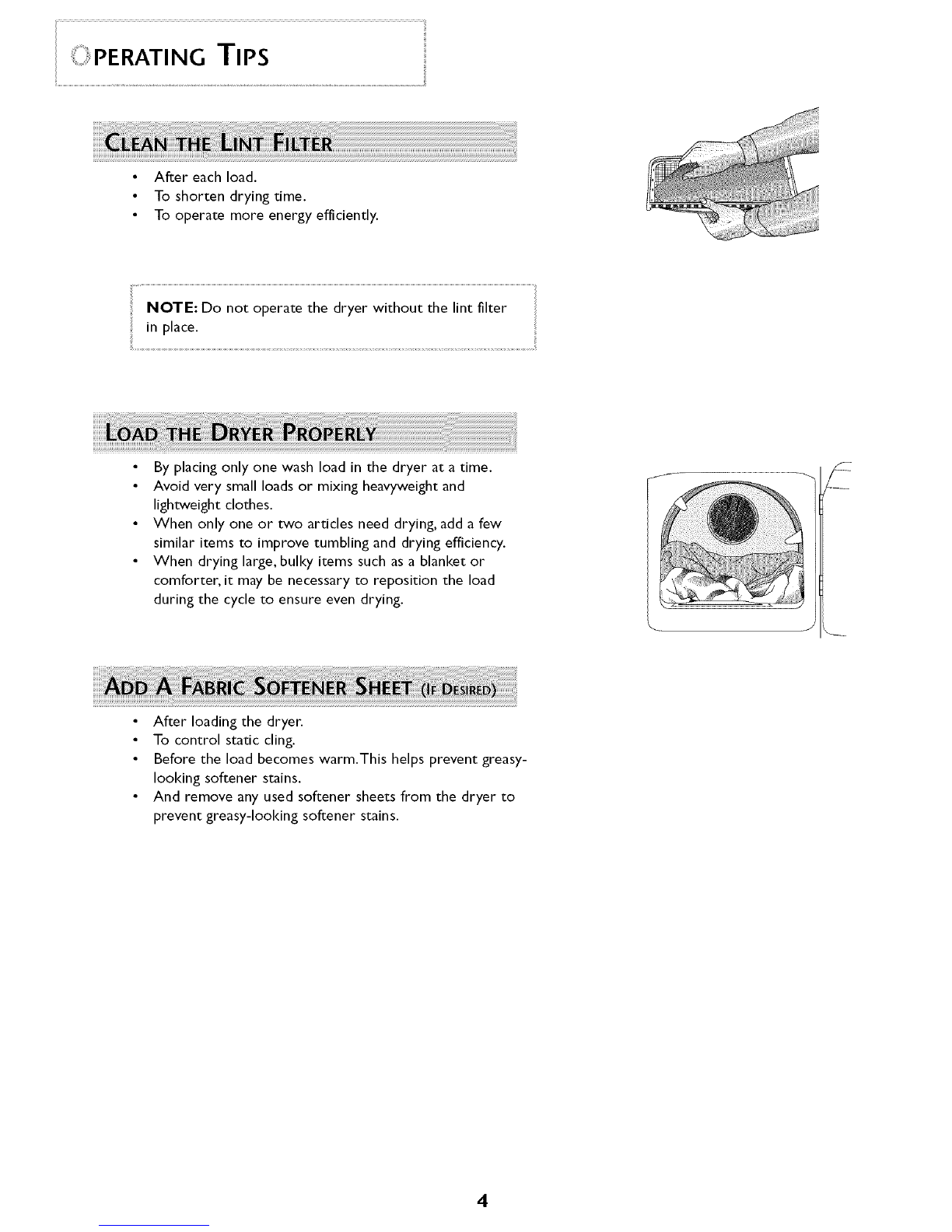

PERATING T PS

After each load.

To shorten drying time.

To operate more energy efficiently.

NOTE: Do not operate the dryer without the lint filter

in place.

By placing only one wash load in the dryer at a time.

•Avoid very small loads or mixing heavyweight and

lightweight clothes.

• When only one or two articles need drying, add a few

similar items to improve tumbling and drying efficiency.

• When drying large, bulky items such as a blanket or

comforter, it may be necessary to reposition the load

during the cycle to ensure even drying.

• After loading the dryer.

•To controlstatic cling.

Before the load becomes warm.This helps prevent greasy-

looking softener stains.

And remove any used softener sheets from the dryer to

prevent greasy-looking softener stains.

i SING THE CONTROLS

Step Select a Cycle

Sensor Dry -Automatically senses the moisture in the load

and shuts the dryer off when the selected dryness level (very

dry to damp dry) is reached.This cycle is recommended for

the majority of loads including delicates, wrinkle free and

cotton/sturdy items like towels, bedding and jeans.

Time Dry - May be selected for any load if Sensor Dry is

not used. Press the up or down arrow pad to select the

desired number of minutes.

Air Fluff- Provides tumbling in unheated air. Used for

freshening items. Press the up or down arrow pad to select

the desired number of minutes.

Wrinlde Release - Will release wrinldes from items that are

clean and dry but slightly wrinlded, such as from a crowded

closet or suitcase or from sitting in the dryer too long after

the end of the cycle. It provides 8minutes of heated tumbling

and 10 minutes of cool down tumbling without heat.

Cycles

Time

Dry

Air

E_uff

Set Drying Time

Estimated Time

Step Select Sensor

Dry Level

Press the arrow pad to select the desired dryness level.

Very Dry - Used to completely dry sturdy or bulky items

including towels and jeans.

Hore Dry - Uses slightly less time to dry than very dry with

similar results. May find some blue jean seams slightly damp.

Normal Dry - Used for drying the majority of loads.

Less Dry - Still provides the benefit of the load being slightly

damp, but items will dry faster once they are laid fiat or hung dry.

Damp Dry - Designed to partially dry items. Used for items

that lay fiat or hang to dry.

Very Dry

More Dry

Normal Dry

Less Dry

Damp Dry

Sensor Dry Level

Step Select Temperature

There are four temperature settings. Press the arrow pad to

select regular, medium, low or extra low temperatures.

Regular - For sturdy cottons or those labeled "Tumble Dry."

Hedium - For permanent press, synthetics, lightweight

cottons or items labeled "Tumble Dry Medium."

Low - For heat sensitive items labeled "Tumble Dry

Low" or "Tumble DryWarm."

Extra Low - Provides the lowest heated dry temperature

possible.

Regular

Medium

Low

Extra Low

Temperature

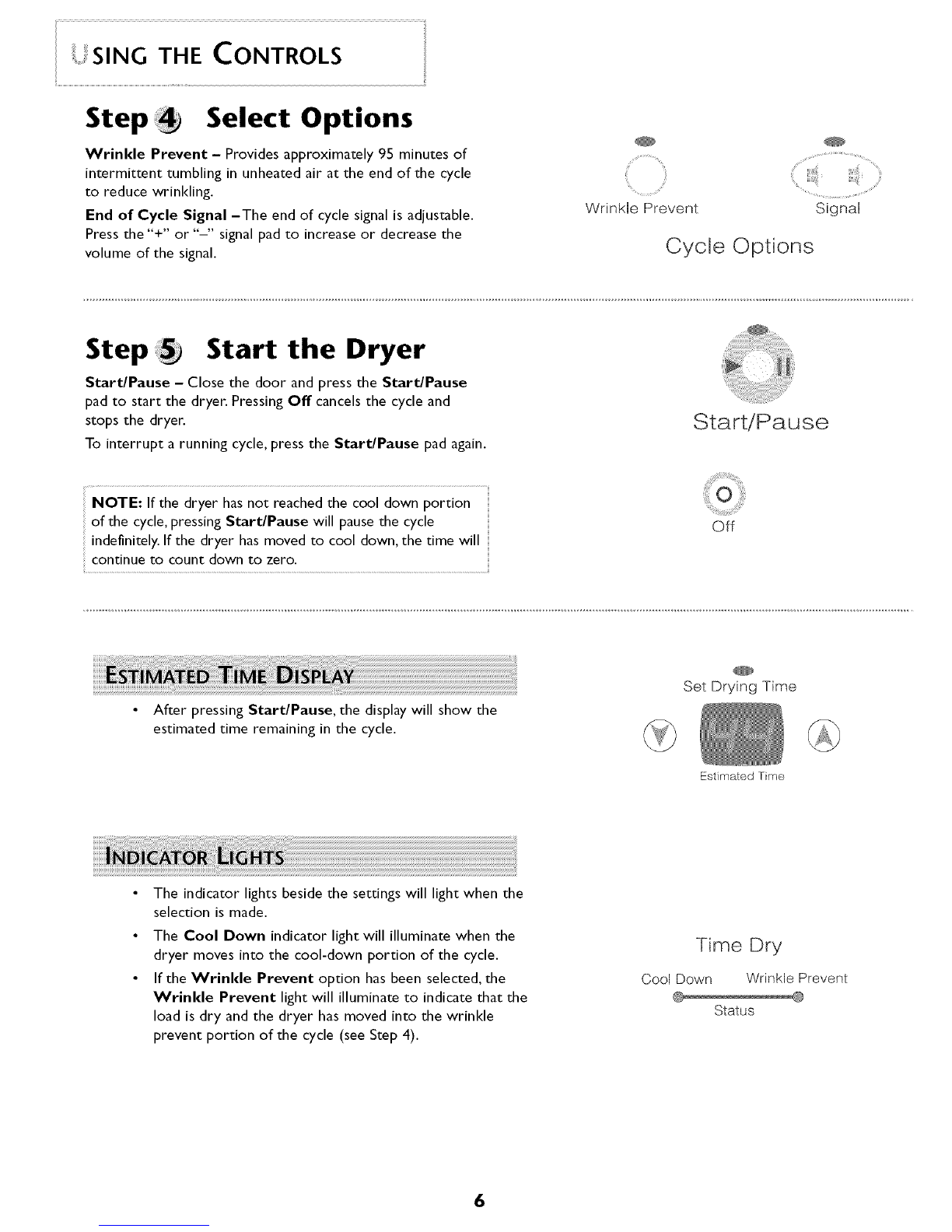

:SING THE CONTROLS

Step Select Options

Wrinkle Prevent - Provides approximately 95 minutes of

intermittent tumbling in unheated air at the end of the cycle

to reduce wrinkling.

End of Cycle Signal -The end of cycle signal is adjustable.

Press the "+" or "-" signal pad to increase or decrease the

volume of the signal.

Wrinkle Prevent

iiiiiiii_

Signal

Cycle Options

Step Start the Dryer

Start/Pause - Close the door and press the Start/Pause

pad to start the dryer. Pressing Off cancels the cycle and

stops the dryer.

To interrupt arunning cycle, press the Start/Pause pad again. Start/Pause

NOTE: If the dryer has not reached the cool down portion

of the cycle,pressing Start/Pause will pause the cycle

indefinitely.If the dryer has moved to cool down, the time will

continue to count down to zero.

Off

After pressing Start/Pause, the display will show the

estimated time remaining in the cycle.

Set Drying Tirne

Estimated Time

The indicator lights beside the settings will light when the

selection is made.

The Cool Down indicator light will illuminate when the

dryer moves into the cool-down portion of the cycle.

If the Wrinlde Prevent option has been selected, the

Wrinlde Prevent light will illuminate to indicate that the

load is dry and the dryer has moved into the wrinlde

prevent portion of the cycle (see Step 4).

Time Dry

Cool Down Wrinkle Prevent

Status

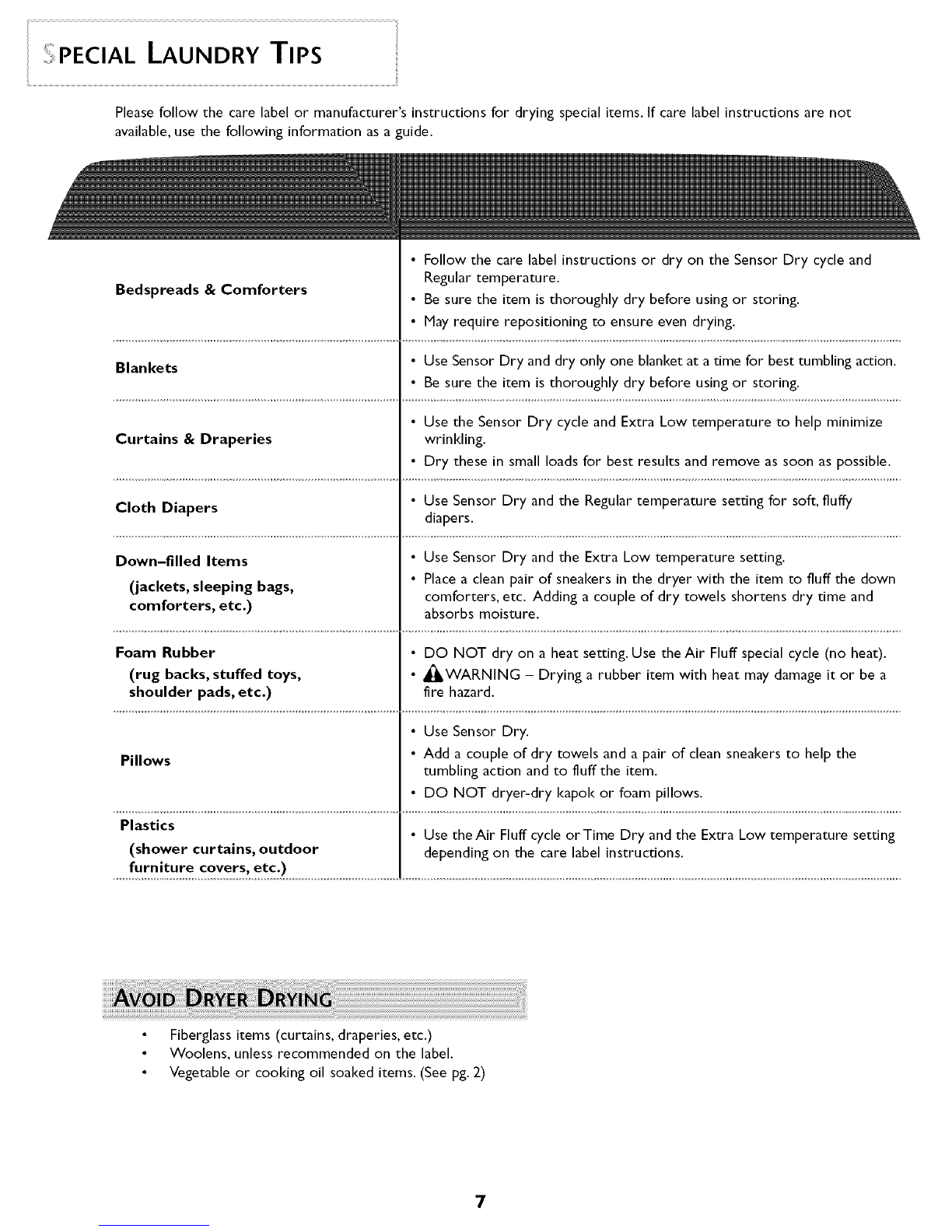

PECIAL LAUNDRY TiPs

Please follow the care label or manufacturer's instructions for drying special items. If care label instructions are not

available, use the following information as a guide.

•Follow the care label instructions or dry on the Sensor Dry cycle and

Regular temperature.

Bedspreads &Comforters • Be sure the item is thoroughly dry before using or storing.

•Nay require reposJtJonJng 1:o ensure even drying.

Blankets • Use Sensor Dry and dry only one blanket at a time for best tumbling action.

• Be sure the item is thoroughly dry before using or storing.

•Use the Sensor Dry cycle and Extra Low temperature 1:o help minimize

Curtains &Draperies wrinkling.

•Dry these in small loads for best results and remove as soon as possible.

•Use Sensor Dry and the Regular temperature setting for soft, fluffy

Cloth Diapers diapers.

Down-filled Items • Use Sensor Dry and the Extra Low temperature setting.

(jackets, sleeping bags, • Place aclean pair of sneakers in the dryer with the item to fluff the down

comforters, etc. Adding acouple of dry towels shortens dry time and

comforters, etc.) absorbs moisture.

Foam Rubber •DO NOT dry on aheat setting. Use the Air Fluff special cycle (no heat).

(rug backs, stuffed toys, • _WARNING -Drying a rubber item with heat may damage it or be a

shoulder pads, etc.) fire hazard.

• Use Sensor Dry.

Pillows • Add a couple of dry towels and a pair of clean sneakers to help the

tumbling action and to fluff the item.

• DO NOT dryer-dry kapok or foam pillows.

Plastics • Use the Air Fluff cycle orTime Dry and the Extra Low temperature setting

(shower curtains, outdoor depending on the care label instructions.

furniture covers, etc.)

Fiberglass items (curtains, draperies, etc.)

Woolens, unless recommended on the label.

Vegetable or cooking oil soaked items. (See pg. 2)

(ARE AND CLEANING

Control Panel - Clean with a soft, damp cloth. Do not use

abrasive substances.Do not spray cleaners directly on the panel.

Tumbler - Remove any stains such as crayon, ink pen or fabric

dye (from new items such as towels or jeans) with an all-purpose

cleaner. Then tumble old towels or rags to remove any excess

stain or cleaning substance. Once these steps are done, stains

may still be visible, but should not transfer to subsequent loads.

Cabinet -Wipe off any marks with soap and water.

Dryer Exhaust System - Should be inspected and cleaned

once a year to maintain optimum performance.The outside

exhaust hood should be cleaned more frequently to ensure

proper operation. (Refer to the Installation Instructions for

more information.)

EPLACE DRUM LIGHT

Instructions for replacing the bulb:

I) Unplug or disconnect the dryer from the electrical power

supply.

2) Open the door and use a Phillips screwdriver to remove

the screw attaching the lens to the tumbler front.

3) Remove lens cover by pulling cover toward center of

tumbler.

4) Rotate bulb counter-clockwise to remove from socket.

5) Replace the bulb with a 120 volt, 10 watt maximum

candelabra base light bulb.

6) Turn the light bulb clockwise into socket.

7) Replace lens cover by hooking plastic tabs into tumbler

front below the light housing.

8) Reinstall the screw into the lens cover screw hole.

9) Reconnect dryer to power supply.

:!IEVERSE THE DOOR

Instructions for reversing the dryer door:

I) Remove the hinge hole covers and screws.

2) While supporting the door, remove 2 screws in the hinges that secure the hinges to the cabinet.

3) Remove door by lifting slightly at the hinges and pulling the hinge tabs out of the hinge slots.

4) Move the following parts to the opposite side of the door: 2 hinges and 4 hinge screws, 4 door screws, door strike and screw,

inner door cover plate and screw.

5) Attach the door to the opposite side of the cabinet using the 2 counter sunk hinge screws. (See below). Screw the lower hinge

screw in first.This will help to align the door and hinges.

6) Replace the hinge hole covers to the opposite side.

............... J

.......... -................. G

,, , [

Door Catch --\ Counter Sunk Screw _

Door

_Screws

Door

Strike

Door

_Screws

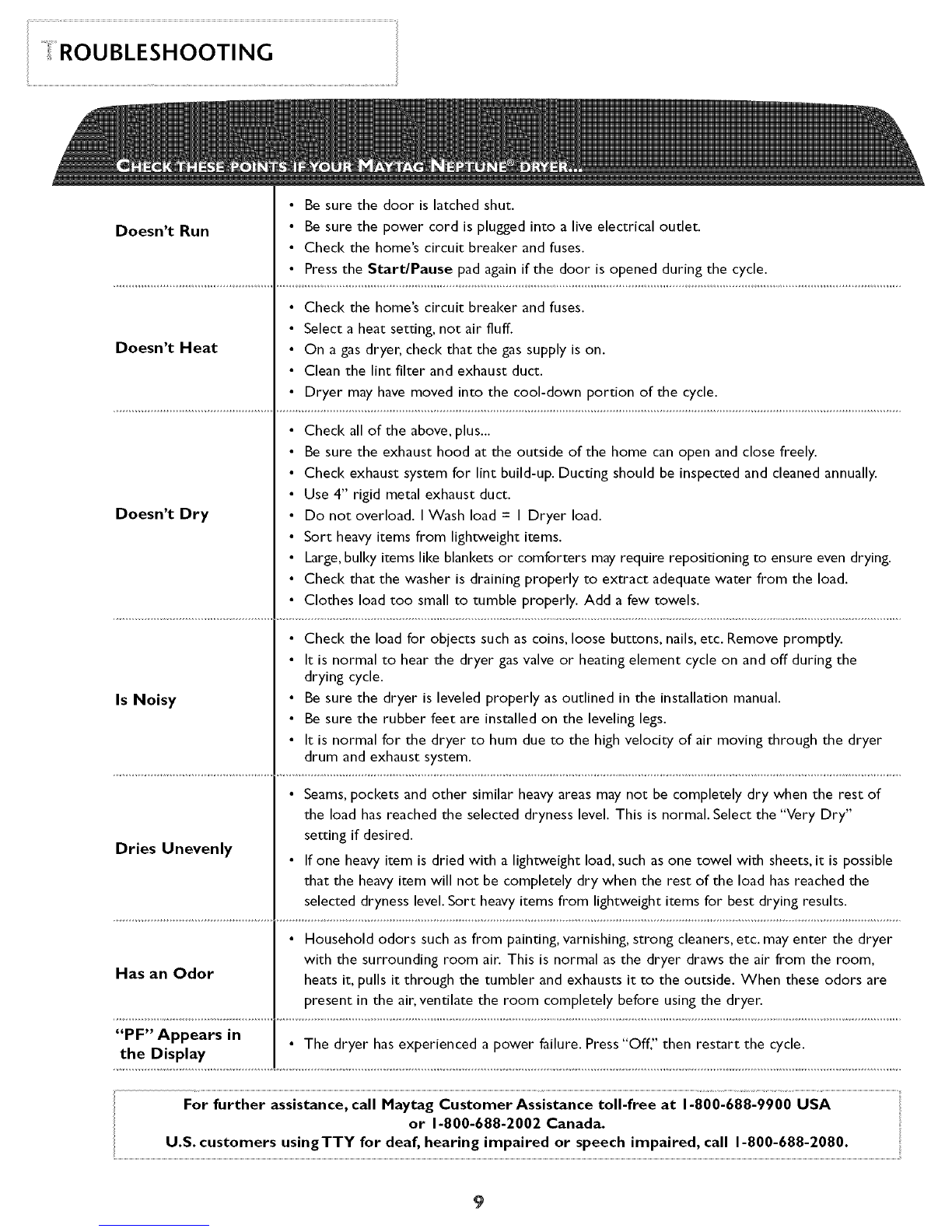

•Be sure the door is latched shut.

Doesn't Run • Be sure the power cord is plugged into a live electrical outlet.

•Check the home's circuit breaker and fuses.

•Press the Start/Pause pad again if the door is opened during the cycle.

•Check the home's circuit breaker and fuses.

• Select a heat setting, not air fluff.

Doesn't Heat • On a gas dryer, check that the gas supply is on.

• Clean the lint filter and exhaust duct.

•Dryer may have moved into the cool-down portion of the cycle.

Check all of the above, plus...

Be sure the exhaust hood at the outside of the home can open and close freely.

Check exhaust system for lint build-up. Ducting should be inspected and cleaned annually.

Use 4" rigid metal exhaust duct.

Doesn't Dry Do not overload. I Wash load = I Dryer load.

Sort heavy items from lightweight items.

Large, bulky items like blankets or comforters may require repositioning to ensure even drying.

Check that the washer is draining properly to extract adequate water from the load.

Clothes load too small to tumble properly. Add a few towels.

•Check the load for objects such as coins, loose buttons, nails, etc. Remove promptly.

•It is normal to hear the dryer gas valve or heating element cycle on and off during the

drying cycle.

Is Noisy • Be sure the dryer is leveled properly as outlined in the installation manual.

• Be sure the rubber feet are installed on the leveling legs.

•It is normal for the dryer to hum due to the high velocity of air moving through the dryer

drum and exhaust system.

• Seams, pockets and other similar heavy areas may not be completely dry when the rest of

the load has reached the selected dryness level. This is normal. Select the "Very Dry"

setting if desired.

Dries Unevenly •If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible

that the heavy item will not be completely dry when the rest of the load has reached the

selected dryness level. Sort heavy items from lightweight items for best drying results.

• Household odors such as from painting, varnishing, strong cleaners, etc. may enter the dryer

with the surrounding room air. This is normal as the dryer draws the air from the room,

Has an Odor heats it, pulls it through the tumbler and exhausts it to the outside. When these odors are

present in the air, ventilate the room completely before using the dryer.

"PF" Appears in • The dryer has experienced a power failure. Press "Off," then restart the cycle.

the Display

For further assistance, call Maytag Customer Assistance toll-free at 1-800-688-9900 USA

or 1-800-688-2002 Canada.

U.S. customers usingTTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.

This manual suits for next models

Table of contents

Languages:

Other Maytag Dryer manuals

Maytag

Maytag MGDZ600TB - 27" Gas Dryer User manual

Maytag

Maytag MGDC200X User manual

Maytag

Maytag MDG16MN User manual

Maytag

Maytag MDG17PRAWW1 User manual

Maytag

Maytag MGD5800TW1 User manual

Maytag

Maytag 4KMEDC215 User manual

Maytag

Maytag MLG31PCB User manual

Maytag

Maytag MGD5100DC User manual

Maytag

Maytag MED5870TW0 User manual

Maytag

Maytag MEDE251YG1 User manual

Maytag

Maytag Bravos MEDX600XW0 User manual

Maytag

Maytag MEDB835DC4 User manual

Maytag

Maytag MDG2706AWW User manual

Maytag

Maytag 50 lb. Single Pocket MDG50V User manual

Maytag

Maytag MDE9651 User manual

Maytag

Maytag MDG50PCCWW User manual

Maytag

Maytag MGD6600TQ - R BravosR Steam Gas Dryer User manual

Maytag

Maytag MDG35 User manual

Maytag

Maytag MED8630HW User manual

Maytag

Maytag Niptune MCE8000AZQ User manual

Maytag

Maytag MGD8000AW0 User manual

Maytag

Maytag MDE22PNAGW0 User manual

Maytag

Maytag Perfoma PYE4500 User manual

Maytag

Maytag MED6000X User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
