Lodar 92 Series User manual
2
or Disconnect Battery
IDENTIFY POWER
CONNECTION POINT
AND ISOLATE SUPPLY
Fuse
Remove fuse
Vehicle batteries contain gasses
which are flammable and explosive.
Wear eye protection and do not lean
over battery while disconnecting. Do
!WARNING
92220.02E
1. The Receiver is designed to carry a maximum of 15 Amps. That is, for example,15 Amps
through one output or 5 Amps each through 3 outputs.
2. Master Output. This can be configured to Continuous or Parallel operation, see below right
for more details.
3. If Receiver outputs are connected in parallel with an external switching device (wired remote)
the Receiver will instantly switch off when the wired remote is operated
4. Lodar Receivers have an isolation switch for safety, to allow for registering a MUST
replacement Transmitter.
5. Safety Feature. Both the Transmitter and the Receiver will “time out” after 30 minutes of
inactivity. This can be altered, ask your dealer.
1!BEFORE YOU START
Wiring Instructions for 10, 16 & 20 Function, 92 & 93 Series, FET Receivers.
3
Secure using 5mm (3/16") bolts (not supplied)
through the 4 mounting feet
TAKE TIME TO LOCATE THE BEST POSITION
If necessary, power the Receiver and move it around
the vehicle until the required performance is achieved.
Operate the Transmitter and observe the Receiver
internal LED’s.
Mount as HIGH as possible
AVOID surfaces with HEAVY VIBRATION
AVOID DIRECT SPRAY from wheels
In a HOT CLIMATE fit in a SHADED position
Cable gland should face DOWN or BACK
Receiver 92 20 RX and 93 20 RX shown,
CAUTION
MOUNT RECEIVER
!What is the MASTER Output for ?
It is used to operate the pump of an
electro-hydraulic power pack or
maybe a clutch pump. It can also be
used for powering a dump valve,
master valve etc.
It can be configured to work
continuously, that is ON when SET
is pressed and OFF when STOP is
pressed;
or in
parallel with any output, that is, it is
active only a function is operated.
If it is needed with certain functions
only, this can easily be configured.
CONNECTION DETAIL
5
OPTIONAL AERIAL
CONNECTION
ENSURE THAT THE GAUGE
OF WIRE USED CAN CARRY
15 AMPS (THIS IS THE
MAXIMUM TOTAL CURRENT
THAT LODAR CAN SWITCH)
OVER THE DISTANCE FROM
THE BATTERY WITH NO
SIGNIFICANT VOLTS DROP!
IMPORTANT
The Receiver switches itself off
after 30 minutes of inactivity.
SAFETY FEATURE
!NOTE
The STOP input can be
used for OVERLOAD or
OVER-TEMPERATURE
etc. If the chassis is
GROUND, then a return
wire is not required.
!
!
IMPORTANT
TAKE CARE NOT TO SHORT
OUT THE MOSFET’s WHEN
MAKING CONNECTIONS
4
GROUND
12 / 24 VOLT
COMMON
FUNCTION 5
FUNCTION 6
FUNCTION 7
FUNCTION 8
MASTER
FUNCTION 1
FUNCTION 2
LK1
FUNCTION 3
FUNCTION 4
6

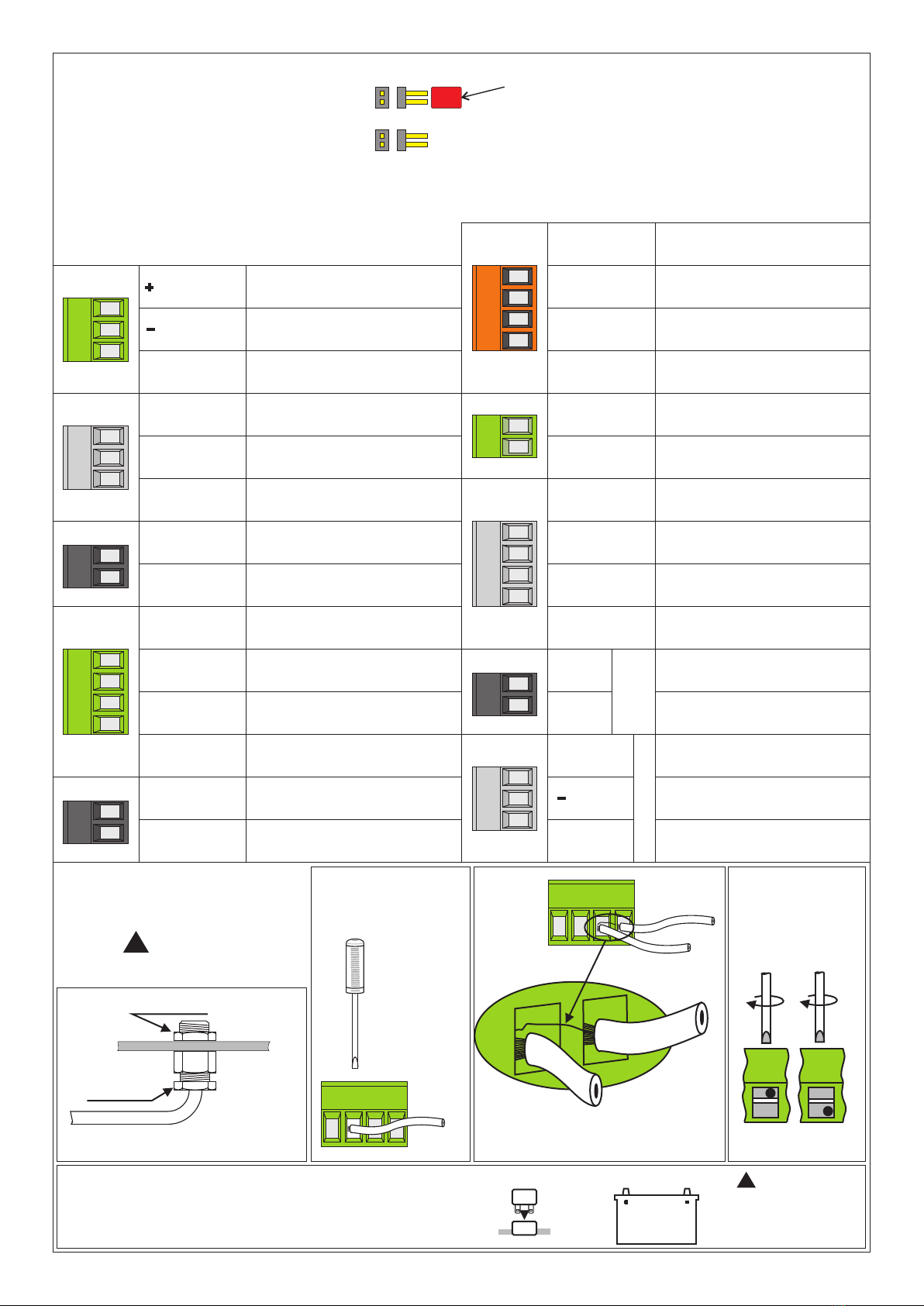

Make connections as detailed below
and record wire colours in the boxes
LK2
LK1, when bridged causes the Master Output to be Parallel
LK2, when bridged causes the Master Output to be Continuous
JUMPER MUST BE FITTED FOR LODAR TO WORK
POWER DOWN RECEIVER BEFORE MAKING CHANGES
JUMPER may be or RED BLUE
STOP
Connections
S+ (Safety
Solenoid etc.)
L1 = LIMIT 1
L2 = LIMIT 2
LIMIT INPUTS
FUNCTION 9
FUNCTION 10
FUNCTION 15
FUNCTION 16
FUNCTION 17
FUNCTION 18
FUNCTION 11
FUNCTION 12
FUNCTION 13
FUNCTION 14
FUNCTION 19
FUNCTION 20
STOP
0 Volts
GROUND
7FINAL CHECK
!ALL ITEMS
IMPORTANT
Check all
connector
screws for
tightness
even the ones
that are not
used as these
could cause a
short circuit
if they vibrate
out of the
connector
Check locknut
Check gland
Check tightness of cable gland
a
b
Stray strands of wire can
cause a short circuit
cdCONNECTOR
BLOCK
secure wire
or Connect Battery
IT IS NOW SAFE TO RECONNECT THE POWER SUPPLY
Refit fuse
eFuse
Vehicle batteries contain gasses
w h i c h a r e f l a m mabl e a n d
explosive. Wear eye protection
and do not lean over battery while
!WARNING
SPECIAL
ORDER
ONLY

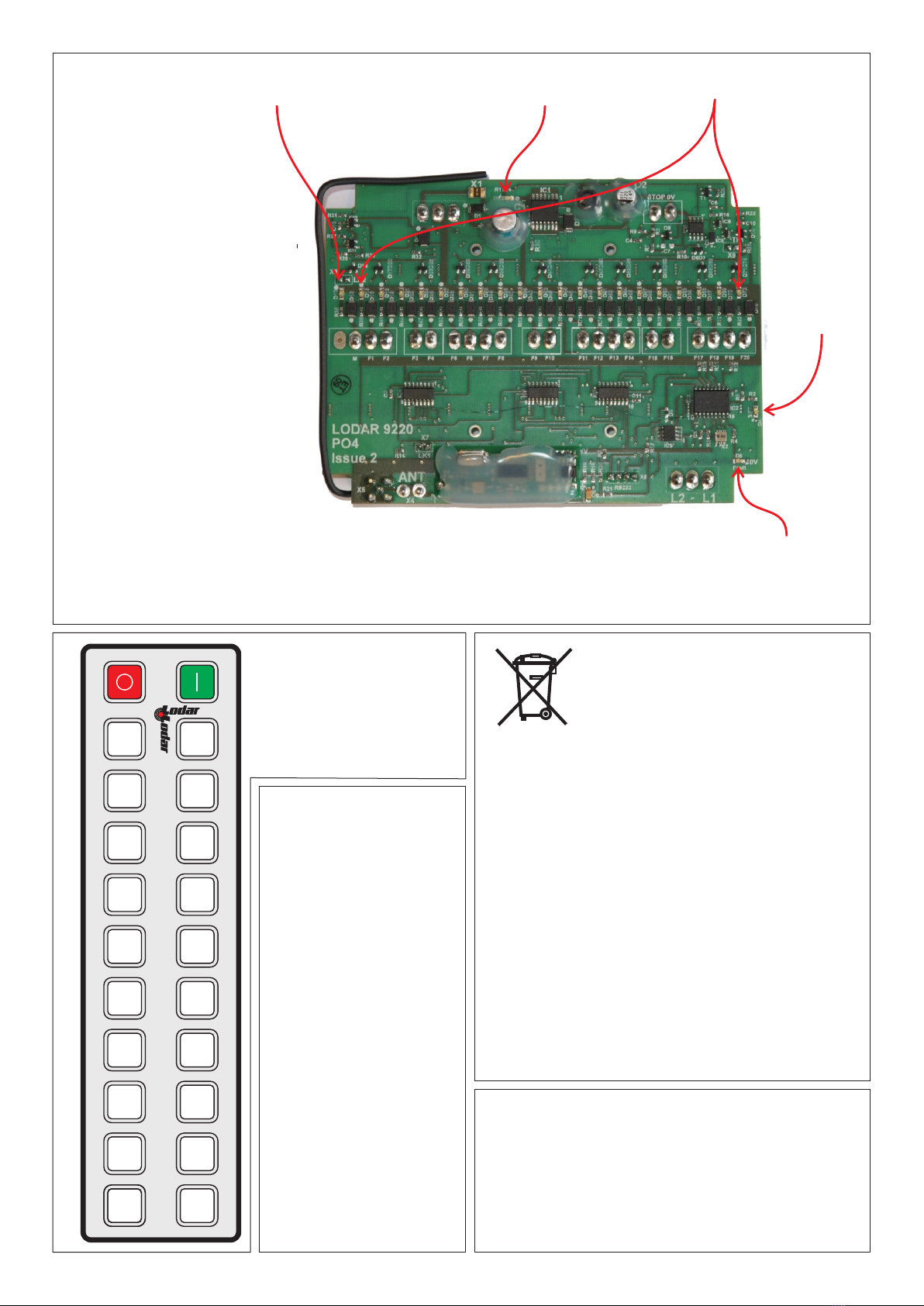

Indicator LED’s 1 through 20
Indicator LED - Master 5 Volts LED
Set LED
Fault LED
LED’s indicate the following
LED marked “5V” indicates
power supply for control circuits
is OK
LED marked “SET” indicates the
system active.
LED marked “Fault” indicates an
overload is present; the system
cannot be reset until overload is
removed.
This LED blinks for 20 seconds
when the system is initially
powered. A replacement
Transmitter (or Keypad or Wired
Remote) has to be registered
during this 20 second period.
LED’s marked F1 to F16 and M
(and optional MC) when ON
indicate an output to that function
(MC is an extra Continuous
Master output)
COMPONENT DETAIL
Lodar 9100 Series is guaranteed for a period of 24
months from the date of purchase, as long as it is
wired in accordance with our instructions, and that
the equipment is fitted with an isolation system to
shut off all power in event of an emergency.
Your product is marked with this symbol. It means
that used electrical and electronic products should
not be mixed with general household waste. There is
a separate collection system for these products.
In the EEC - Please contact your National Distributor
(see www.lodar.com for this information) who will
inform you about the take-back of the product. You
might be charged for the costs arising from the take-
back and recycling. Small products might be taken
back by your local collection facilities.
Outside the EEC - If you wish to discard this product
please contact your local authorities and ask for the
correct method of disposal
IPIP
F1 F2
F3 F4
F5 F6
F7 F8
F9 F10
F11 F12
F13 F14
F15 F16
F17 F18
F19 F20
Numbering convention
of Transmitter Keypad
showing the Receiver
output function number
for that key.
LIMITS - What are these?
The new compact 20
function Receiver has an
input for limit functions.
The circuits between L1 and
ground (-) or L2 and ground,
which when the circuit is
made, or broken, will allow
a function to start or cause
a function to stop.
This requires special
programming.
We also have available an
add-on PCB, Part No. 9220
that has a further 8 Limits.
We have successfully used
this feature on a number of
projects to introduce a
degree of logic using the
on board Programmable IC
or PIC. It may not be
economical to program the
Receiver PIC for a small
batch, please ask.
To register ONE Transmitter to a Receiver.
1. Switch OFF or DISCONNECT the power to the Receiver.
2. Switch ON or Reconnect the power to the Receiver.
This opens a 20 second registration window in the Receiver processor.
If you are looking at the Receiver PCB the Fault LED Flashes.
3. Immediately PRESS and HOLD the Reset Button Transmitter (Indicated)
then within 2 seconds PRESS and HOLD F1, continue to hold BOTH BUTTONS
for a minimum of 5 seconds during this 20 second window.
When the Transmitter is Registered the Fault LED will be illuminated for 3 seconds.
I you are registering TWO Transmitters then within this 3 seconds period release both buttons
and when the Fault LED starts to flash again.
3a. Immediately PRESS and HOLD the Reset Button on the second Transmitter (Indicated) then within 2 seconds
PRESS and HOLD F1, continue to hold BOTH BUTTONS for a minimum of 5 seconds or until the SET LED
illuminates.
Both your Transmitters should now operating the Receiver.
THIS WORKS FOR ALL TRANSMITTERS WITH A AND A BUTTONSTOP RESET
If you have any problems please phone either your local Distributor or Lodar directly
In the UK +44 1922 613633. In the US please phone 1-877- 257-1581.
STX-A4.02
!
1 2
Function Buttons
RESET Button activates the
Receiver and the keypad
function buttons
4 Release Screws for
Battery Compartment
at rear.
4 x AAA batteries
Effective working range up to a distance of
60 metres (200 feet) 92 Series and
300 metres (1000ft) 93 Series.
STOP Button switches off
the Receiver and the keypad
function buttons
L.E.D.
Blinks when Transmitter
and Receiver are active.
ON when a Transmitter
Button is pressed.
Pulses while transmitting
when battery is low.
The Transmitter automatically
transmits a STOP signal after
30 minutes; this de-activates
the Receiver and the Transmitter
keypad.
SAFETY FEATURE
!

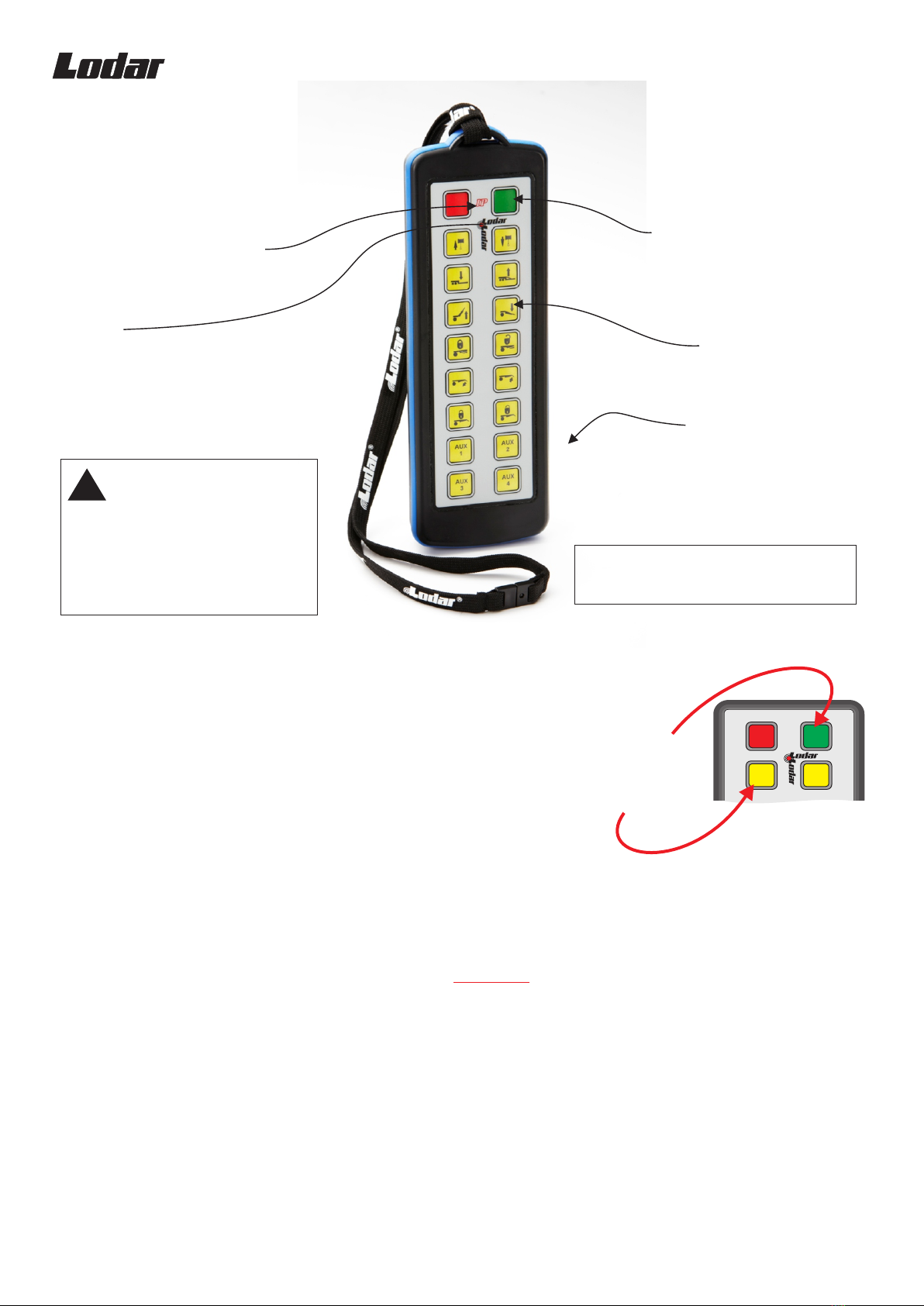

92/93 Series IP Transmitter (16 Function shown )
PRESS & HOLD
RESET & THEN
F1 WITHIN
2 SECONDS
