Lippert Components Ground control 3.0 User manual

Rev: 08.22.18 QR-022 / CCD-0001815

Quick Reference

RV TRANSPORT GC 3.0 TOUCH PANEL/PAD OPTIONS

Connecting the Tow Vehicle

1. Connect a fully charged battery.

2. Ensure battery disconnect is “On.”

3. Press the “Up” and “Down” arrows

(Fig. 5A and 5B) on the Auto Leveling

Control Touch Pad simultaneously

Fig. 1

to turn panel on. The LED (Fig. 5C)

should be solid green.

4. Press the “Up” or “Down” arrows to

extend or retract the landing gear.

NOTE: The arrows control the direction

the front of the trailer will move.

“Up” (Fig. 5A) raises the front

of the trailer. “Down” (Fig. 5B)

lowers the front of the trailer. The

green LED will blink while the

system is running.

5. Connect the tow vehicle.

6. Press and hold the “Down” arrow

until the landing gear is retracted.

7. Use the pull pins on the landing

gear to manually return the jack legs

to their fully retracted position.

8. Turn the battery disconnect “Off.”

Product Information

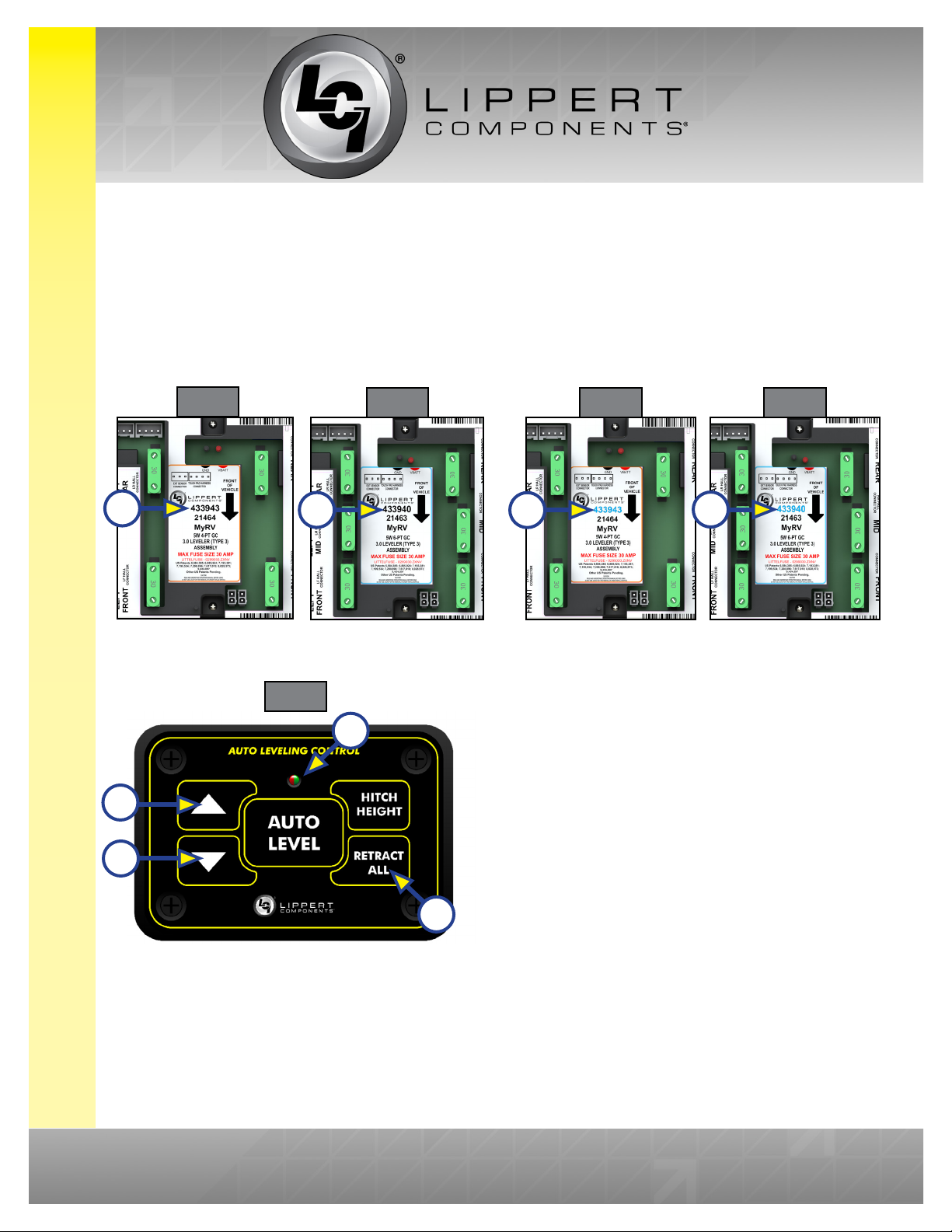

Ground Control 3.0® automatic leveling system for 5th wheel applications features two

controllers. The earlier version, Rev. A, will have an A on the serial number sticker and black text

for the Lippert part number on the controller (Figs. 1A and 2A). Rev. B will have a B on the serial

number sticker and the Lippert part number text on the controller will be blue (Figs. 3A and 4A).

The controllers will be generally located on the ceiling of a compartment toward the front of the

trailer, and serial number stickers are located in the top left corner on the back of the controller.

AAAA

Fig. 2 Fig. 3 Fig. 4

Fig. 5

Rev: 08.22.18 QR-022 / CCD-0001815

Quick Reference

RV TRANSPORT GC 3.0 TOUCH PANEL/PAD OPTIONS

If A Fault Occurs (Rev. B)

If the system stops running and the LED

(Fig. 5C) turns red:

1. Solid red indicates low battery.

A. Ensure battery is fully charged.

B. Ensure battery disconnect is

“On.”

2. A blinking red LED indicates the

system is in Fault Mode. Most

standard codes can be cleared by

pressing "Retract All" (Fig. 5D) on

the Auto Leveling Control Touch

Pad. Three faults cannot be cleared

from the Auto Leveling Control

Touch Pad and must be addressed

from the OneControl Touch Panel

or OneControl App: Hall power

short, bad calibration and sensor

problem.

3. A slowly blinking, faded red LED (red

and green blinking simultaneously)

indicates a jack fault. The landing

gear will still operate in this mode.

A. Press and hold the "Up” (Fig.

5A) icon to extend landing

gear to desired height.

B. Connect tow vehicle.

C. Press and hold the “Retract All”

icon (Fig. 5D) until the landing

gear begins to retract and

the fault code is cleared. The

landing gear will continue to

retract.

D. Use the pull pins on the

landing gear to manually

return the jack legs to their

fully retracted position.

E. Turn the battery disconnect to

"Off."

If A Fault Occurs (Rev. A)

If the system stops running and the LED (Fig. 5C)

turns red:

1. Solid red indicates low battery.

A. Ensure battery is fully charged.

B. Ensure battery disconnect is “On.”

2. A blinking red LED indicates the system is in

Fault Mode.

A. Ensure battery is fully charged.

B. Ensure battery disconnect is “On.”

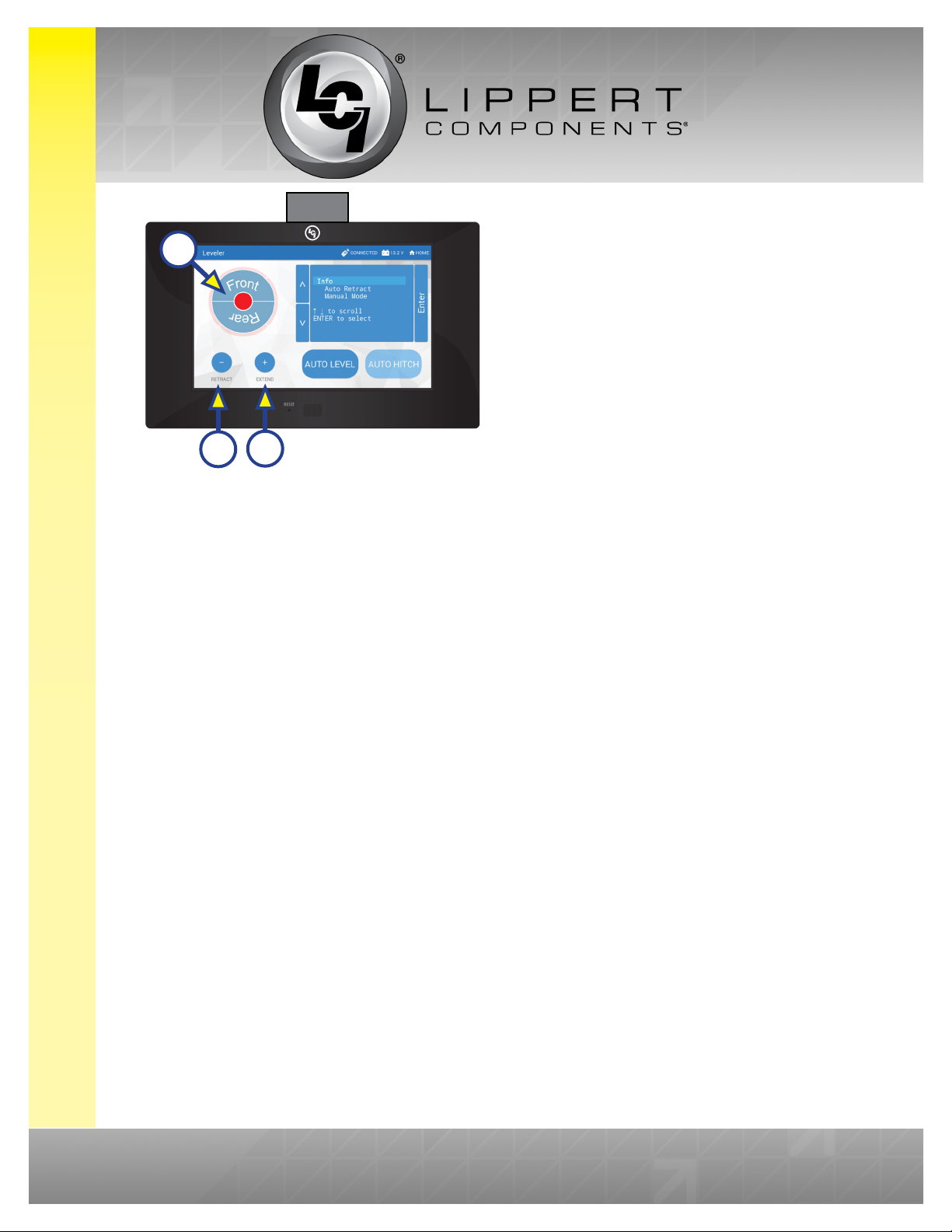

C. Locate OneControl Touch Panel (Fig. 6)

inside the trailer. If the fault reads a jack

error, complete the following steps:

I. Press “Ok” to acknowledge fault.

II. Press “Extend" (Fig. 6A).

III. Press and hold the “Front” (Fig.

6B) icon to extend landing gear to

desired height.

IV. Connect tow vehicle.

V. Press the “Retract” icon (Fig. 6C).

VI. Press and hold the “Front” icon

until landing gear is retracted.

VII. Use the pull pins on the landing

gear to manually return the

jack legs to their fully retracted

position

VIII. Turn the battery disconnect “Off.”

Fig. 6
