Linksys Small Business SPA2102 User manual

My Net Fone Australia Pty Ltd, Address Level 2, 10-14 Waterloo St, Surry Hills NSW 2010

Updated: November 2011

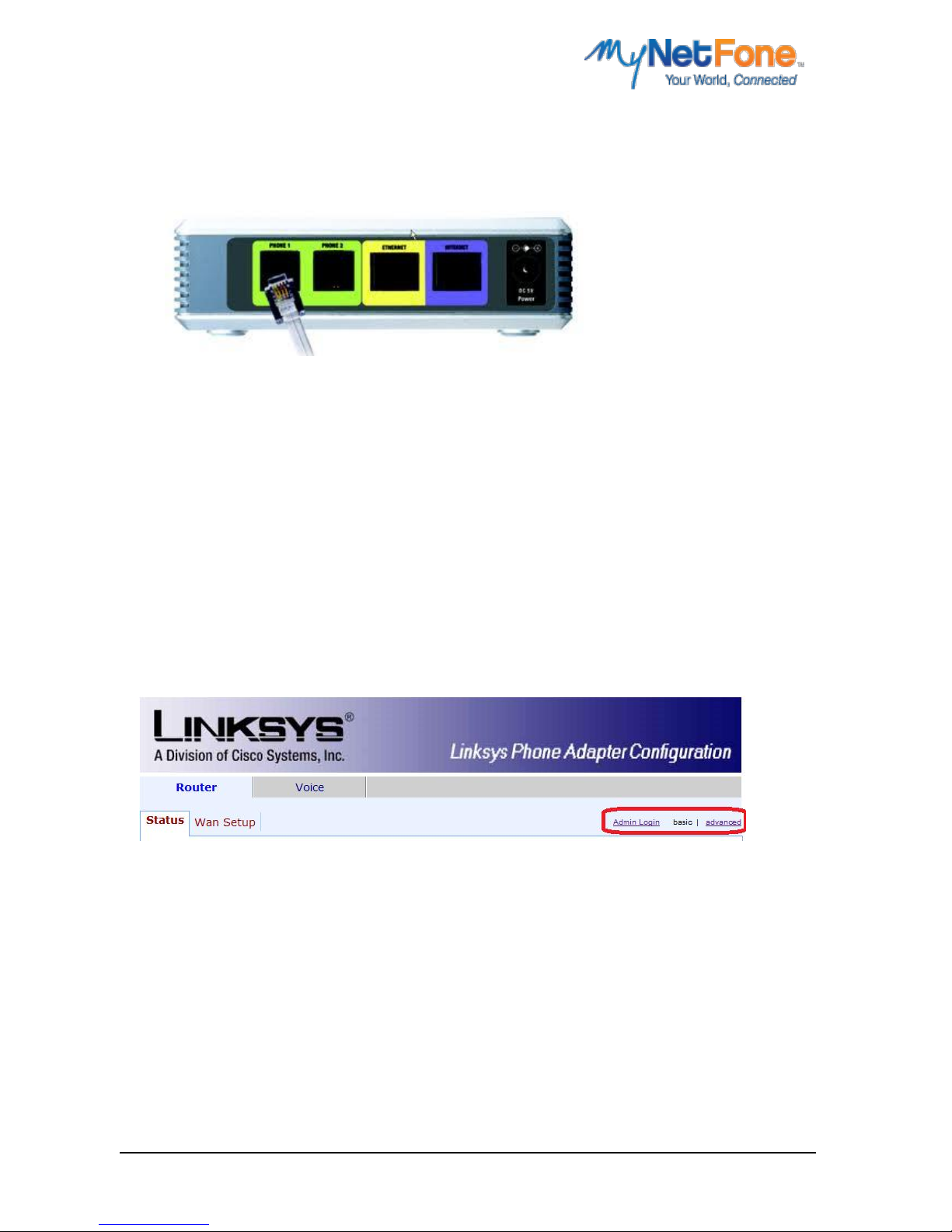

Page 1 of 3

VoIP Setup Guide for Linksys (Cisco) SPA2102

1. Connect a telephone handset to the Phone 1 port

Check the IP Address of the phone adapter:

2. Press **** (i.e. press the star key four times)

3. Wait until you hear the response “Linksys configuration menu—please enter the option

followed by the # (pound) key or hang up to exit”

4. Enter 110#

5. The IP address will be read out -please note it down

6. Open your web browser (e.g. Internet Explorer, Mozilla Firefox, Google Chrome, etc)

7. Enter the IP address in the address bar

8. On the top right side of the window, click on Admin Login

9. Click on advanced, to the right of Admin Login

My Net Fone Australia Pty Ltd, Address Level 2, 10-14 Waterloo St, Surry Hills NSW 2010

Updated: November 2011

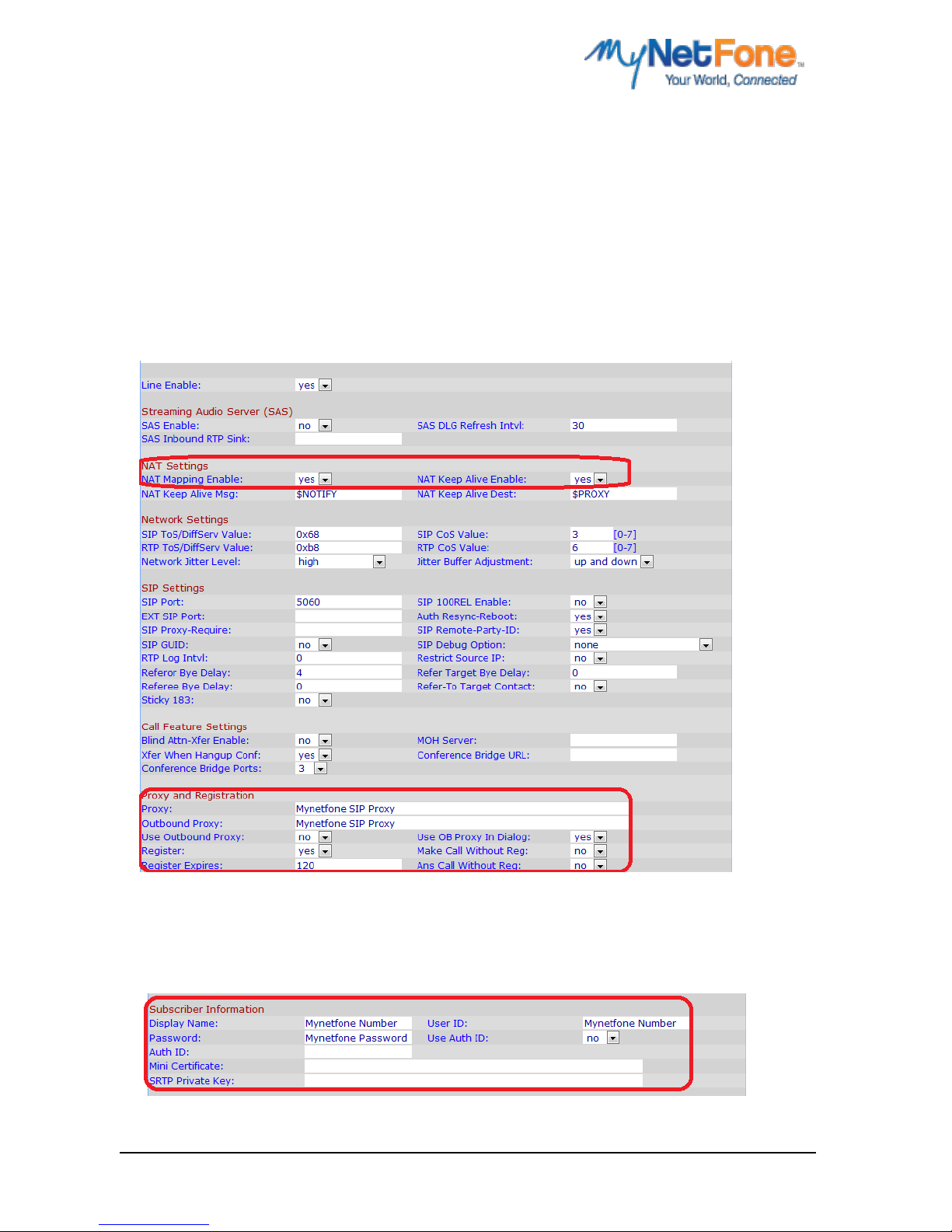

Page 2 of 3

10. On the top menu, click on Voice

11. Select the Line 1 tab

12. For NAT Mapping Enable - select Yes

13. For NAT Keep Alive Enable - select Yes

14. For Proxy - enter sip00.mynetfone.com.au

15. For Outbound Proxy - enter sip00.mynetfone.com.au

16. For Use Outbound Proxy - select Yes

17. For Register Expires - enter 120

18. For Display Name - enter your MyNetFone Number

19. For User ID - enter your MyNetFone Number

20. For Password - enter your MyNetFone Password

My Net Fone Australia Pty Ltd, Address Level 2, 10-14 Waterloo St, Surry Hills NSW 2010

Updated: November 2011

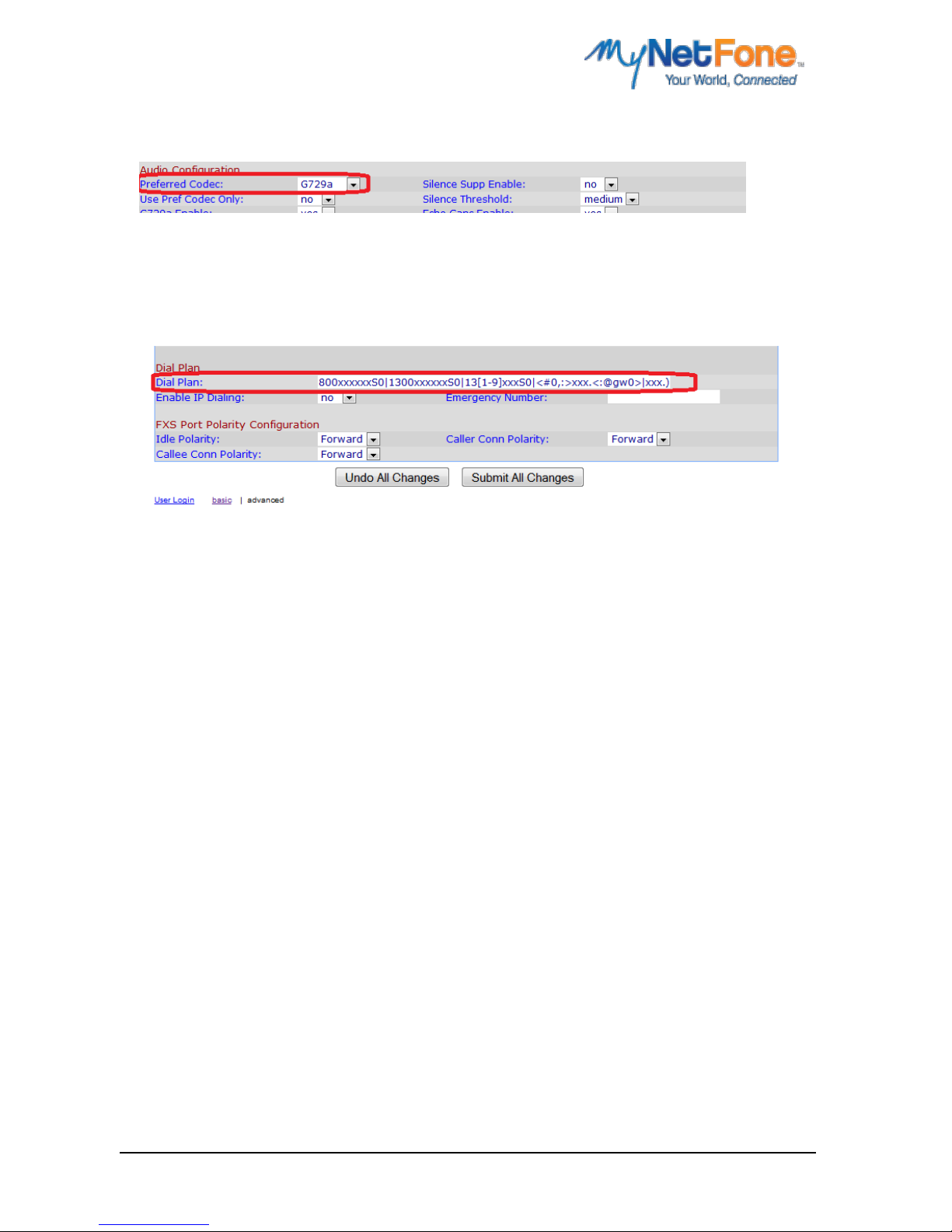

Page 3 of 3

21. For Preferred Codec - select G729a

22. For Dial Plan - enter the following:

(*xx.|000S0|121S0|151S0|181S0|[2-

9]xxxxxxxS0|0[23478]xxxxxxxxS0|0011xxx.|1800xxxxxxS0|1300xxxxxxS0|13[1-

9]xxxS0|<#0,:>xxx.<:@gw0>|xxx.)

To setup Phone port 2 - click on Line 2 and follow the steps from 12- 22.

23. Click on Save Settings
