Linksys PAP2-T User manual

Linksys PAP2T Setup and VoIP Configuration Guide

Before You Begin, make sure you ha e the following:

• An acti e Internet connection

• An acti e Internet phone ser ice account and its settings

• A cable/DSL modem

• One computer for configuration of the Phone Adapter

• An analog telephone or fax machine with an RJ-11 phone cable.

I. Connect the Phone Adapter

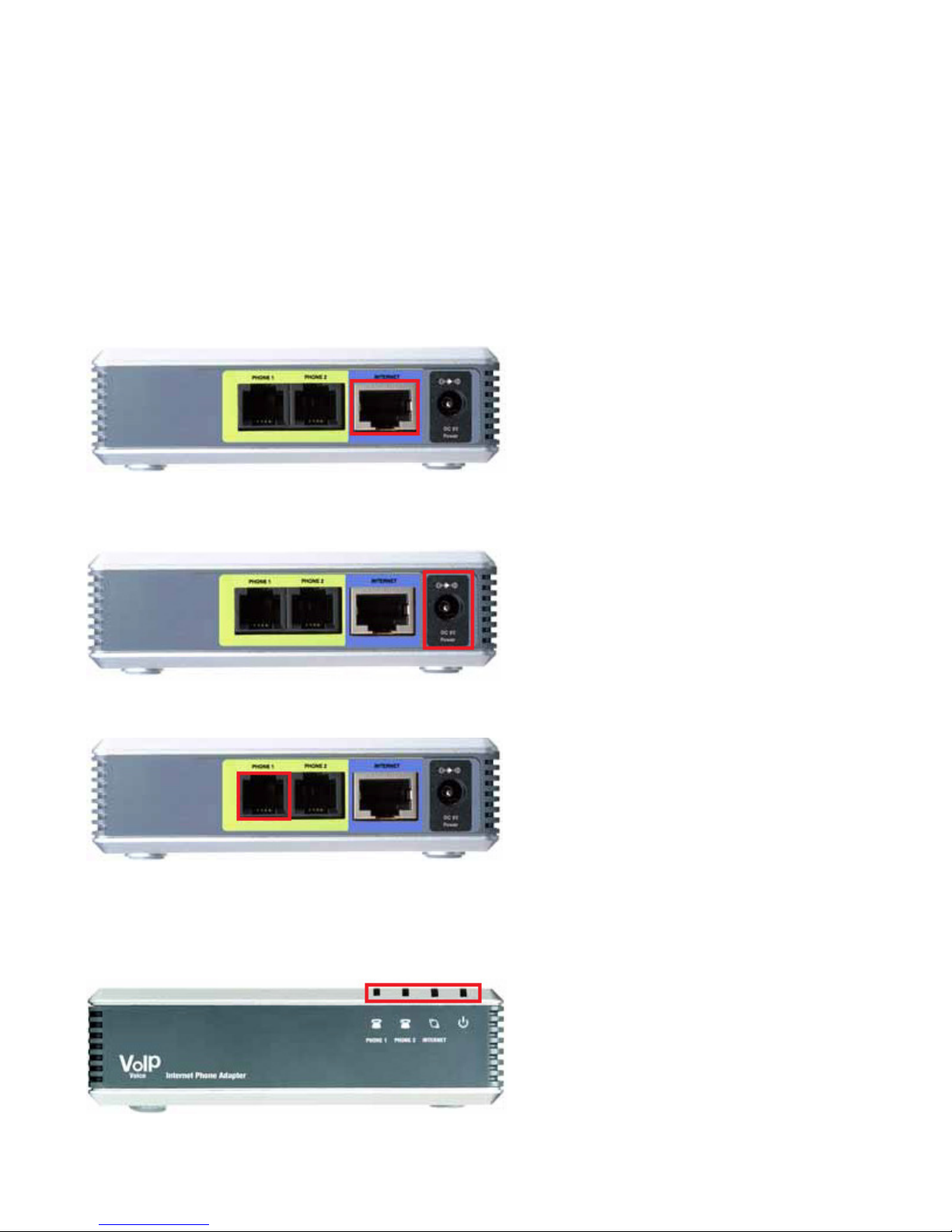

STEP 1 Connect the included Ethernet network cable to the INTERNET port of the Internet Phone

Adapter. Connect the other end to one of your router’s Ethernet ports.

STEP 2

Connect the included power adapter to the POWER port of the Internet Phone Adapter.Connect the

other end to an electrical outlet.

STEP 3 Using a telephone cable, connect your telephone to the PHONE 1 port of the Internet Phone

Adapter.

STEP 4 If you ha e a second Internet phone ser ice account, then connect another telephone or a

fax machine to the PHONE 2 port of the Internet Phone Adapter.

STEP 5 The Power, Ethernet, and Phone LEDs will be solidly lit when the Internet Phone Adapter is

ready for use.

II. Configure the Phone Adapter

STEP 1 Determine the PAP2T IP address to access the web interface

•Dial ****110#

•Listen to IP Address which is read back to you (e.g. 192.168.0.1).

STEP 2 Launch the web browser on the PC where the IP Address was pro ided in STEP 1.

http://<IP Address>/

Example: http://192.168.0.1/

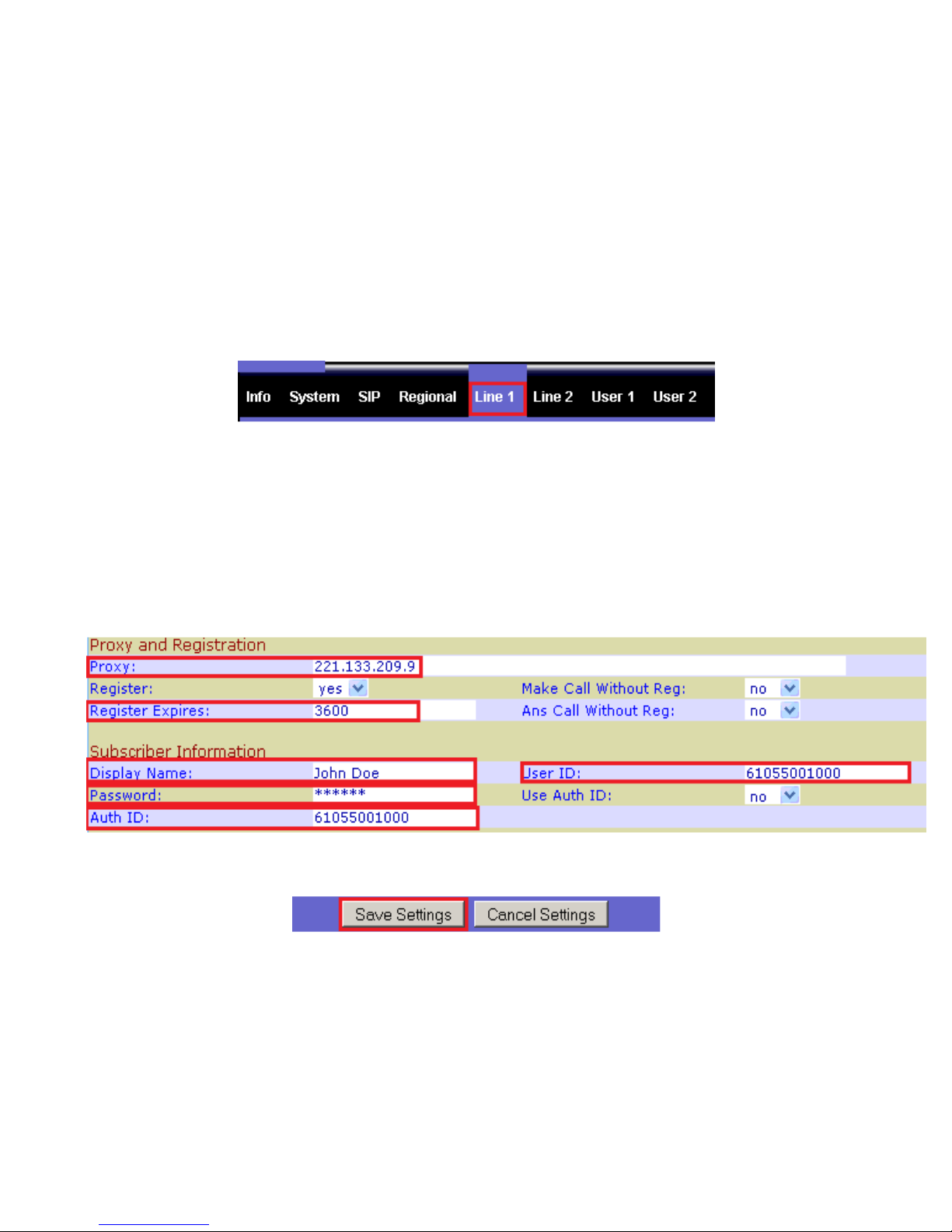

STEP 3 Click on the "Admin Login" button near the top right side of the screen, then click on the

"Line 1" tab.

STEP 4 Next, choose from the main menu 'Voice' and then Line1. Enter your Asiadigicall VOIP

number into the User Id: field and Asiadigicall SIP password into the Authenticate Password: field.

Enter 221.133.209.9 into Registration/Proxy Ser er: field. Repeat Step 5 for line 2.

Example:

Proxy: 221.133.209.9

Display Name: Enter your full name, this will show up as part of your callerid.

User ID: 61055001000

Password: 123456

Register Expires: 3600

STEP 5 Click on the "Sa e Settings " button at the bottom of the form.

STEP 6 Make Calls!
