Lilliput 629GL-70NP User manual

LILLIPUT TFT LCD

629GL-70NP/C/T

DEAR CUSTOMERS

Thank you for purchasing the liquid crystal display monitor. This product

employs new integrate circuits and high quality TFT LCD modules. It is

putting out with its low power consumption, emits no radiation, and other

advantage characteristics. This product is shaped with modern style and is

easy to be carried with. The color TFTLCD is the most suitable display for

VGA,VCD, DVD and GPS system for motorcars and ships .It also can be

used in the office ,in flat ,at home also in other suitable position. You will

certainly benefit from this monitor in lots of ways, to name some of them:

convenience, safety, space-saving.

We hope that you will have the enjoyment of your new mini color TFT

LCD.

To ensure the best use of the unit, please read this handbook carefully beforehand.

CAUTION

1. Please use the adapter attached in the accessory.

2. Do not expose this product to direct sunlight, heat or humid

conditions.

3. Keep away from strong light while using this product so as to

obtain the clearest and the most colorful picture.

4. Please avoid heavy impact or drop onto the ground.

5. Do not use chemical solutions to clean this unit. Please simply

wipe with a clean soft cloth to keep the brightness of the surface.

6. Ifthe product does not operate normally when the instructions are

followed. Adjust only those controls that are covered by the

instructions. Improper adjustment of other controls may result in

damage and will often require extensive work of a qualified

technician.

CONTANTS

1. PRODUCT DESCRIPTION -------------------

2. REMOTE CONTROLLER --------

3. MATCHED CABLE ---------------------------

4. CONNCETION ---------------------------

5. MENU OPERATION

IN AV MODE

BRIGHTNESS ADJUSTMENT------------------------------

CONTRAST ADJUSTMENT------------------------------

SATURATION ADJUSTMENT------------------------------

TINT ADJUSTMENT------------------------------

SHARPNESS ADJUSTMENT------------------------------

OSD LANGUAGE ------------------------------

RESET ------------------------------

OSD POSITION ------------------------------

OSD DURATION------------------------------

EXIT OSD ------------------------------

IN PC MODEM

BRIGHTNESS ADJUSTMENT------------------------------

CONTRAST ADJUSTMENT------------------------------

PHASE ADJUSTMENT------------------------------

CLOCK ADJUSTMENT------------------------------

OSD POSITION ADJUSTMENT------------------------------

RESET------------------------------

OSD COLOR TEMPERATURE------------------------------

OSD LANGUAGE------------------------------

OSD MISCELLANEOUS------------------------------

RETURN TO MAIN MENU---------------------------

OSD POSITION ADJUSTMENT---------------------------

OSD AUTO COLOR---------------------------

SATURATION ADJUSTMENT---------------------------

TINT ADJUSTMENT---------------------------

EXIT OSD------------------------------

6. ACCESSORIES ------------------------------

7. PARAMETER --------------------------

8. TROUBLESHOOTING -----------------------

PRODUCT DESCRIPTION

Picture 1

1. PC/AV: PC, AV switch.

2. <: Selection key, to select item on the OSD or push the key in PC

mode directly to adjust phase automatically.

3. MENU: To activate OSD menu.

4. >: To select function on OSD or to adjust the brightness directly.

There are six levels of brightness, push this button directly to

change among them.

5. Infrared receiving window

6. Vol- : Volume down or to adjust the value of setting function

7. Vol+: Volume up or to adjust the value of setting function

8. POWER: Power on/off

9. DC12V input jack

10.SKS input jack

11.Touch pen (for touch screen）

REMOTE CONTROLLER

Picture 2

: POWER ON/OFF

: MUTE

: Display inputted mode

: To activate OSD menu

: Volume down or to adjust the value of setting function

: Volume up or to adjust the value of setting function

: To select function on OSD

: AV1, AV2, PC switch

~ : Number key, no use

: Unit, double-digit, three-Picture, no use.

: NO USE

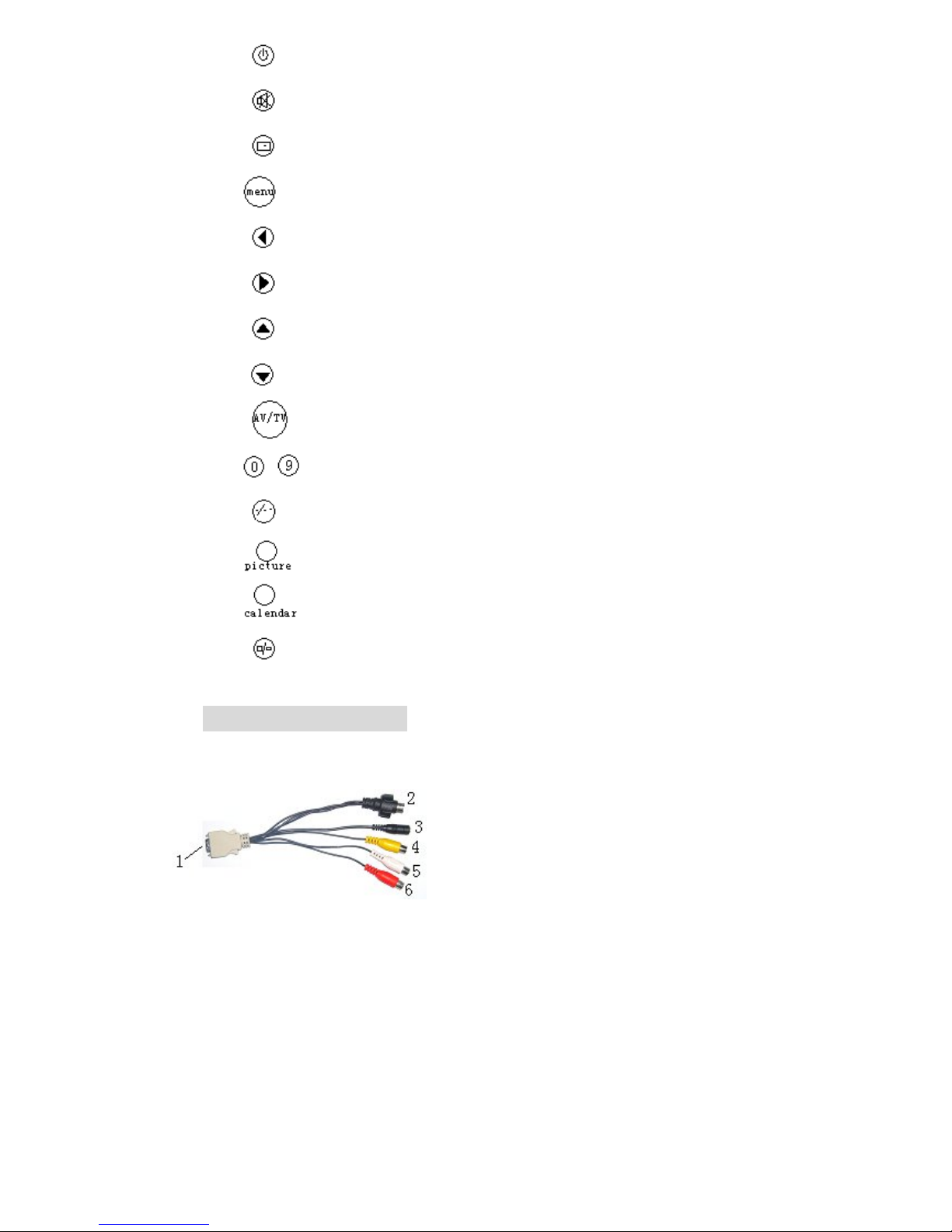

MATCHED CABLES

Picture 3 (AV Cable)

1. SKS input end connect the SKS input jack of the unit

2. Black 9-pin plug for VGA signal input

3. Black jack DC12v power input

4. Yellow RCA jack for video 1 input

5. White RCA jack for audio input

6. Red RCA jack for video 2 input

Picture 4 (VGA cable)

1. Black 9-pin jack connect 9-pin plug of picture 3

2. USB end connect the USB port of computer for touch screen function.

3. 15-pin VGA signal input end connect VGA port of the computer

CONNECTION

Put the SKS input end of AV cable picture 3 into the AV input jack of the

monitor, the other jack of A/V cable should be connected with related signal

input as follows

1. Black 9-pin plug of picture 3 is connected to the 9-pin jack of picture 4 (note

the right direction of arrowhead),the VGA signal input end of picture 4 will

be connected to the VGA port at the back of computer ,then tighten the

screws . The USB end connects the USB port of the computer for touch

screen function.

2. Yellow RCA jack connect video signal 1

3. Red RCA jack connect video 2

4. White RCA jack connect audio signal

5. Black jack connect DC12v power

6. When you use the unit, please adopt matched DC adapter, if not, please

note that the power consumption should be less or equal to 10w.

MENU OPERATION

After connecting power, the unit will be in standby state .Press ”POWER”

on the unit or on the remote controller, the buttons of the unit will light ,the

POWER is red ,the others are blue, at that time the unit begins to work. Press

the same button again the unit will return to its standby state (Note the blue

button will black out in 5 or 6 seconds soon after you turn off unit.). When

it is working push “PC/AV” on the unit or on the remote controller to switch

between AV and PC.

IN AV MODE

.you can press “</>”on the unit or “ / ” on the remote controller to select

the item demanded among , , , , , , , , ,

, (in line: brightness ,contrast , saturation, tint , sharpness,

language , reset , OSD H- position, OSD V-position ,OSD duration, exit

OSD )and the selected item’s background will be yellow and the explanation of

the item will display in the window which on the right side of the OSD menu .

For touch screen function please download the driver for touch screen from

our website

BRIGHTNESS ADJUSTMENT

Press “</>”on the unit or “ / ” on the remote controller to

select ,and then press Vol+/ Vol- of the unit or / to adjust the

luminance of BRIGHTNESS as your desire. Then press “</>”on the unit or

“ / ” on the remote controller to select other item to adjust or to select

to exit the OSD. Other ways you can push “>” on the unit to switch the

level of brightness directly, there is 6 levels of brightness approved.

CONTRAST ADJUSTMENT

After activate MENU press “</>”on the unit or “ / ” on the remote

controller to select , then you can press Vol+/ Vol- of the unit or / to

adjust the level of contrast .After that press “</>”on the unit or “ / ” on

the remote controller to select to exit the OSD or select other item to

adjust .

SATURATION ADJUSTMENT

To adjust the saturation of image, press “</>”on the unit or “ / ” on the

remote controller to select , then push Vol+/ Vol- of the unit or / on

the remote controller to adjust the level of saturation. After adjustment select

to exit the OSD or select other item to adjust.

TINT ADJUSTMENT

The is to adjust the hue of image .Push Vol+/ Vol- of the unit or /

on the remote controller to adjust the hue of image as your desire after you

selected this object. Then press “</>”on the unit or “ / ” on the remote

controller to select other item to adjust or to select to exit the OSD.

SHARPNESS ADJUSTMENT

To adjust the sharpness of image you can operate as mentioned above

i.e. push “</>”on the unit or “ / ” on the remote controller to choose and

then press Vol+/ Vol- of the unit or / on the remote controller to adjust

the level of sharpness as your desire. After adjustment press “</>”on the unit

or “ / ” on the remote controller to select to exit the OSD.

OSD LANGUAGE

There is 8 language approved of the menu, namely English, French,

Deutsch, Espanol, Italiano, Nederland, Portuguese and Chinese. Push “</>”on

the unit or “ / ” on the remote controller to choose and then press

Vol+/ Vol- of the unit or / on the remote controller to select the langue

that you need. Then press “</>”on the unit or “ / ” on the remote controller

to select other item to adjust or to select to exit the OSD.

RESET

If you’d like to reset the adjustment ,press “</>”on the unit or “ / ” on

the remote controller to choose item; then push Vol+/ Vol- of the unit or

/ on the remote controller to choose “YES “ and it will reset to original

mode , after that you can reset adjustment of the unit as your desire once

more .

OSD POSITION ADJUSTMENT

The is to adjust the OSD position in horizontal direction, press

“</>”on the unit or “ / ” on the remote controller to select this item, then

push Vol+/ Vol- of the unit or / on the remote controller and the OSD

will move in horizontal direction .Press Vol+/ is to make the OSD move to

right, Vol-/ is to make the OSD move to left. After that press “</>”on the unit

or “ / ” on the remote controller to select other item to adjust or to select

to exit the OSD.

To adjust the OSD position in vertical direction you can select next item

and operate as follows,

The is to adjust the OSD position in vertical direction, press “</>”on the unit

or “ / ” on the remote controller to select this item, then push Vol+/ Vol- of

the unit or / on the remote controller and the OSD will move in vertical

direction as your operation. Push Vol+/ to make the OSD move up, push

Vol-/ is to make the OSD move down.

OSD DURATION

The duration of OSD is adjustable. Press “</>”on the unit or “ / ” on the

remote controller to select , then you can adjust the duration of OSD by

pressing Vol+/Vol- of the unit or / on the remote controller. Push

Vol+/ to extend the period of duration, push Vol-/ to shorten the period

of duration .The duration of OSD is up to 100 seconds.

EXIT OSD
